RCF BM 3804FM

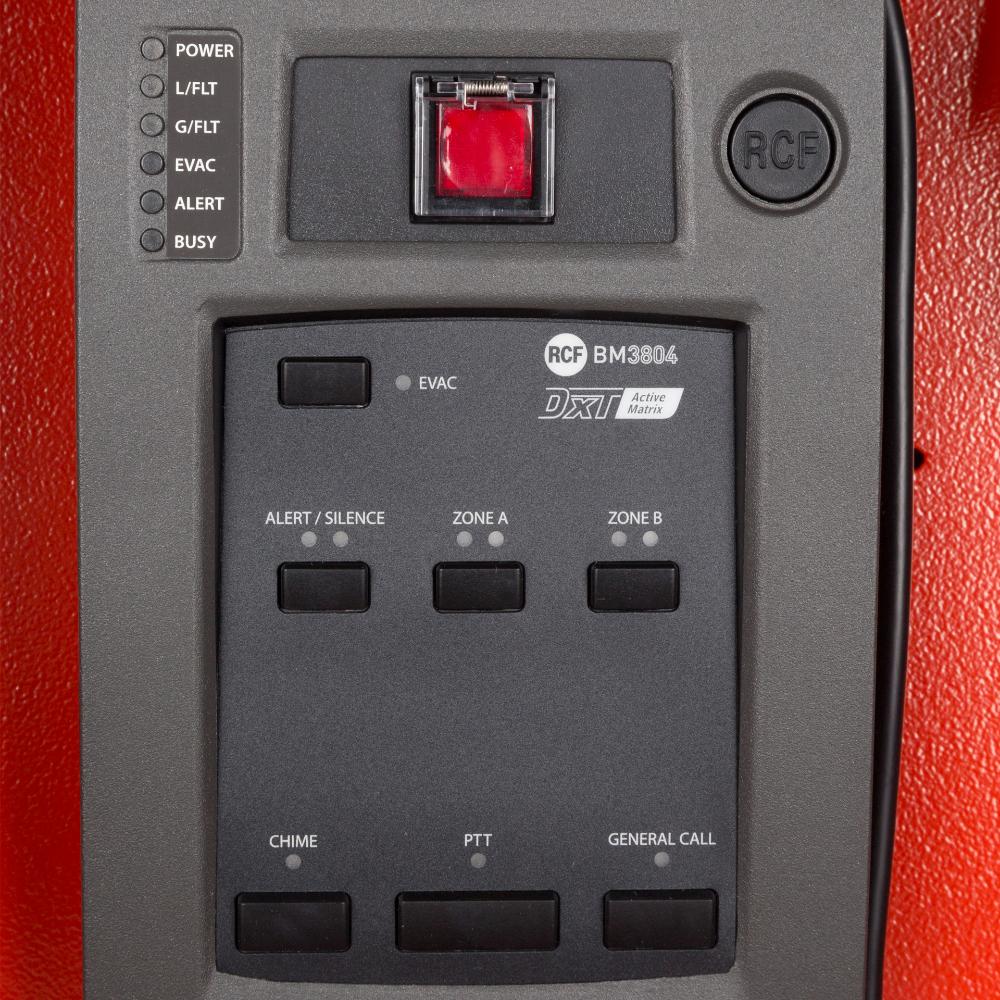

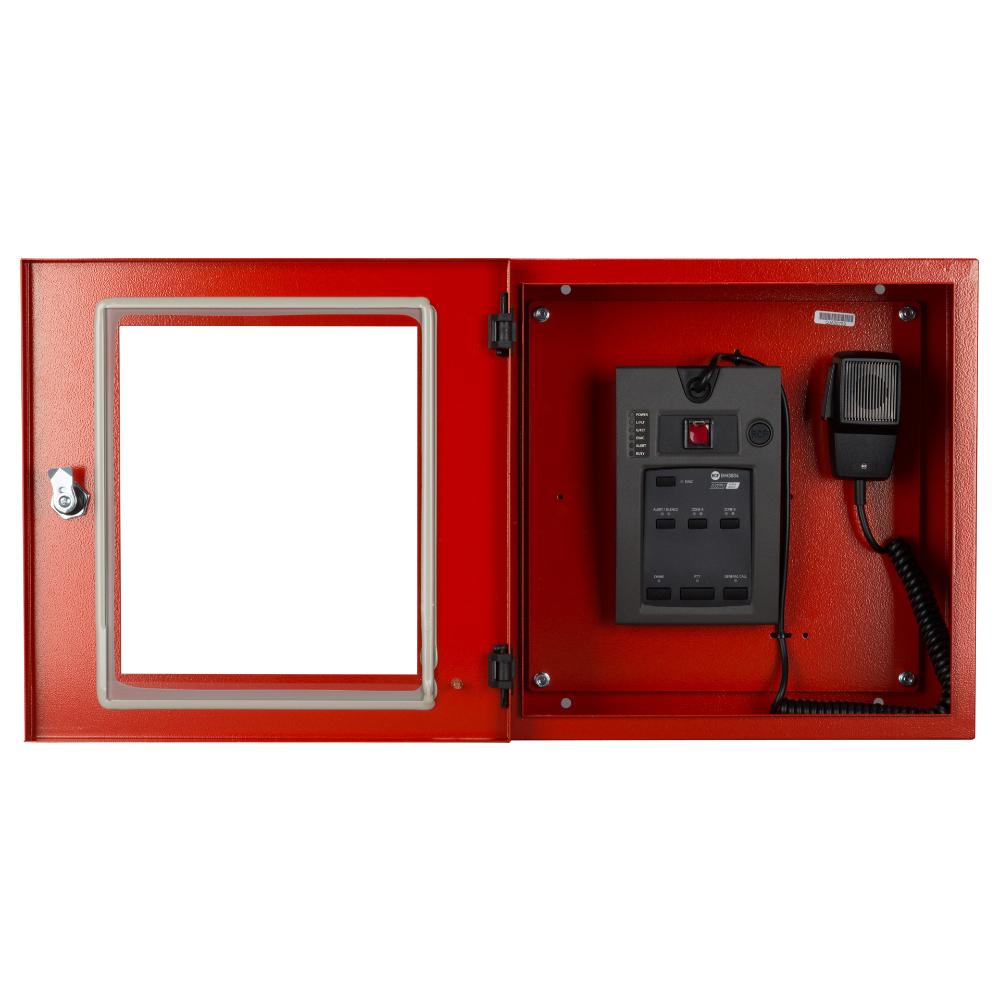

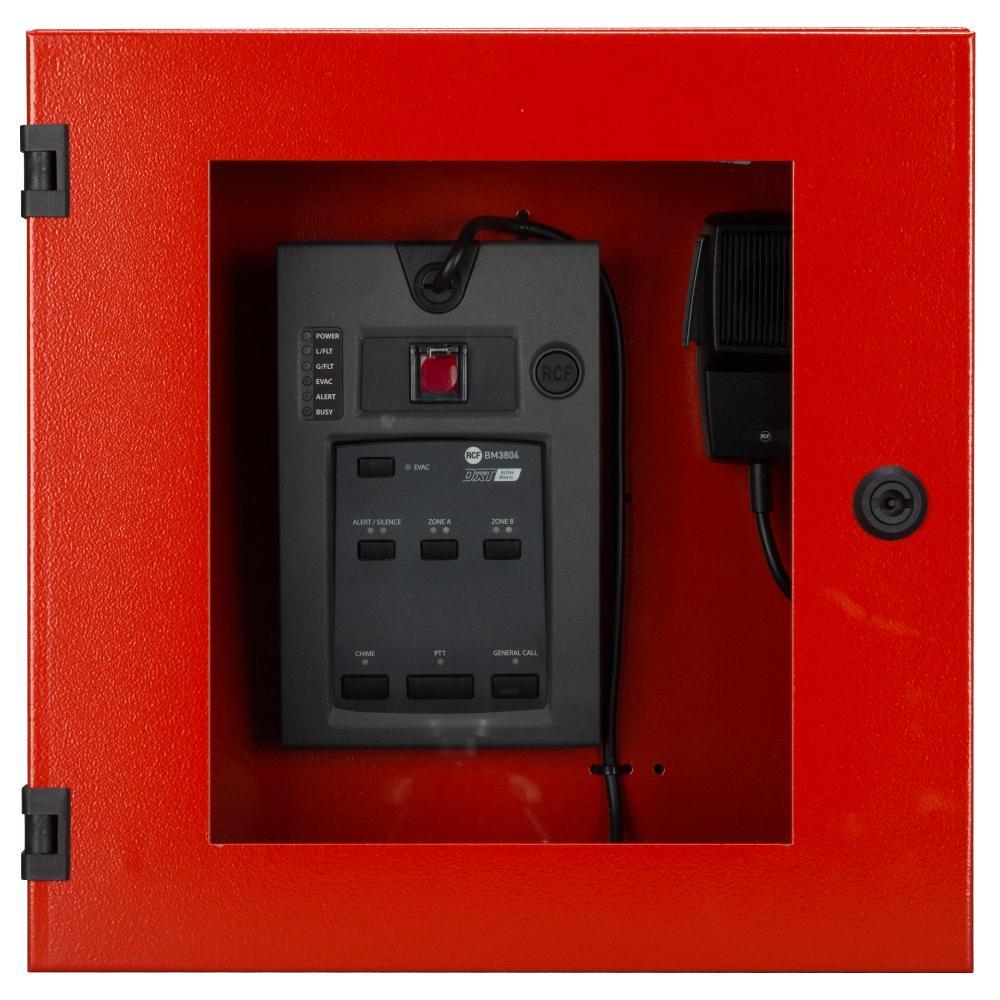

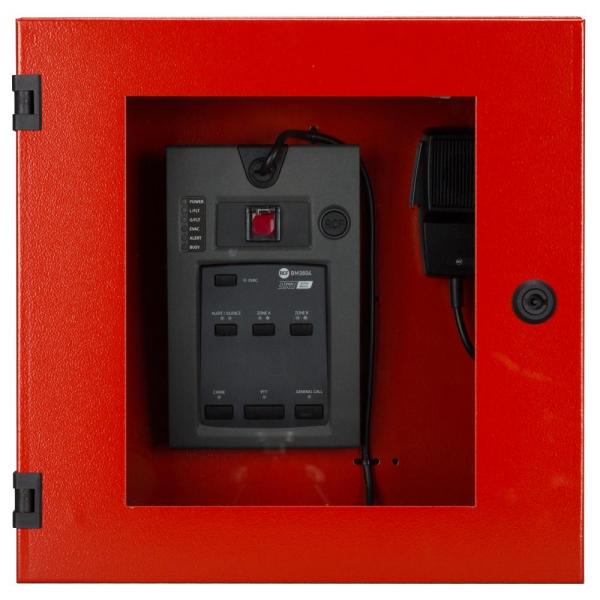

The RCF BM 3804FM is a firemans’ emergency microphone contained within a wall-mounted console cabinet exclusively dedicated to DXT 3000 / 4000 RCF Voice Alarm system.

It can be used both for live announcements and to activate pre-recorded messages.

The BM3804FM features complete self-diagnostic functionalities and system status reporting in compliance with EN 54-16:2008 standard.

Up to four consoles can be daisy-chained on the line, the first of those has emergency functions and is powered directly by the master unit, while the others need local 24V DC adapters.

  • Live emergency announcements
  • Pre-recorded messages activation
  • Complete self-diagnostic
  • Powered by master unit
  • Handheld microphone with PTT button
  • Protected into a robust metal box
  • Warranty: 3 Years



Evac
List Ex VAT: £992.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Dynamic

Directivity

Omnidirectional

Frequency Response

300 Hz ÷ 6000 Hz

Microphone Sensitivity

– 70 dB

Power requirement

24 V dc

Dimensions (HxWxD)

360mm x 360mm x 129mm
14.17" x 14.17" x 5.08"

Net Weight

6.9 kg (15.21 lbs)
