LD Systems QTP 5
Click to expand

LD Systems QTP 5

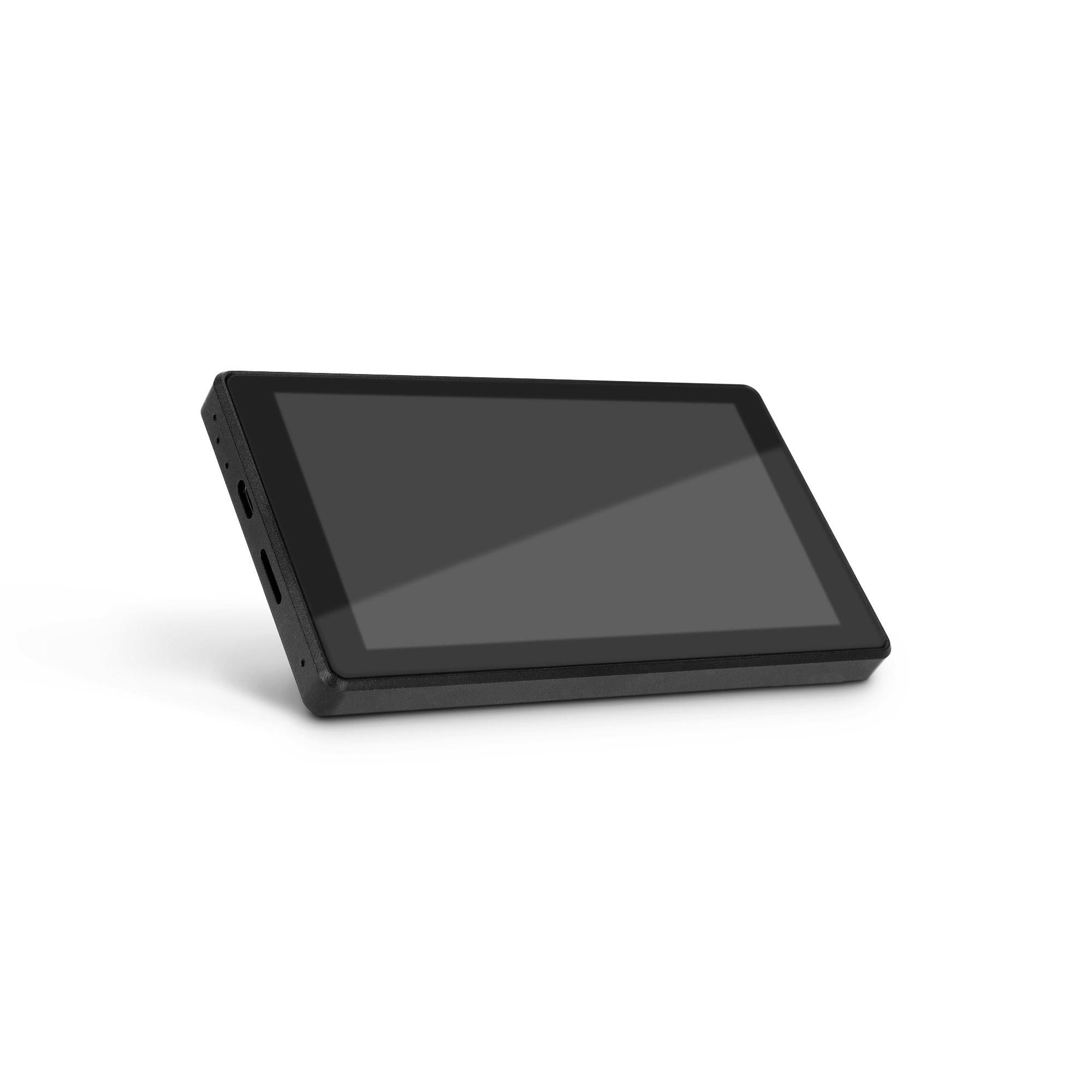

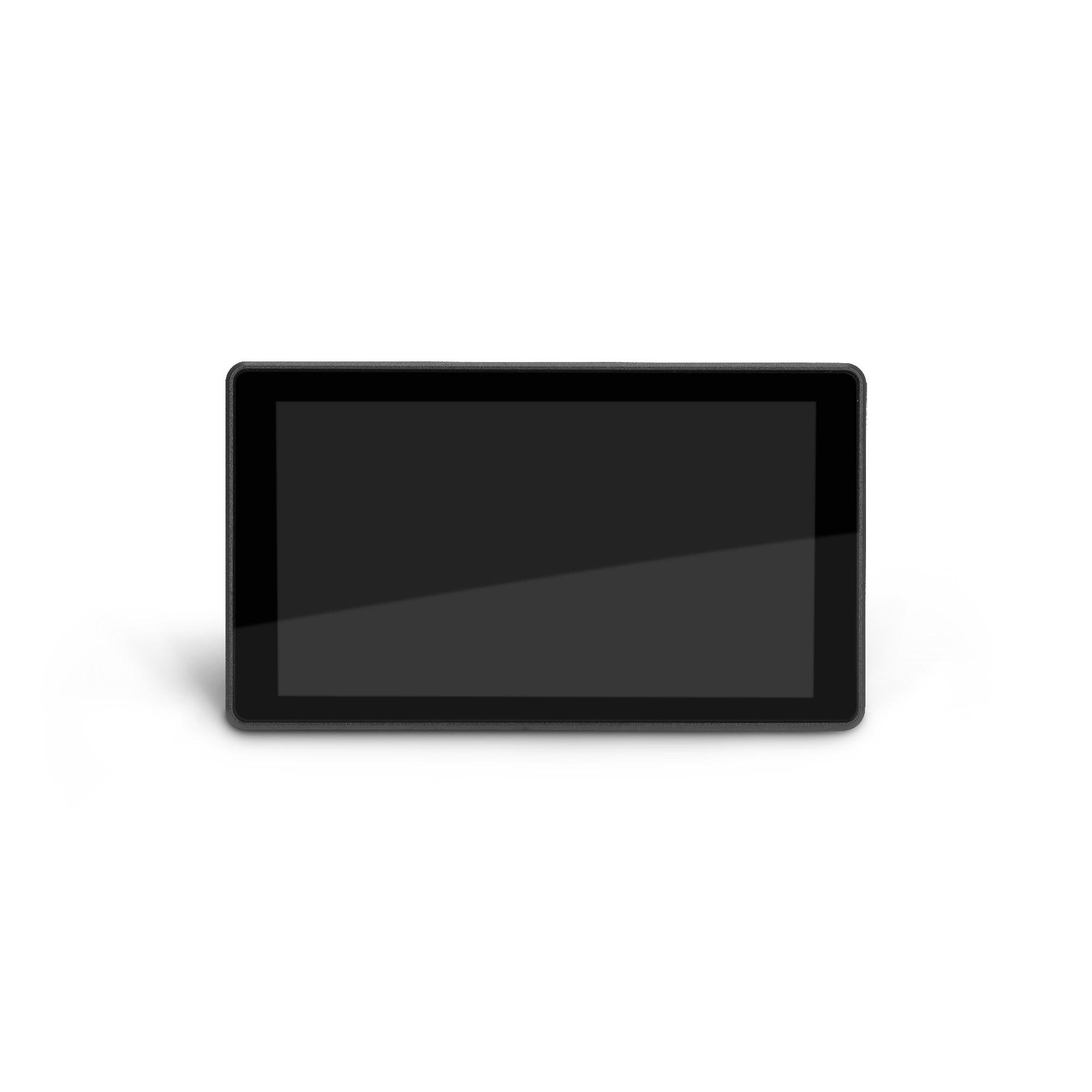

The QTP 5 Questra®* 5" Touchscreen Panel is powered by Andriod 11 OS and designed to control LD integrated systems solutions and other professional audio and video applications. Install the QUESTRA® Panel app to control your custom panels, designed with the QUESTRA® software. With this display, you can conveniently and intuitively control your audio settings, lighting and other building functions.

The LD Systems QTP 5 features universal wall mounting options as well as PoE (Power over Ethernet) for easy installation. Alternatively, an optional power supply is also available.

This display and QUESTRA® Panel app provides an easy to use solution for the control of all connected devices by end users.

  • 5-inch touchscreen Panel
  • Android 11 OS
  • Control of custom Questra User Panels
  • Designed for LD Integrated Systems solutions
  • Universal Wall mounting Options
  • PoE powered (Power over Ethernet)
  • Optional: Power Supply
  • Warranty: 5 Years

*QUESTRA® is a design and management software solution developed by LD Systems. It enables seamless configuration and control of LD Systems devices as well as third-party equipment such as lighting and video devices, from a centralised platform.

With powerful integration capabilities, it supports third-party controlled solutions and logic nodes for automation and system-wide management. In addition, customisable user panels provide intuitive control on Windows computers, as well as on Android and iOS devices.

QUESTRA® facilitates access to the full DSP capabilities of LD Systems' audio installation devices. Configure and manage networked audio solutions of any size, while integrating lighting and video with support for third-party controls and automation features, enabling seamless control of all devices from a single application.

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

5.5" QUESTRA Touchpanel

Processor

RK3566 - Quad-core up to 1.8 GHz

RAM

2 GB

Internal memory

16 GB

Controls

5.5" touch display, Restart, Set

Display resolution

1280 x 720 Pixel

Display brightness

300 nits

Touch panel type

5-points capacitive IPS Touch Panel

Mounting position

Landscape or portrait format (landscape format recommended)

Operating system

Android 11

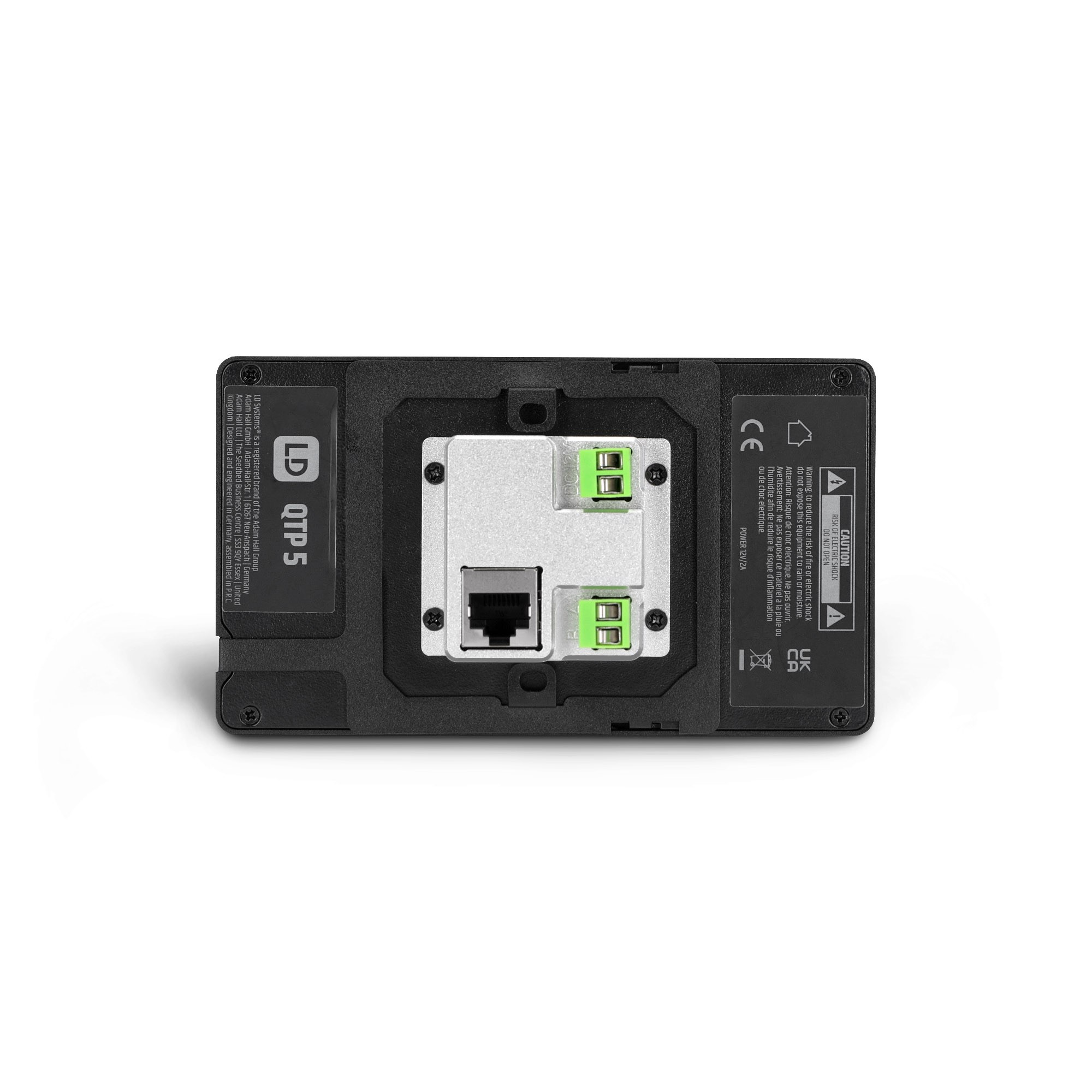

Connectors

Ethernet RJ45, Power in, RS485 (currently without function)

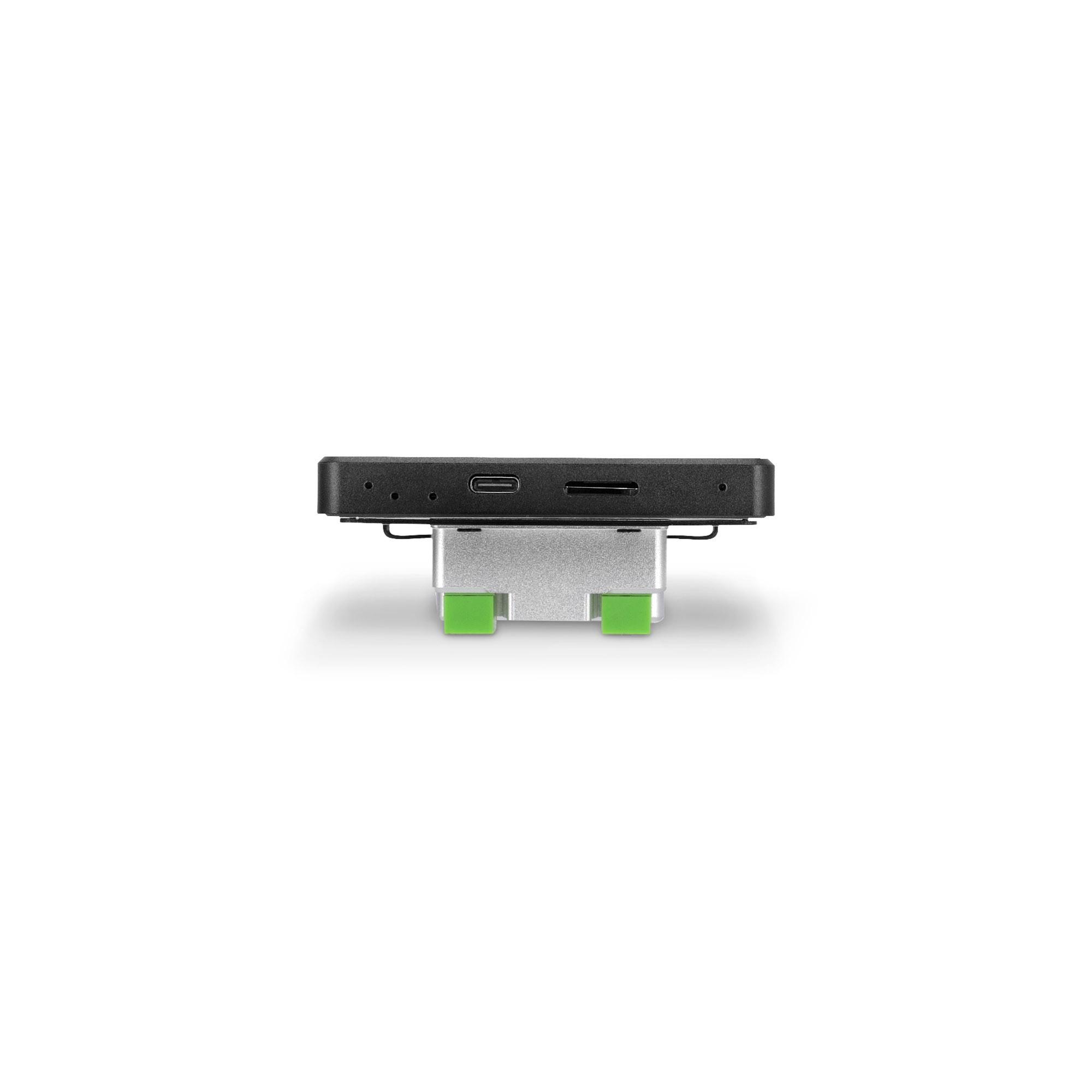

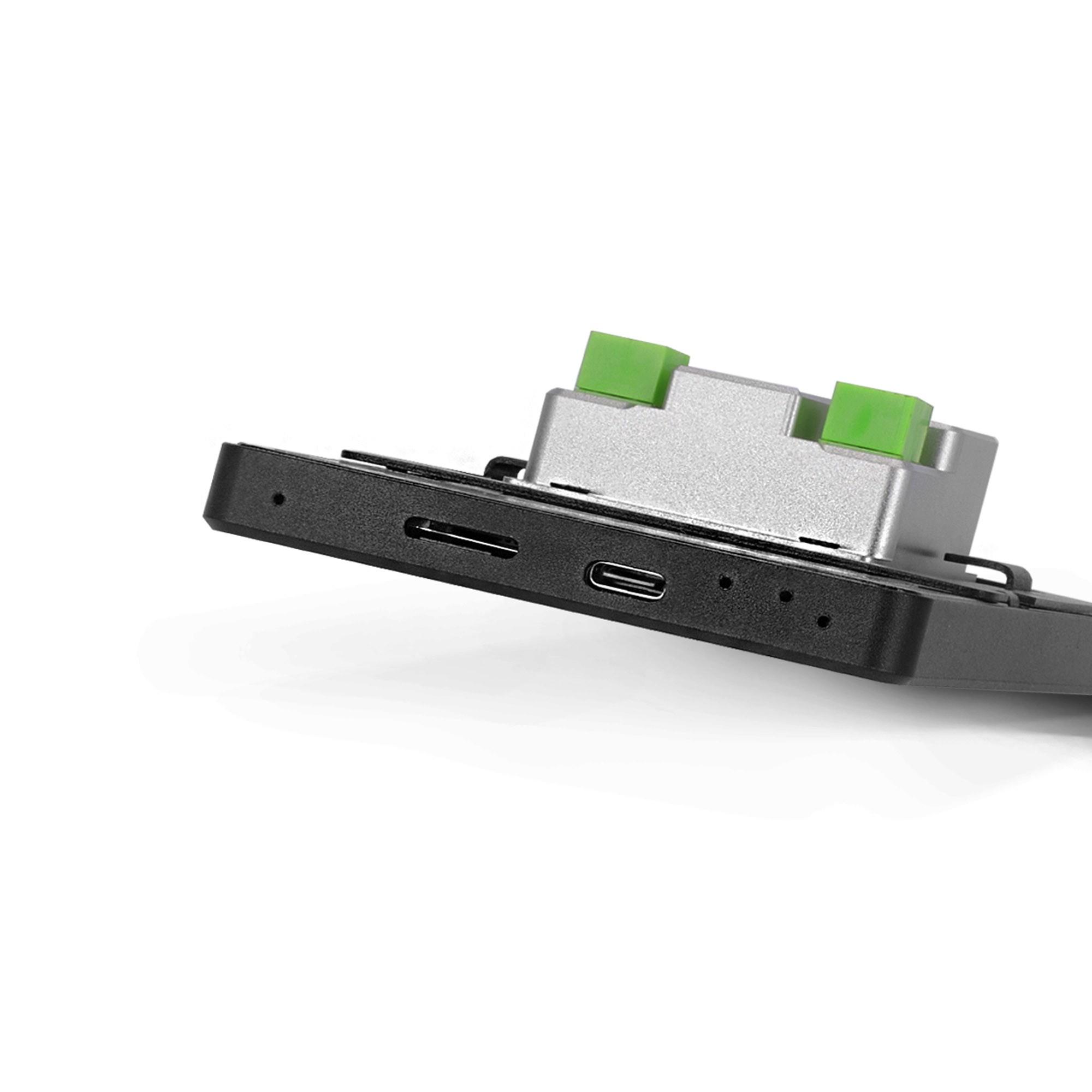

Card reader

TF-Card / MicroSD

Connection

10M / 100M Ethernet, 2.4 GHz WIFI, Bluetooth 4.0

Power supply

External power supply unit 12 V DC 2 A (optionally available), IEEE 802.3at compliant, PoE ( Power over Ethernet )

Mounting options

86-Type Electrical Box, EU - flush-mounted box

Dimensions (W x H x D)

145.7 mm x 84 mm x 38 mm

Accessories (included)

Mounting plate plus locking screw, Mounting screws

Optional accessories

External power supply 12 V DC 2 A

Weight

0.32 kg
