LD Systems X-EDAI

The LD Systems X-EDAI Ethernet & Dante Audio Interface expansion card, extends the control options of the IPA DSP installation power amplifiers by enabling them to be configured and controlled remotely, over a network, in conjunction with LD Systems QUESTRA®* software as well as easy integration of the IPA series into existing Dante audio networks.

The X-EDAI Ethernet Control expansion card has two IP network ports: Whilst the 100 Mbps Ethernet port provides control and DSP the second port can be used to transmit and receive four incoming and four outgoing Dante audio channels. The configuration and routing of the Dante audio channels is done as standard in the Audinate Dante Controller software.

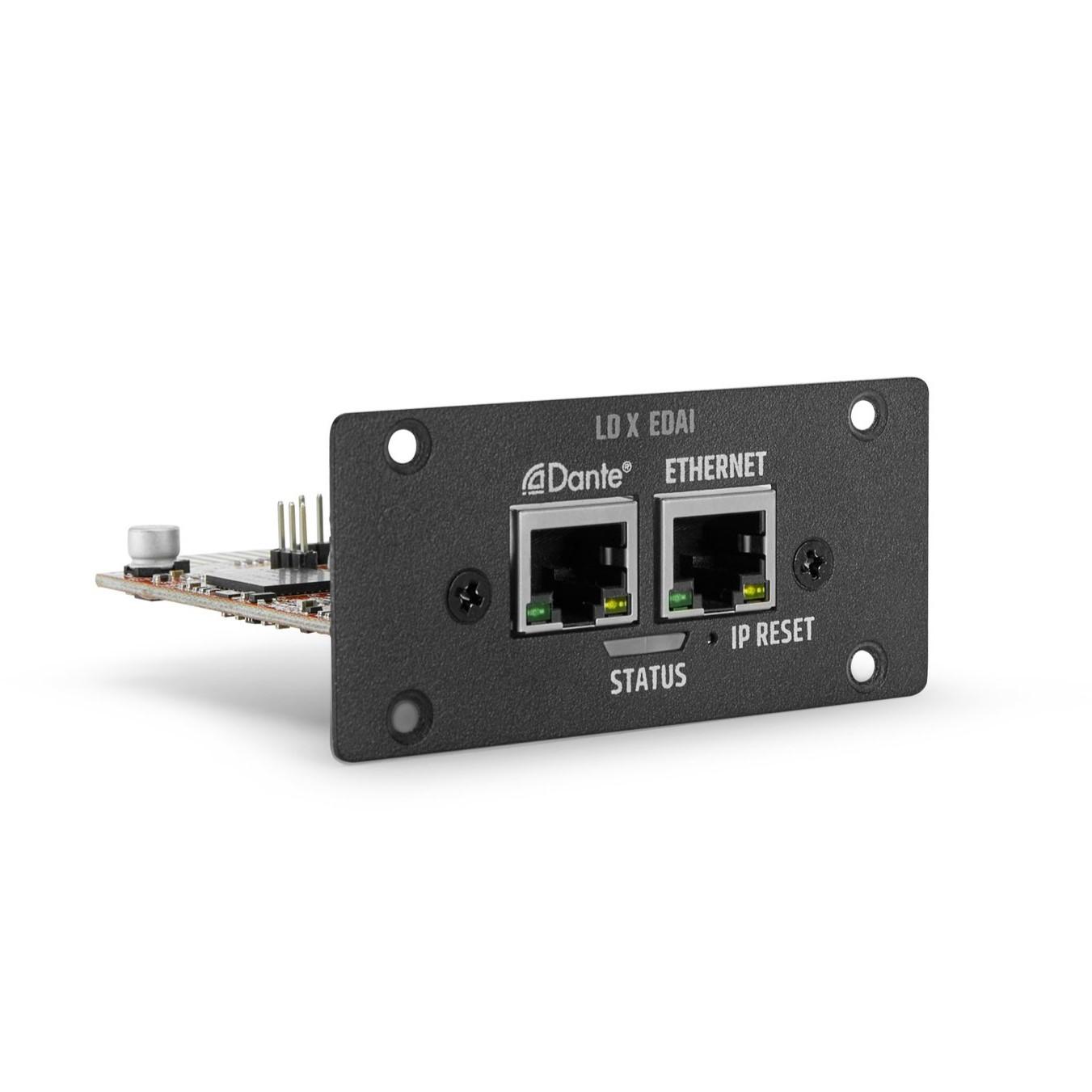

The asymmetrical pin arrangement of the X-EDAI expansion card prevents accidental incorrect installation and a status LED and IP reset button are provided for quick and easy troubleshooting.

The QUESTRA® software enables access to all DSP settings of the IPA installation power amplifier, not normally accessible via the amplifier itself. This includes signal processing at the input (preamp, compressor, etc.), signal flow in the matrix mixer, output processing (EQ, dynamics, delay, polarity, mute) to priority settings and preset management.

Customised control panels can also be created in the QUESTRA® software, which can be used by end customers on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.

A dedicated, wall mounted. QUESTRA Touchscreen Display panel is also available for end-user control.

  • Fast-Ethernet (100 Mbps) control interface
  • Remote control and DSP configuration of the IPA series via QUESTRA® software
  • Dante Audio-over-IP interface with 4 inputs and 4 outputs
  • Easy integration into existing Dante audio networks
  • Status LED
  • IP reset button for quick troubleshooting at the unit
  • Asymmetric pins for error-free card installation
  • Warranty: 5 Years

*QUESTRA® is a design and management software solution developed by LD Systems. It enables seamless configuration and control of LD Systems devices as well as third-party equipment such as lighting and video devices, from a centralised platform.

With powerful integration capabilities, it supports third-party controlled solutions and logic nodes for automation and system-wide management. In addition, customisable user panels provide intuitive control on Windows computers, as well as on Android and iOS devices.

QUESTRA® facilitates access to the full DSP capabilities of LD Systems' audio installation devices. Configure and manage networked audio solutions of any size, while integrating lighting and video with support for third-party controls and automation features, enabling seamless control of all devices from a single application.

List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Expansion Card for ethernet control & Dante audio networking

Ethernet



Chip

STM32H743

Connector

RJ45

Transmission protocol

TCP/IP, UDP

Ethernet Standard

10/100 Base-T

Power consumption

1.075W (Link Down), 1.375W (Link Up)

Dante



Chip

STM32H743

Connector

RJ45

Transmission protocol

TCP/IP, UDP

Ethernet Standard

10/100 Base-T

Power consumption

1.075W (Link Down), 1.375W (Link Up)

General



LED indicators, rear

RJ45 LEDs: Link/Activity,
Status LED: Internal Connection Status

Dimensions (W x H x D)

82.5 mm x 36.5 mm x 76.3 mm

Weight

0.5 kg

Compatible devices

LDIPA412T, LDIPA424T

Software

QUESTRA®
