Cameo ZENIT W600i

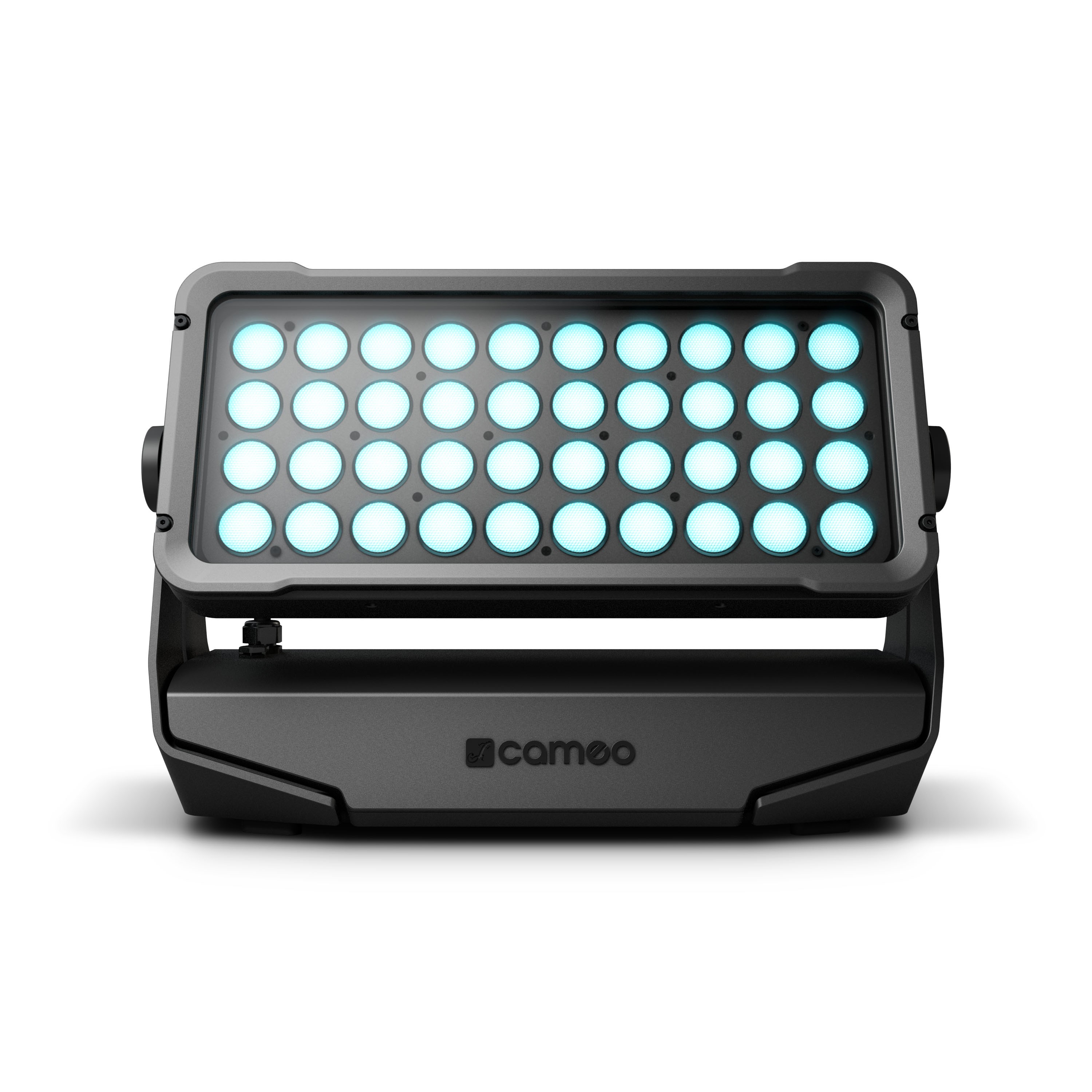

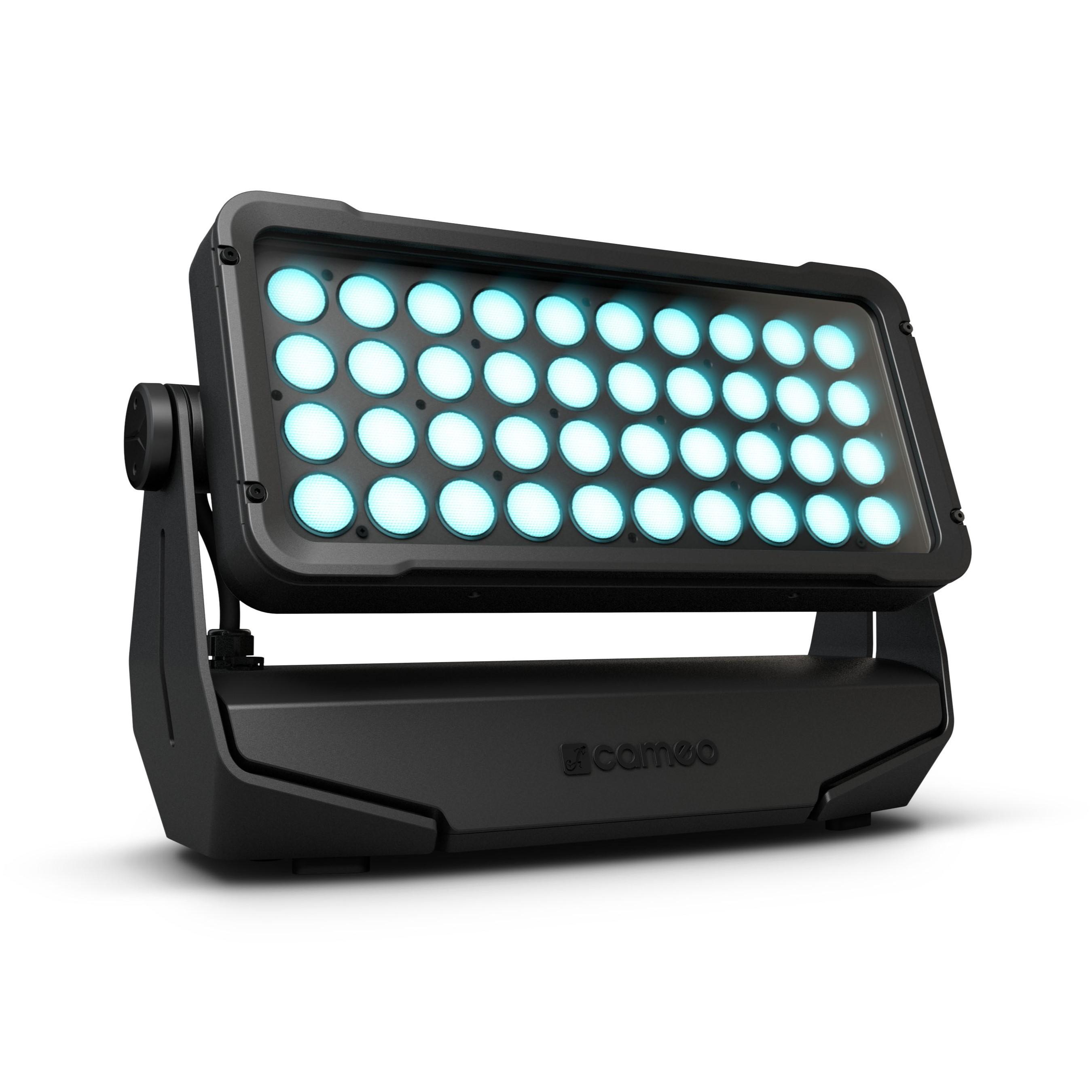

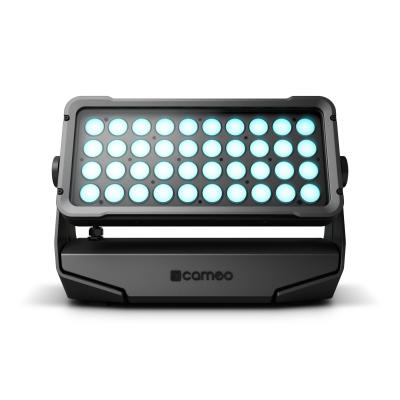

The Cameo ZENIT® W600i Outdoor LED Wash Light is equipped with a total of forty 15W RGBW LEDs for a huge 21,000lm output.

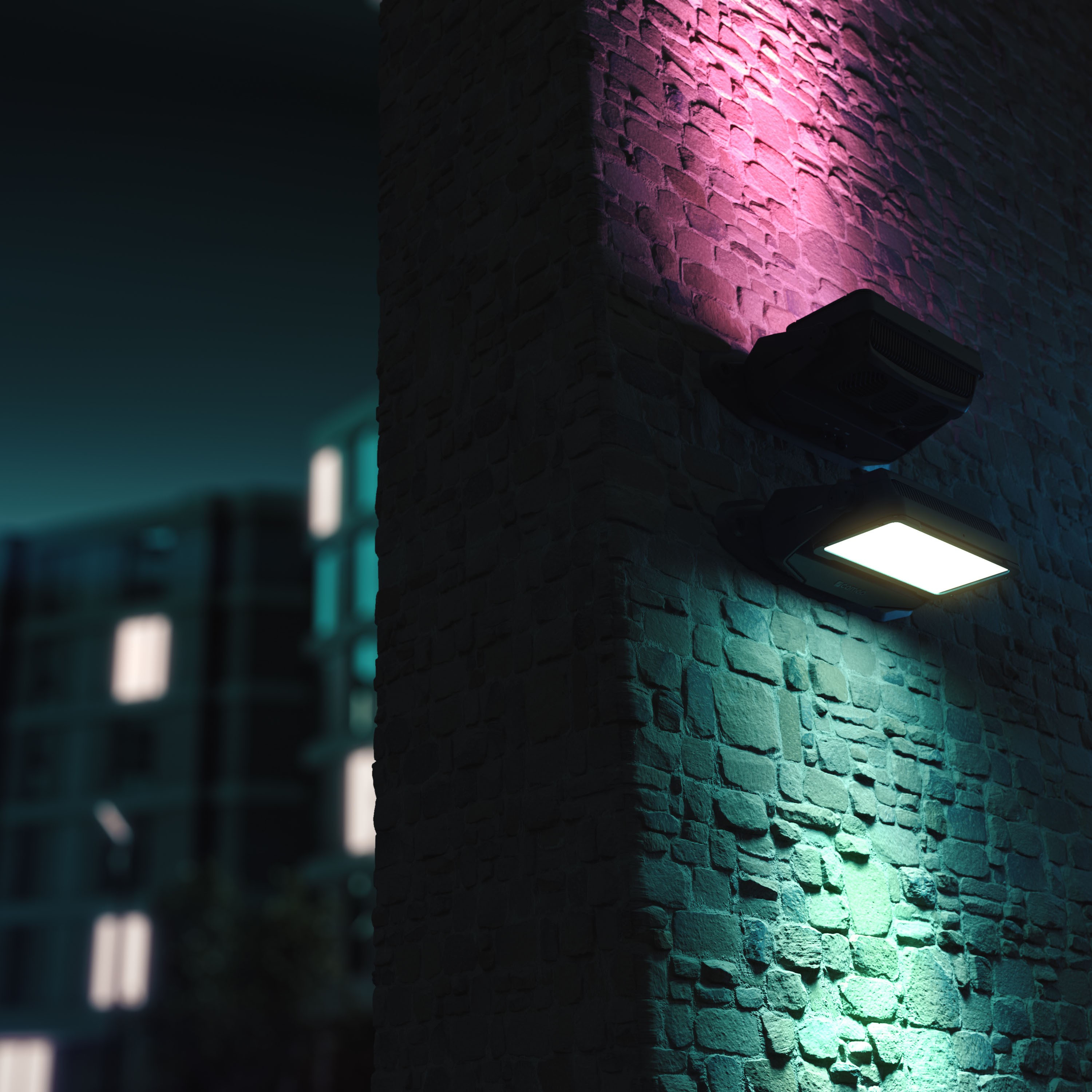

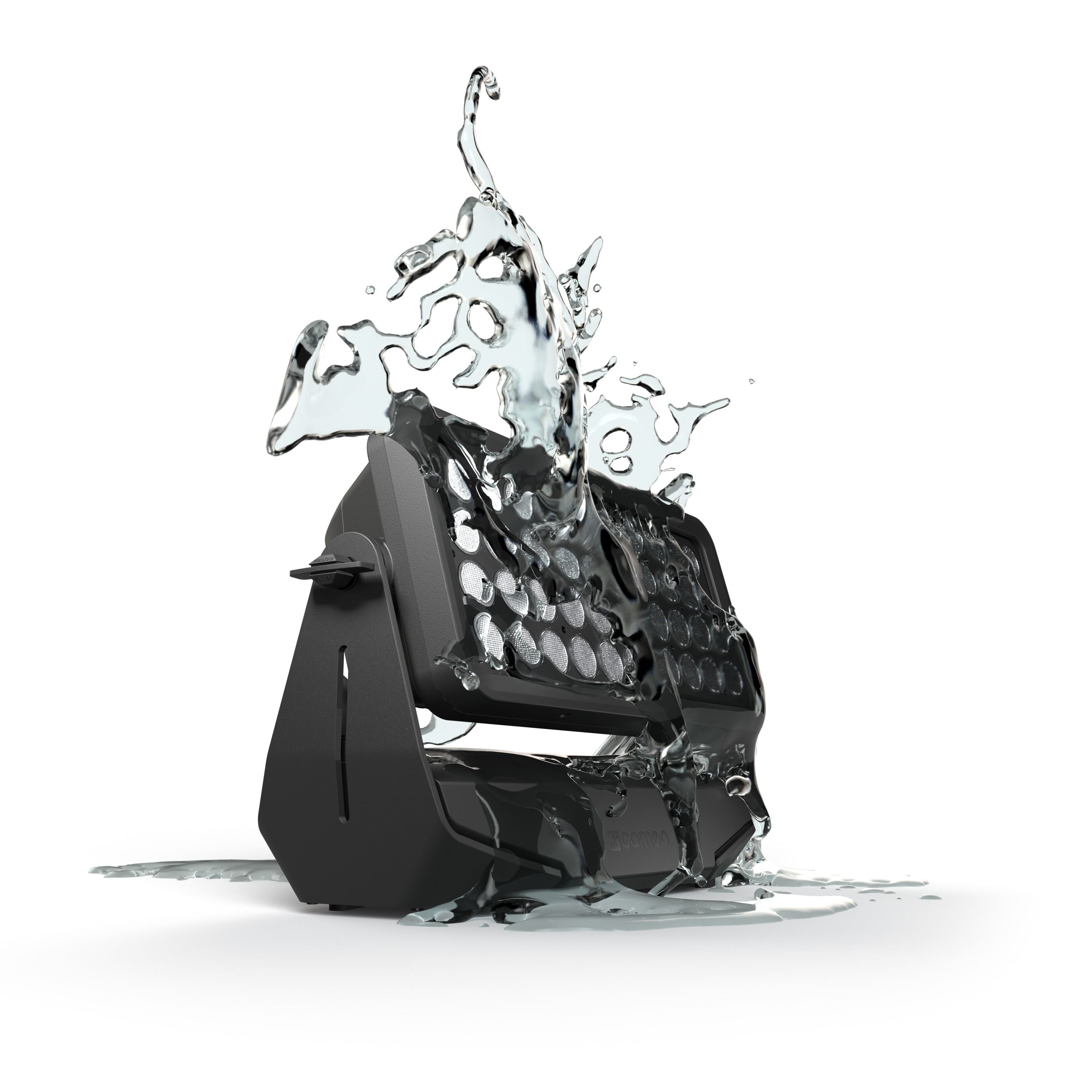

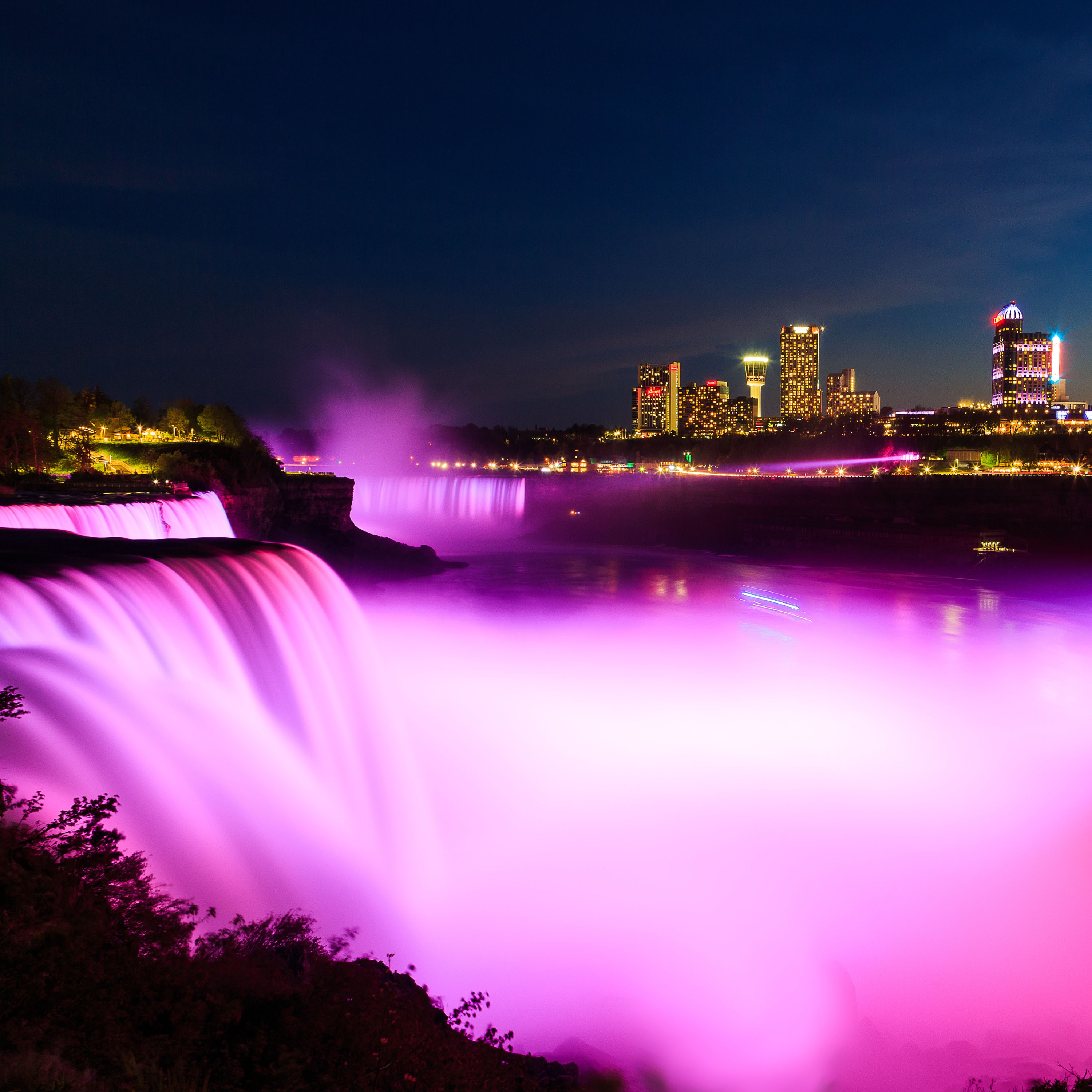

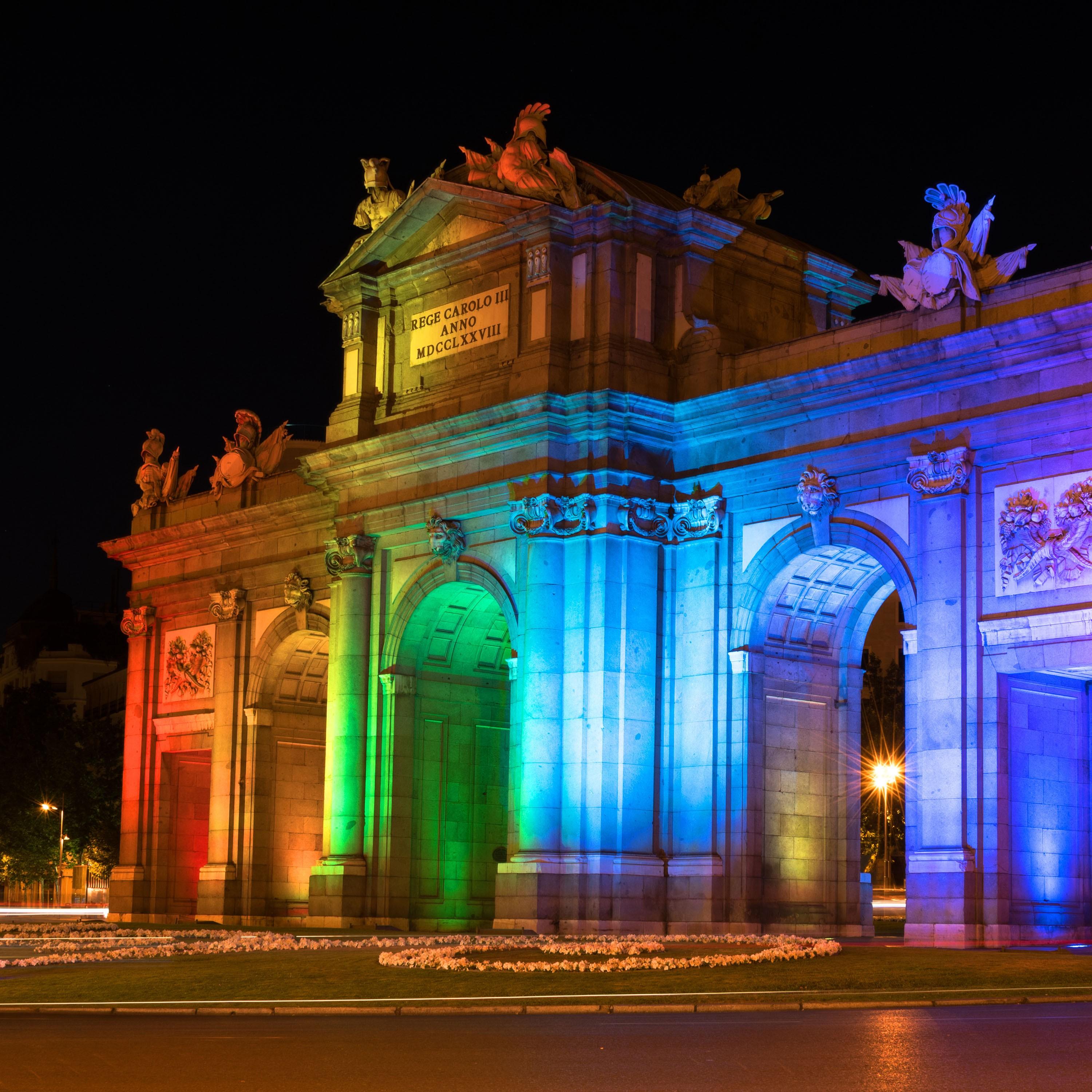

This version of the W600 is designed for permanent outdoor installation. With IP 67 certification it’s both dustproof and protected from strong jets of water from any direction and can even withstand temporary submersion to a maximum depth of 1m – fantastic for creating beautifully artistic outdoor lighting effects or highlighting great architecture on a long term basis. A corrosion resistant C5-M coating on the housing also makes the W600i suitable for harsh Maritime environments.

16-bit technology facilitates high-resolution colour mixing and dimming. With an 18° beam spread, colour temperature correction, selectable dimming curves and dimming response, the ZENIT® W600i projects highly intense, uniform coloured or white washes. It also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.

Unlike the other models in the Zenit W600 range, there are no control buttons or OLED screen on this fixture – configuration is only possible via RDM or a dedicated remote display controller (CLZIEXDISP), available separately.

For maximum versatility, the ZENIT® W600i incorporates Cameo's innovative SnapMag® system which allows you to add filter frames in less than a second without tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers to alter the beam angle are available as dedicated accessories. The W600i has the added benefit of being able to screw the filter frames tightly onto the housing for increased security.

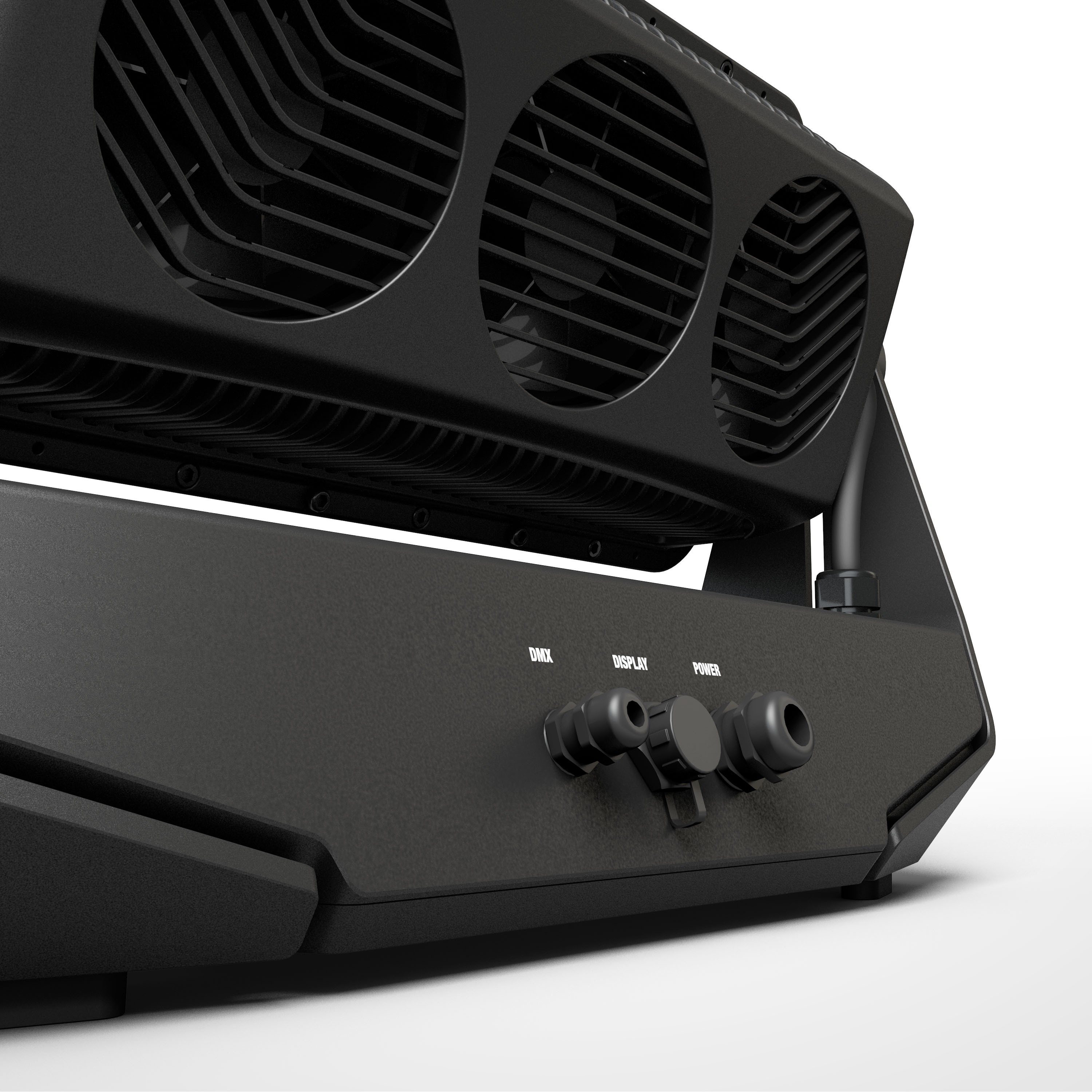

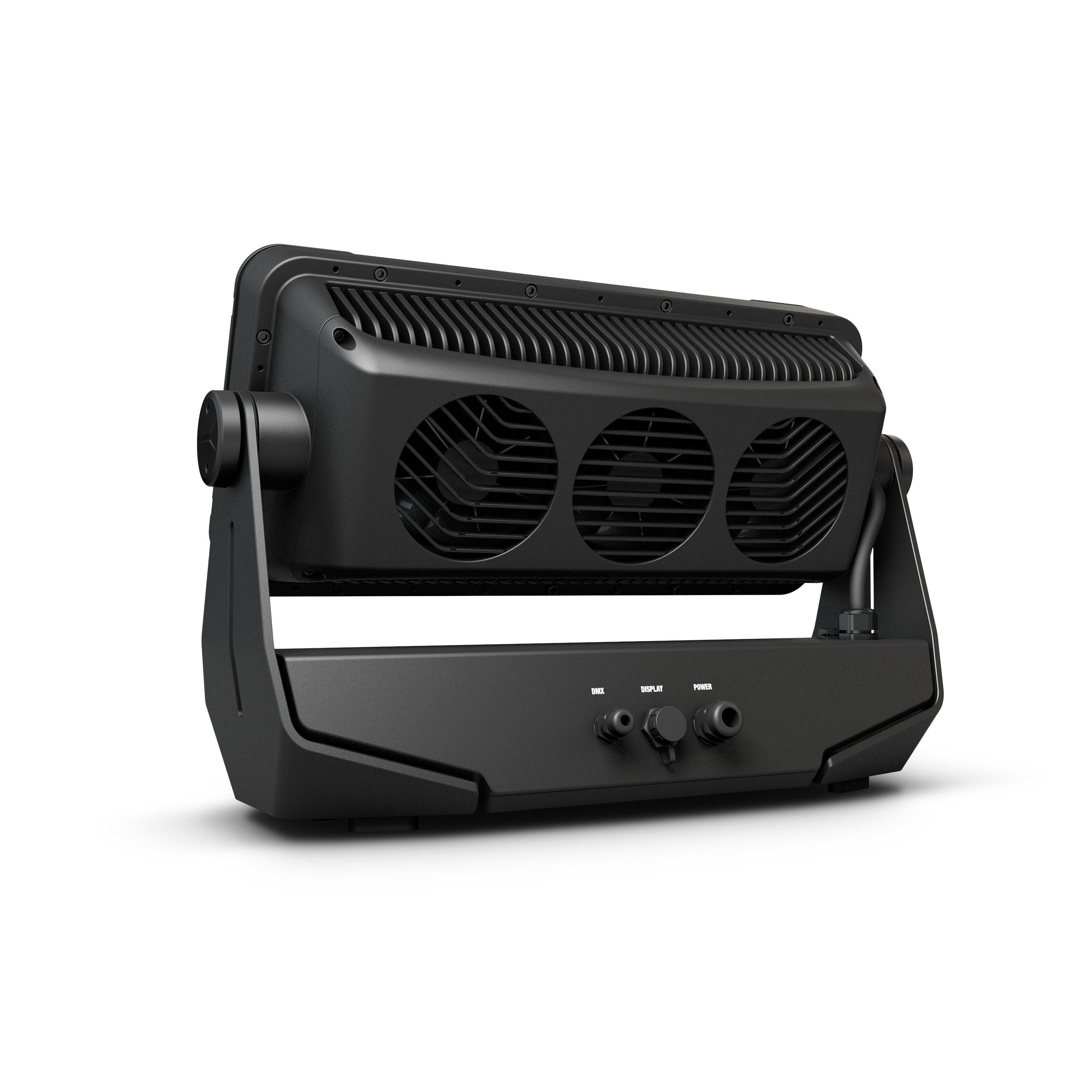

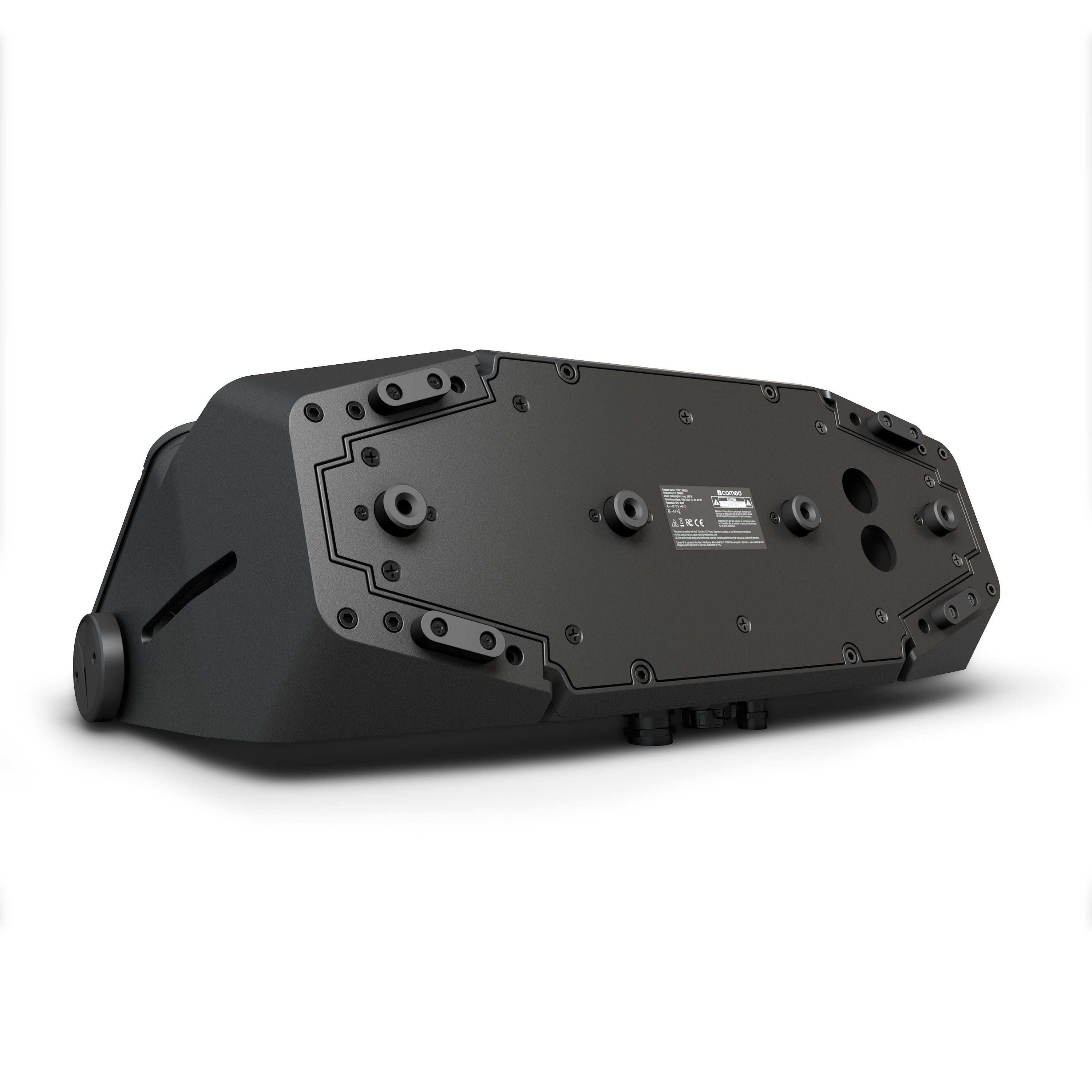

The rugged, impact resistant die cast aluminium housing integrates 3 IP67 rated temperature controlled fans and heat sink to ensure optimum air circulation.

Supplied with two omega mounting brackets, power cord, mounting bolts and fixing scres for a Snapmag diffuser.

  • 40 x 15 W RGBW LEDs with 21,000lm luminous flux for intensive homogeneous colour mixing
  • Configuration only possible via RDM or with the ZENIT® REMOTE DISPLAY
    CONTROLLER (CLZIEXDISP) - available separately
  • IP67 classification for continuous use outdoors
  • Black C5-M certified coating
  • Various symmetric and asymmetric filter frames available as accessories
  • High-resolution colour mixing and dimming using 16-bit technology
  • 18° beam angle and 35° field angle without diffuser
  • Control via DMX, RDM (via DMX) and automated programs
  • Temperature-controlled fans for reliable, low-noise operation

For more details, please download the Cameo ZENIT W600i datasheet and User Manual via the links below.

You may also like to download the Cameo Lighting Brochure here.

Please see the Cameo Lighting Glossary for more information on any of the following features:

z:DMX z:FlickerFree z:Green z:IP67 z:Mstr/Slv z:RDM z:Standalone z:LED z:strobe z:RGBW z:Snapmag z:Multi-Angle z:Calibration
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

ZENIT LED Outdoor Wash Light

Colour spectrum

RGBW

Number of LEDs

40 x 15 W, Average LED lifetime 50000 hours

Refresh rate

Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz

Dispersion

18° Beam, 35° Field (without Diffusor)

Lens

PE and tempered glass

DMX mode

10-channel, 15-channel, 2-channel, 3-channel, 4-channel, 8-1 Channel, 8-2 Channel

DMX Functions

Auto programs, colour macro, CTC (Colour Temperature Correction), Dimmer, Dimmer Curve, Dimmer Fine, Dimmer Response, RGBW, RGBW Fine, Strobe

Standalone modes

Auto programs, colour mixing, colour macros, Device Settings, Master / Slave mode, Static, System info, Tunable White, User Colour, Timer, Strobe

Power supply

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

565 W

Housing

Die Cast Aluminium, Black

Protection class IP

IP67

Cooling

IP67 temperature-controlled fans

Luminous flux

21000 lm

Dimensions

449mm x 291mm x 161mm (W x L x H)

Weight

13kg

Related Products

Cameo ZENIT W300i

Permanent install outdoor LED Wash Light with 21 x 15W RGBW LED's. IP67.

see more
List Ex VAT: Contact Us

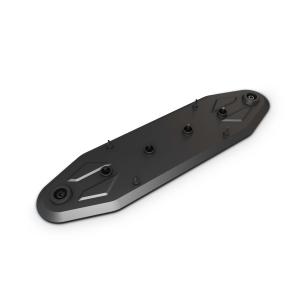

Cameo ZENIT W600i MOUNTING PLATE

Mounting plate for fixed installation of ZENIT W600i.

see more
List Ex VAT: Contact Us

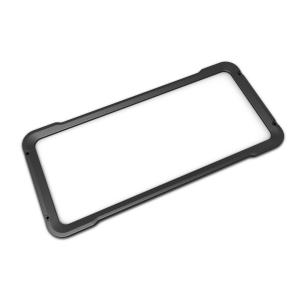

Cameo SNAPMAG DIFFUSOR W600i - 25°

25° Light shaping diffusor for ZENIT W600i LED Wash Light.

see more
List Ex VAT: Contact Us
Cameo SNAPMAG DIFFUSOR W600i - 45°

45° Light shaping diffusor for ZENIT W600i LED Wash Light.

see more
List Ex VAT: Contact Us
Cameo SNAPMAG DIFFUSOR W600i - 100°

100° Light shaping diffusor for ZENIT W600i LED Wash Light.

see more
List Ex VAT: Contact Us
Cameo SNAPMAG DIFFUSOR W600i - 60° x 10°

60° x 10° Light shaping diffusor for ZENIT W600i LED Wash Light.

see more
List Ex VAT: Contact Us

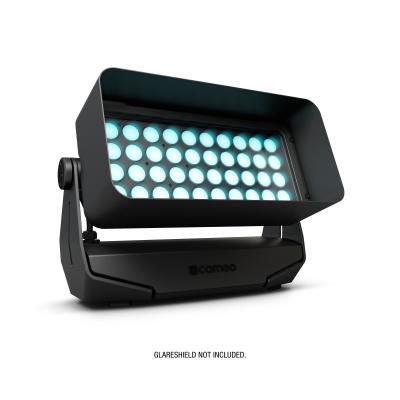

Cameo ZENIT W600i HALF GS
