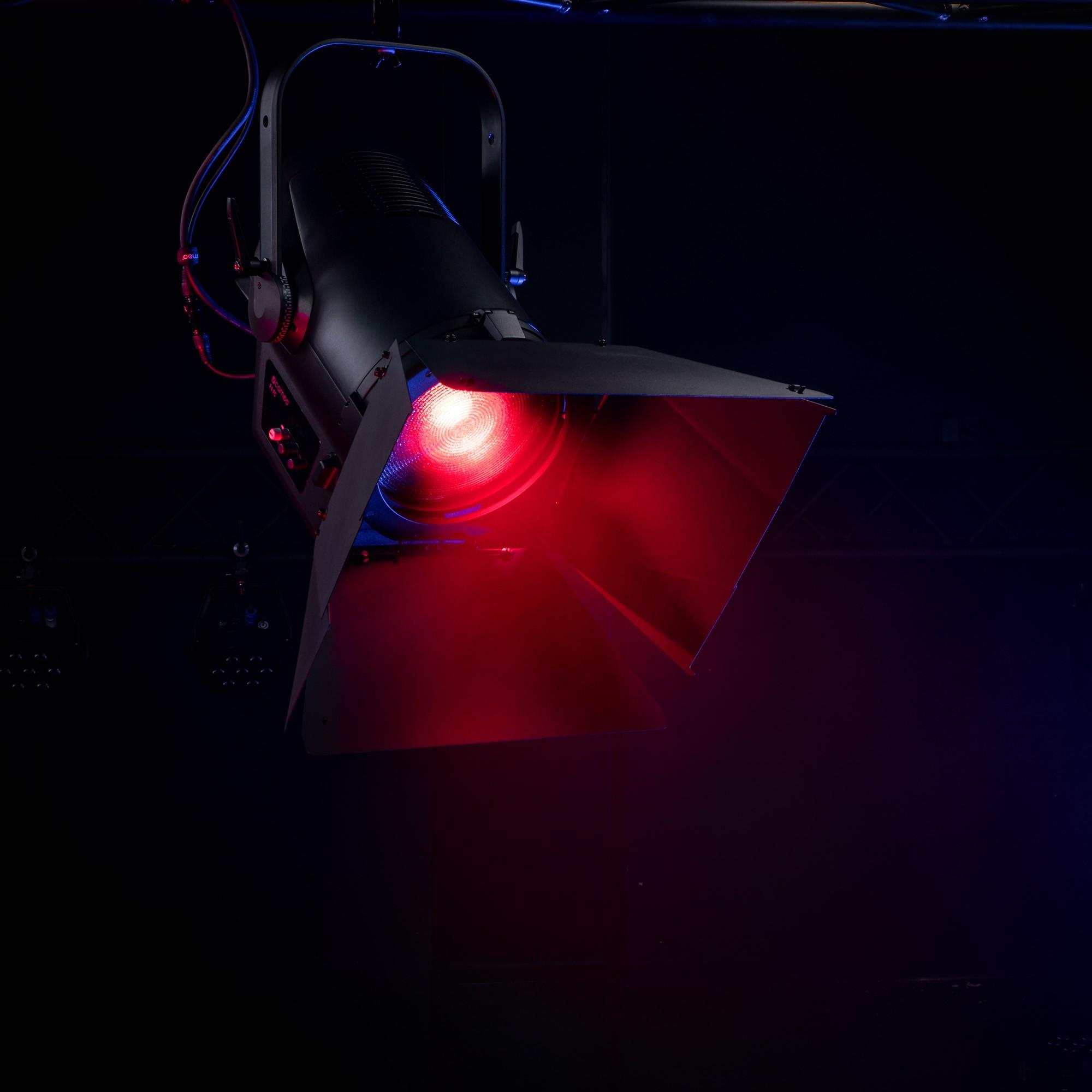

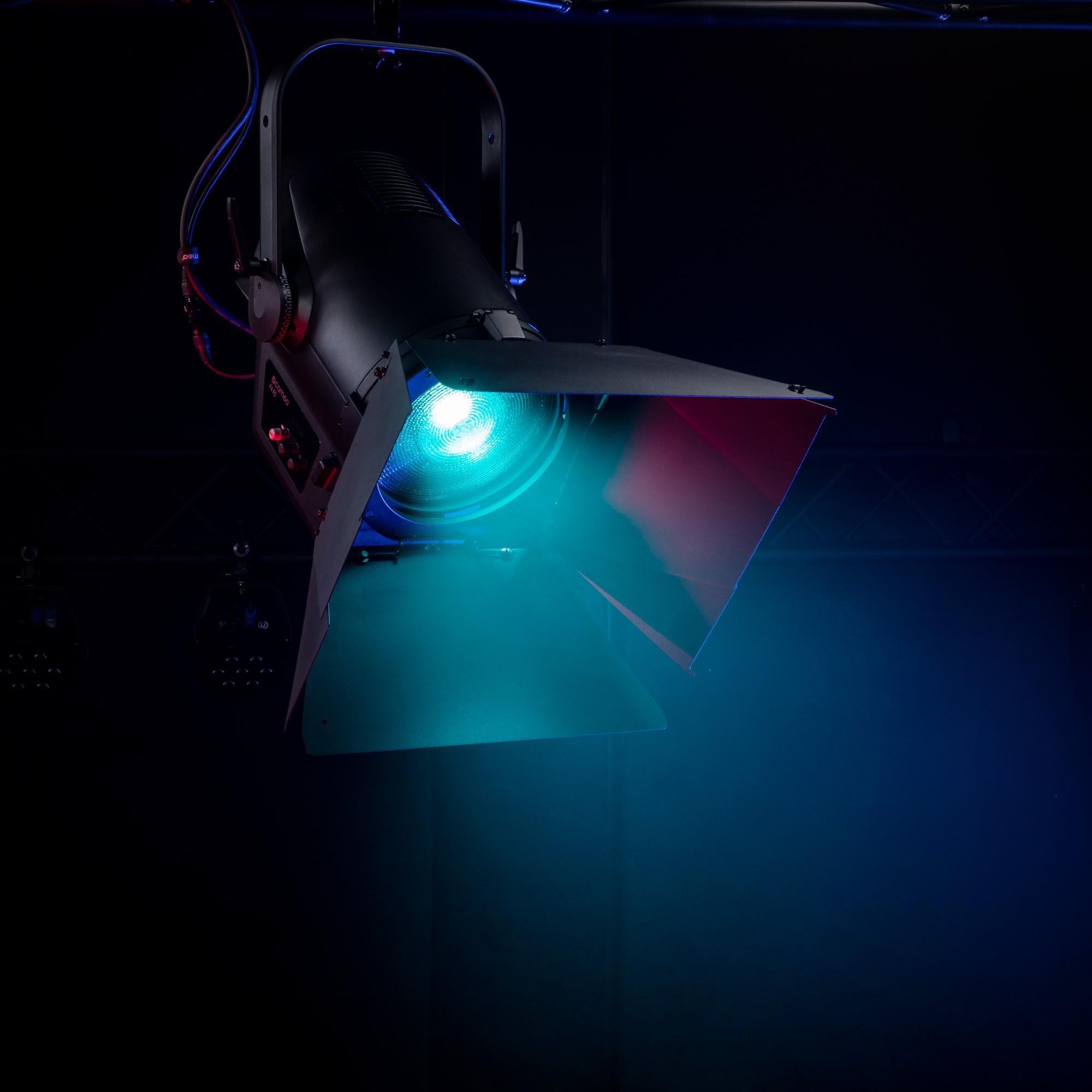

The CAMEO F4 FC professional Fresnel spotlight with full colour (RGBW) LED offers a complete palette of dynamic colours and countless shades of white at maximum reproduction quality, ideal for use in front of cameras or in theatres.

White tones can be precisely adjusted in CCT mode from 1,600 K to 6,500 K at a constant CRI of over 90, and perfectly adjusted to skin tones, camera sensors and ambient light via additional green-magenta correction. Using only three control circuits, colour-blending in HSI mode facilitates rapid adjustment of colour, intensity and saturation at the light desk without the use of traditional colour filters.

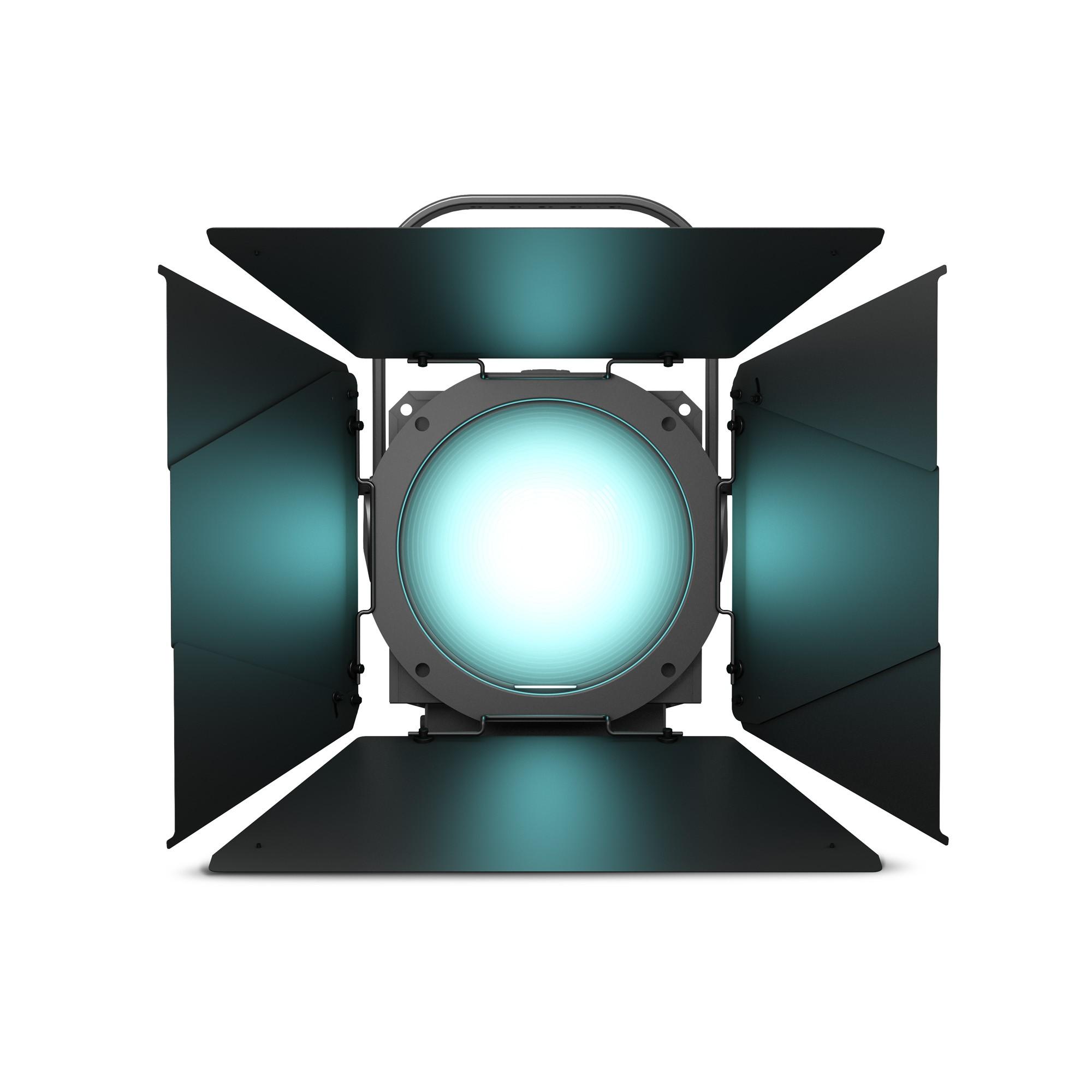

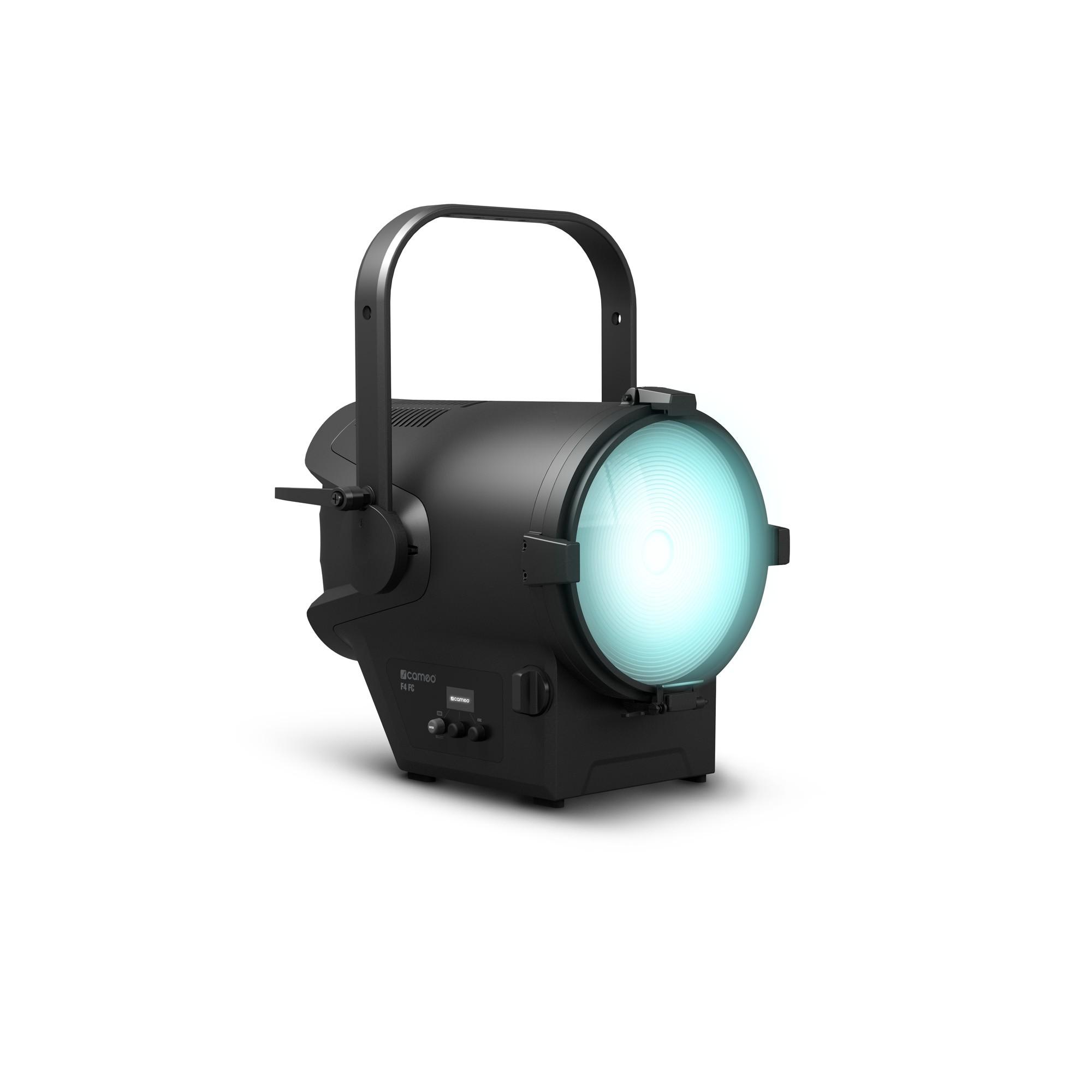

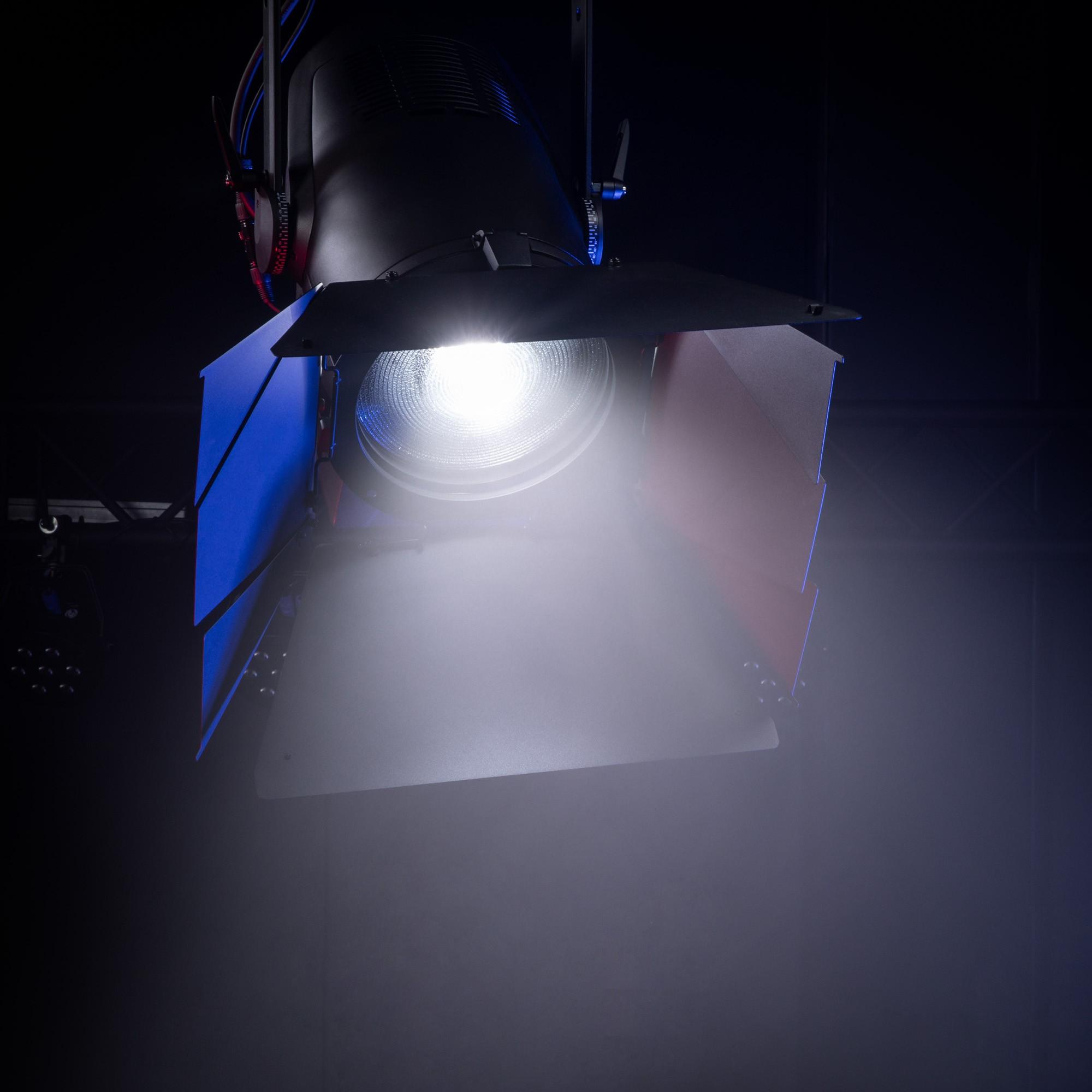

The high-quality 250 mm lens creates a soft-edged beam of light that can be manually and gradually adjusted to all intermediate positions from spot to flood in the 12° to 40° beam angle. At the same time, the integrated condenser lens provides evenly blended colours and shadow-free colour light dispersion, even when using the barndoor.

The F4FC is fully RDM-capable and has a range of DMX control modes as well as multiple 16-bit dimmer curves with adjustable response. Even at its lowest setting, gradual dimming meets the highest theatre demands.

Set up is quick and easy with the unique Quicklight function. Momentarily remove the DMX signal, increase the lighting brightness via the push encoder and adjust the spotlight.

Six selectable pulse width modulation frequencies of up to 25 kHz ensure flicker-free operation whilst the highly efficient heatpipe cooling combined with a virtually silent temperature-controlled fan to ensure optimal operation - perfect for use in Theatres, Film or Television applications.

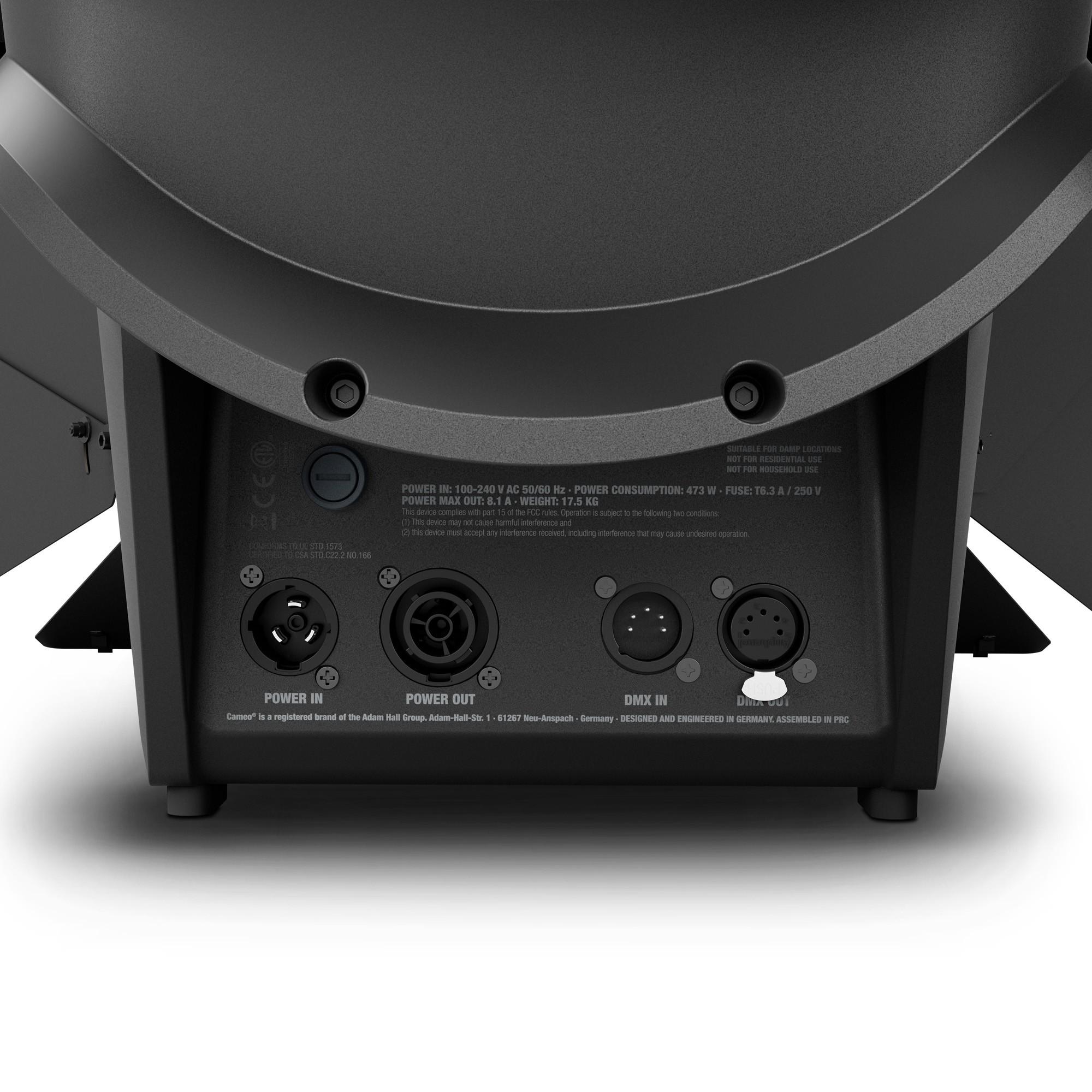

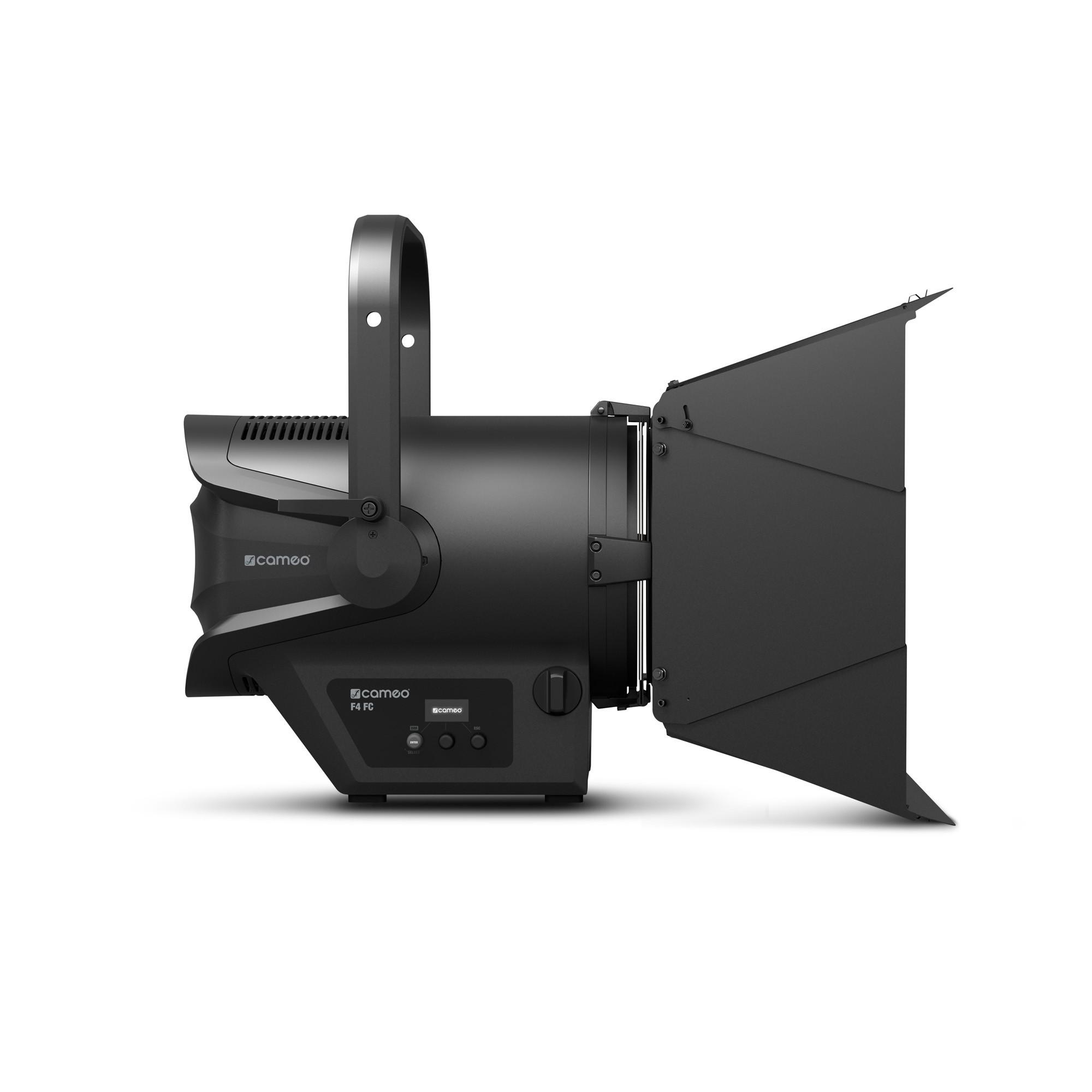

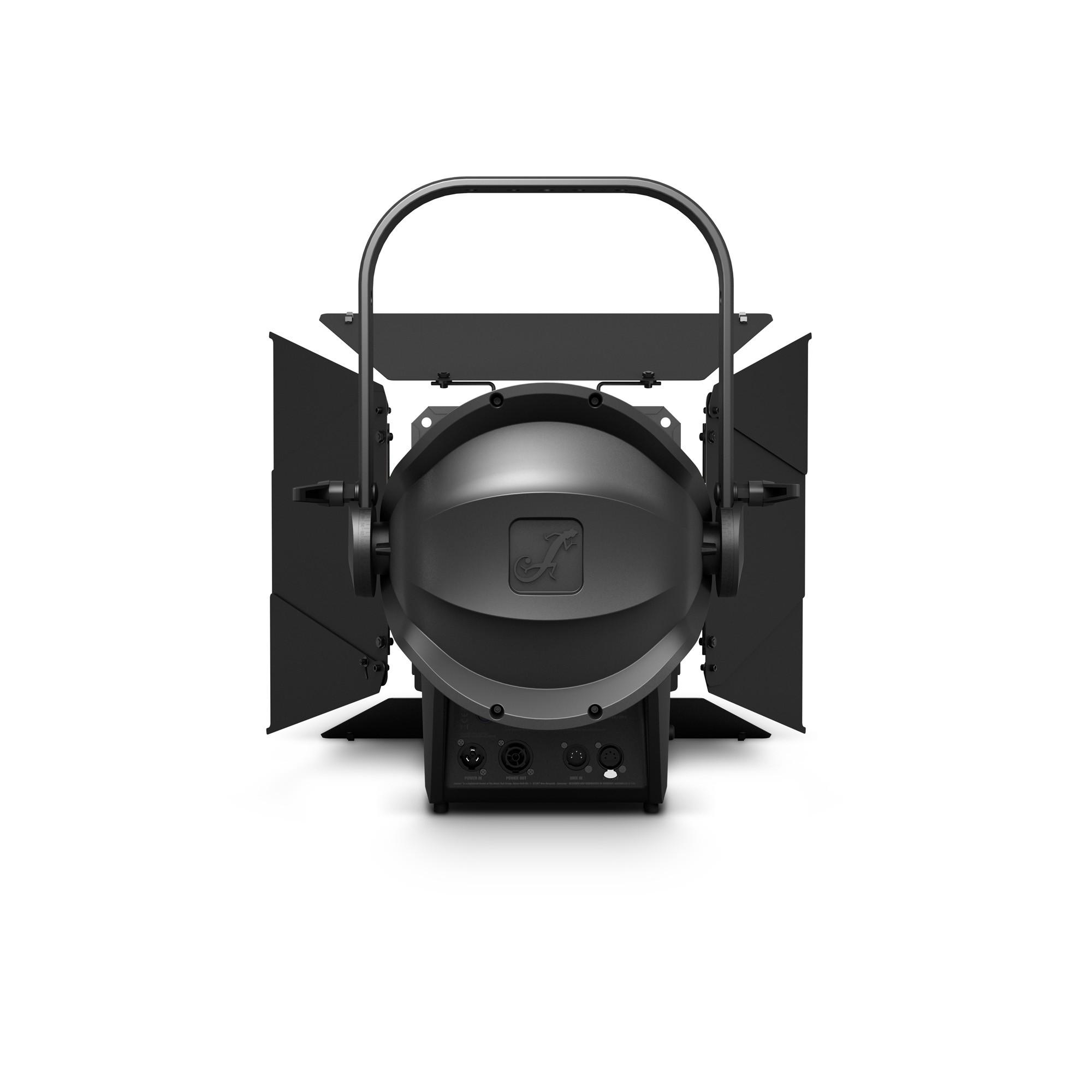

The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connections allow simple daisy-chaining.

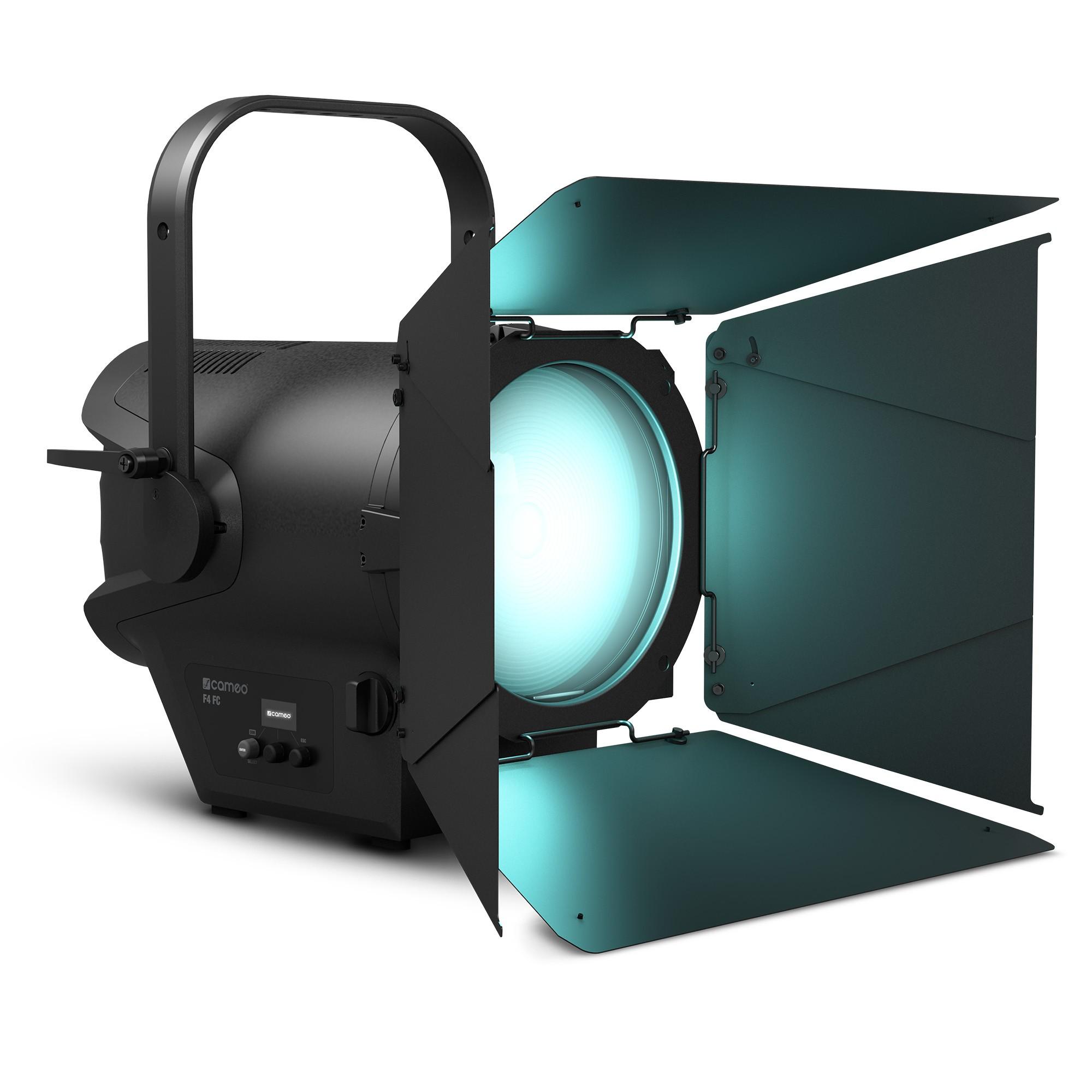

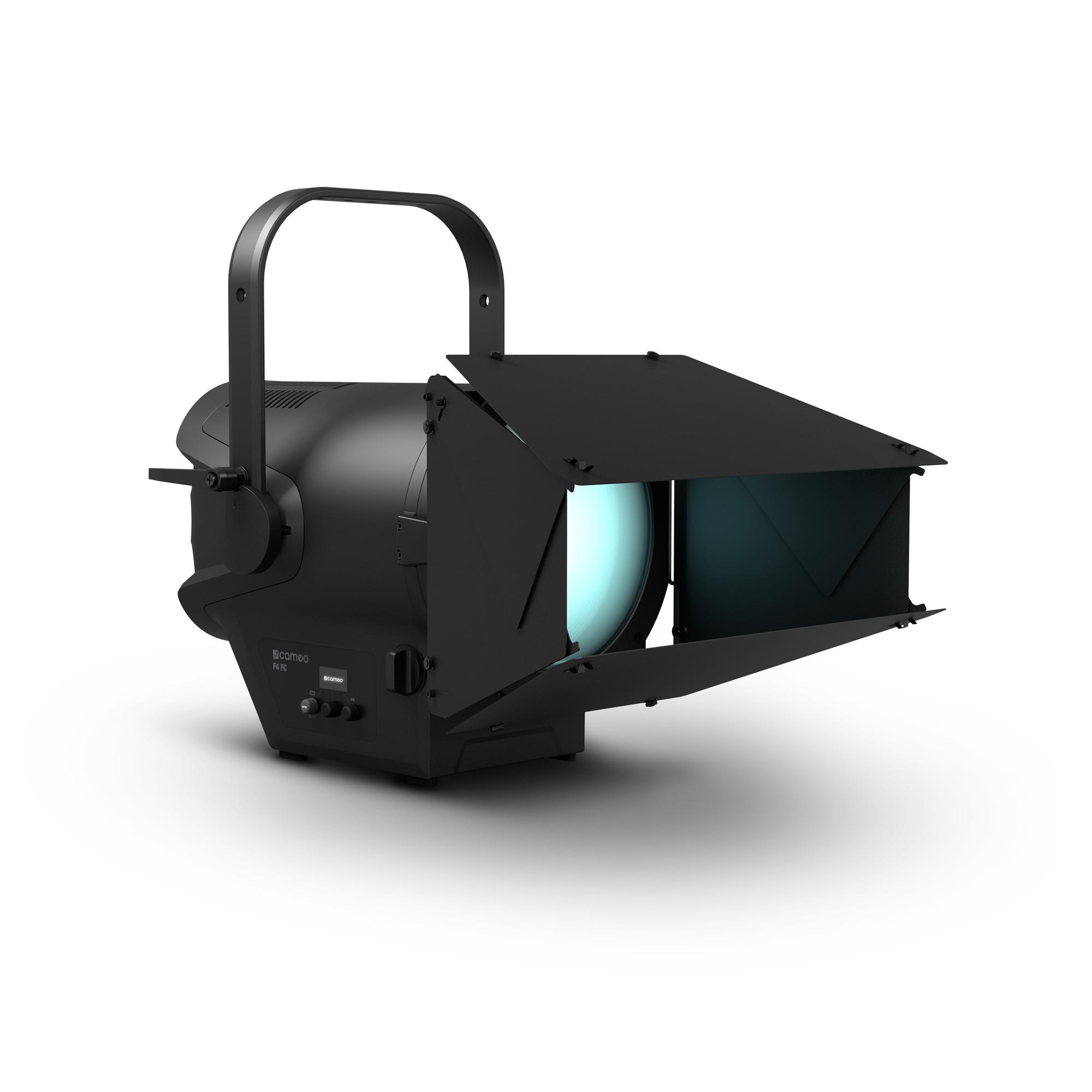

8-way barndoor, a gel frame and mains cable are included.

• Full-colour LED Fresnel spotlight with 10,500 lm luminous flux
• Seamless colour temperature adjustment from 1,600 to 6,500 K, CRI >90
• Continuous zoom for beam angles from 12° to 40°
• 16-bit technology for high-resolution dimming
• Highly efficient heat pipe cooling with temperature-controlled fan
• RDM-capable with silent mode for studio use
• Four selectable dimmer curves with adjustable response
• Flicker-free and silent operation, ideal for TV, film and theatre
• Quicklight function to save time when setting lights
• 8-way barndoor and colour filter frames included
• Pole operable, IP65 outdoor version available - see F4 FC PO IP
