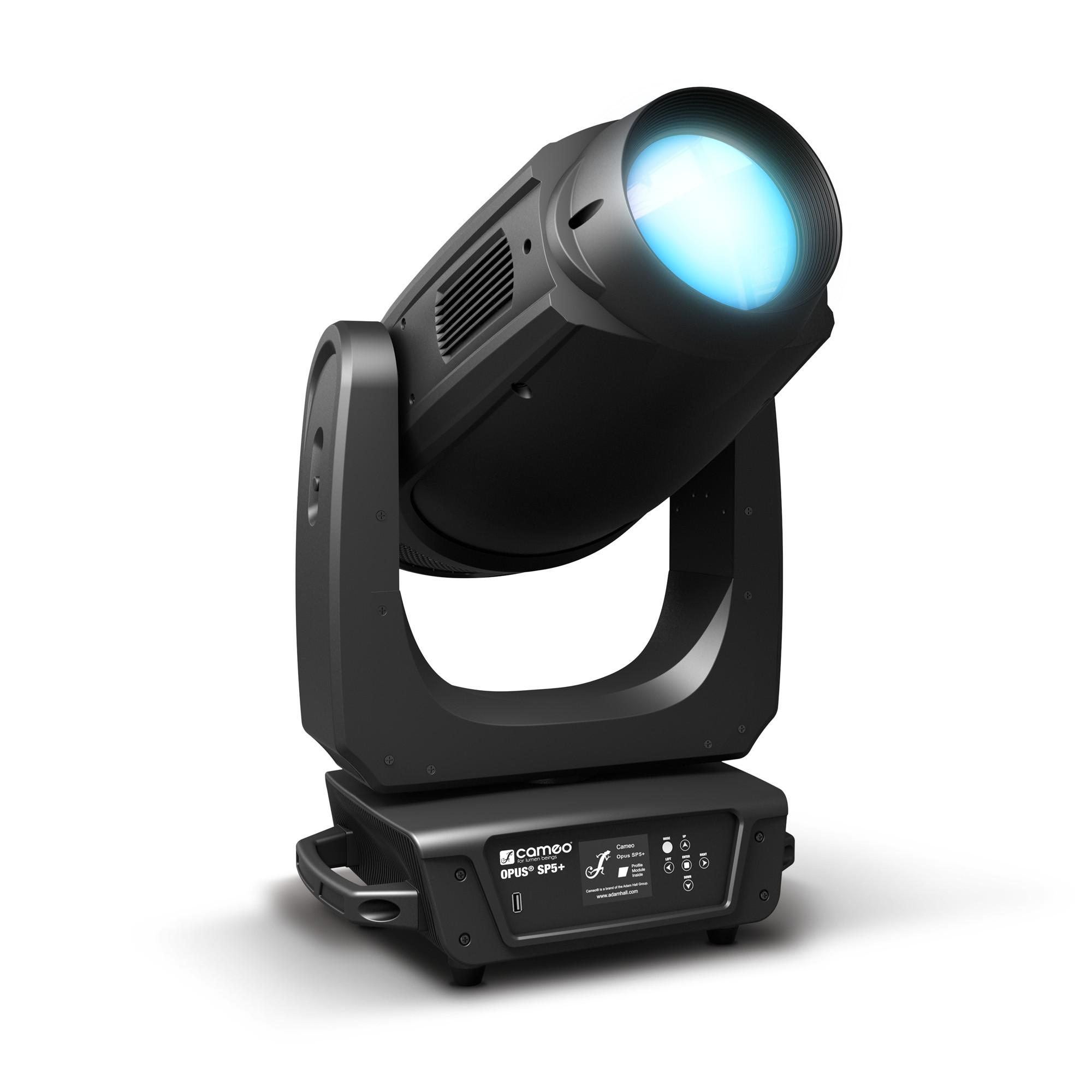

The Cameo Opus SP5+ super bright profile spot moving head light benefits from an improved 500W cool white LED engine boosting the output to 22,000 lumens with CMY colour mixing system and linear CTO correction. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour beams.

Fitted with a 130 mm front lens, the OPUS® SP5 achieves an amazingly uniform flat projection.

Rapid 540° pan and 270° tilt movement.

Permitting extensive beam control, it features an extra wide zoom range from 6° to 42°, stepless iris and a continuously variable frost filter that provides soft, wash-like diffusion.

A four-shutter framing system enables the creation of a wide variety of geometric shapes. Each diaphragm sliders can be individually moved & angled within the frame or gradually closed for complete blackout. The whole system turns +/- 45° for precise shape positioning.

Stunning morphing effects can be created with the simultaneous use of its two gobo wheels with 7 rotating and 8 static glass gobos. These can be used in combination with an optional rotating animation wheel (this replaces the framing shutter system) for amazingly vivid projections.

In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.

The OPUS® SP5PLUS offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver.

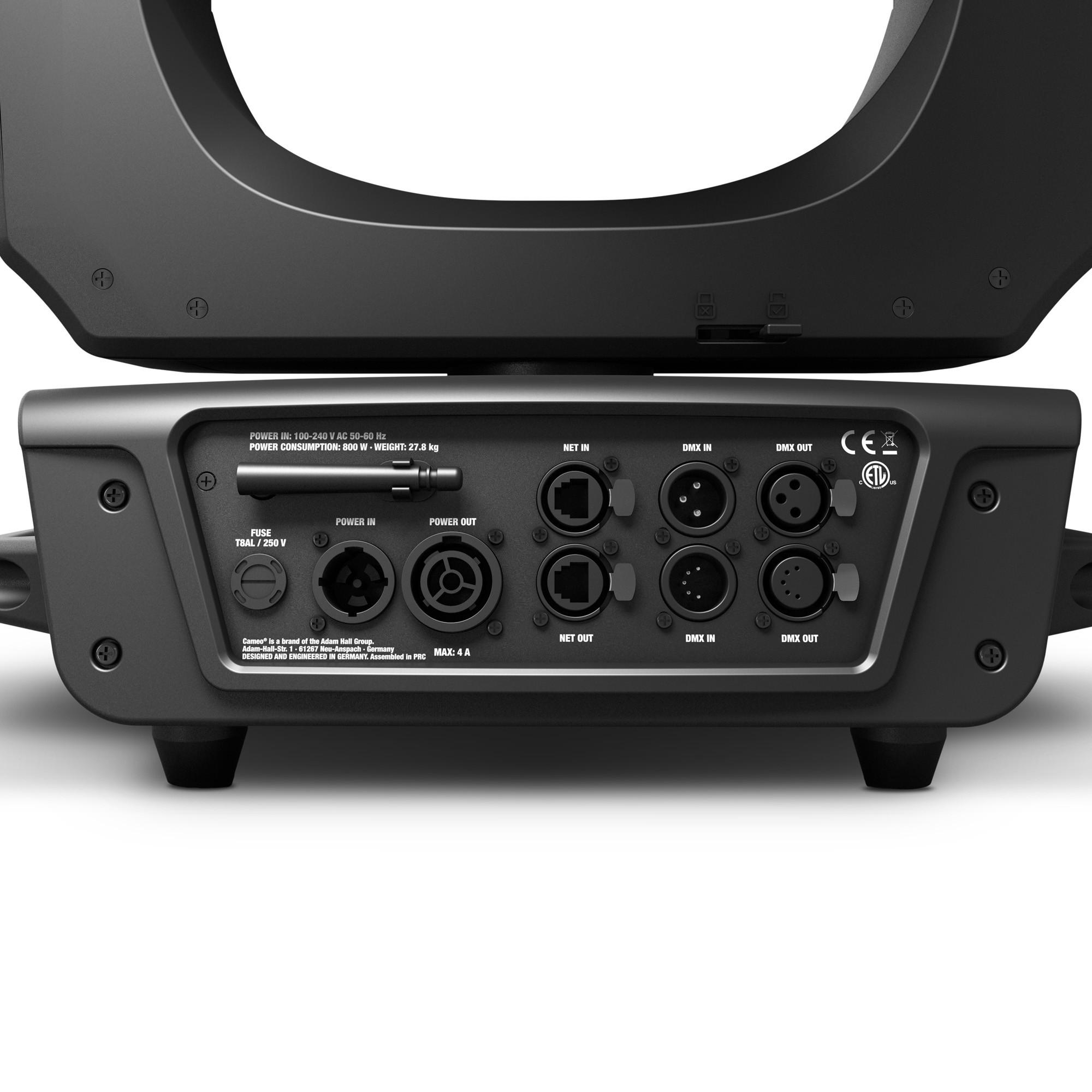

The rugged ABS and metal housing has Neutrik® DMX and powerCON TRUE1 connectors and with temperature controlled low noise cooling fan. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation.

Supplied with two omega brackets and power cord.

• Efficient Profile Moving Head with 22,000 lm output
• Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters
• Linear CTO correction from 6,500 - 2,600 K for authentic tungsten emulation
• High quality optics with 130 mm front lens and extra wide 6° - 42° zoom range
• Even and flat projection field without hot spots at any zoom angle
• 4-blade framing system with +/- 45° rotation
• Angle and position of each shutter blade individually controllable up to full blackout
• Animation wheel module to replace framing shutter (available as optinal accessory)
• Rotating gobo wheel with 7 replaceable indexable glass gobos + open
• Static gobo wheel with 8 replaceable glass gobos + open
• Rotatable and indexable 3-facet circular prism plus 6-facet linear prism
• Variable frost for washlight effects plus stepless iris
• Ultra smooth 16-bit dimming with 4 selectable curves
• Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz

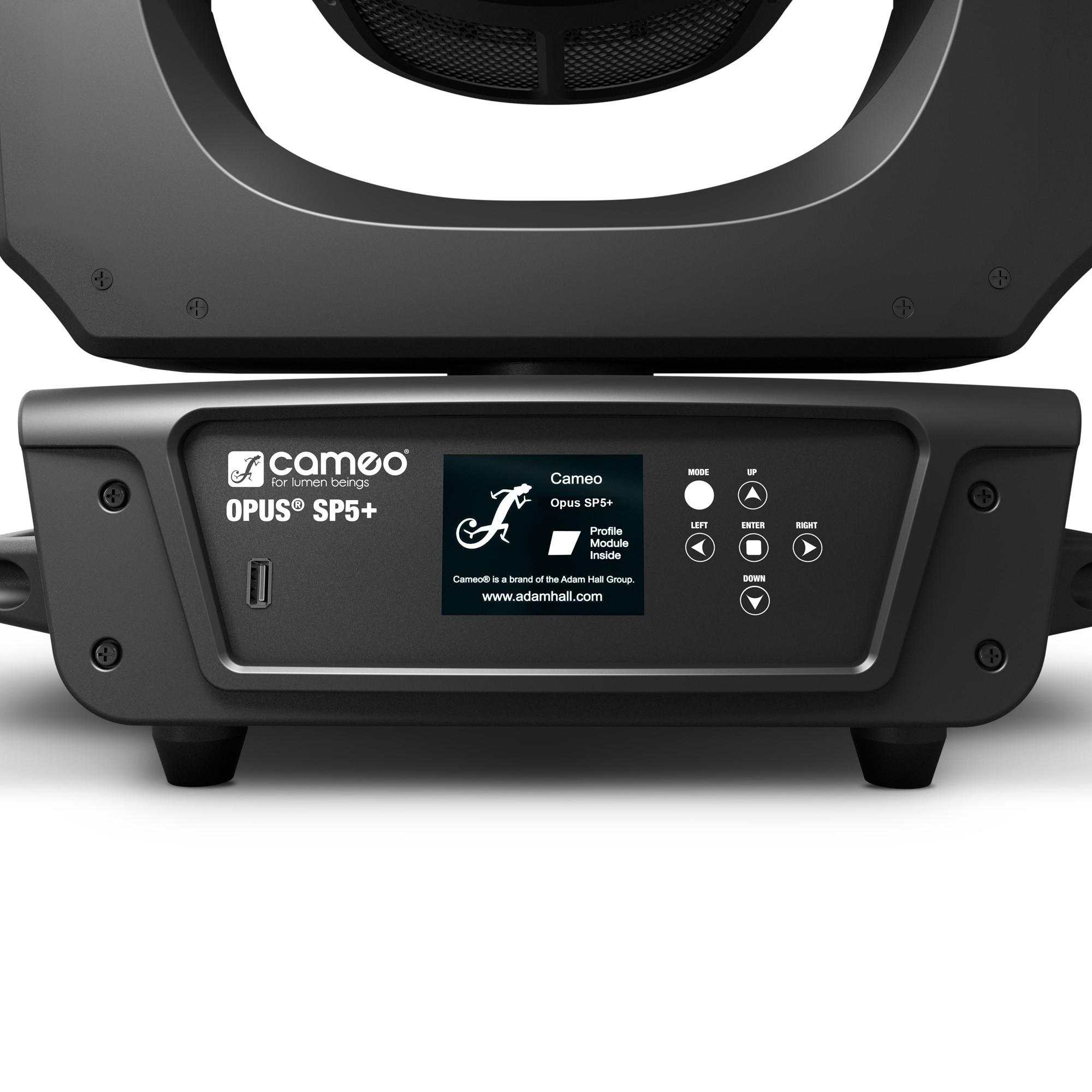

• Battery powered touchscreen display plus 6 touch buttons for offline configuration
• Flexible control via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN

For more details, please download the Cameo OPUS SP5+ user manual via the link below.
