The Cloud Electronics BT-1E remote wall-mounting input module for use with any Cloud product with a Facility Port. It enables Bluetooth compatible devices such as laptops, tablets and smartphones to stream audio wirelessly to the interface, and thereby into the audio system of the Zone where the interface is installed.

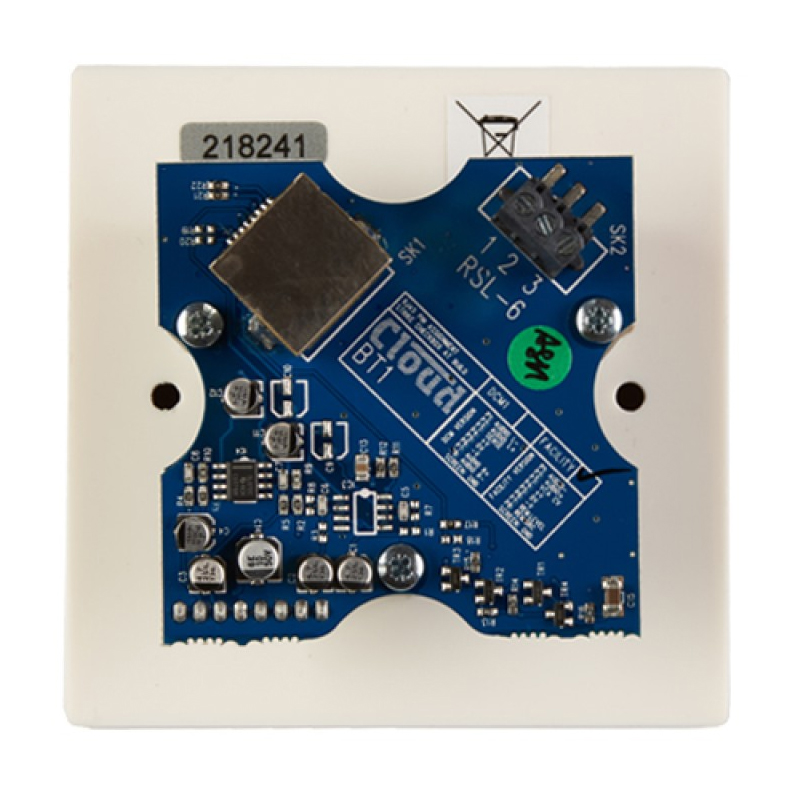

The BT-1F is simply connected using CAT5 cable between the rear RJ45 connector on the rear of the plate to one of the host unit’s Extension Ports. The Cat 5 cable carries DC power as well as balanced audio.

The BT-1F routes a mono sum (L+R) of the streamed audio to the host unit and is compatible with the following Cloud products which are fitted with RJ45 Facility Ports;

• Z4MK4 & Z8MK4 Zone Mixers
• 46-120, 46-120 and 46-120MEDIA Zone Mixing Amplifiers
• MA40F, MA40T and MA40E Mini Amplifiers
• MA80FT and MA80E Mini Amplifiers
• 46-80 and 46-80T Zone Mixing Amplifiers
• MPA120MK2 & MPA240MK2

Any product not equiped with a Facility Port connector can use an FPA-1 adaptor per Zone.

Available in black (BT-1FB) or white (BT-1FW).

• Remote Bluetooth input module for Cloud host units with Extension Port Capability
• Easy connection via screened Cat 5 cable (up to 100 m)
• Single-button Bluetooth “pairing” mode for secured operation
• Alternative “unsecured” mode: configurable at installation
• Each module may have one of 16 unique identifiers to differentiate receivers in areas where multiple modules are installed
• RF power level adjustment to minimise risk of accidental inter-room connection
• Bicolour LED indicates connection progress and streaming activity
• May be daisy-chained to remote input modules (e.g., LM-2) in same Zone
• RSL-6 or RL-1 remote plates may be daisy-chained to BT-1F
• UK versions mount into a standard single-gang UK-style electrical back box (85 x 85 mm) and require a back box depth of 35 mm minimum
