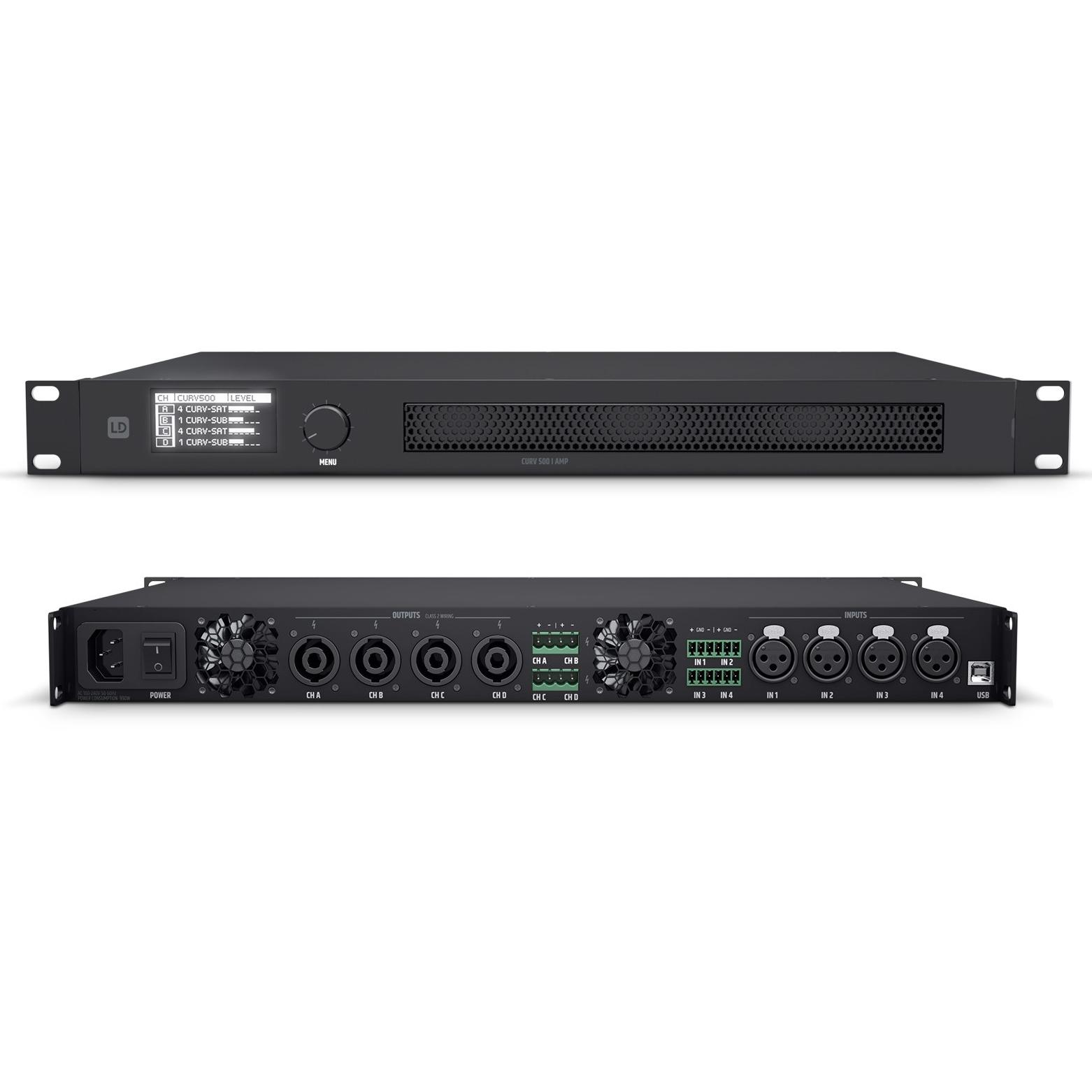

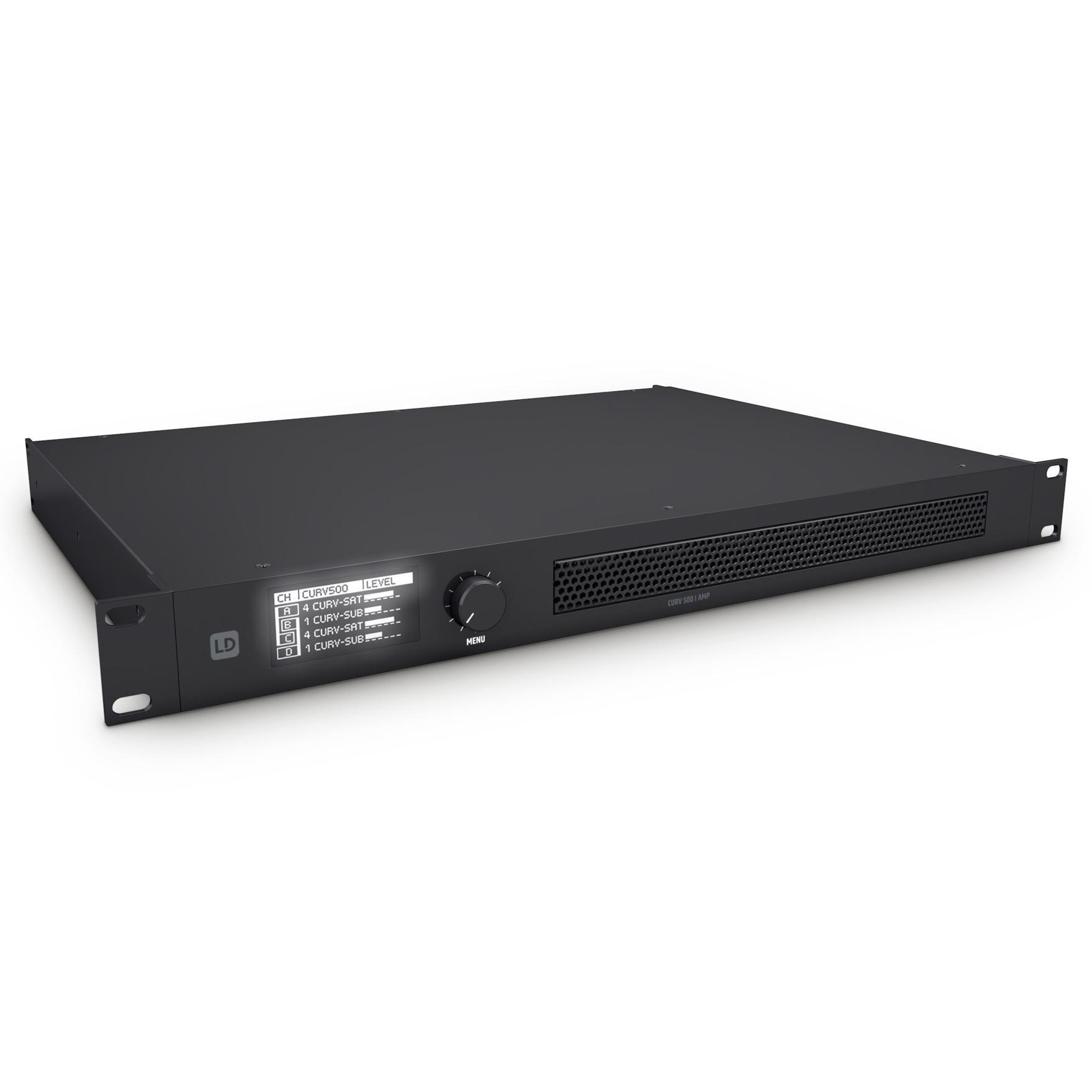

LD Systems CURV 500 I AMP

The LD Systems CURV500 I AMP is designed for use in CURV 500® loudspeaker installations. Rated at 4 x 240 watts RMS (4 ohms).

The I AMP is a slimline 1U high, 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response.

With DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ.

The I AMP is simple to use with the intuitive single push encoder and easily readable high-contrast OLED display.

Features a soft start circuit, DC, overcurrent, thermal and short circuit protection and a temperature controlled low-noise fan.

The I AMP can drive up to six CURV 500® satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.

4 channels with DSP control
Purpose-designed for CURV 500® installations
Low-profile 1U 19" rackmount construction
Drives up to six CURV 500® satellites or one CURV 500® ISUB subwoofer per channel
Single push encoder operation
High-contrast OLED display
Temperature controlled low-noise fan
High-efficiency switch mode power supply
Only 6.8 kg
Warranty: 2 Years

Please contact us for availability

SPECIFICATIONS

Rated output power (1kHz @ 2.7 Ohms)	4 x 240 W
Rated output power (1kHz @ 4 Ohms)	4 x 240 W
Rated output power (1kHz @ 8 Ohms)	4 x 120 W
Rated output power (1kHz @ 16 Ohms)	4 x 60 W
Output circuitry	Class D
Frequency response	10Hz – 22000Hz
Protection circuits	DC, over-current, short circuit, soft start, thermal overload
Controls	Push encoder
Indicators	OLED Display
Line inputs	4
Line input connectors	Terminal block, XLR
Loudspeaker outputs	4
Speaker output connections	Speakon compatible, Terminal block
Cooling	Temperature controlled low-noise fan, noiseless in idle mode
Power consumption @ full load	1100W
Operating voltage	100 V AC - 240 V AC, 50 - 60 Hz, Switch mode power supply with power factor correction (PFC)
Width x Height x Depth	482 mm x 44 mm x 420 mm
Weight	6.8 kg

DOWNLOADS

LD Systems CURV500 Install Solutions Brochure
