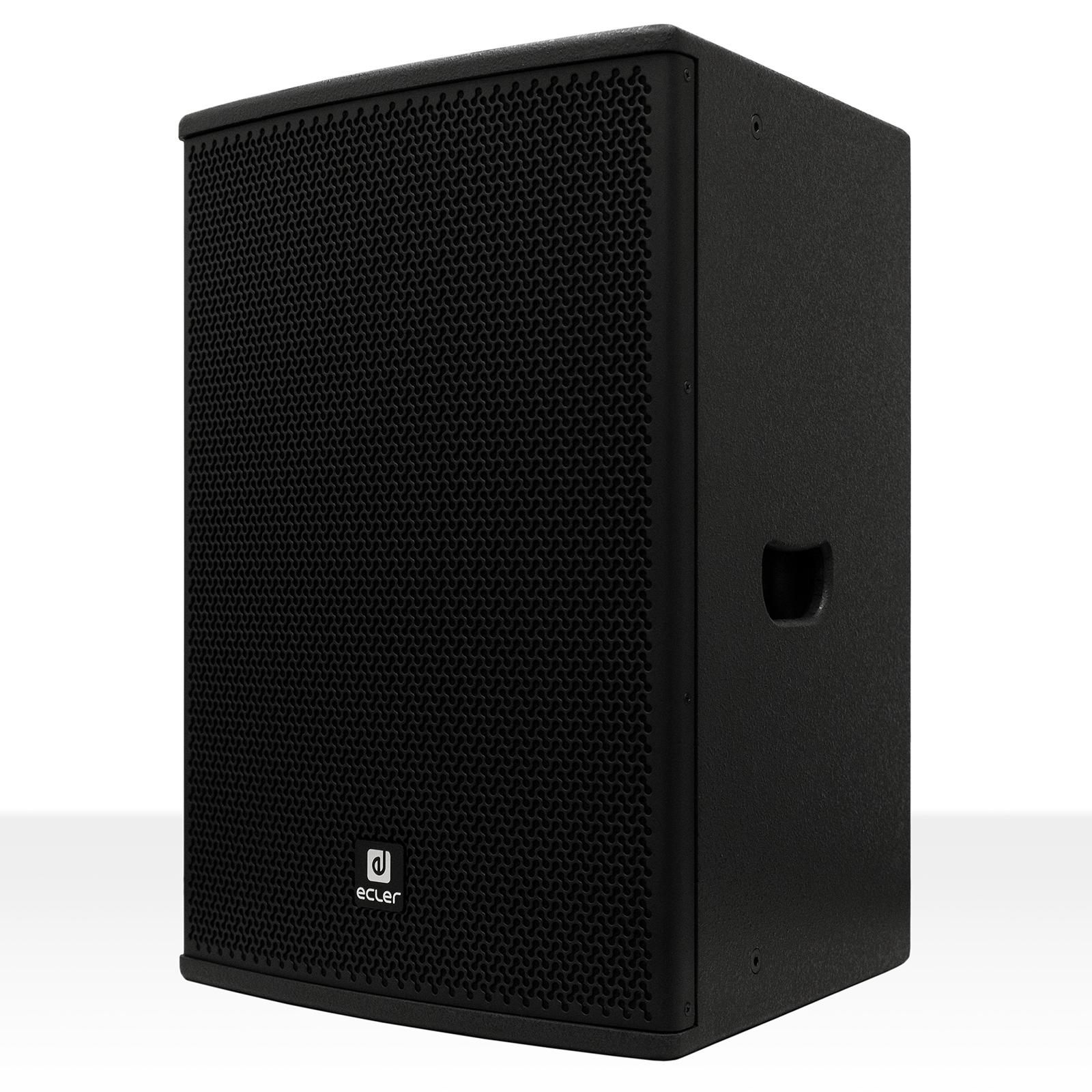

Ecler ARQIS112iB
Click to expand

Ecler ARQIS112iB

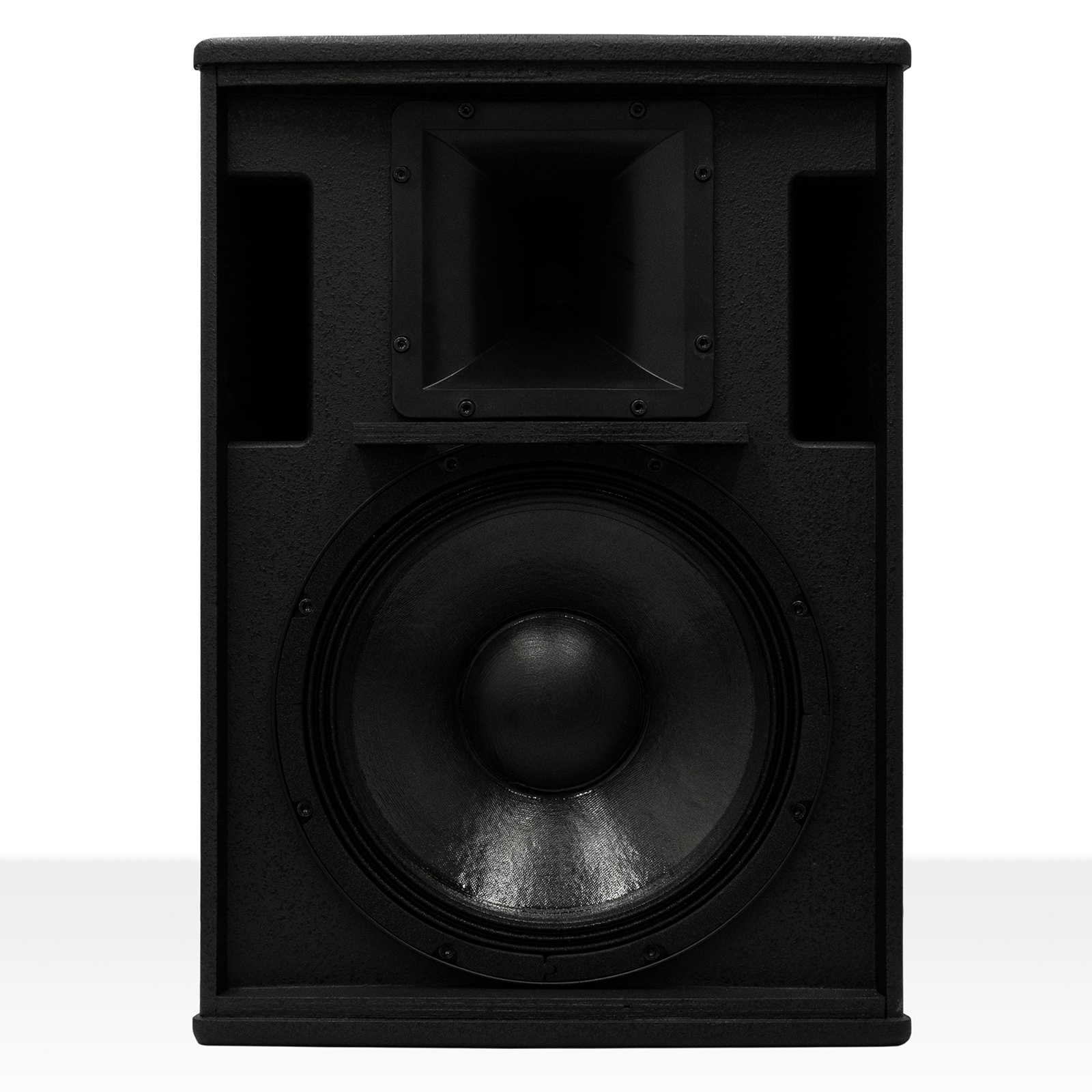

The ECLER ARQIS112iB 2-way wooden cabinet loudspeaker offers excellent sound quality and long term reliability. Rated at 500 Watts RMS @ 8 Ω. Fitted with a 12" woofer and 1.7" HF compression driver.

There is a 35mm mounting socket and 12 x M8 rigging points for horizontal or vertical flying. Bracket not included.

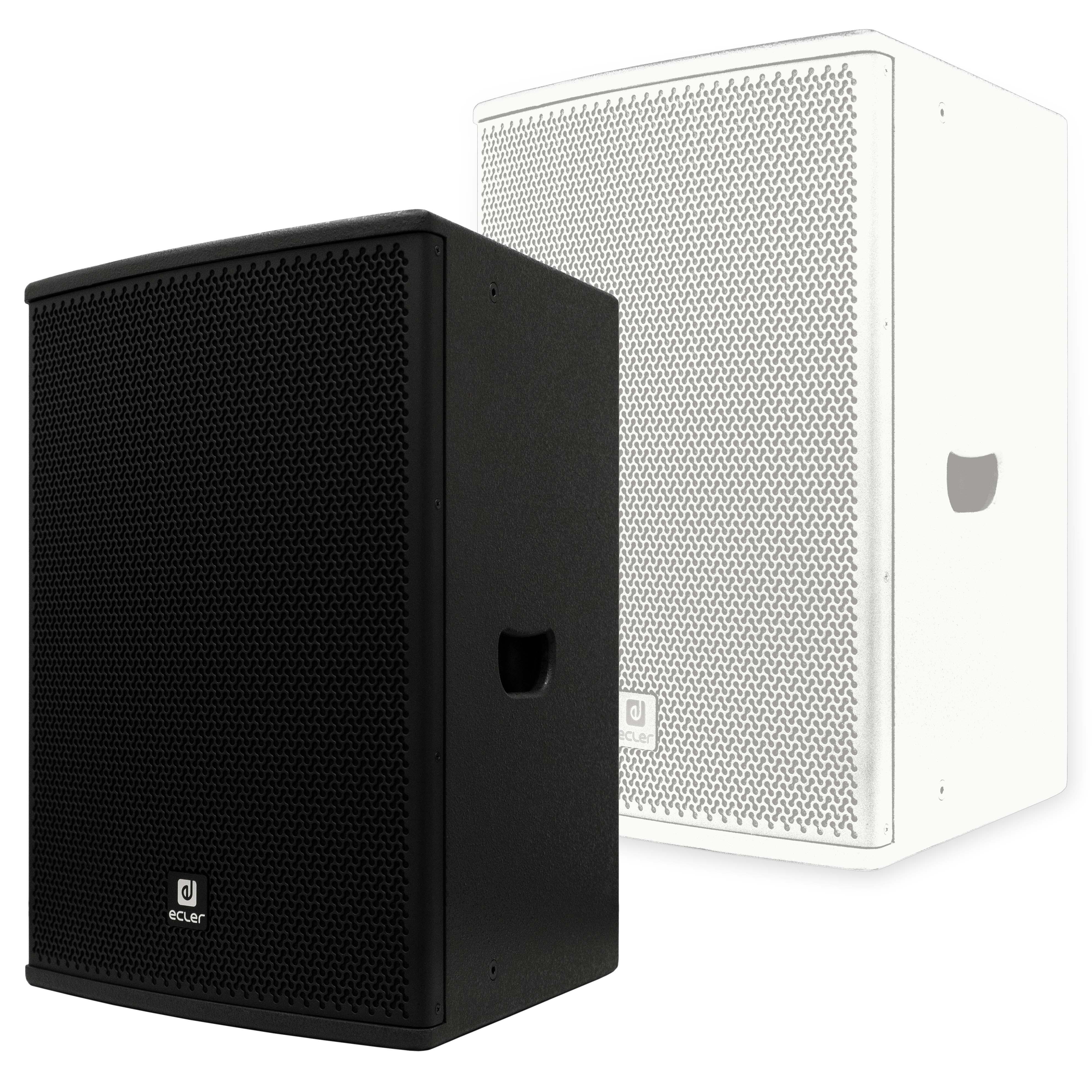

Finished in black. Also available white (ARQIS112iW).

Supplied and priced individually.

  • Full range, 2-way architectural loudspeaker
  • 500 WRMS @ 8 Ω
  • 1 x 12" low frequency woofer
  • 1.7" high frequency compression driver, rotatable

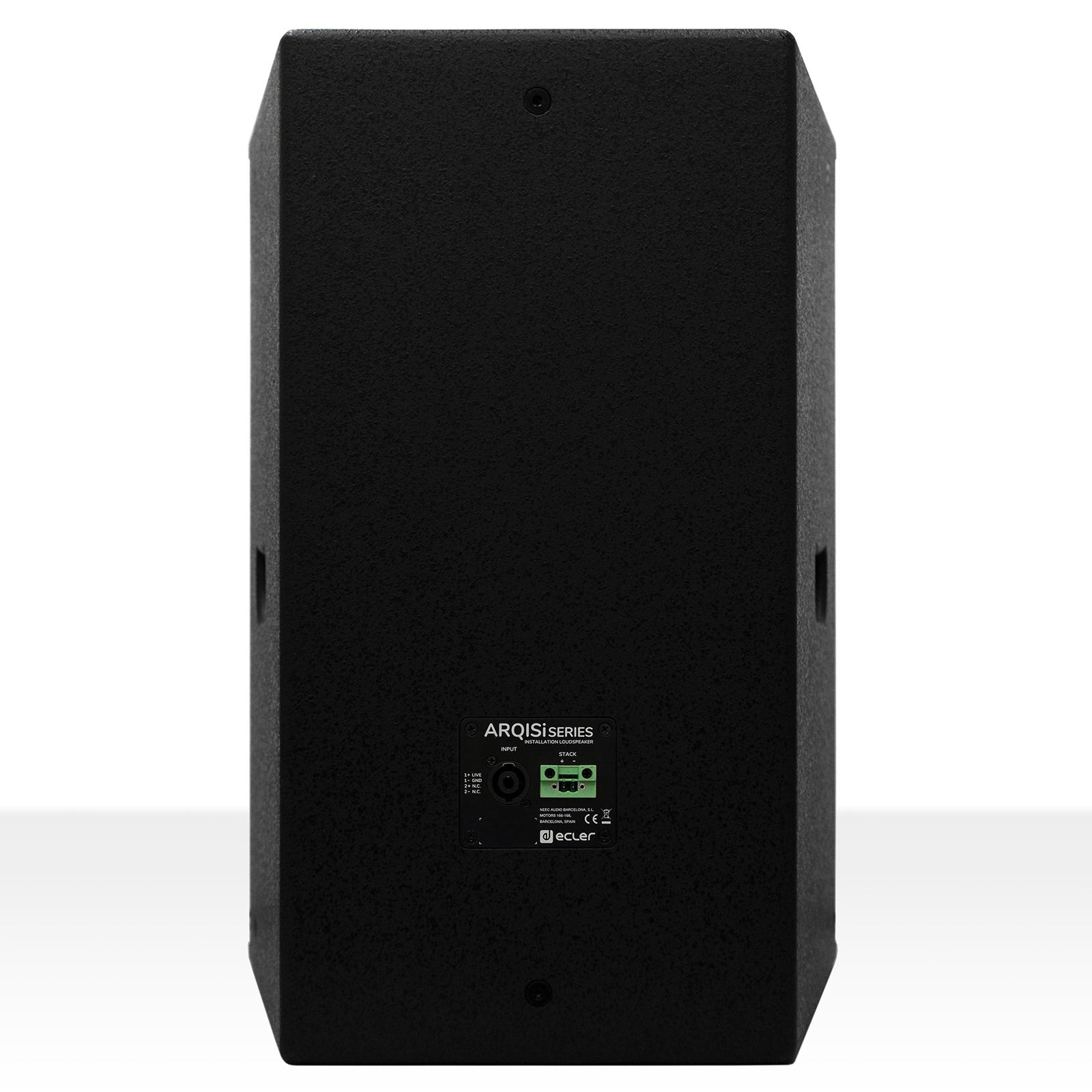

  • Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
  • 35 mm mount socket, compatible with SR12 wall bracket (not included)
  • U bracket also available.
  • 12 x M8 cabinet flying points.
  • Available in black or white finish
  • EASE files available
  • Warranty: 5 Years.

Click here to download the full
Ecler Product Catalogue.

Ecler Product Brochure



1e: 8ohms
List Ex VAT: £697.85
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power output (RMS)

500 W RMS / 2000W peak

Maximum SPL (dB@1m)

123 dB continuous / 129 dB peak

Woofer Diameter

12”

HF driver

1.7” Compression driver (rotatable)

Sensitivity (dB@1m 1W)

96 dB

Frequency response

70 Hz - 19 kHz (-10dB)

Impedance

8Ω

Dispersion (HxV)

120⁰ x 110⁰

Connections

1 x Euroblock + 1 Speakon

Dimensions

403 x 565 x 380 mm / 15.86 x 22.24 x 14.96 in

Weight

23.8 kg / 52.47 lb

IP rating

IP31

Finished colour

Black (RAL9005) or White (RAL 9003)

Accessories included

4 x rubber feet, 4 x screws
