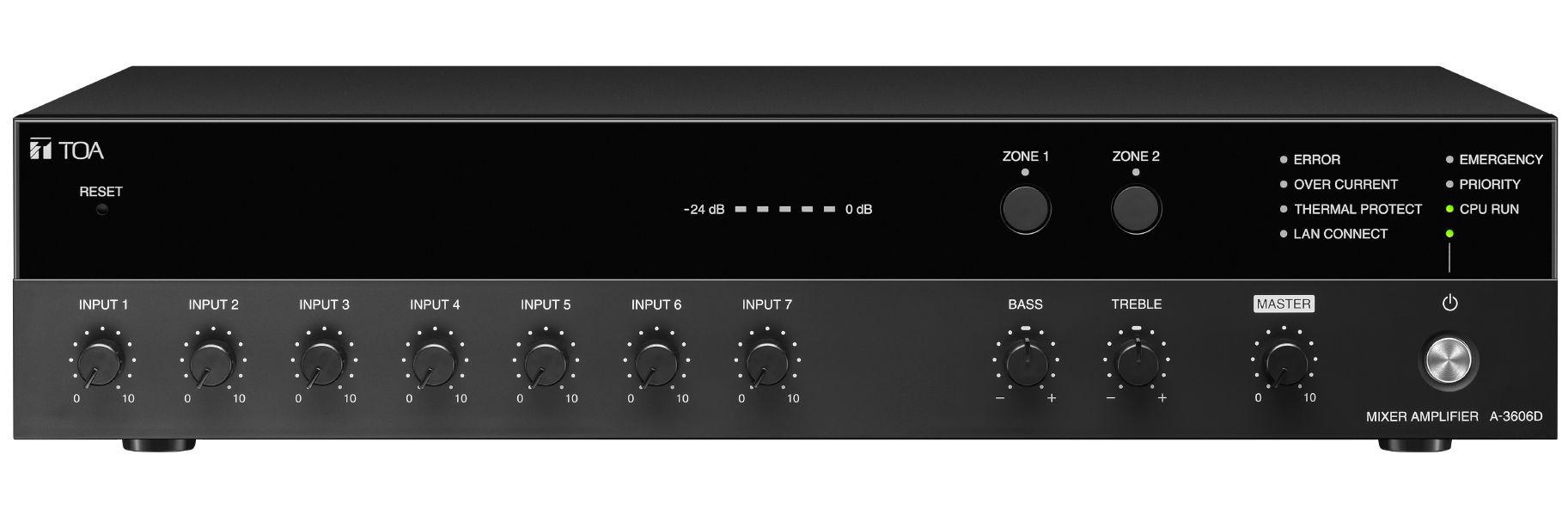

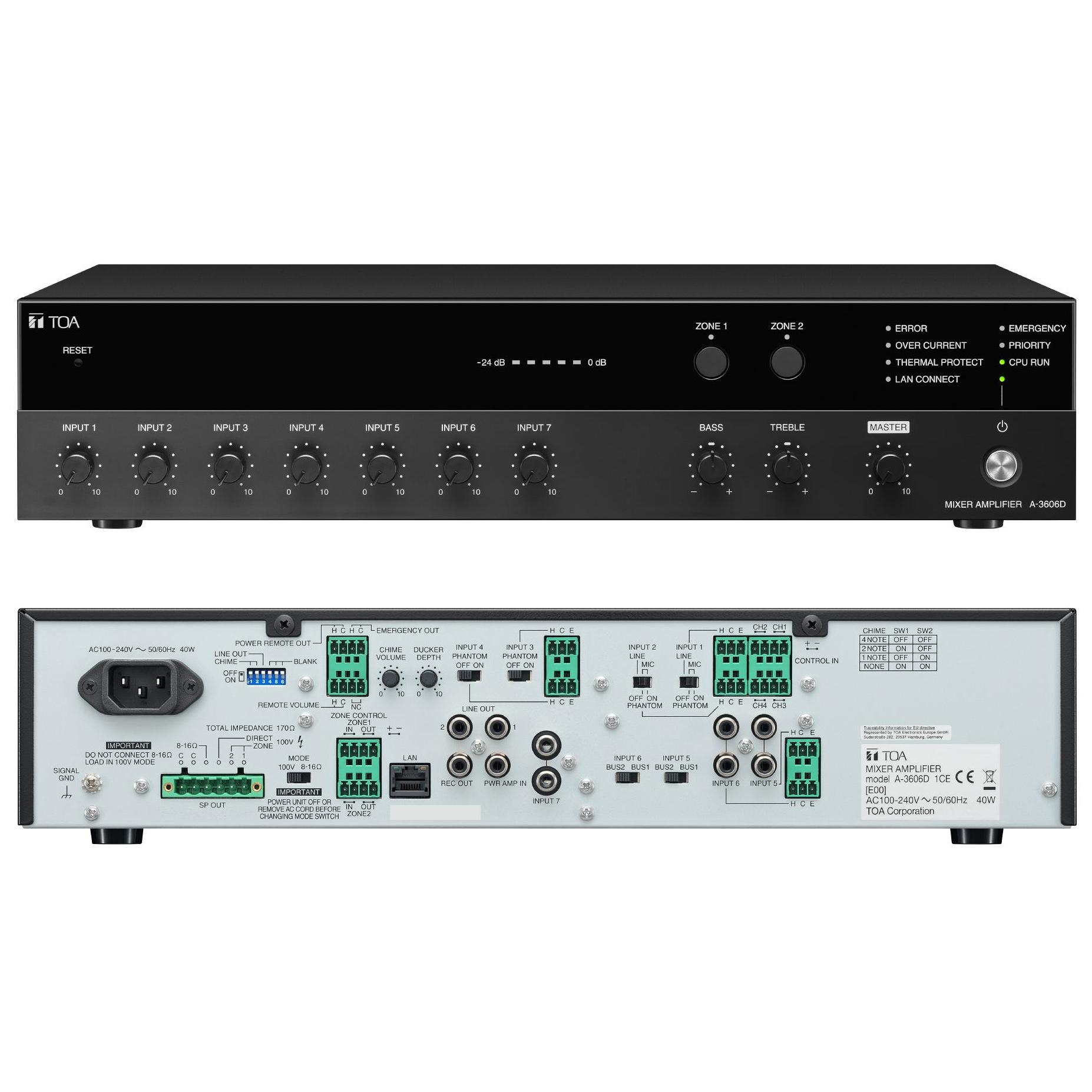

TOA A-3606D
The TOA A-3606D is a class D digital mixer amplifier with a 60 watt output and compatible with 100 volt line or low impedance systems (8 - 16 ohms)
Browser based control and monitoring enables remote troubleshooting and system adjustments including volume change, input priority & speaker EQ settings.
It is equipped with 4 MIC/LINE selectable inputs (2 with phantom power), 2 further MIC inputs with phantom power and 1 Line input. There is also a Power Amp input.
There's an integral chime unit and FBS (Feedback suppression function), Equalizer (3 points), Gate, Software volume, Limiter and Ducker functions are also built in.
The A3606D 2 channel speaker zone selectors (on high impedance only) make it ideal for sound systems in offices, shops, schools, restaurants and small production facilities.
Also ideal as a local amplifier integrated into a building wide voice alarm system. A priority broadcast function enables emergency messages to be prioritised over local sound with six priority levels assignable to the input trigger signals.
Available in a range of power ratings - see related products if this isn't quite the power rating you need.
- For high and low impedance speakers
- AC-mains 100V - 240V
- 8 Inputs (4 MIC/AUX selectable, 2 MIC, 1 AUX, 1 power amp)
- 4 Mic inputs with phantom power
- 2 Zone speaker selector (high impedance only)
- 2 Line out
- 1 Rec output
- 2 Zone control inputs/outputs
- 1 Power remote control output
- 1 Emergency output
Rack mountable using optional MB-25B brackets - see relates products.
