Ecler eCA120
Click to expand

Ecler eCA120

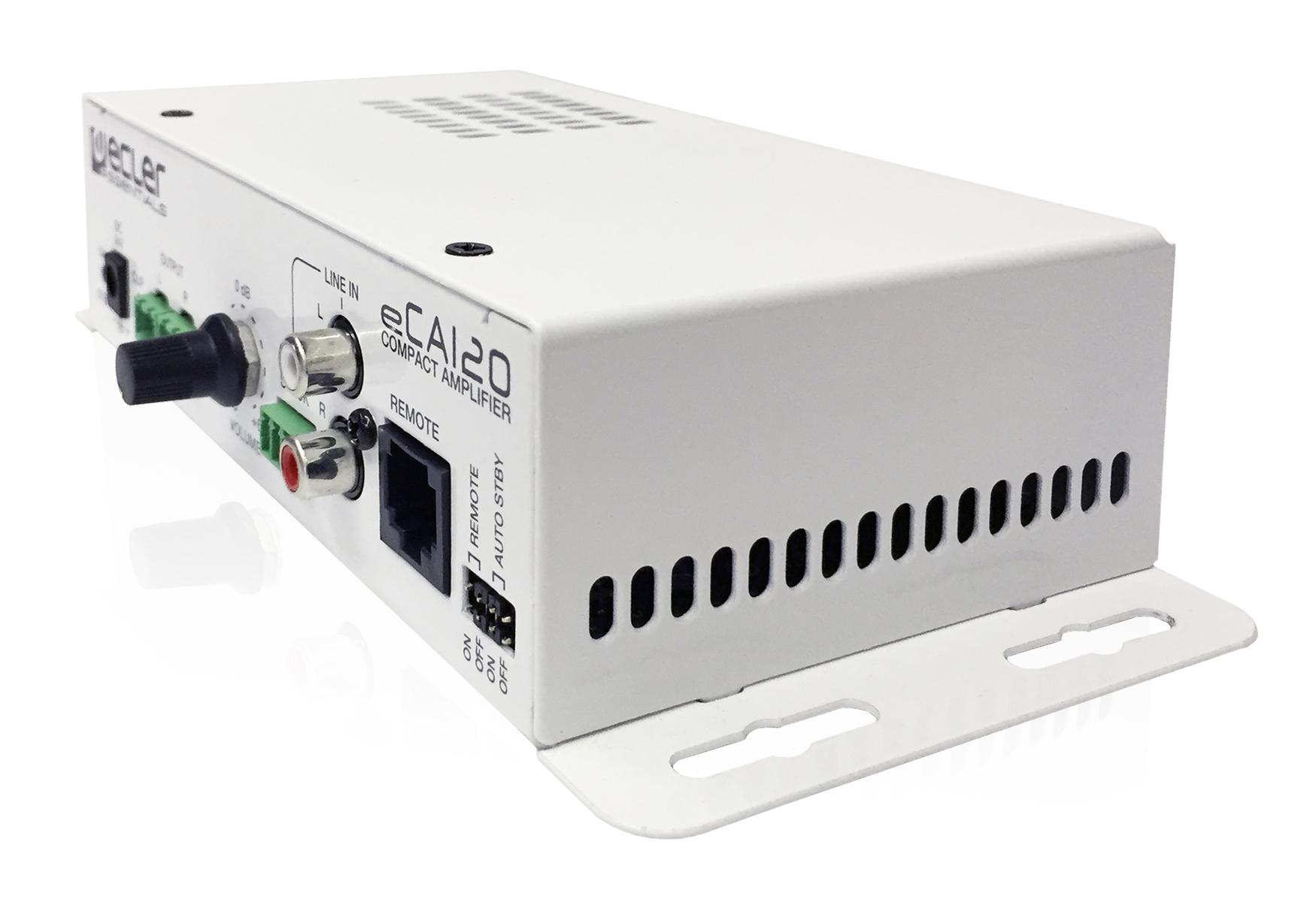

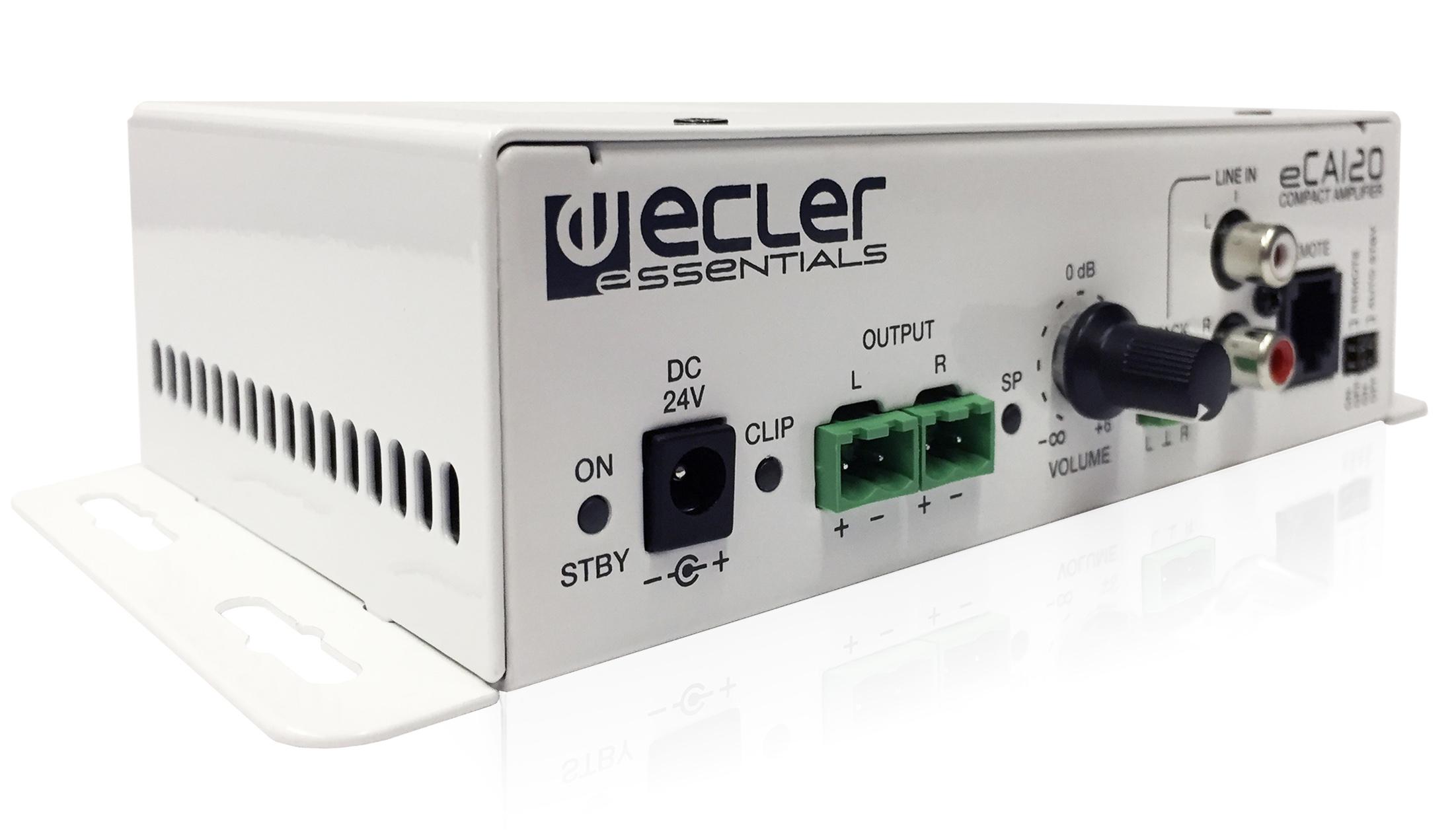

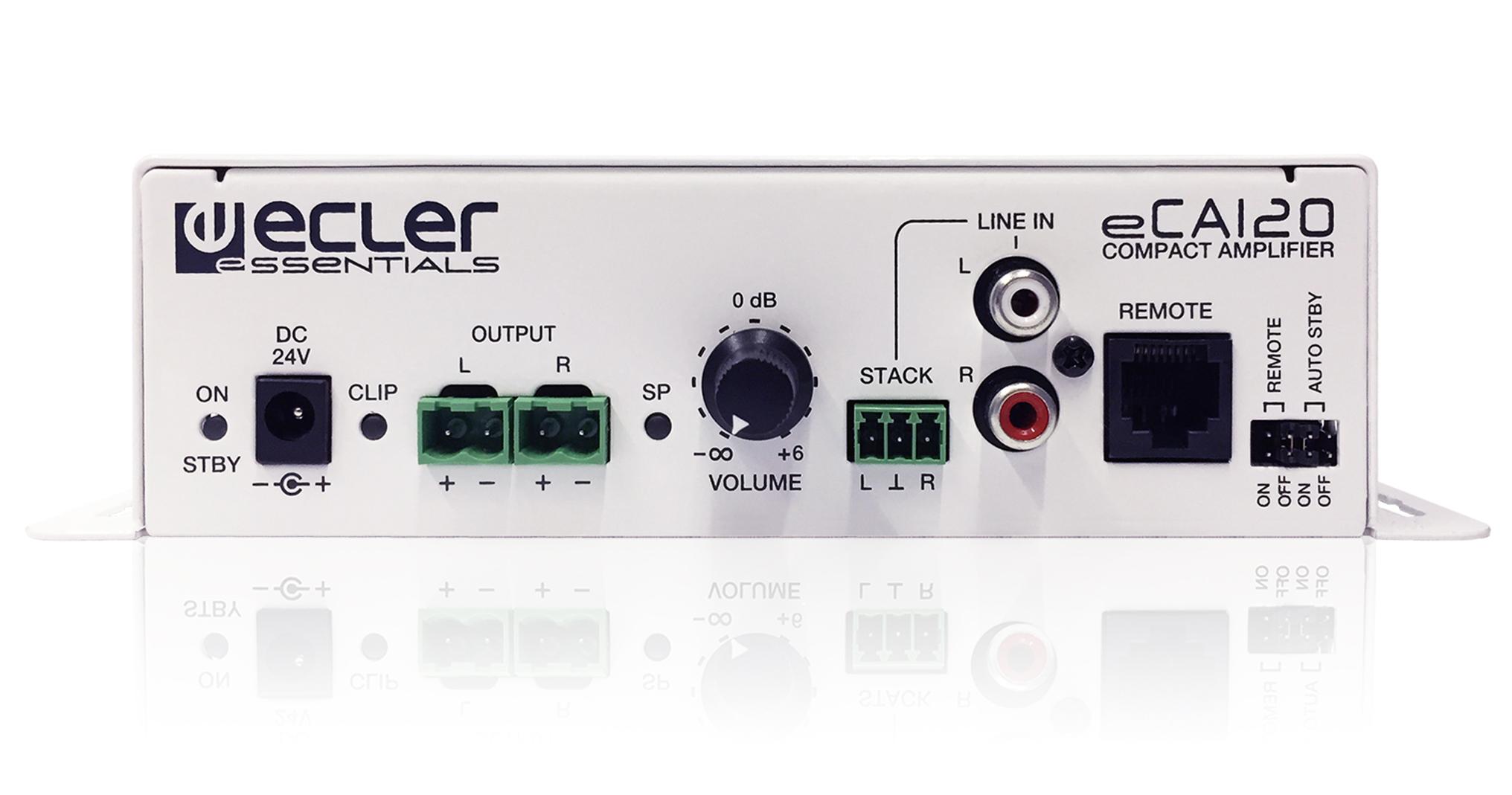

The Ecler eCA120 is super compact wall mounted stereo amplifier offering 2 x 60 watts output @ 4 ohms.

This is a basic, pared down version of the CA120 offering just one line / stack input on RCA stereo jacks and Euroblock. These are linked so when using one of these options for input, the other can be used to send the signal out to another unit or external equpment. Ideal for a simple background music system in classrooms, meeting rooms and shops etc.

There is an onboard volume control but the unit is also compatible with the Ecler wall mounted remote wall panels.

• 2 x 60 W RMS @ 4 Ω stereo amplifier

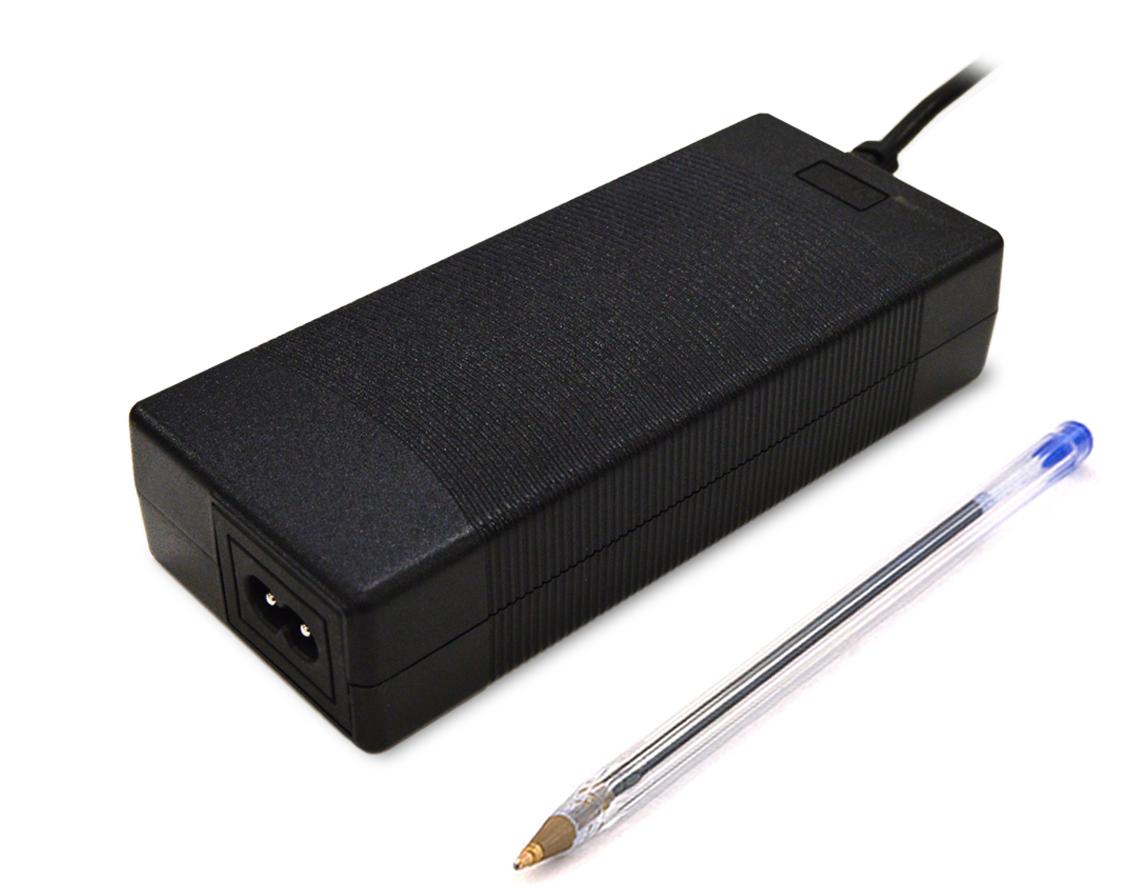

• External, universal power supply
• AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimizing power consumption
• Light and silent (fanless) design
• 1 unbalanced stereo line input (LINE IN / STACK), with dual RCA connector and 3-pin Euroblock connector
• Local volume control by knob
• Remote volume control by WPm series wall panel (0-10VDC)

Compatible with wall mounted controls from the WP series to enable remote volume adjustment from a more convenient location. - see related products.

4ohms 8ohms
List Ex VAT: £354.09
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power



STEREO

2 x 56W@4Ω 1% THD / 2 x 68W@4Ω 10% THD

2 x 34W@8Ω 1% THD / 2 x 41W@8Ω 10% THD

Frequency response:

15Hz - 30kHz (-3dB)

THD+Noise @ 1kHz Full Pwr. SPKR OUT

< 0.15%

Channel crosstalk @ 1kHz

>65dB

Input Sensitivity nom/Impedance:

 0dBV/>20kΩ



Signal Noise Ratio

 >85dB (Volume at 0dB)

Mains (using supplied DC adapter 24V)

90-264VAC  50-60Hz

Power consumption:



pink noise, 1/8 power

38VA / 26W

pink noise, 1/3 power

61VA / 51W

Stand By (time 2 minutes)

<2.5W

Dimensions WxDxH

190 x 90 x 48mm

Weight

600g
