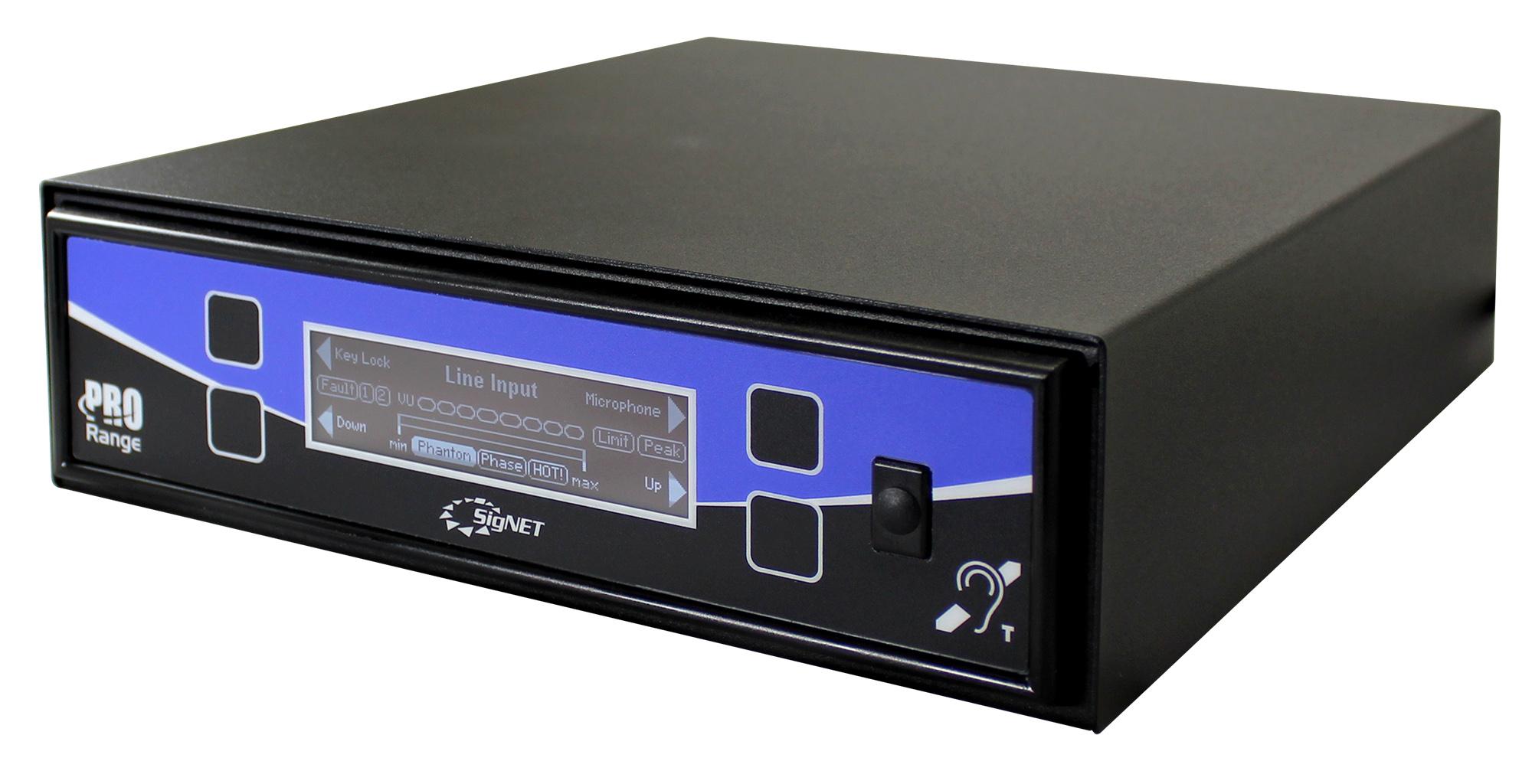

Signet PRO11/DD
The Signet PRO11/DD dual loop, phase shifted induction loop amplifier is ideal for larger installations, especially where large amounts of metal are present. With its output current of 2 x 7.5 Amps, it’s suitable for rooms up to 1000m².
The OLED display on these ‘PRO’ amps offer a more detailed display than the PDA version.
To ensure uniformity of the magnetic field, a phased array system produces two AFILS signals 90° out of phase with each other. These signals are connected to two identical hearing loops laid in a special overlapping pattern. The resultant magnetic field is evenly spread within the covered area but falls off quickly outside the loop. A phased array system eliminates 'dead spots' often found with a perimeter loop design and also prevents 'overspill' to adjacent rooms.
Three versions of this freestanding phase array loop amp are available;
Please note: The smallest practical room width for a phased array loop is 5m.
The OLED digital display panel indicates the operational status and any faults on the amplifier inputs, whilst the 4 control buttons are used for navigating the menu displays and adjusting the settings.
- Compact and rugged construction
- Digital display for easy set up

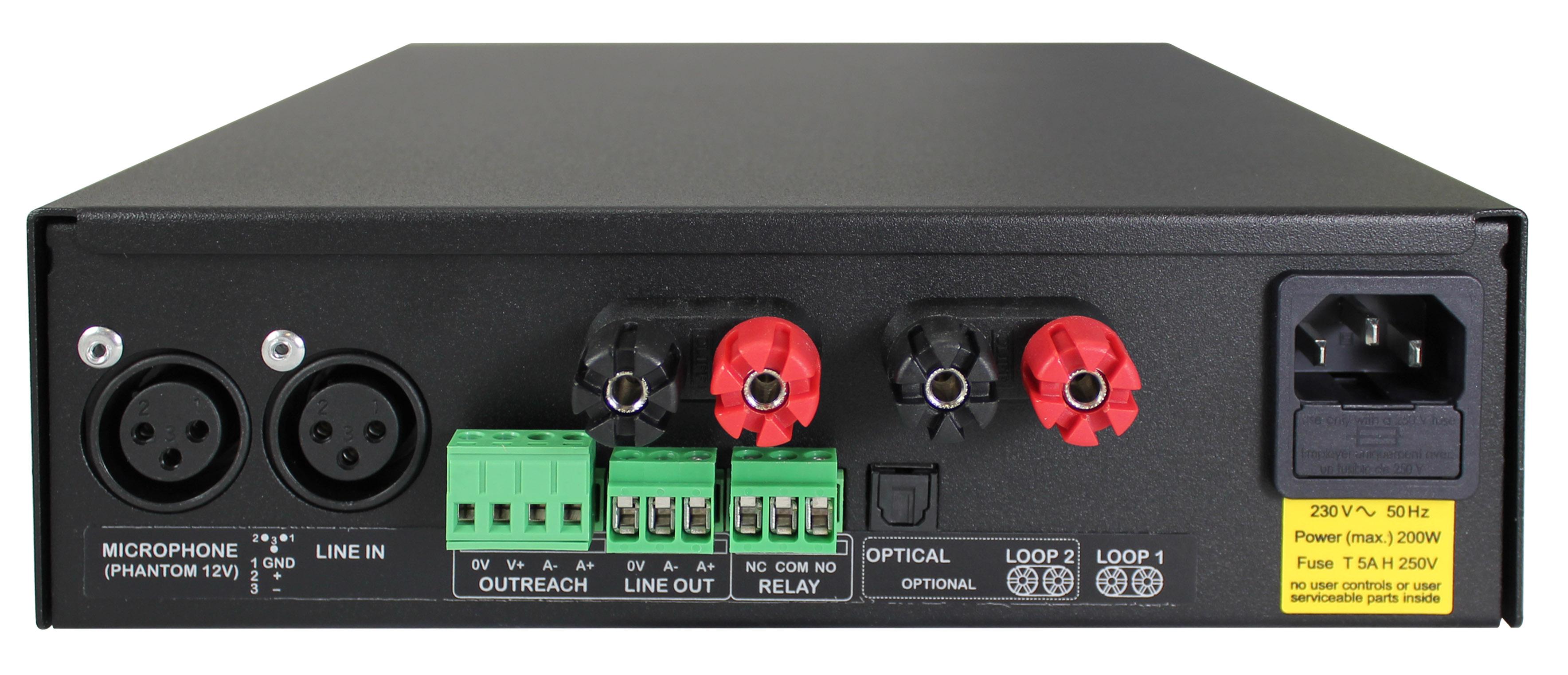

- 2 x XLR mic / line inputs
- Outreach connector allows up to 10 Signet Outreach Utility Plates to be added
- Metal compensation for buildings with high metal content
- Anti-tamper function
- Class D output stage for maximum efficiency & high output
- Short circuit protection against loop faults
- Dual action auto gain control compensates for poor mic technique
- Phantom power (12V) for electret microphones.
- TOS Link optical input for TV connection
- Rack mountable with optional PDA/RM3
- Warranty: 5 Years

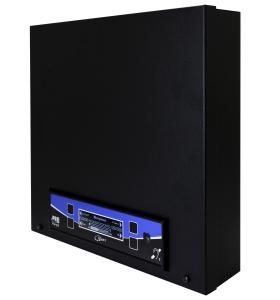

Also available in a wall mounted version - see PRO5/DW, PRO7/DW and PRO11/DW.
