TOA AM-CF1

The TOA AM-CF1 beam steering microphone sound bar is designed for use in video and web conferencing systems. Ideal for small to medium sized conference rooms, the bar incorporates a line array with 8 microphone elements to track sound automatically from different participants around the room.

Two powered speakers are built in for superb sound quality.

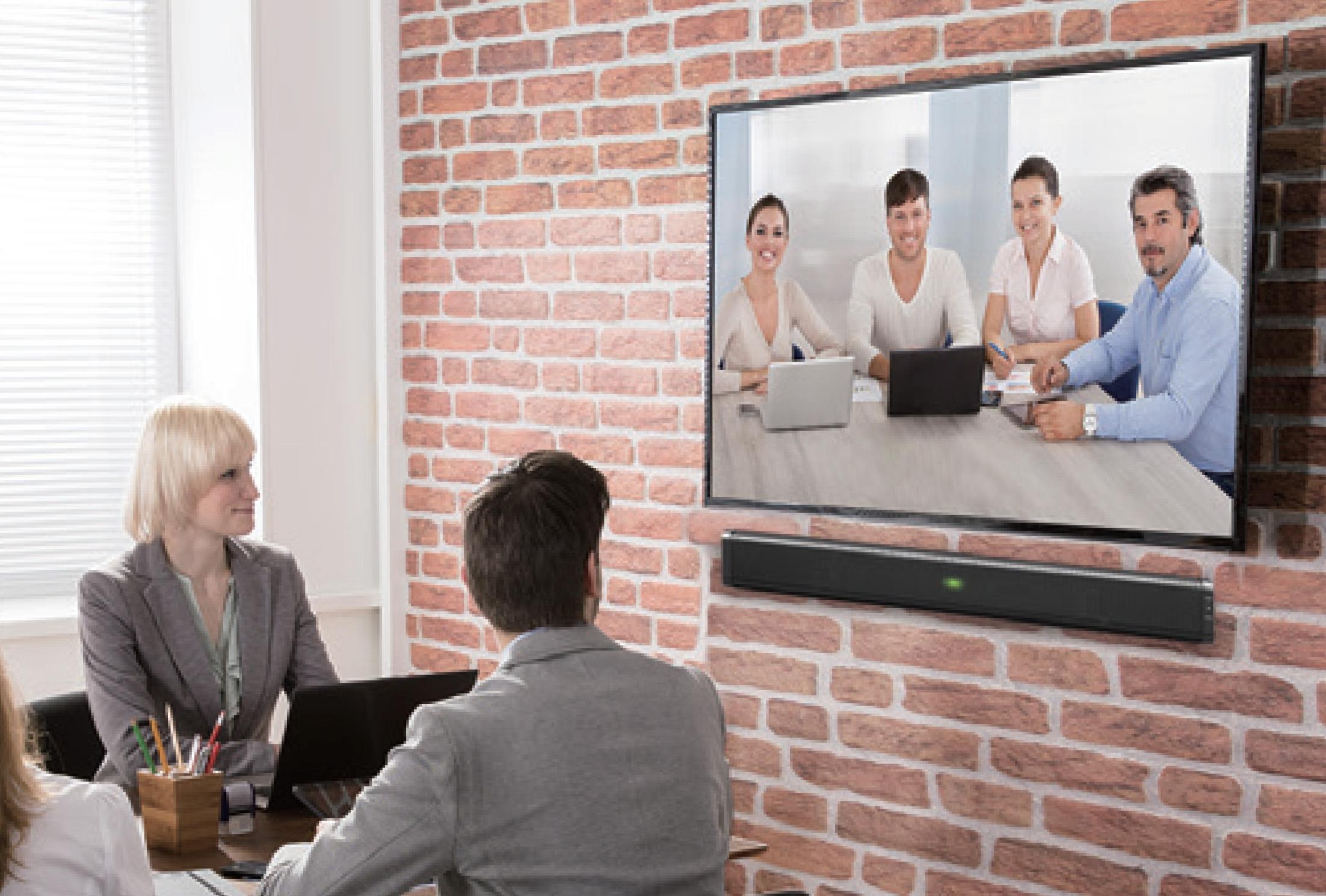

Once the sound bar is mounted underneath the screen, the AMCF1 enables a natural sounding conversation to take place with remote participants without having to lean into a microphone or worry whether the mic is in the right place. Built-in AEC (Acoustic Echo Cancellation), NC (Noise Cancellation), and EQ (Equalizer).

For impromptu meetings, a smartphone can be paired via bluetooth. A browser based GUI makes it easy to adjust various parameter settings such as mixer volume controls,

Audio processing, LED indicator management, control I/O, presets, and voice tracking field adjustments for coverage within a 20-foot (6m) range.

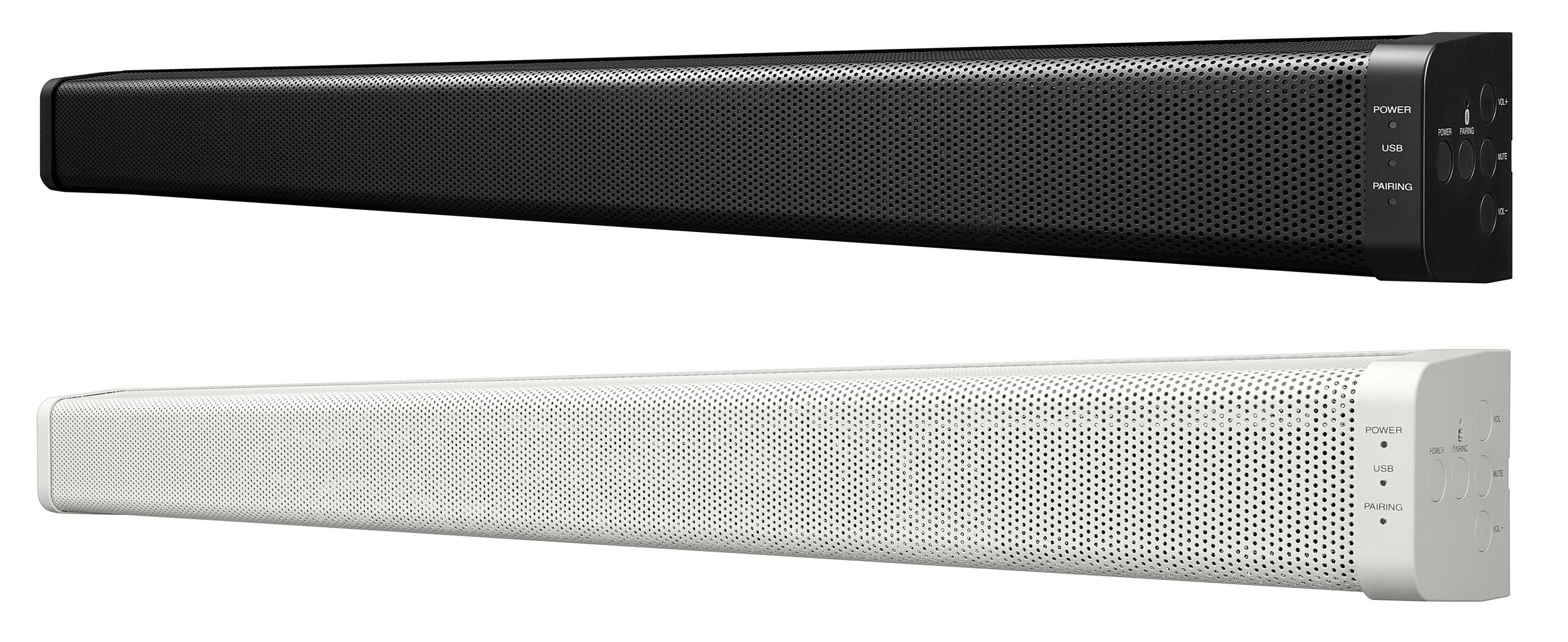

Available in black (AM-CF1B) or white (AM-CF1W)

  • TOA’s proprietary beam steering array microphone
  • Integrated DSP functions including AEC and NC
  • Built-in USB Hub for webcam integration
  • Codec input /output and Contact Closure inputs/outputs
  • Bluetooth interface for wireless connections
  • Stereo soundbar with auxiliary stereo audio



bluetooth
List Ex VAT: £2,365.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source

12 V DC (supplied from the specified AC adapter) or

52 V DC (supplied from the specified PoE extender)

Current Consumption

Under 3.5 A

Inputs

USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port

Bluetooth: 2 channels,

Codec: 1 channel, RCA pin jack, −10 dB*1, 10 kΩ, unbalanced type

AUX: 2 channels, RCA pin jack, −10 dB*1, 10 kΩ, unbalanced type

Outputs

USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port

Bluetooth: 2 channels

Codec: 1 channel, RCA pin jack, −10 dB*1, 600 Ω, unbalanced type

AUX: 2 channels, removable terminal block (6 pins), 4 dB*2,

600 Ω, balanced (electronically-balanced) type

Internal speaker: 2-way Å~ 2 (woofer Å~ 2, tweeter Å~ 1)

Control Inputs

2 inputs, removable terminal block (6 pins), no-voltage make contact

Control Outputs

2 outputs, removable terminal block (6 pins), no-voltage make contact, relay contact output

Network I/F

10BASE-T/100BASE-TX, RJ-45

Array Microphone

Unidirectional electret condenser type

Frequency Characteristics

20 Hz – 20 kHz (AUX IN – AUX OUT)

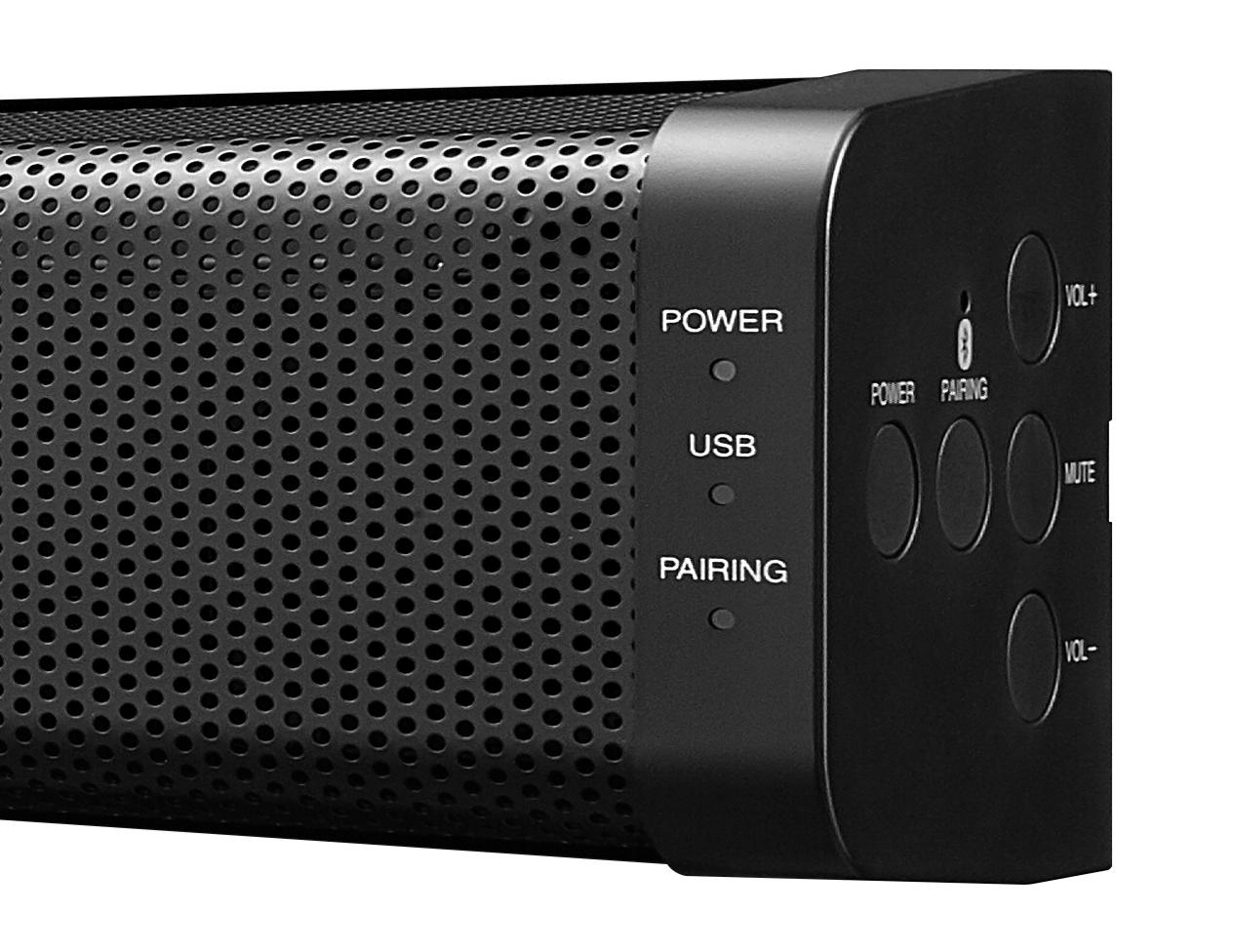

Operation Section

Power switch, Bluetooth pairing, Mute, Volume Up/Down

Operating Temperature

0 to 40˚C (32 to 104˚F)

Operating Humidity

90% RH or less (no condensation)

Body

Aluminum, black / Aluminum, white

Grille

Steel, black (RAL 9005 equivalent) or white (RAL 9003 equivalent)

Side Cover

ABS resin, black or white

Dimensions

800 (w) x 83.2 (h) x 85.8 (d) mm (31.50” x 3.28” x 3.38”)

Weight

4.6 kg (10.14 lb)

DOWNLOADS

TOA AM-CF1 Beam Steering Microphone Soundbar Datasheet
TOA AM-CF1 Beam Steering Microphone Soundbar Manual
