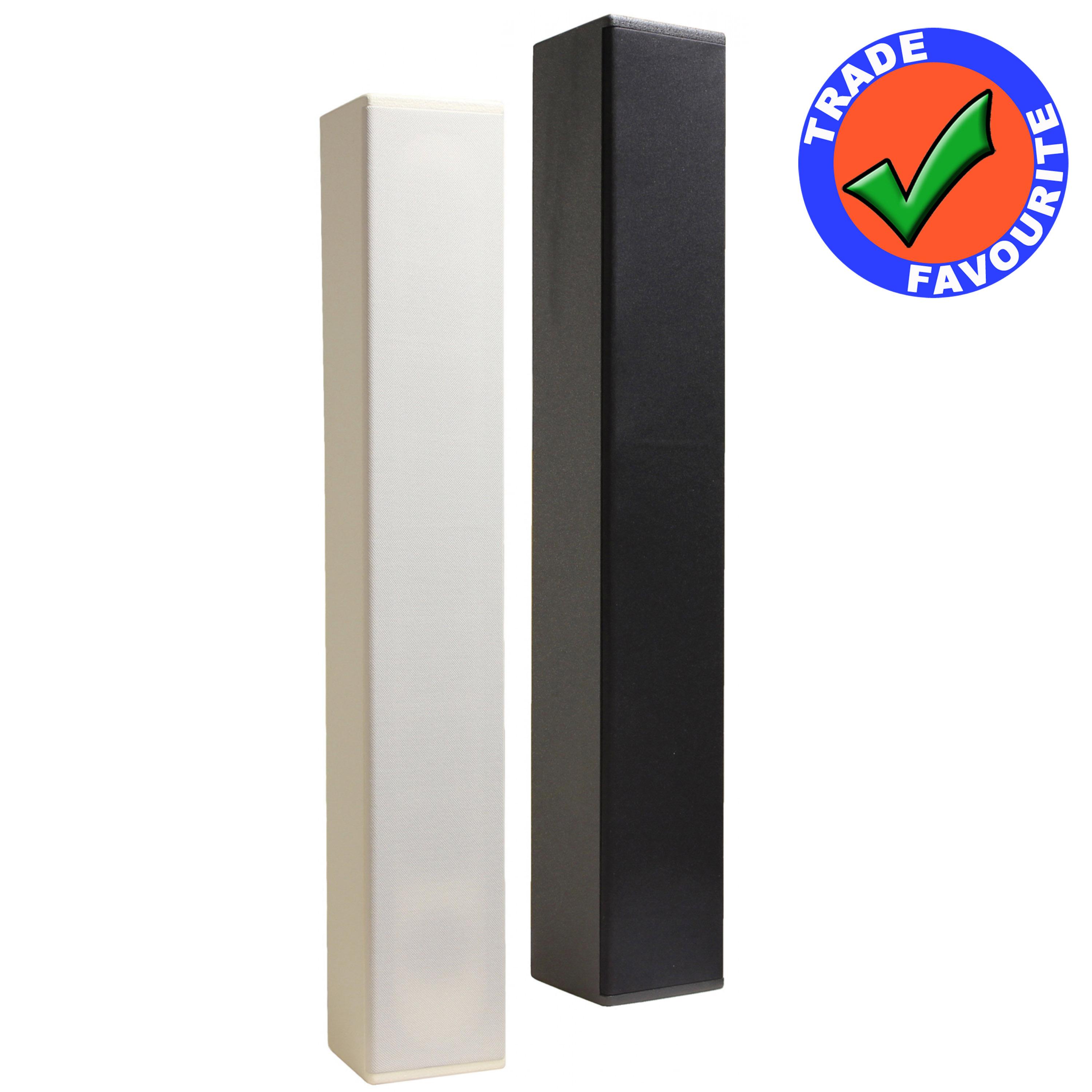

Hush Audio AC83
Click to expand

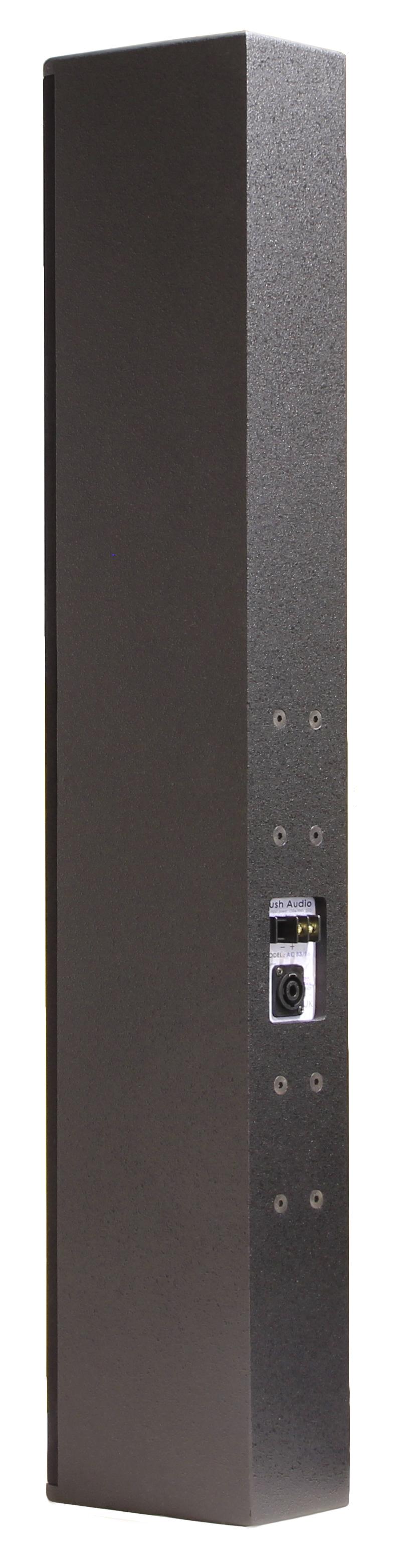

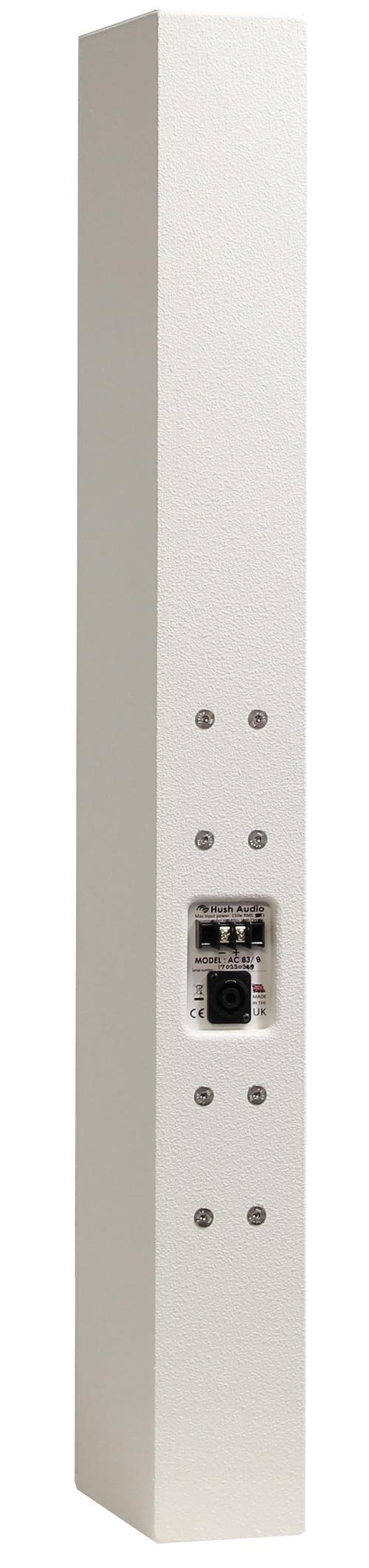

Hush Audio AC83

The Hush Audio AC83 focussed array column speaker is one of our favourite products. It provides broad horizontal and tightly controlled vertical dispersion for professional sound reinforcement systems.

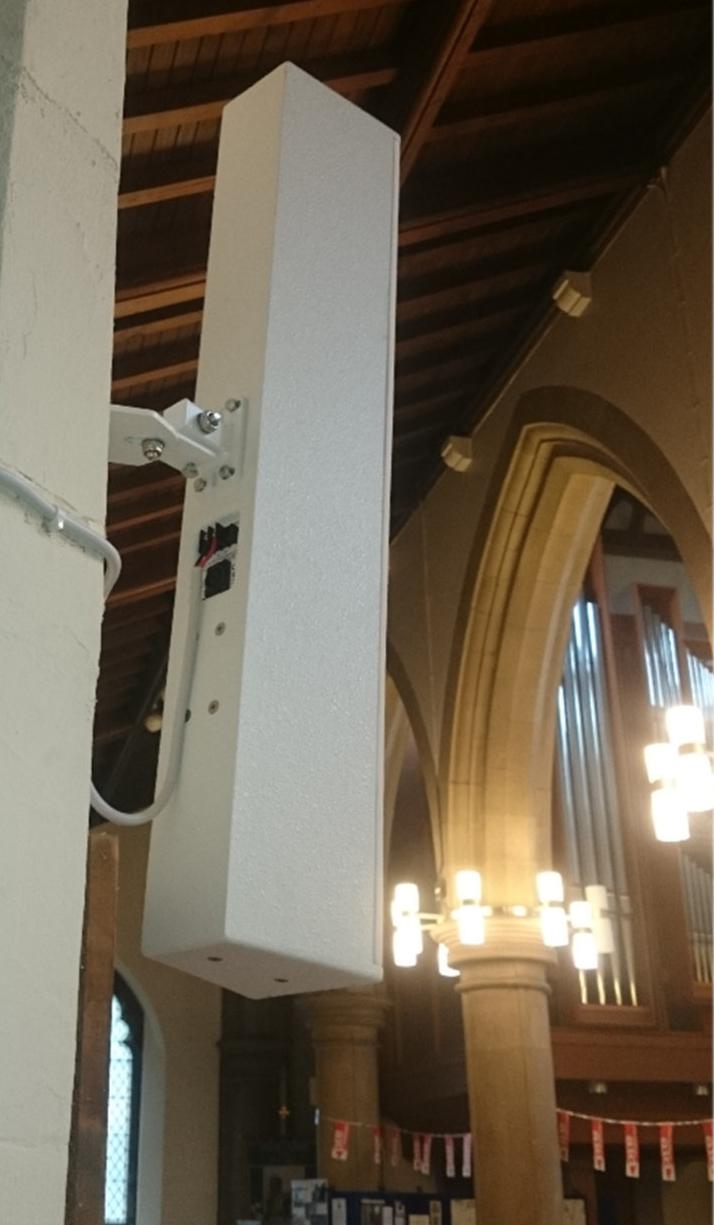

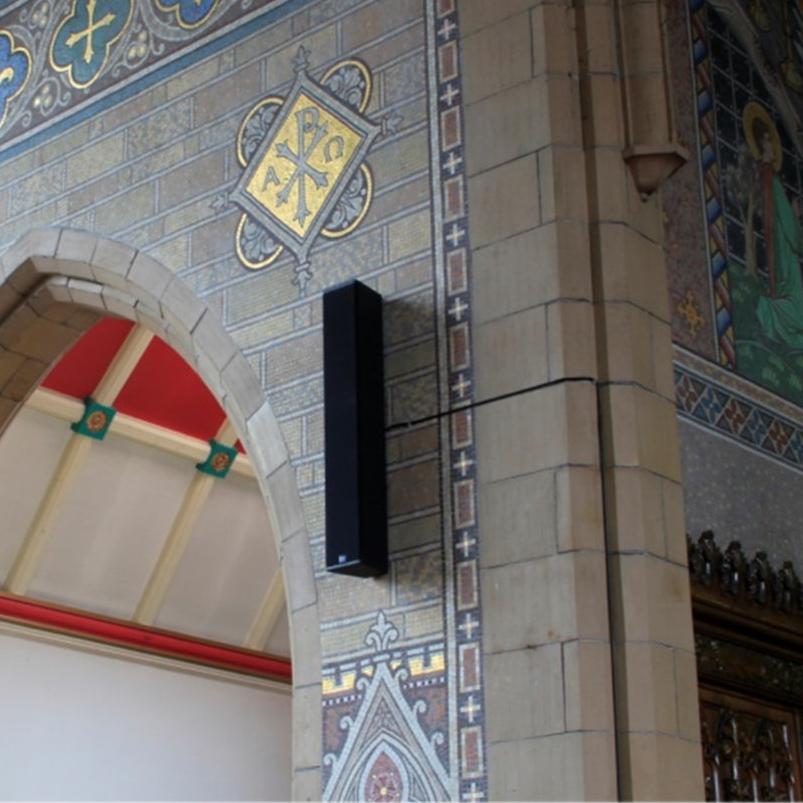

The compact design and superb reproduction of voice and music makes it perfect for churches, civic halls and buildings of historic interest where the fabric and structure of the building can cause difficult acoustic conditions.

By employing 8 x 3" full range drive units, a phase coherent waveform is created which results in true and accurate sound reproduction.

The addition of a suitable compact bass speaker results in a superb full range sound system.

  • Controlled dispersion pattern
  • Low distortion
  • Excellent sound projection over large areas
  • Slimline low profile cabinet
  • 12mm Baltic Birch ply construction
  • 95dB 1w/1m sensitivity
  • Choice of 8 and 16 ohm versions
  • Flexible mounting options

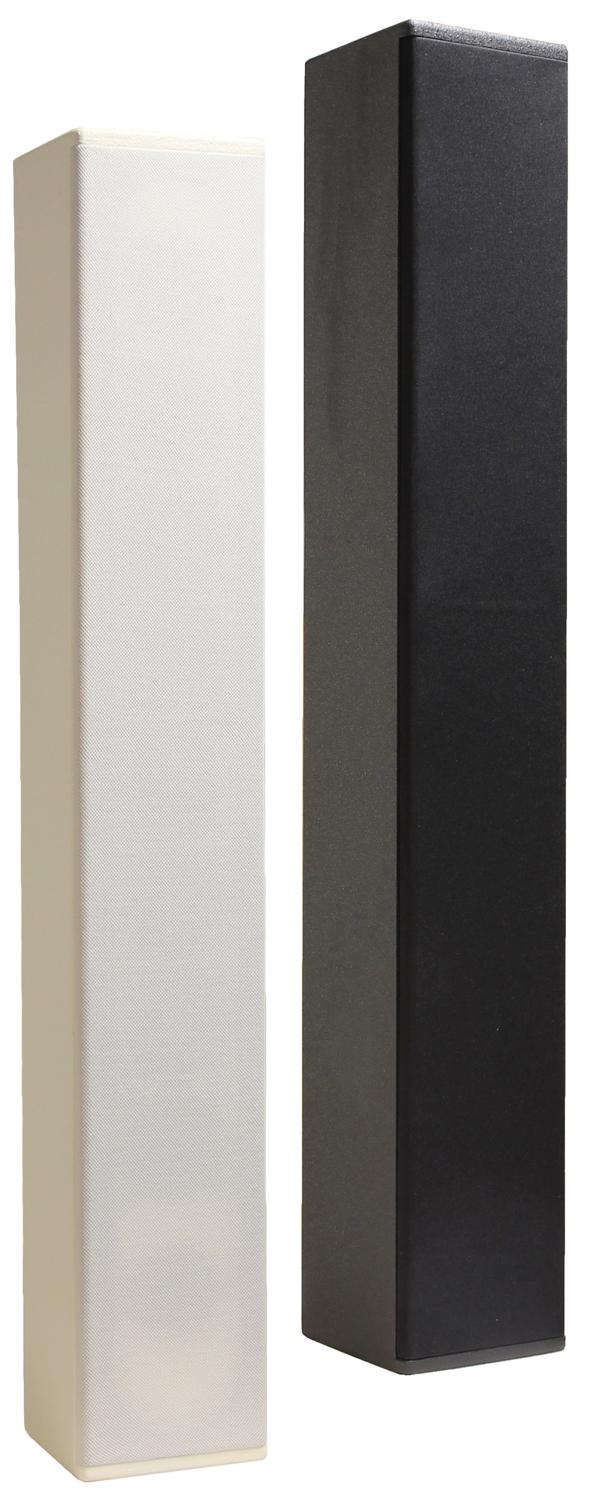

  • Textured finish in black or white
  • Designed & manufactured in the UK



Also available in stone grey (by special arrangement - please contact us)

Supplied and priced individually.

Mounting brackets are available separately - see related products.

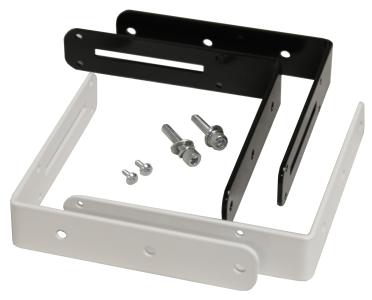

  • AC83LBKT : L shaped bracket kit for AC83 in black or white

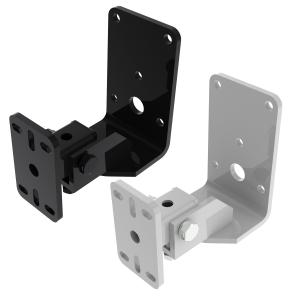

  • WME50 : Rear mounting tilt and swivel bracket for AC83 in black or white

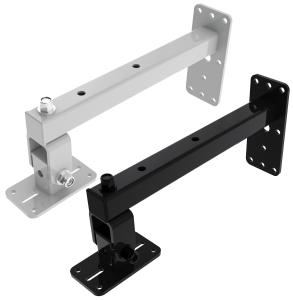

  • AC83TM : Top mounting tilt and swivel arm bracket for AC83 in black or white

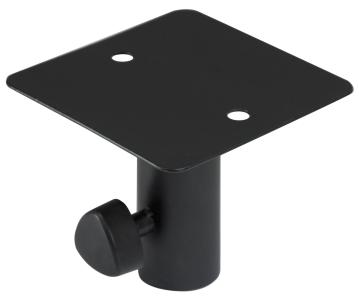

  • AC83PM : 35mm Pole mount adaptor for AC83 in black only
16ohms 8ohms
List Ex VAT: £595.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

AC-83

Focused array column loudspeaker

Type

Passive

Full range driver

8 x 3”

Max power

150w AES

Nominal Impedance

AC83/8 = 8Ω

AC83/16 = 16Ω

Sensitivity

95dB 1w at 1m

Max SPL

118dB at 1m



100dB at 20m

Freq. resp.

90Hz to 20kHz (-3dB)

LF roll off

67Hz (-10dB)

Recommended DSP

80Hz HPF 12dB/Oct

Nominal dispersion

Horizontal: 100° , Vertical: 20°

Dimensions

H: 900mm

W(front): 140mm W(rear): 90mm

D: 160mm

Weight

9 kgs

Inputs

1 x NL4MP, 1 x 2 way screw terminal

Finish

Warnex textured paint with fabric grille

Colours

Black

White

Stone Grey RAL7030 (special order)
