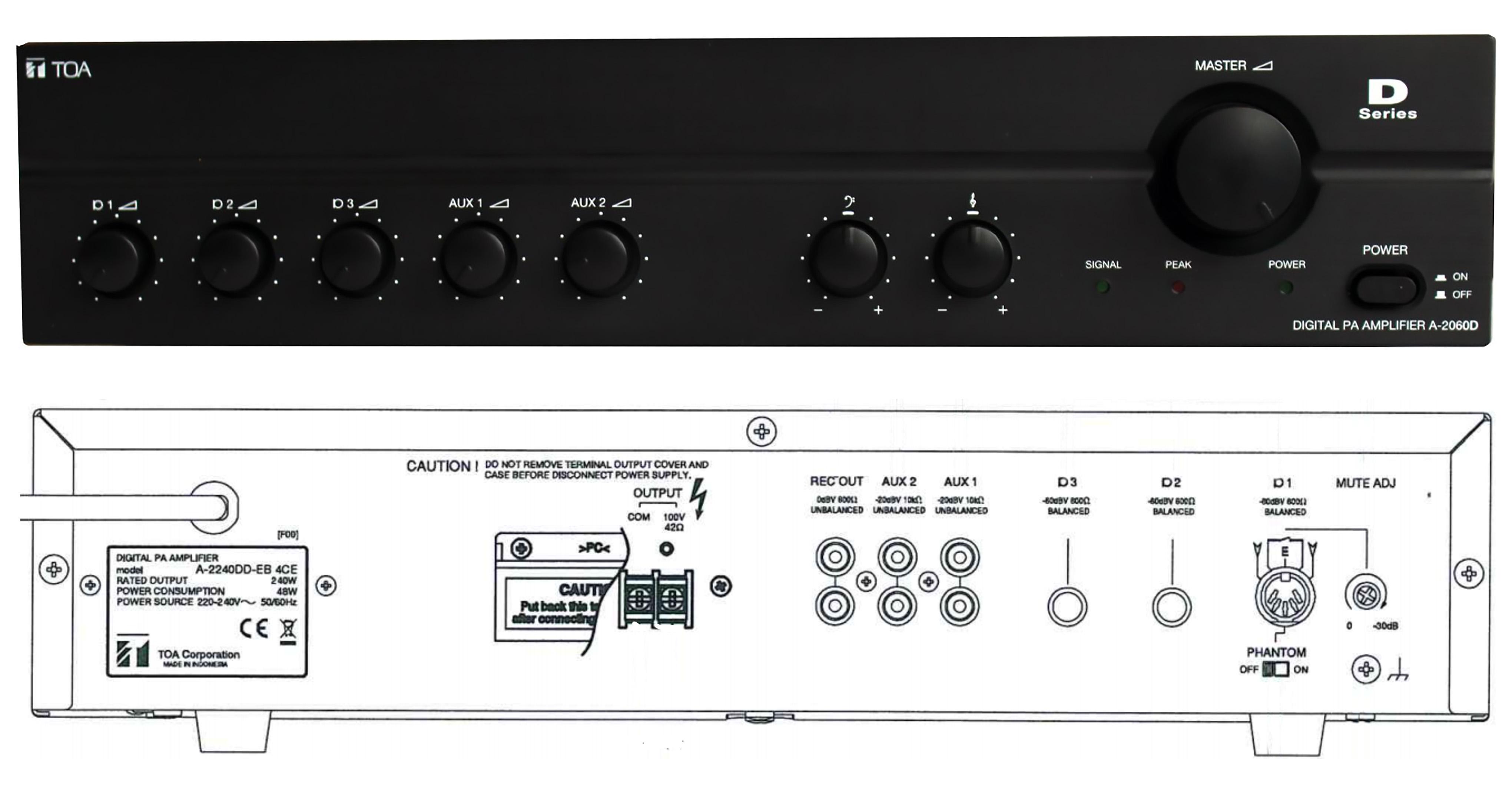

TOA A-2060DD
Click to expand

TOA A-2060DD

The TOA A-2060DD-EB mixer amplifier, one of our favourite products, is ideal for public address and paging requirements in schools, offices, shops, restaurants, factories, churches etc.

Following on from the ever popular TOA A-2000 series, the A-2000DD series continues the success of its analogue predecessor but offers additional advantages.

Thanks to digital technology, these Class D models offer higher sound quality & lower running costs. The weight reduction of up to 70% also saves transport costs and reduces CO2 emissions.

Equipped with balanced microphone inputs for better isolation from external noise compared to unbalanced inputs.

The A-2060DD is suitable for AC operation only. It's also available in different power output options from 30 W to 240 W. It is finished with a scratch and fingerprint-resistant surface for easy handling as well as quick volume control with master volume knob.



  • 3 microphone inputs, 2 AUX input and 1 recording output
  • DD version with 2 phone jacks and 1 5-pin DIN input
  • Speaker output of constant voltage distribution system (100 V)
  • Independent tone control of boost and cut type for both high and low frequency
  • MIC 1 with phantom power and mute function
  • Current limiter to prevent damage due to current overload
  • Excess heat limit to protect the transistor and power transformer
  • Available in 30 W, 60 W, 120 W and 240 W rated output
  • Rack mountable with optional brackets - MB-25B

Please see the video for further information.

100V 2U
List Ex VAT: £239.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS



A-2060DD-EB

Power source

220 - 240 V AC, 50 / 60 Hz

Rated output

60 W

Frequency response

50 Hz - 20 kHz (±3 dB)

Distortion

< 1 % (at 1 kHz, 1/3 rated output power)

Power consumption

16 W (EN 62368-1: AC operation at 1/8 rated output)

Amplifier

Class D

S/N ratio

60 dB (or more)

Number of channels

1

Connectable microphones

3

Inputs

MIC 1: -60dBV, 600 Ohm, balanced, 5-pin DIN equivalent, phantom power selectable, + 21V
Mic 2-3: -60dBV, 600 Ohm, balanced, phone jack
AUX 1-2: -20 dBV, 10 kOhm, unbalanced RCA pin jack

Control input

Mute: via DIN jack

Outputs

Speaker: balanced (floating) / Rec out: 0 dBV, 600 Ω, unbalanced, RCA Pin Jack

Finish

ABS resin, Steel plate, black

Dimensions

420 x 100.6 x 280.3 mm (W x H x D)

Weight

4.6 kg
