Cloud Electronics CS-C3B
Click to expand

Cloud Electronics CS-C3B

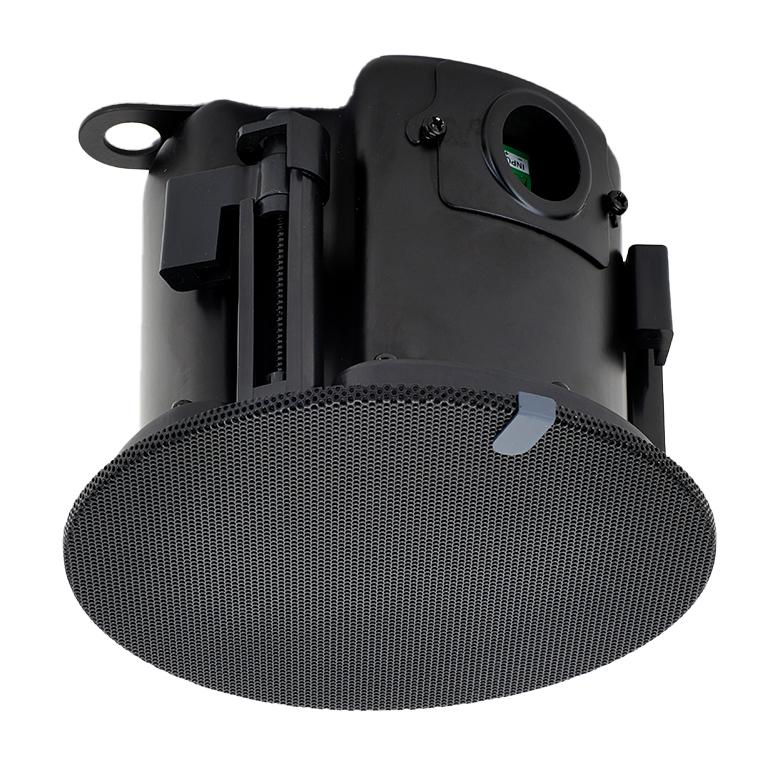

The Cloud CS-C3B flush mount ceiling speaker is one of our favourite products. Finished in black, this 3" full range in-ceiling loudspeaker is rated at 16 watts on 100 volt line / 16 ohm music systems.

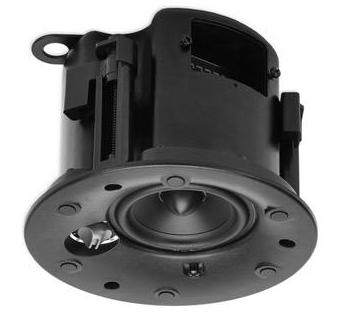

The stylish rimless grille design - 'ZeroEdge' -  attaches via magnets for a streamlined discreet finish. Removing the grille allows access to the front mounted tap switch offering tappings at 16w, 8w, 4w, 2w and 1w as well as a bypass for 16 ohm operation.

The high quality drivers and electronics give the CS-C3B in ceiling speaker clear intelligibility, smooth frequency response, and excellent off axis performance.

The 16 Watt transformer provides plenty of power for background music and voice messaging applications and 16 ohm impedance allows for easy low impedance daisy chaining.

  • Magnetic ZeroEdge™ grille with removable badge
  • Premium driver and electronics for exceptional sound quality and intelligibility
  • Weather resistant polypropylene woofer and sealed enclosure
  • 97mm back can for shallow mount installation
  • Integrated high power transformer
  • 16 ohm impedance for low impedance daisy chaining
  • Available in black (CS-C3B) or white (CS-C3W).
  • Warranty: 5 Years

5", 6.5" and 8" versions also available in matching design - see related products.

Download the full
Cloud Electronics Product Catalogue here.

Cloud Electronics Product Brochure
1a: 100V 1g: 16ohms
List Ex VAT: £80.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Description

3” full range, shallow mount in-ceiling with round magnetic grille and steel back can

Response (f3)

140 Hz - 20 kHz

Response (f10)

90 Hz -20 kHz

Impedance

16 ohm

Sensitivity (2.83 V/1 m)

79 dB

Sensitivity (1 W/1 m)

82 dB

Power handling

16 W

Maximum SPL

94 dB

Transformer taps

16,8,4,1 W

Tweeter

n/a

Woofer

3.0” polypropylene with rubber surround and phase plug

Input

4 pin Euroblock

Included accessories

Input cover plate (installed), male Euroblock

Outside Diameter

152.4mm

Cutout Diameter

135mm

Mounting Depth

97mm

Optional accessories

Square grille (153.5 mm x 153.5 mm, b/w), Hex grille (153.5 mm x 177.3 mm b/w)

Packaging

1 per box, cardboard inner packaging, single instruction sheet

Conformance

UL1480 / 2043 planned, RoHS, CE approved

Related Products

Cloud Electronics CS-C3W

3" full range ceiling speaker. 16 watts 100 volt line / 16 ohm. Invisible edge magnetic grille. White.

see more
List Ex VAT: £80.00
Cloud Electronics CS-C5B

Ceiling speaker with invisible edge magnetic grille. 5" 2 way loudspeaker, 20W @ 100V / 30W @ 16ohm. Black.

see more
List Ex VAT: £115.00
Cloud Electronics CS-C6B

Ceiling speaker with invisible edge magnetic grille. 6" 2 way loudspeaker, 32W @ 100V / 50W @ 16 ohm. Black finish.

see more
List Ex VAT: £130.00
Cloud Electronics CS-C8B

Ceiling speaker with invisible edge magnetic grille. 8" coaxial 2 way loudspeaker, 64W @ 100V / 75W @ 16 ohm. Black.

see more
List Ex VAT: £165.00
Cloud Electronics CS-CSUB8B

Ceiling subwoofer with invisible edge magnetic grille. 8" woofer. 100 watts, 100 volt line / 4 ohm. Black.

see more
List Ex VAT: £230.00

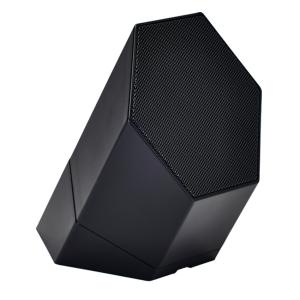

Cloud Electronics CS-S3B

3" Full range surface mount speaker. 16 watts 100 volt line / 16 ohm. Black.

see more
List Ex VAT: £85.00

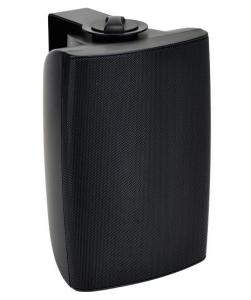

Cloud Electronic CS-S4B

4" two way surface mount cabinet speaker. 20W @ 100V / 20W @ 16 ohm. Black.

Water resistant, rated IP55.

see more
List Ex VAT: £120.00

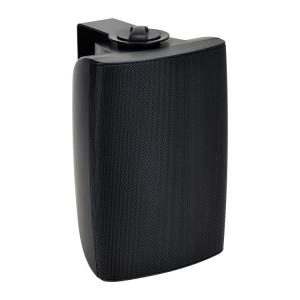

Cloud Electronics CS-S6B
