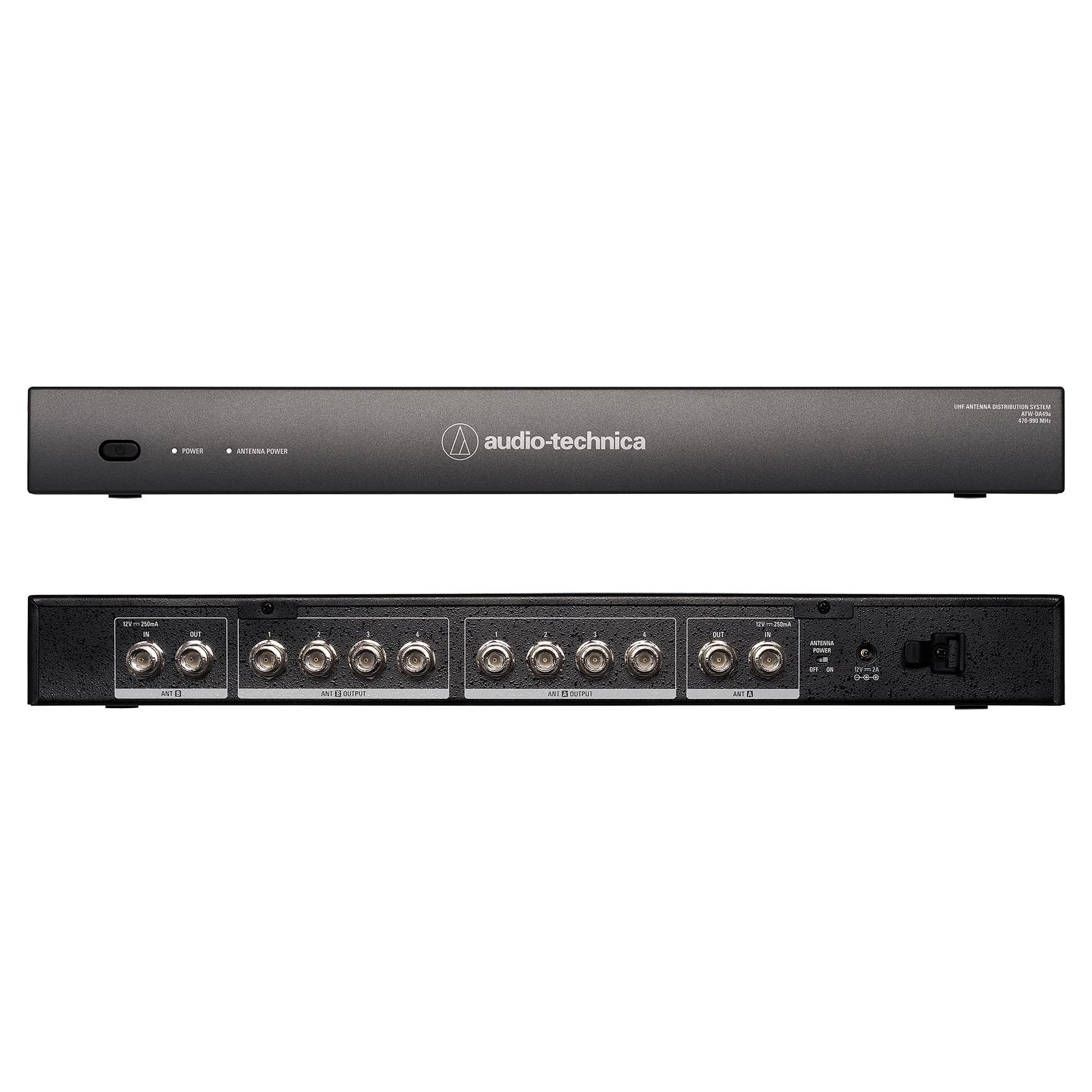

The Audio Technica ATW-DA49a UHF active unity-gain diversity antenna distribution system enables one pair of antennas to feed multiple wireless systems.

One wide band ATW-DA49a unit can support up to four wireless receivers and operates over a nominal 470-990 MHz range. Not only will the ATW-DA49a complement Audio-Technica’s wireless systems but it is also suitable for many other wireless systems (with external BNC antenna connections) operating within the 470-990 MHz range.

Compatible with directly connected antennas as well as remote antennas. In addition to the four antenna outputs, there is one cascade output per channel which additional distribution systems can be connected to for larger installations. Both antenna inputs provide power for active antennas or boosters.The ATW-DA49a provides a high OIP3 (+ 32 dBm) for maximum protection against intermodulation.

• Active UHF diversity antenna distribution system
• Wide-band 470-990 MHz
• Enables one pair of antennas to feed multiple wireless systems (2x 1-in and 4-out + 1-cascade out)
• High OIP3 (+ 32 dBm) for maximum protection against intermodulation
• Provides antenna power 12 V / 250 mA max from each antenna input
• Designed to complement Audio-Technica’s wireless systems
• Suitable for many other wireless systems operating within the 470-990 MHz range
