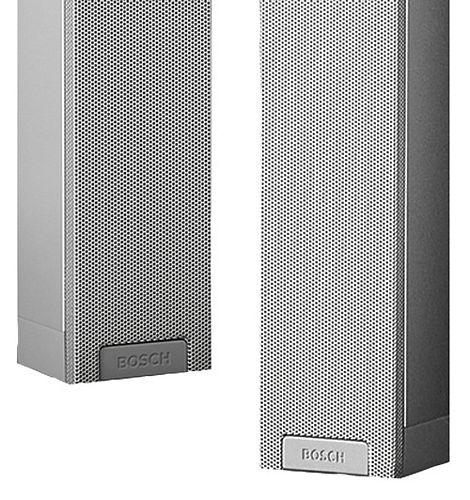

Bosch LBC 3200/00

The Bosch LBC 3200/00 is an EN54-24 line array column loudspeaker, with good directivity, which can handle small and medium indoor environments such as congress venues, meeting rooms, showrooms and canteens. The full frequency range of the LBC 3200/00 makes it ideal for speech as well as music reproduction.

Its exceptionally narrow housing (only 8 cm wide) makes it extremely unobtrusive.

The Bosch LBC3200/00 is an ideal EN54-24 speaker for emergency paging indoors, being fully compliant with the latest regulations for safety announcement loudspeakers. The ceramic terminal block, thermal fuse, and heat-resistant, high-temperature wiring ensure that, in the event of a fire, damage to the loudspeaker does not result in failure of the circuit to which it is connected.

  • Extended listening area
  • Excellent intelligibility of speech and music
  • Uniform distribution of natural sound throughout the room
  • Suitable for any small to medium enclosures, from canteens to meeting rooms
  • Extremely slim
  • Voice evacuation compliant as standard
  • EN60849, EN54-24 and BS5839 part 8 certified for emergency paging systems.
  • Ideal combination of advanced acoustics and easy application
  • Unrivalled sound quality for size
100V Evac
List Ex VAT: £335.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum Power

45W

Rated Power

30 / 15 / 7.5 W

Sound pressure level at 30 W / 1 W (1 kHz, 1 m):

106 / 91 dB (SPL)

Effective frequency range (-10dB)

190 Hz to 18 kHz

Opening angle

1 kHz / 4 kHz (-6 dB)

Horizontal Dispersion

220° / 130°

Vertical Dispersion

70° / 18°

Rated input voltage

100 V

Rated impedance

333 ohm

Connector

Screw terminal block

Dimensions (H x W x D):

600 x 80 x 90 mm / (23.62 x 3.15 x 3.54 in)

Weight

3 kg (6.6 lb)

Colour

Silver
