Bosch Plena PLE-2CS

Bosch Plena PLE-2CS

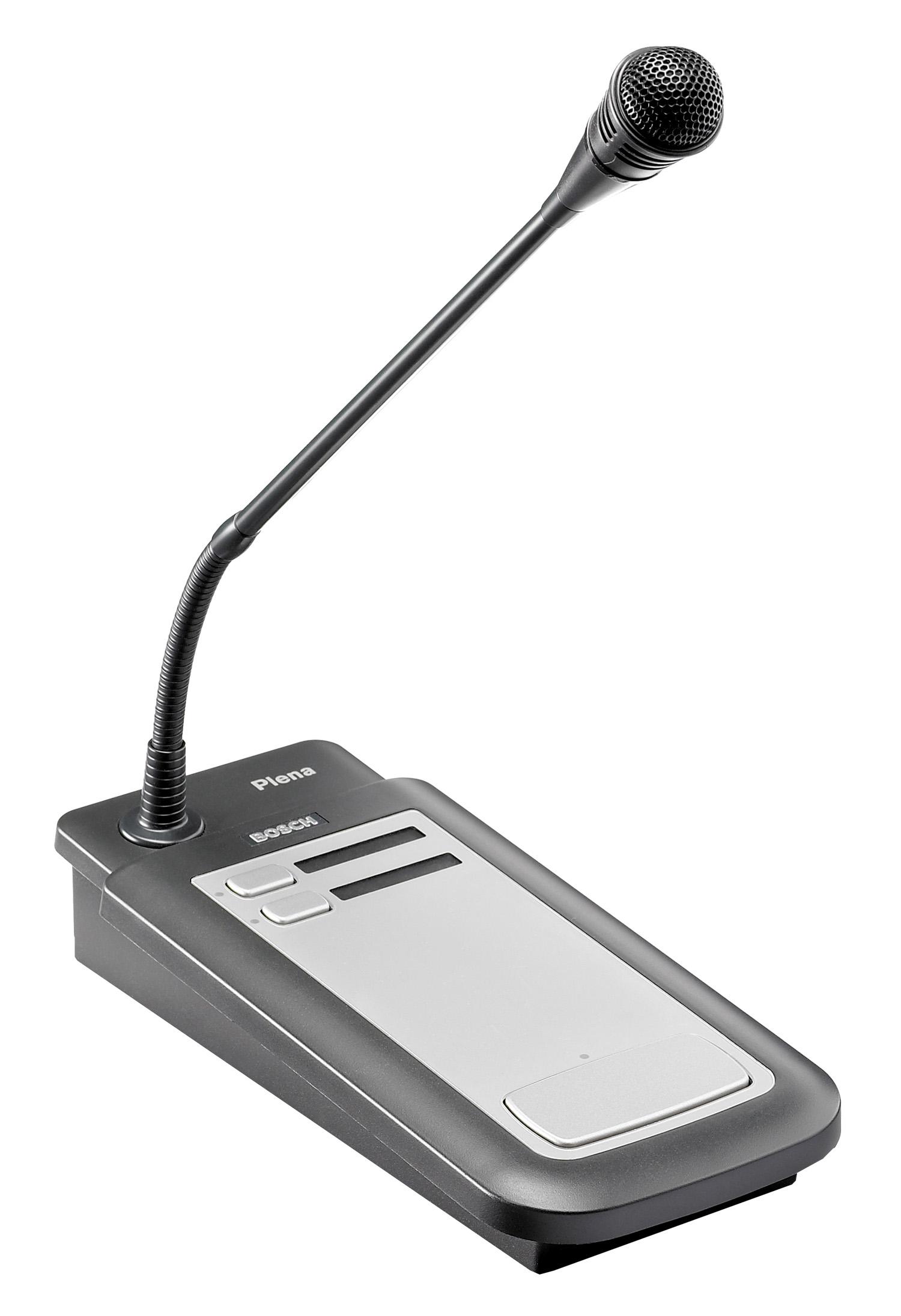

The Bosch Plena PLE-2CS 2 zone paging microphone is a high-quality call station with a sturdy metal base designed for use with the PLE series of amplifiers such as the Bosch PLE-2MA120 and PLE-2MA240.

Please note, there is only limited stock available of this product. Please contact us for up to date availability.

In addition to tabletop use, the special design of the PLE2CS enables the unit to be neatly flush-mounted.

2 zone selection keys enable either or both zones to be selected for paging - indicated by LEDs.

  • Modern two-zone call station for the PLE series
  • Selectable gain
  • Speech filter and limiter
  • Output level control
  • Loop-through option for up to 8 call stations
  • LED indications for zone selection, busy, and power on
  • Warranty: 3 Years
List Ex VAT: £250.80
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Voltage Range

 24 VDC supplied by PLE mixer amplifier or mixer

Current Consumption

 <30 mA

Nominal Sensitivity

 85 dB SPL (gain preset 0 dB)

Nominal Output Level

 700 mV

Maximum Input Sound Level

 110 dB SPL

Gain Preset

 +6 / 0 / -15 dB

Limiter Threshold

 2 V

Compression Ratio Limiter

 1:20

Distortion

 <0.6% (maximum input)

Equivalent Input Noise Level

 25 dB SPLA

Frequency Response

 100 Hz – 16 kHz

Speech Filter

 -3 dB @ 315Hz, high-pass, 6 dB / oct

Output Impedance

 200 ohm

Chimes

6

DOWNLOADS

Bosch PLE-2CS 2 Zone Call Station Microphone
EC Declaration of Conformity: PLE-2CS, PLE-WP3S2Z
