CES Audio SCP-4060 Ceiling Loudspeaker

CES Audio SCP-4060 Archived

This product is no longer available - please contact us for a suitable replacement.

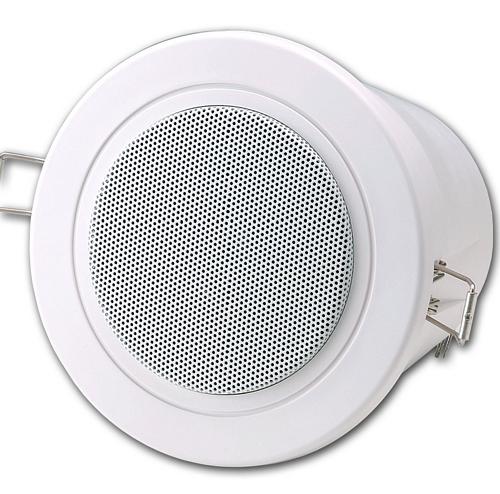

The CES Audio SCP-4060 is a dual impedance splashproof flush mount ceiling loudspeaker ideal for bathrooms, saunas and clean room environments.

  • Water resistant, IP rated to IEC529 IP55.
  • 4" full range polypropylene driver unit.
  • Sealed UL94V0 ABS rear enclosure with glanded cable tail. UL94V0 ABS baffle.
  • 100 volt, 70 volt and 8Ω.
  • Stainless steel mounting springs and exterior hardware.
  • Suitable for non-shedding, clean-room environments.
  • Also suitable for food processing plants or applications where significant moisture is present, such as bathrooms, sauna & steam rooms.
  • Finished in brilliant white (RAL 9016).
1a: 100V IPxx 1e: 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W
Impedance 883Ω, 1.67kΩ, 3.33kΩ, 6.67kΩ
Power Taps @ 100V 6W, 3W, 1.5W & 8Ω
Power Taps @ 70.7V 6W, 3W, 1.5W, 0.75W & 8Ω
SPL (1W/1m) 88dB
Max SPL (rated/1m) 95dB
Frequency Range (-10dB) 150HZ - 20KHZ
Dispersion 1K Hz / 4K Hz 210° / 130°
IP Rating IEC529 IP55
Power Selection Method 7 Core cable
Material Baffle: UL94V0 ABS, Grille: Aluminium, Enclosure: UL94V0 ABS.
Colour White (RAL9016)
Dimensions mm 140 (5.51) Dia. X 135 (5.31) Height mm. (in.)
Weight (kg) 0.96
Mounting Stainless Steel Spring
