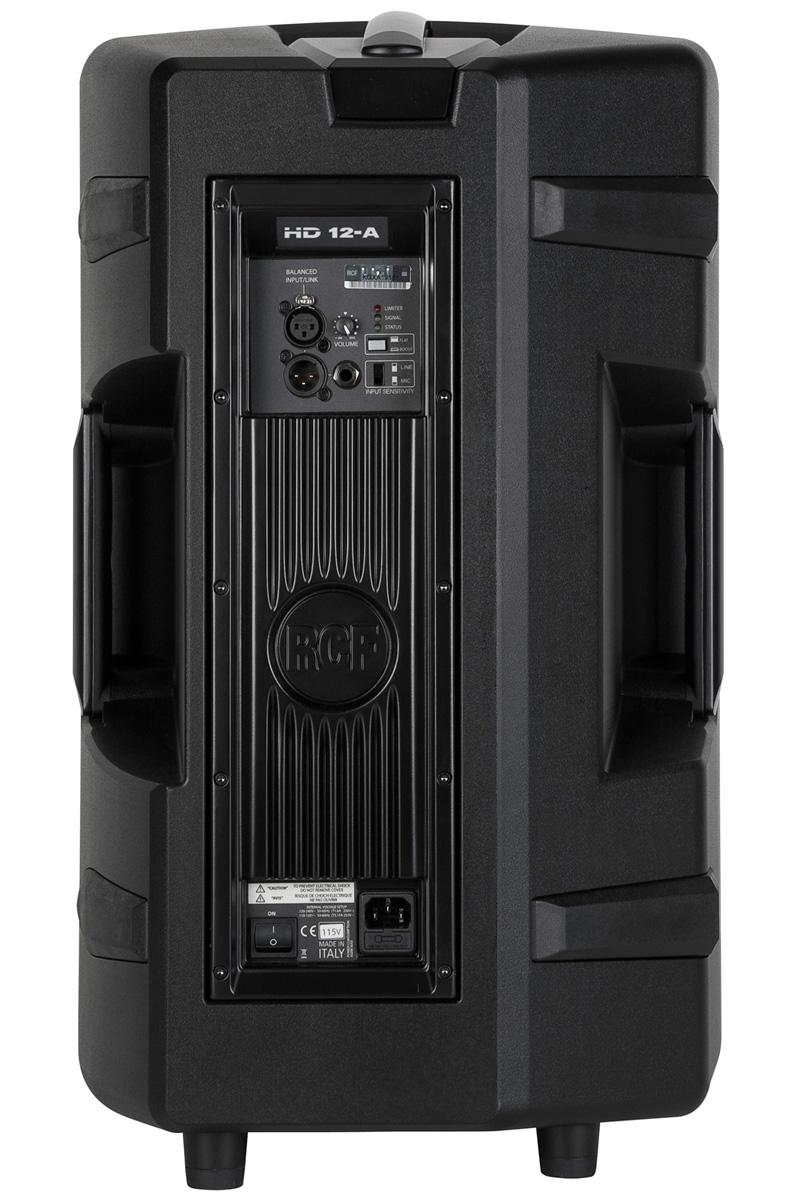

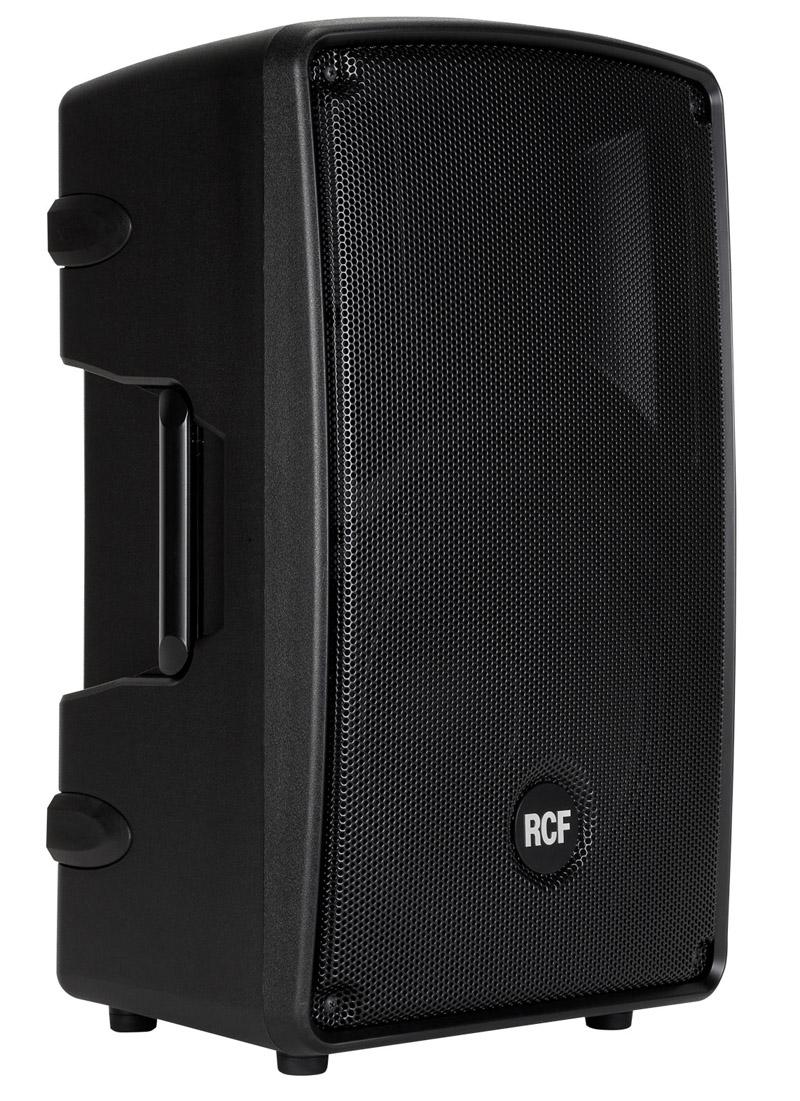

RCF HD 12-A
Click to expand

RCF HD 12-A

The RCF HD 12-A mk4 is an active two way loudspeaker with natural clear sound even at long distances. RCF have introduced new transducers and ;the revolutionary FiRPHASE processing for improved sound quality and perfect stereo images with minimum latency.

The rugged design is ideal for touring use and the SPL power is stable at very high levels.

The built in class D amplifier produces a huge 700 watt RMS output performance from a compact cabinet, with reduced weight. The solid mechanical aluminium structure not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation.

Ideal for live sound reinforcement & stage monitoring in live music venues as the clever design of the HD12A mk4 enables it to be used standing up or on its side.

  •  1400 watt 2-way peak power
  •  130 dB max SPL
  •  Digital bi-amplification, SMPS
  •  DSP sound processing
  •  90° x 60°, wide dispersion constant directivity horn
  •  12" woofer, high power, 2.5" voice coil
  •  1.0" HF driver, titanium dome, neodymium 1.5" voice coil
  •  FiRPHASE processing
8ohms
List Ex VAT: £529.00
Log in for Trade Prices
CONTACT US

Video explaining FiRPHASE technology.

SPECIFICATIONS

Frequency Response -3dB

45Hz ÷ 20000 Hz

Max SPL @1m

130dB

Horizontal coverage angle

90°

Vertical coverage angle

60°

Compression Driver

1”,  1.5” voice coil

Woofer

12”, 2.5” voice coil

Input Signal

Balanced / unbalanced

Input connectors

XLR, jack

Output Connectors

XLR

Input Sensitivity

-2 dBu / +4 dBu

Mic Input Sensitivity

-32 dBu

Crossover Frequencies

1800Hz

Protection

Thermal, RMS

Limiter

Soft limiter

Controls

Volume, Boost, Mic / Line

Amplifier Spec



Total Power

1400 W Peak, 700 W RMS

High Frequencies

400 W Peak, 200 W RMS

Low Frequencies

1000 W Peak, 500 W RMS

Cooling

Convection

Connections

VDE

Cabinet



Material

PP Composite, Steel Grille

Hardware

1 x M10 top, 1 x M10 bottom, 3 x M6 bottom

Handles

2 side, 1 top

Pole Mount / Cap

Yes

Colour

Black

Height

647mm / 25.47”

Width

380mm / 14.96”

Depth

380mm / 14.96”

Weight

18.3kg / 40.34 lbs
