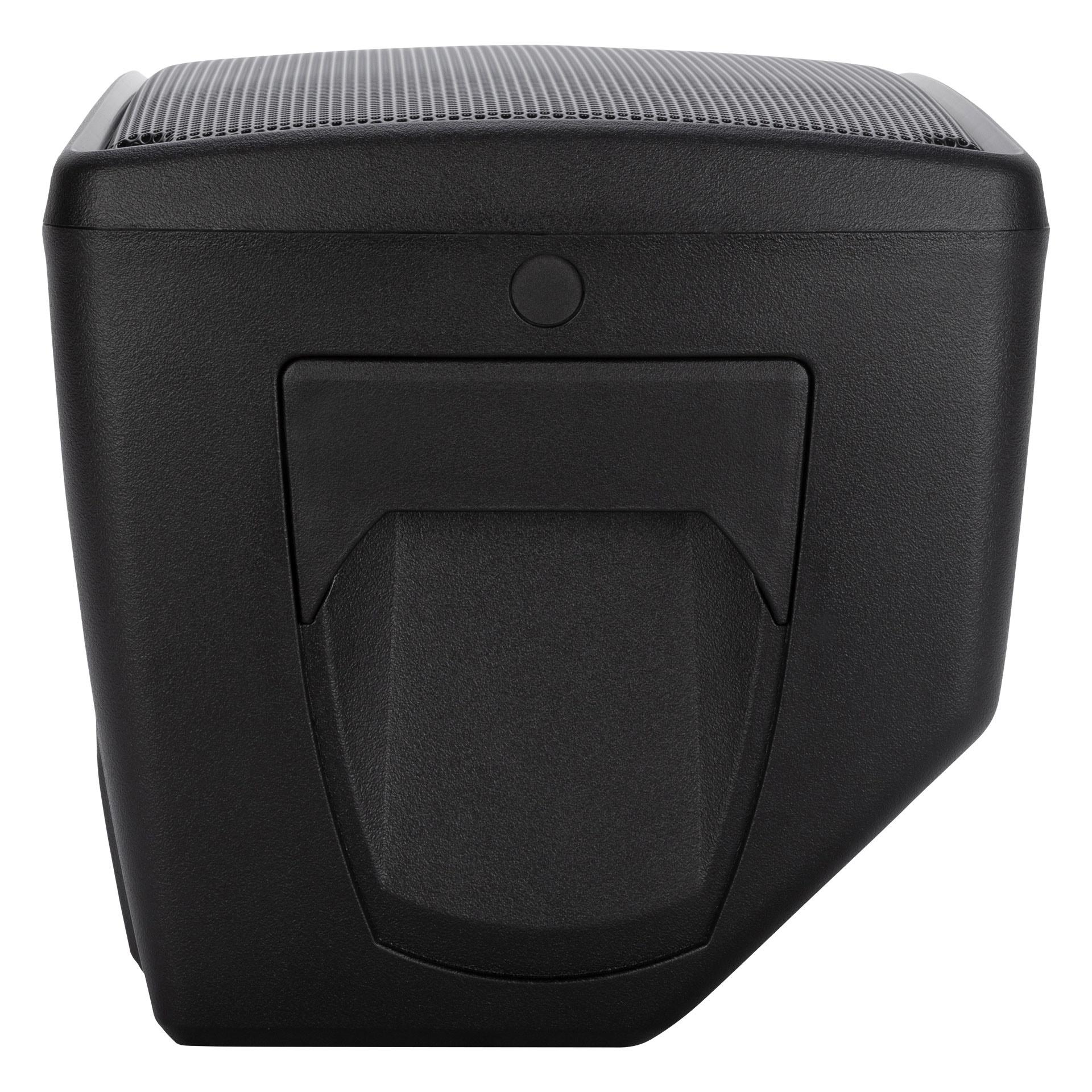

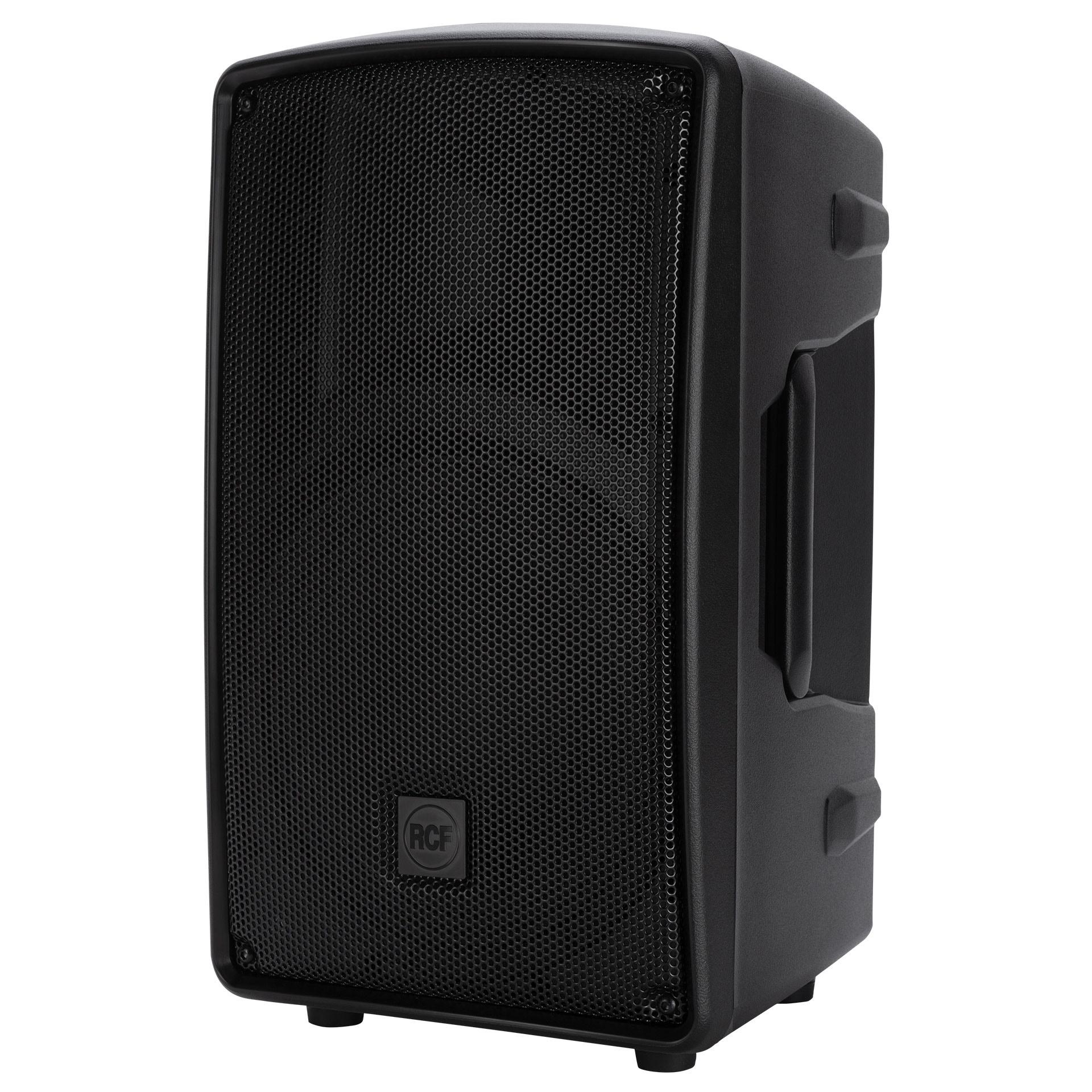

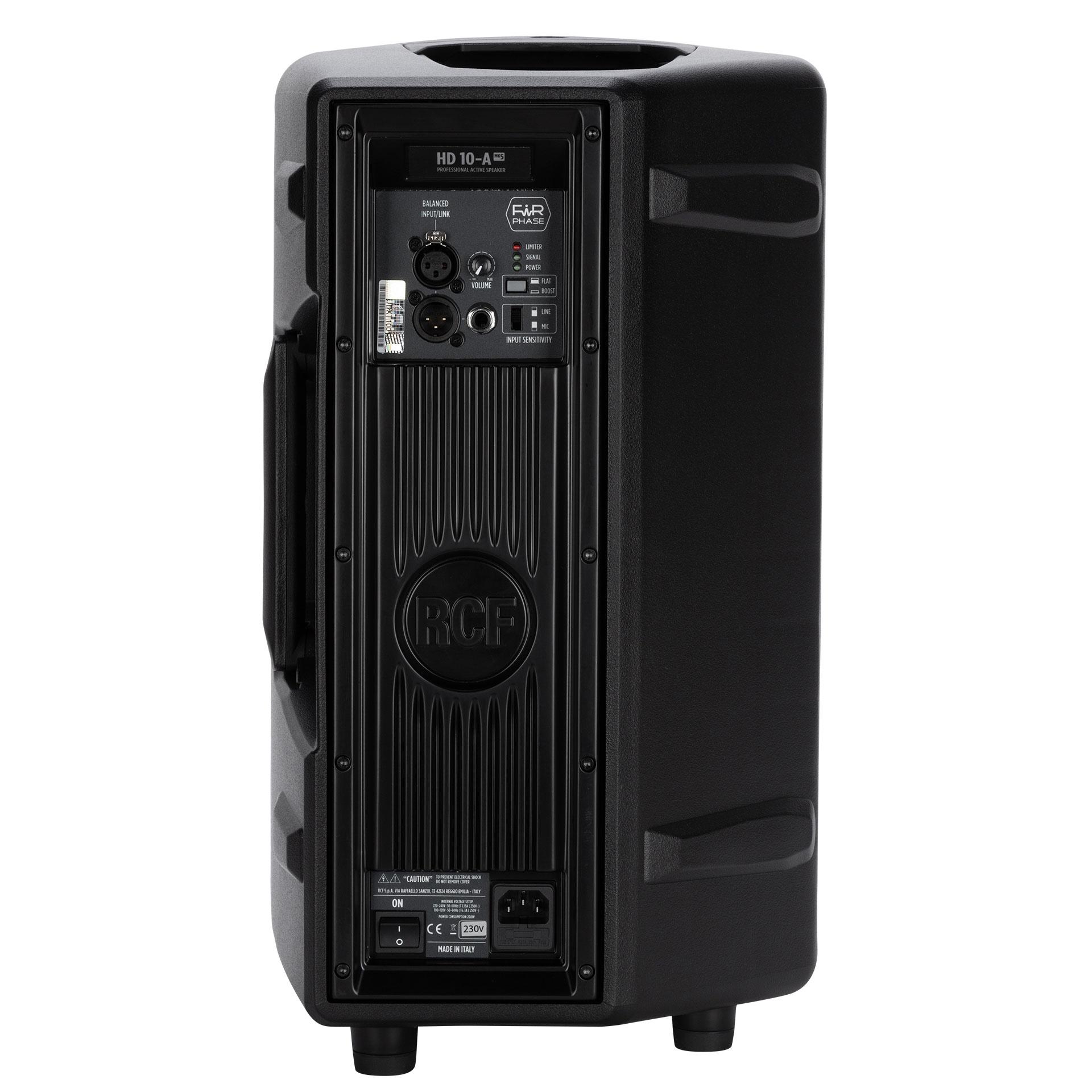

RCF HD 10-A MK5
Click to expand

RCF HD 10-A MK5

The RCF HD10-A mk5 is an active two way loudspeaker with natural clear sound even at long distances. RCF have introduced new transducers and the revolutionary FiRPHASE processing for improved sound quality and perfect stereo images with minimum latency.

The rugged design is ideal for touring use and the SPL power is stable at high levels.

The built in class D amplifier produces a huge 400 watt RMS output ;performance from a compact cabinet, with reduced weight. The solid mechanical aluminium structure not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation.

Ideal for live sound reinforcement & stage monitoring in live music venues as the clever design of the HD10A mk5 enables it to be used standing up or on its side.

  • 800 watt 2-way peak power
  • 128 dB max SPL
  • DSP processing with FiRPHASE and Bass Motion Control
  • 90° x 70°, wide dispersion constant directivity horn
  • 10" woofer, high power, 2.0" voice coil
  • 1.0" HF driver
  • Silent fan-less Class-D amplifier





8ohms
List Ex VAT: £444.00
Log in for Trade Prices
CONTACT US

RCF FiRPHASE technology

SPECIFICATIONS

Frequency Response -3dB

50Hz ÷ 20000 Hz

Max SPL @1m

128dB

Horizontal coverage angle

90°

Vertical coverage angle

60°

Compression Driver

1 x 1”,  1” voice coil

Woofer

10”, 2.0” voice coil

Input Signal

Balanced / unbalanced

Input connectors

XLR, jack

Output Connectors

XLR

Input Sensitivity

-2 dBu / +4 dBu

Mic Input Sensitivity

-32 dBu

Crossover Frequencies

2000Hz

Protection

Thermal, RMS

Limiter

Soft limiter

Controls

Volume, Boost, Mic / Line

Amplifier Spec



Total Power

800 W Peak, 400 W RMS

High Frequencies

200 W Peak, 100 W RMS

Low Frequencies

600 W Peak, 300 W RMS

Cooling

Convection

Connections

VDE

Cabinet



Cabinet Material

PP Composite

Hardware

1 x M10 top, 1 x M10 bottom

Handles

1 side, 1 top

Pole Mount / Cap

Yes

Colour

Black

Height

527mm / 20.75”

Width

303mm / 11.93”

Depth

303mm / 11.93”

Weight

11.8kg / 26.01 lbs
