Soundcraft EPM6
Soundcraft EPM6
Click to expand

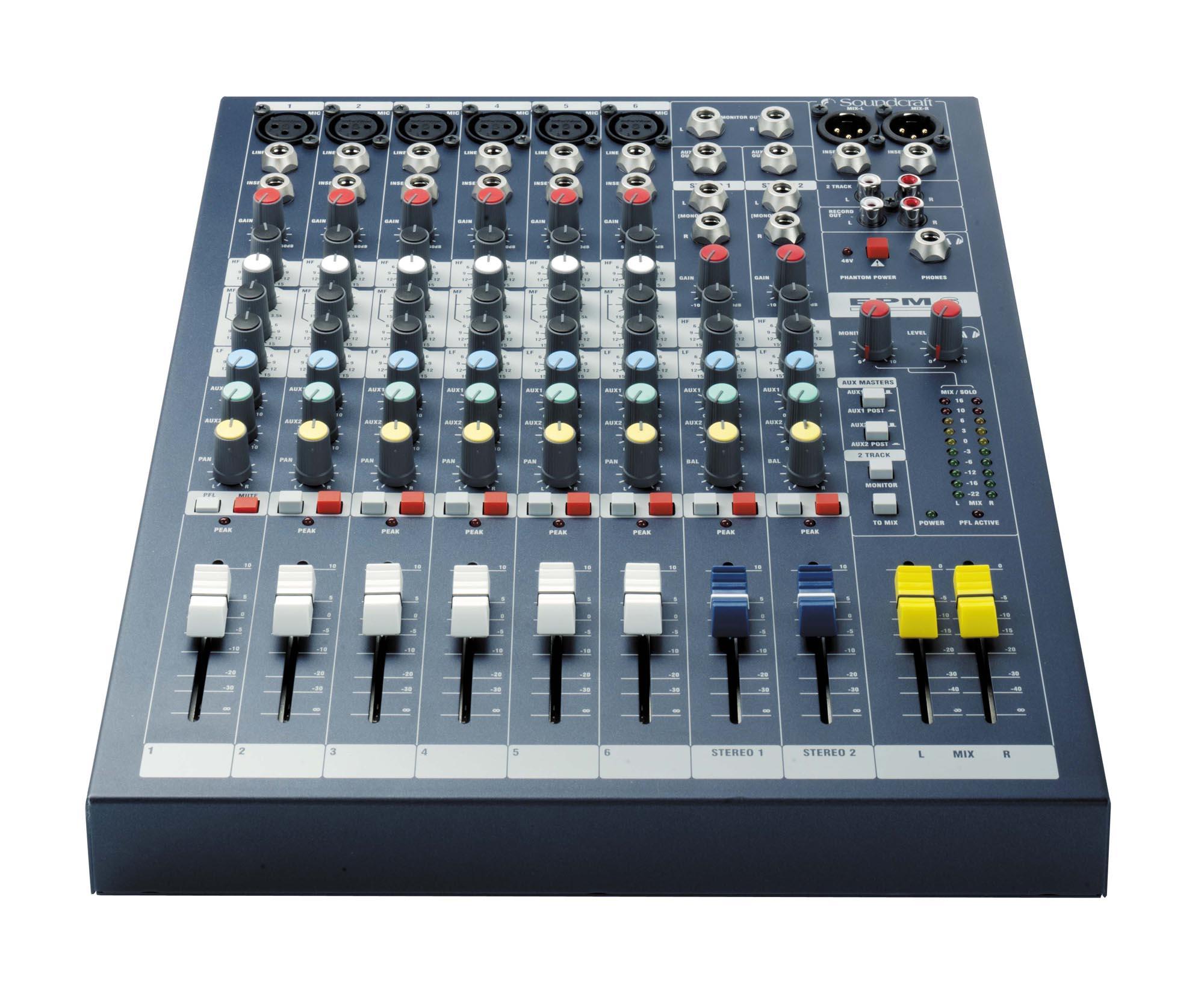

Soundcraft EPM6

The Soundcraft EPM6 is a superb low cost audio mixer featuring 6 mono mic / line inputs and 2 stereo line input channels.

The whole of the Soundcraft EPM range of mixers benefits from high build quality and excellent audio performance along with simple controls presented in a clear and logical layout for ease of use.

Each mono input has its own 3 band EQ and professional  48 volt phantom power caters for all kinds of condenser microphones. Stereo channels each have 2 band EQ.

The signal monitoring PEAK led uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the brightness of the led lamps intensifies as the signal approaches the peak point.

60mm high quality faders enable smooth and accurate channel control.

The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.

The Soundcraft EPM6 is ideal for live music performances, recording, churches and multi-speaker installations.

Rack mountable with optional kit.

Other Features:

  • Frame size: 6+2, 8+2 and 12+2
  • 2 configurable auxiliary buses
  • XLR-type and ¼” metal jack connector sockets
  • RCA phono stereo playback inputs and record outputs
  • 3-band EQ with a swept mid on mono inputs
  • 2-band EQ on stereo inputs
  • TRS insert sockets and inserts on all mono inputs and mix output
  • Ten-segment LED output metering
  • Intuitive and comprehensive solo system
  • Headphone output
  • Easily rack mountable
List Ex VAT: £370.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Response

Mic / Line Input to any Output: +/-1.5dB, 20Hz – 20kHz

T.H.D.

Mic Sensitivity: -30dBu, +14dBu @ Mix output < 0.02% @ 1kHz

Noise

Mic Input E.I.N. (maximum gain) -128dBu (150Ω source)
Aux, Mix and Masters (@ 0dB, faders down): < -85dBu

Crosstalk
(@ 1kHz)

Channel Mute: > 96dB
Aux Send Pots Offness: > 86dB

EQ (Mono inputs)

HF 12kHz, +/-15dB
MF (swept) 150Hz – 3.5kHz, +/-15dB
LF 80Hz, +/-15dB

EQ (Stereo inputs)

HF 12kHz, +/-15dB
MF (EFX Only) 720Hz, +/-15dB
LF 80Hz, +/-15dB

Power Consumption

Less than 20W

Input & Output Levels

Mic/Line Input Max Level: +17dBu max.
Line Input Max Level: +30dBu max.
Stereo Input Max Level: +30dBu max.
Mix Output Max Level: +20dBu max.
Headphones (@200Ω): 300mW

Input & Output Impedances

Mic Input: 2kΩ
Line Input: 10kΩ
Stereo Input: 65kΩ (stereo), 35kΩ (mono)
Outputs: 150Ω (balanced), 75Ω (unbalanced)

DOWNLOADS

Soundcraft EPM, EPX and MPMi Audio Mixers
Soundcraft EPM Audio Mixer Datasheet
