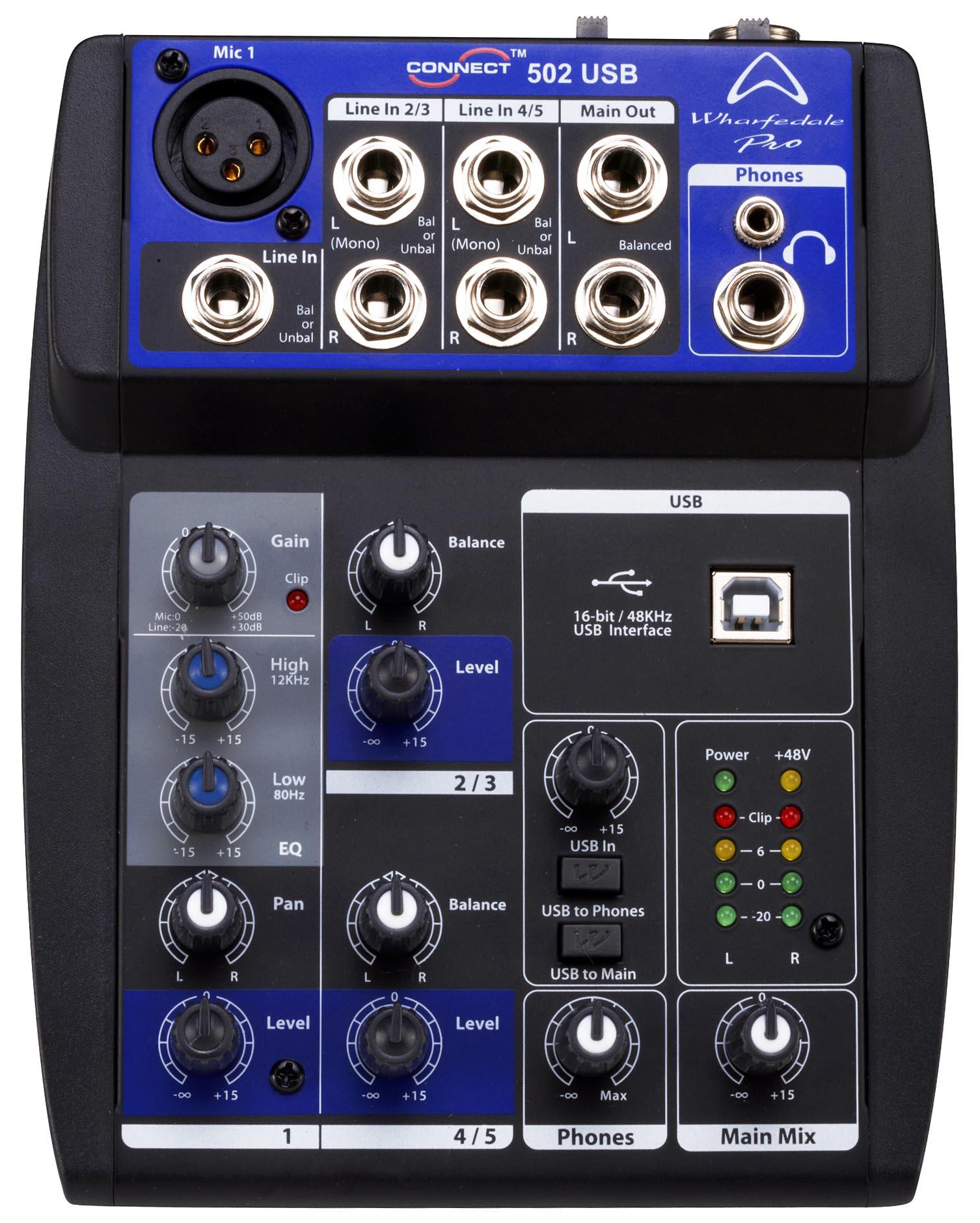

Wharfedale Pro Connect 502USB

Wharfedale Pro Connect 502USB

The Wharfedale Pro Connect 502USB is a high quality compact micro sound mixer perfect for live sound, home studio recording and fixed installations.

Featuring built in USB connection, 1 mono input for mic or line with 2 band EQ and input gain control and 2 further stereo line inputs.

Professional features such as Phantom powered, balanced XLR microphone inputs give you full functionality and great sound.

The ergonomic user interface is easy to use for beginners as well as professionals.

Features of the Wharfedale Connect 502USB mixer include:

  • 5 Channels
  • 1x XLR/TRS Balanced Input
  • Gain Adjustment
  • 2 Band EQ
  • L/R Pan Control
  • LED Peak Indicator
  • Level Control
  • 2 Mono/Stereo Inputs
  • Balanced ¼" TRS Connectors
  • Balance Control
  • Level Control
  • Switchable Global +48V Phantom Power
  • ¼" TRS Main Outputs
  • USB to Main/Headphone Switch with Level Control
USB
List Ex VAT: £65.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model

CONNECT 502 USB

Thd+N

<0.025% @ +14dBu ±0.5dBu

Maximum Input Level

Mic +4dBu ±1dBu,
Stereo Line +21dBu ±1dBu

Ac Power Options

High (±15dB) 12kHz Shelving,
Low (±15dB) 80Hz Shelving

Mono Input Channel Gain

50dB Variable Mic (0-50dB) Line(-20dB+30dB)

Level Meters

Dual 4-Segment LED (output of +4dB = 0dB) Main L/R

Frequency Response

20Hz-20kHz ±2dB

Dimensions: H X W X D (mm)

50.9 x 143 x 183.8 mm

Weight: (Kg/lb)

0.64 kg/1.62kg

Maximum Balanced Output

Main ¼" Jack Balanced out +21dBu ±1dBu
Headphone output 150mw ±5mw @ 32Ω

Hum And Noise 20hz-20khz

-127dBu ±5dBu Mic Pre Equivalent Input Noise,
-85dBu ±5dBu Residual Noise

S/N

>78dB ±5dB @ Max Gain

Fft

<-62dBv ±5dBv @ Max Gain

Cmrr

62dB ±5dB @ 1kHz

Impedances

Mic: Balanced 6kΩ, Unbalanced 3kΩ ±200Ω,
Line: Balanced 22kΩ, Unbalanced 11kΩ ±2KΩ,
All other Unbalanced outputs: 60Ω,
Balanced outputs: 120Ω

DOWNLOADS

Wharfedale Pro Connect 502 / 502USB / 802 / 802USB Micro Mixer
