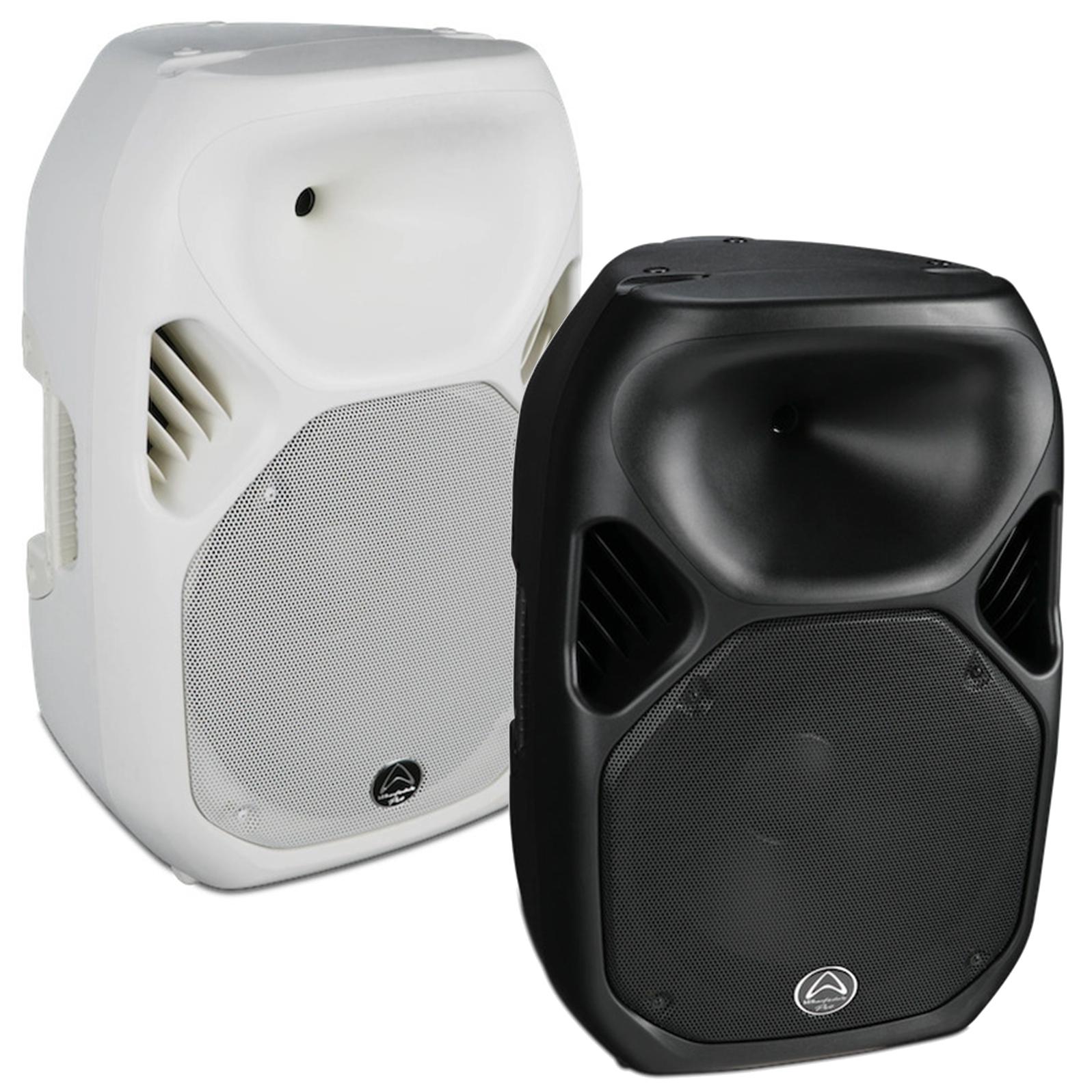

Wharfedale Pro Titan X15

The Wharfedale Titan X15 low impedance cabinet loudspeaker is fitted with a moisture resistant 15" LF driver / 3" voice coil and 1.75" HF compression driver with Hybrid Symmetry 100° x 80° waveguide for smooth and wide HF dispersion. Rated at 400 watts RMS.

IP54 certified.

Front ports enhance bass performance.

TheTitan X15 can be arrayed for additional coverage and SPL requirements. M8 flying points are fitted and there is also a 35mm pole mount in the base.

  • HF Drivers have been honed acoustically for HF frequency detail and power
  • LF Drivers reject moisture for resistance in all environments
  • Proprietary 100° x 80° Hybrid Symmetry Horn design
  • Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
  • 10 x M8 rigging points and integral tripod stand adapter
  • Rugged protective grille and top-stacking receptacles
  • Trapezoid design for arrays as well as stage monitor applications
  • 15″ passive
  • 1.75″ HF compression driver
  • 3″ LF voice coil
  • Available in black or white
  • IP54 certified
IPxx 8ohms
List Ex VAT: £295.83
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

System Type

15" 2-way passive

Frequency Response +/- 3DB

50-18kHz

Sensitivity (dB 1W@1M)

97dB

System Impedance

8 ohms

Max SPL Peak dB

129dB

Power Handling

Continuous: 400W
Program: 800W
Peak: 1600W

LF Driver / Voice Coil Size

1x15" / 2.5"

HF Voice Coil Size

44mm/1.75"

HF Type

Compression Driver

HF Diaphragm Material

Titanium

Horn Dispersion (H X V)

Hybrid Symmetry Horn 100° x 80º

HF EXIT SIZE MM / INCHES

25mm/1"

Enclosure Type & Finish

Moulded Polypropylene, trapezoidal.Black or White,

HANDLE QUANTITY

2 carry handles (one on each side)

SUSPENSION POINTS

(10) M8 points

POLE MOUNT

35mm with lock screw

Height x Width x Depth

728.5 mm x 480.6 mm x 395.6 mm
28.7″ x 15.6″ x 18.9″

Weight

Net: 22.0 kg 48.4 lbs
Gross: 26.8 kg / 59.0 lbs
