Electro-Voice EV EViD-S8.2TW
Click to expand

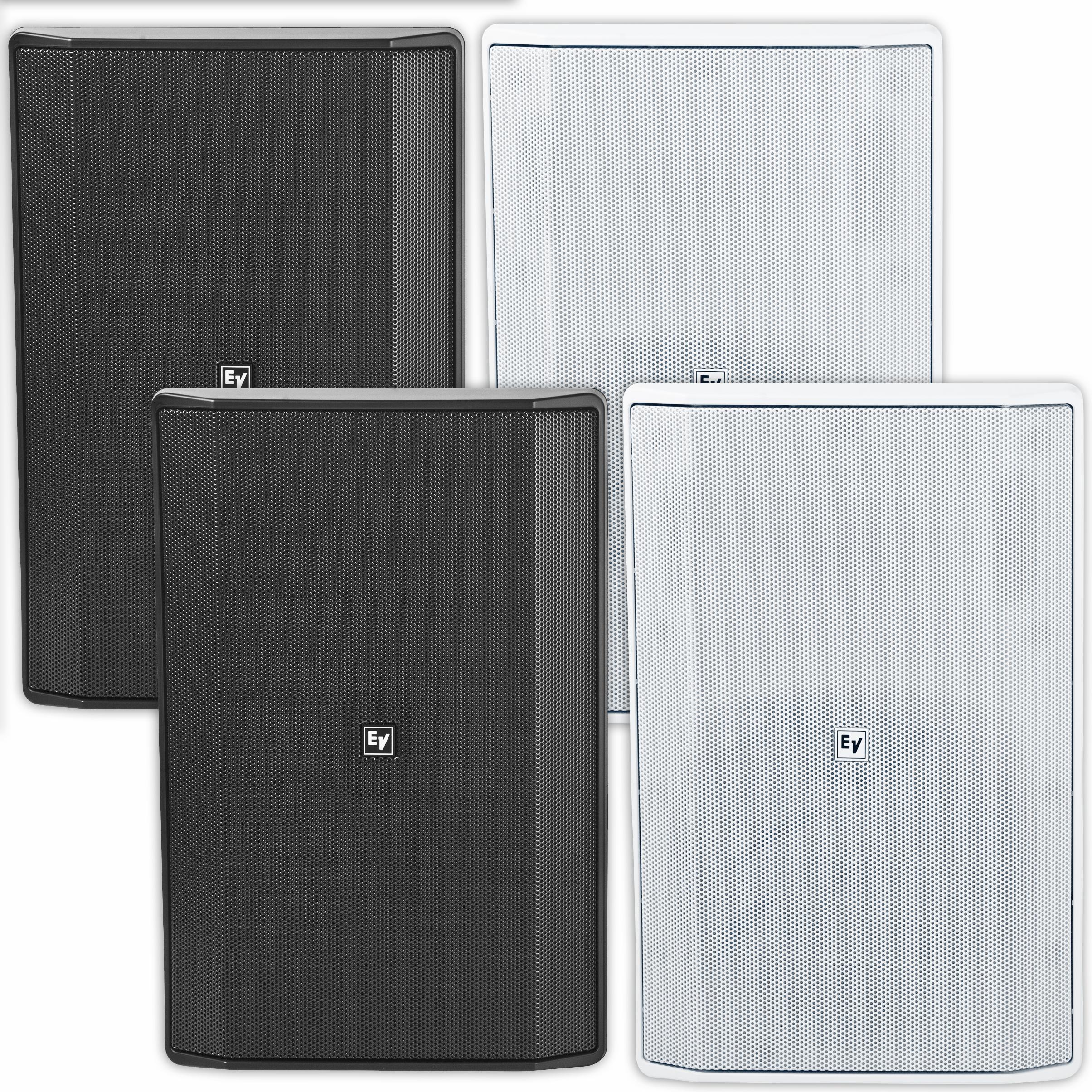

Electro-Voice EV EViD-S8.2TW

The Electro-Voice EVID-S8.2TW two-way, full-range, 8" (203 mm) cabinet speaker offers outstanding performance with excellent wide, uniform coverage.

White finish - also available in black, see EVID-S8.2TB.

Ideal for background and foreground music, paging, and sound reinforcement, in a a wide variety of indoor and outdoor applications.

The EVID-S8.2TW is easy to install and is weather resistant. It has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. Water resistant and weather proof, rated IP54, the cabinet and grille offer exceptional resistance against sun, salt and moisture.

The innovative mounting system facilitates easy installation and allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings.

A 60 W transformer offers a tappings of 7.5 W (70 V only), 15 W, 30 W, or 60 W for use with either 70 V or 100 V lines, but there is also an 8Ω bypass for use with low impedance loudspeaker circuits, rated 90 Watts Continuous. Selection is via a switch on the rear of the speaker.

Supplied and priced per pair.

  • Innovative mount system for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 8" (203 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 50 Hz
  • 90 W power handling provides for 110 dB maximum SPL (116 dB peak)
  • Part number F.01U.332.743
  • Warranty: 5 Years
1a: 100V IPxx 1e: 8ohms
List Ex VAT: £636.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Range (-10 dB)

50 Hz – 20 kkHz

Weatherized

Yes

Minimum Impedance

HF Transducer

1 inch (25 mm)

Frequency Response (-3 dB)¹

70 Hz – 20 kHz

Max. SPL/1m (calc)²

110dB

Coverage (Nominal -6 dB) H

90°

LF Transducer

8 inch (203 mm)

Coverage (Nominal -6 dB) V

90°

Power Rating

360W

Connector Type

Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)

Available Colour

Black

Height

390mm (15.35")

Width

250mm (9.84")

Recommended High-Pass Frequency

50Hz

Depth

223mm (8.78")

Weight Net

5.8kg (12.79 lbs)

Shipping Weight

14.8kg (32.63 lbs)

Transformer

70V/100V (60W)

Environmental Specs

IP54 (per IEC-60529)

Nominal Impedance

Power Handling (Continuous / Peak)

90W/360W

Regulatory Approvals

IP54
