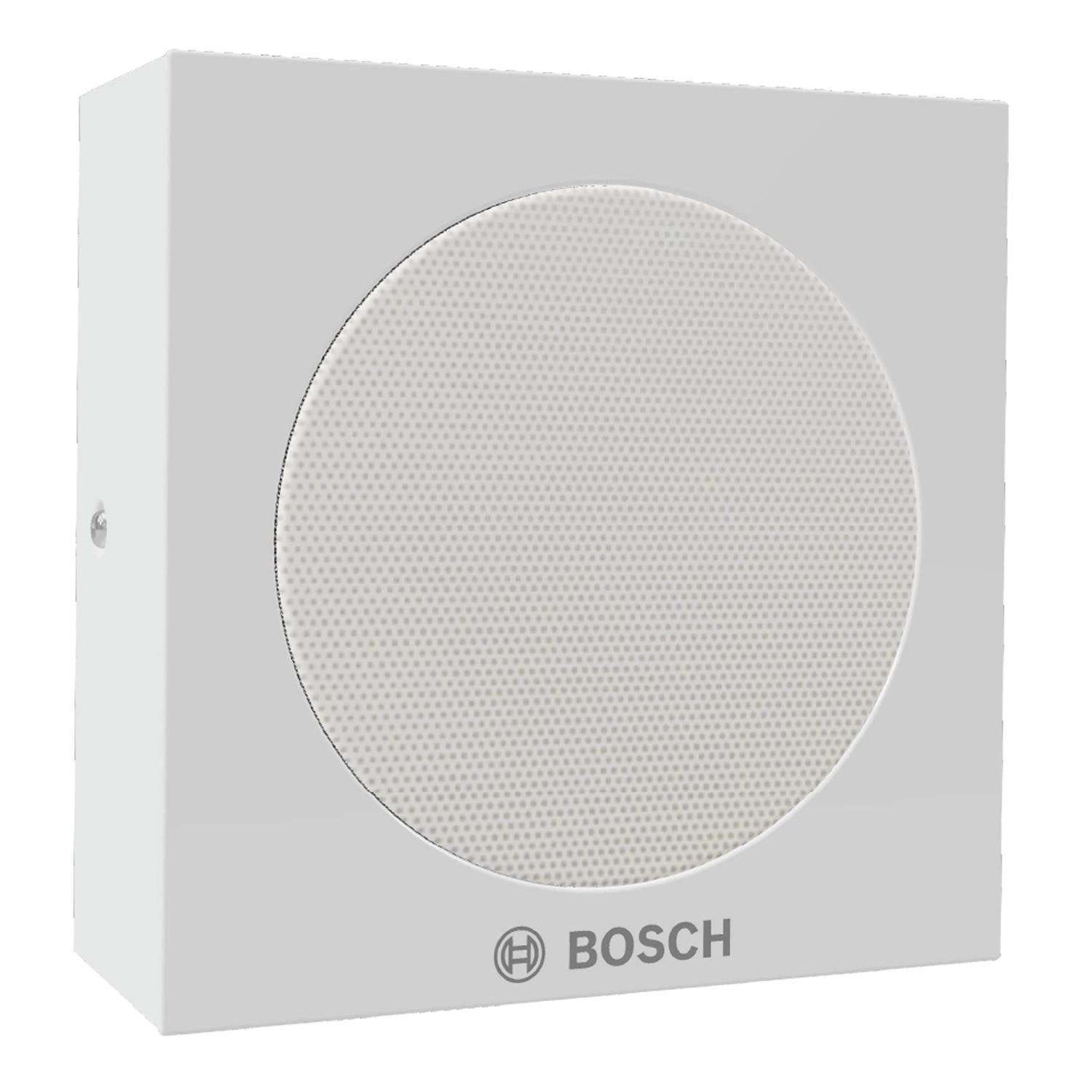

Bosch LB8-UM06E

The Bosch LB8-UM06E square, metal cabinet speaker is EN54-24 certified and BS5839 Part8 compliant. Rated at 6 Watts RMS, 100 Volt line, the transformer has tappings at 1.5W, 3W and 6W.

Ideal general purpose, cost effective cabinet loudspeaker for speech and background music as well as for Voice Alarm applications.

Ceramic screw-terminal connection block, thermal fuse and heat-resistant, high-temperature wiring ensures that fire damage to the loudspeakers does not cause failure of the connected circuit. Thus system integrity is maintained, ensuring loudspeakers in other areas can still be used to inform people of an emergency situation.

Designed for surface mounting, the back‑box of the cabinet provides a selection of mounting holes, even for mounting onto U40/50 and MK installation boxes. There are also two knockout holes on the topside for two cable glands for loop-through connection.

The metal cabinet of the Bosch LB8UM06E is robust, yet aesthetically designed – ideal for protection in areas where vandalism is a potential hazard.

Finished in white.

Warranty: 3 Years

1a: 100V EN54
List Ex VAT: £46.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Maximum power

9 W

Rated power

6 W ( 6 / 3 / 1.5 W)

Sound pressure level at  1 W (1 kHz, 1 m)

93 dB (SPL)

Effective frequency range (-10 dB)

210 Hz to 18 kHz

Coverage angle HxV 1 kHz / 4 kHz (-6 dB)

185° x 185° / 116° 116°

Rated input voltage

100 V

Connector

3-pin ceramic terminal block

Dimensions (H x W x D):

175 x 175 x 70 mm / (6.98 x 6.98 x 2.76 in)

Weight

1.64 kg (3.61 lb)

Colour

White ( RAL 9010)

Speaker size

152.4 mm (6 in)

Operating temperature

-25 ºC to +55ºC (-13 ºF to +131 ºF)

Storage temperature

-40 ºC to +70 ºC (-40 ºF to +158 ºF)

Relative humidity

<95%
