LD Systems SAT 442 G2 W
Click to expand

LD Systems SAT 442 G2 W

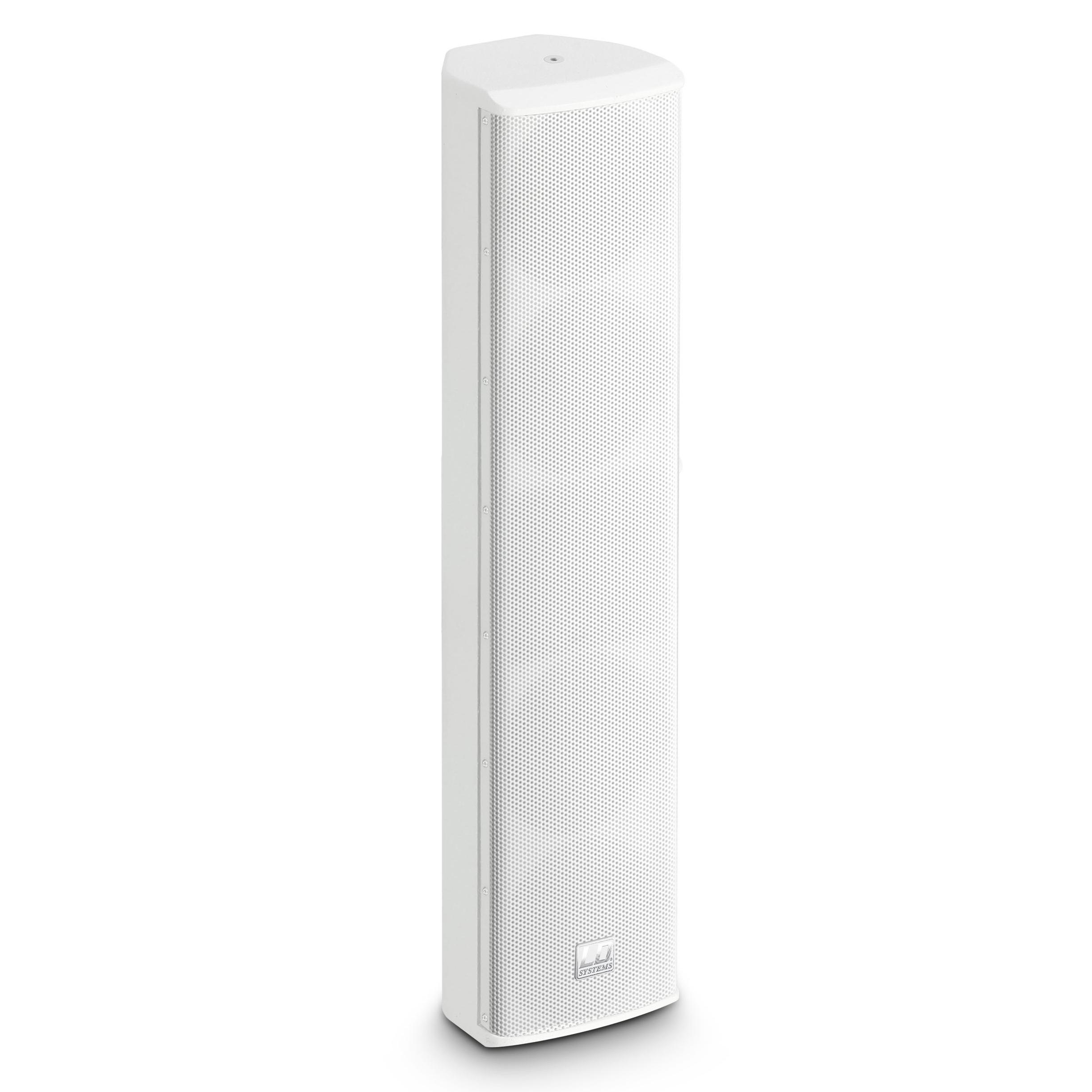

The LD Systems SAT 442 G2 W is an extremely slim, white, 2 way cabinet speaker fitted with 4 x 4” custom designed woofers and a 1” Celestion compression driver. Ideal for either vertical or horizontal use.

Rated at 200W RMS, the SAT442G2W attains a maximum sound pressure level of 114 dB over a frequency response curve of 75 – 20 kHz. Horizontal dispersion is 120⁰ whilst vertical dispersion is only 30⁰ thereby reducing floor & ceiling reflections.

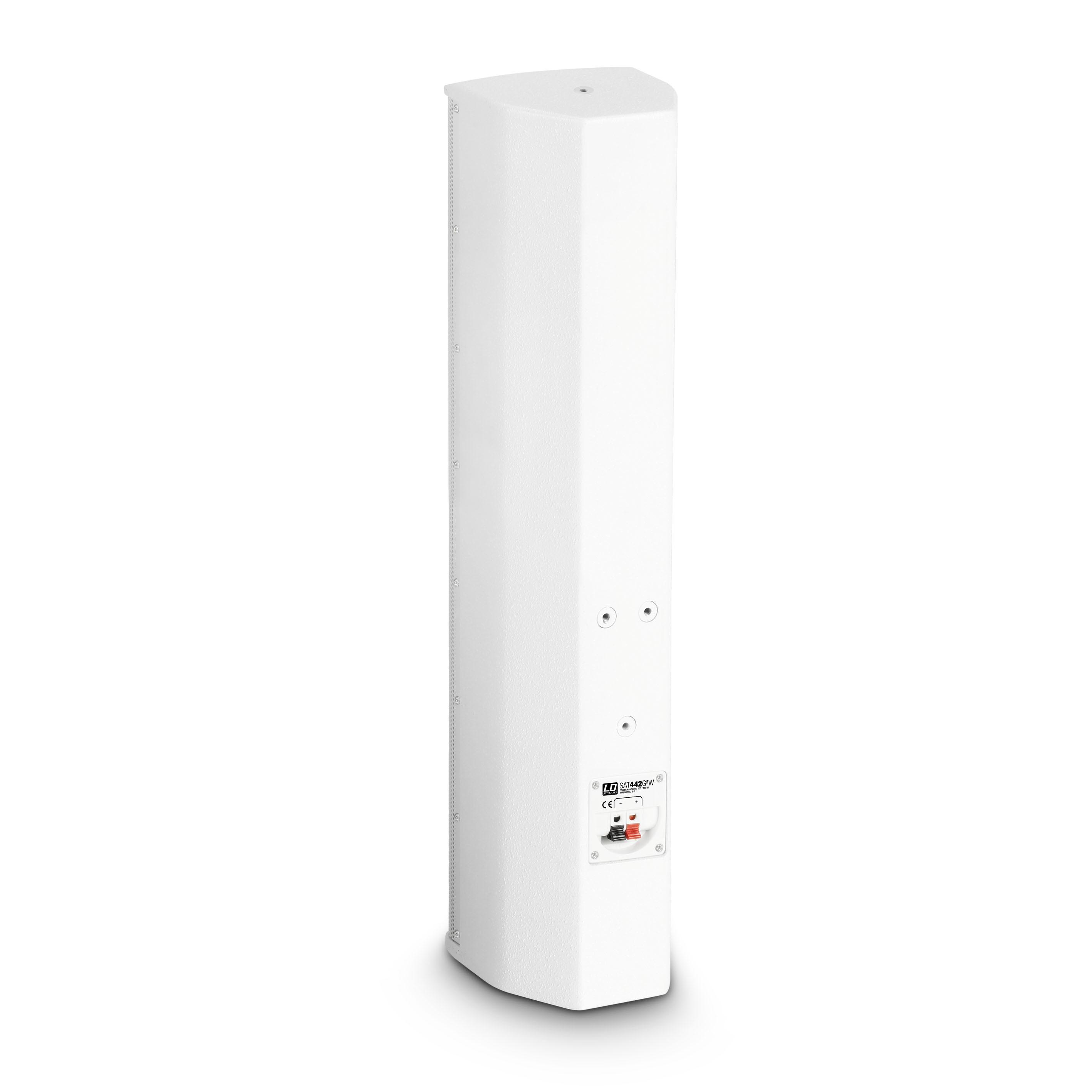

The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection.

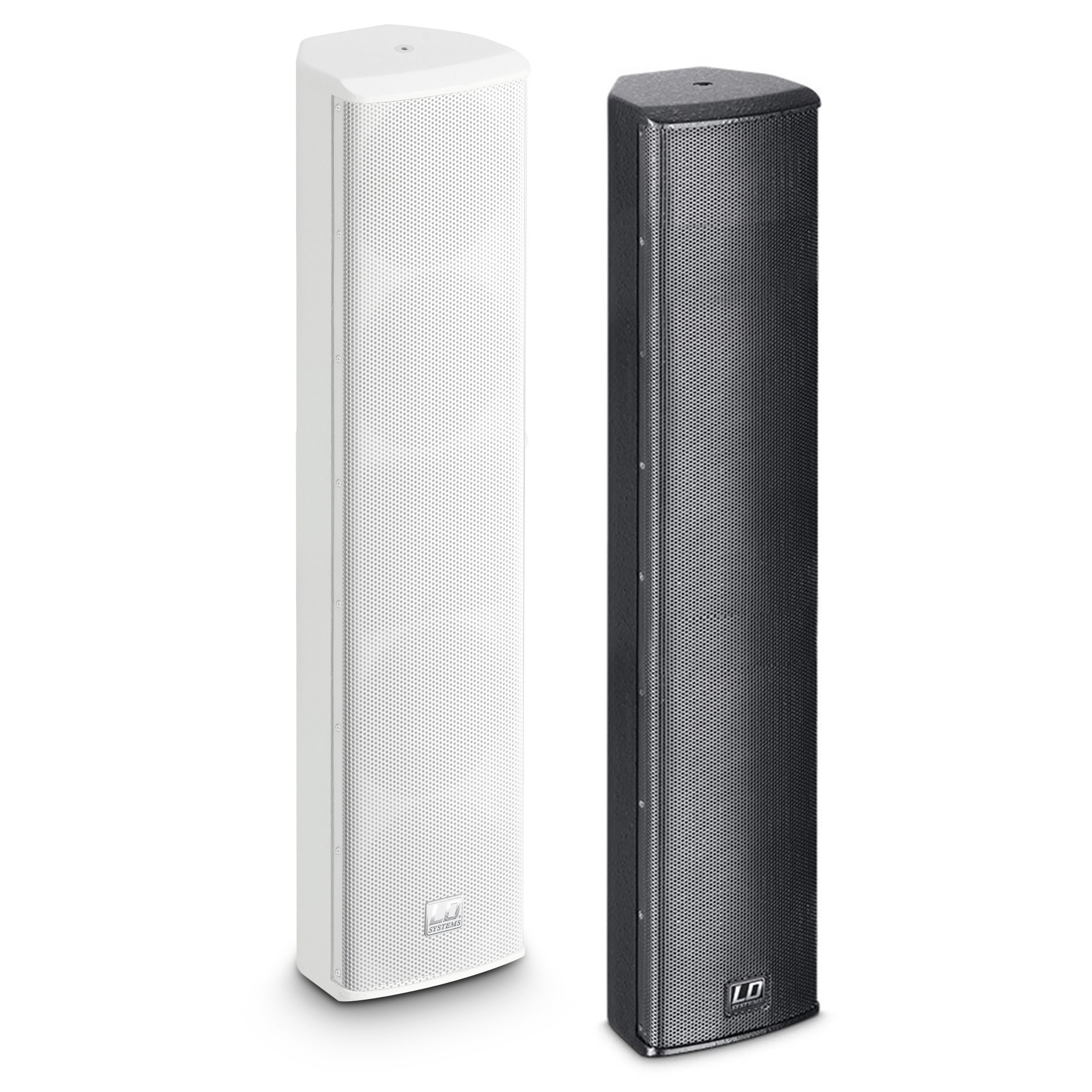

The bass-reflex SAT442G2W cabinet is constructed from 12 mm MDF with a durable textured coating in white. Also available in black - see SAT 442 G2.

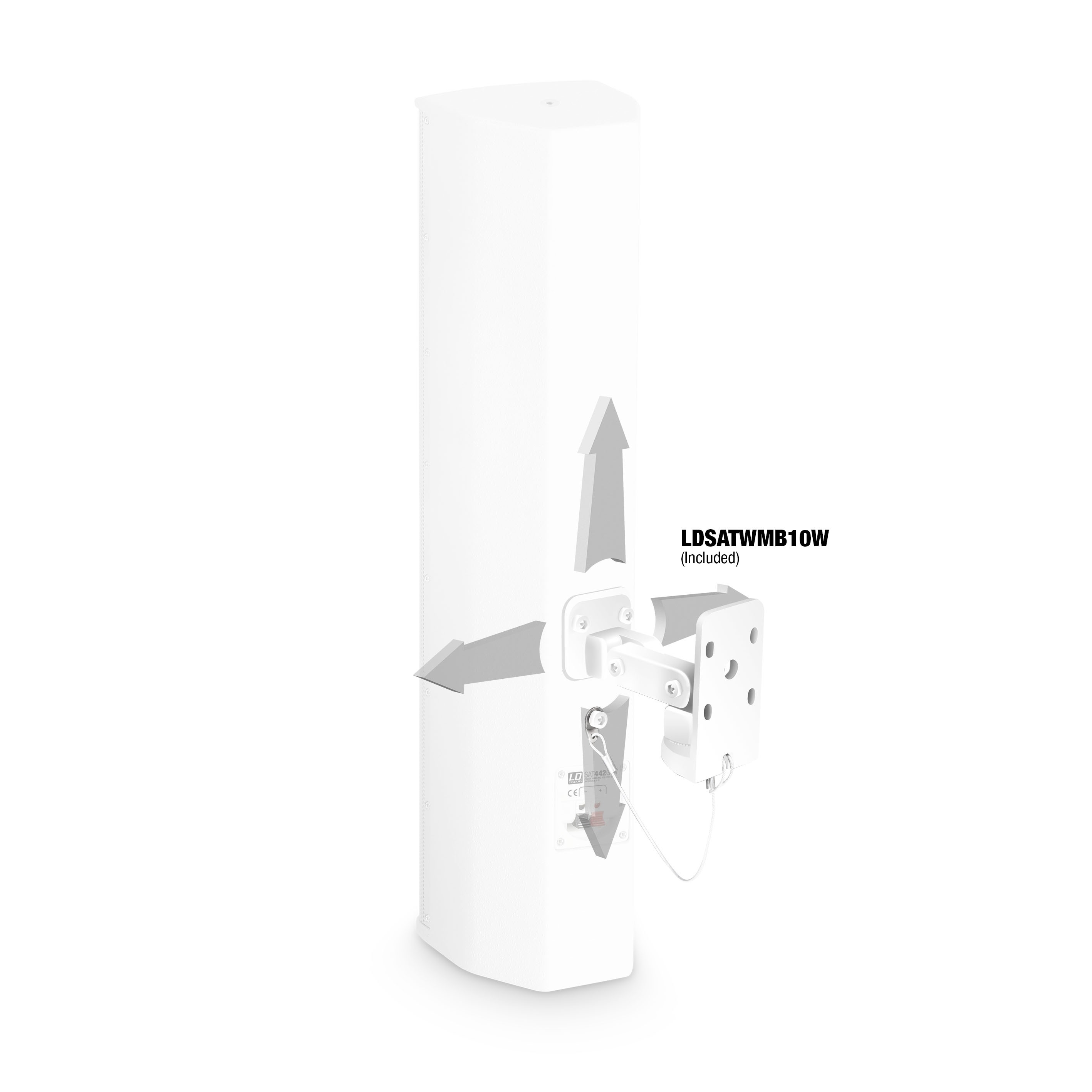

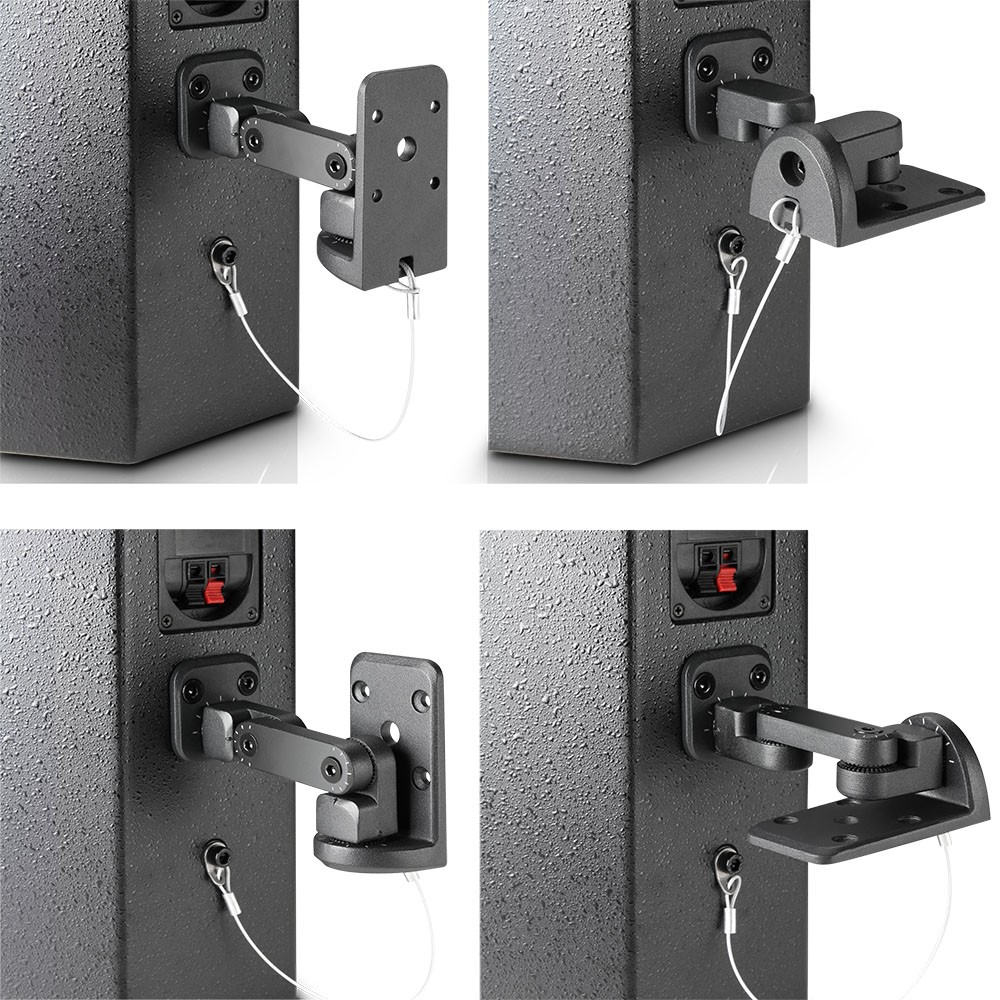

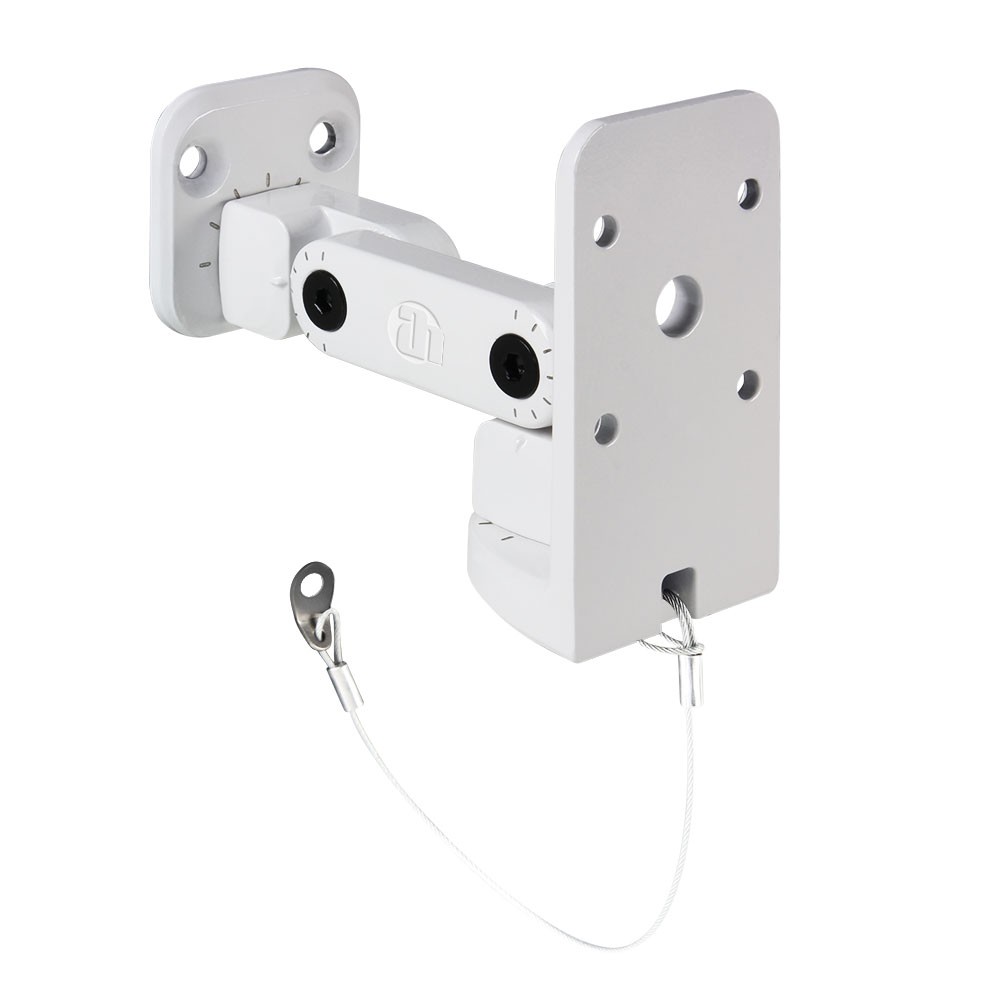

A universal swivel and tilt mounting bracket (SATWMB10W) is included and M6 fixing points facilitate alternative mounting methods via a range of optional accessories.

  • Slim installation speaker for bars, restaurants, shops etc.
  • 120° horizontal dispersion with a 30° vertical bundling
  • Four 4" custom-made woofers
  • 1" Celestion tweeter
  • Maximum Power Output of 200 watts
  • Universal joint mount and M6 fixing points for a wide variety of installation possibilities
  • Warranty: 2 Years
1e: 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

4 x 4 " / 4 x 101 mm

Tweeter dimensions

1" / 25 mm

Dispersion

120⁰ x 30⁰

Load Rating

200W RMS

Impedance

8 Ohms

Frequency response

75 - 20000 Hz

SPL (1W/1m) / Max

94 dB / 114dB

Cabinet material

12mm MDF

Colour

Black or White

Height x Width x Depth

670mm x 140mm x 155mm

Weight (each)

8 kg
