LD Systems MAUI i1 W

The LD Systems LDMAUI i1 W passive indoor / outdoor column speaker is ideal for acoustically challenging environments requiring clarity of music and speech.

White finish -  Also available in black.

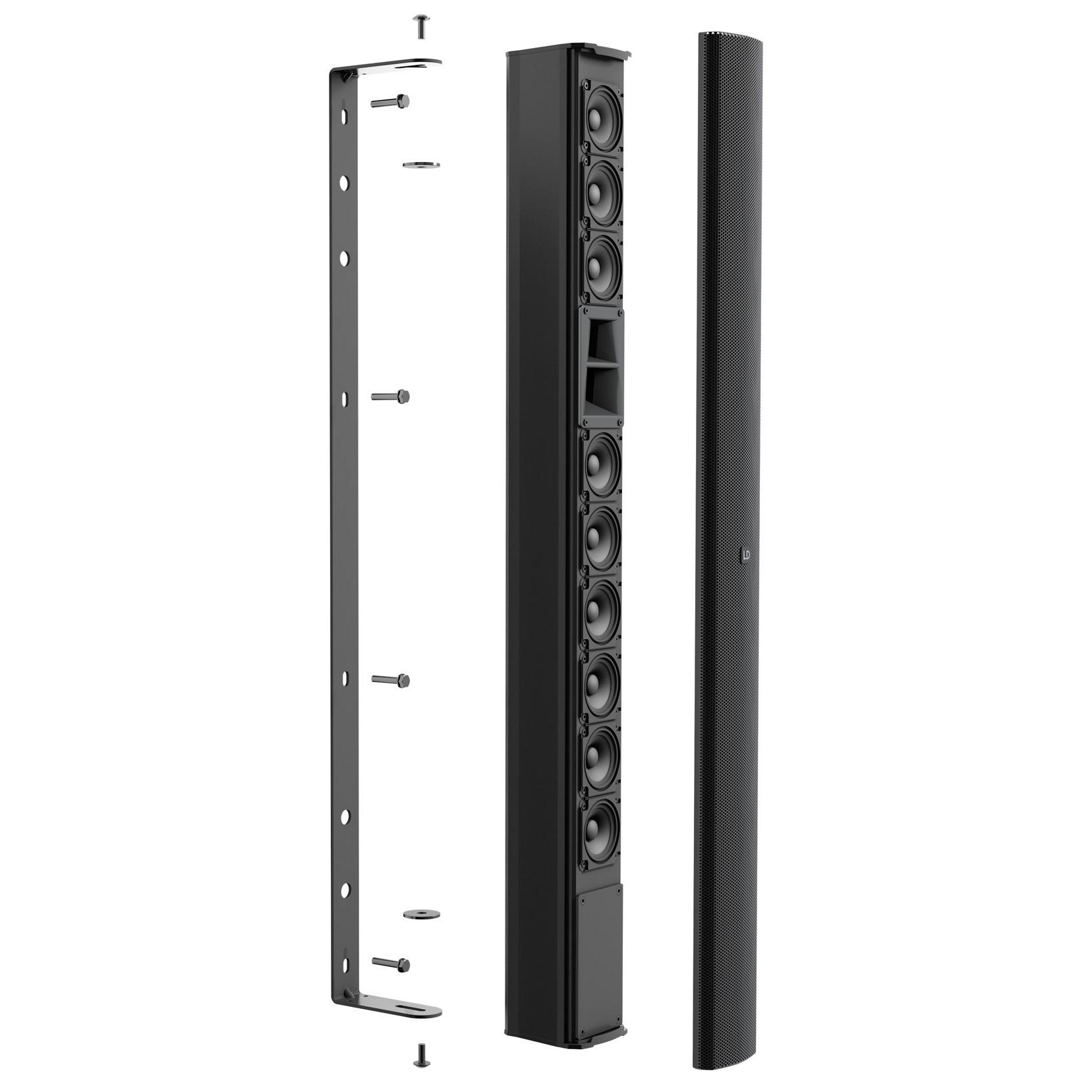

The attractive slimline chassis if fitted with nine 3" mid-range drivers, two 1" neodymium high-frequency drivers and a specially developed BEM-optimized Waveguide. This combination keeps the vertical dispersion as narrow as possible with horizontal dispersion as wide as possible to reduce audio reflection from the floor or ceiling.

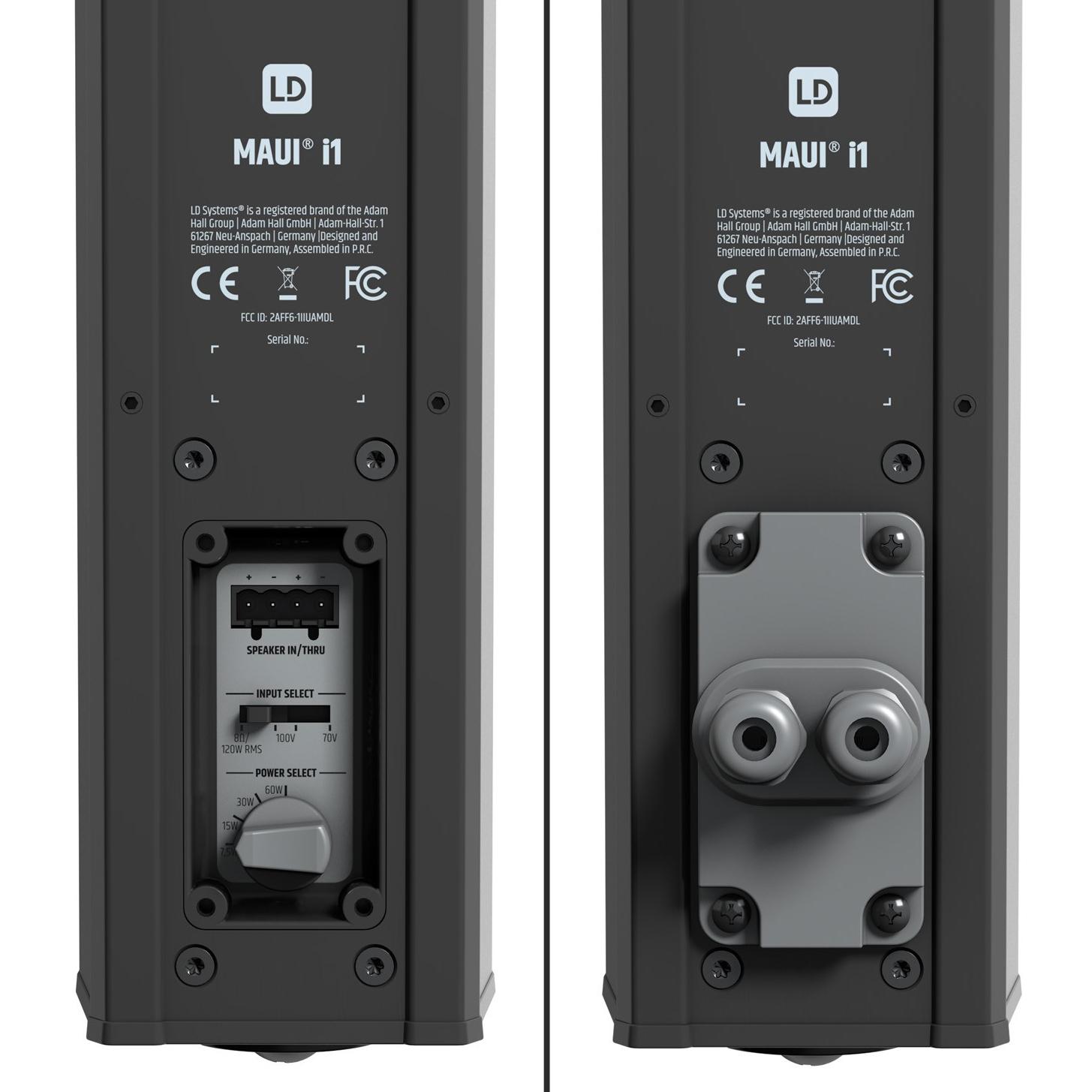

Compatible with both low impedance and constant voltage audio systems. Rated at 120 W RMS, 8 Ohms or 60 W on 70 V / 100 V line. A selector switch for 8 Ohm / 70 V / 100 V can be found on the rear along with power tappings of 60 W, 30 W, 15 W and 7.5 W depending on how many speakers you need to run in parallel and for a more efficient performance.

Weather treated cones, an aluminium loudspeaker grille and a weatherproof cover for the connection panel ensures the speaker is kept watertight and rust free if used outdoors.

A U-bracket is included for easy surface installation.

  • Nine 3" mid-range woofers + two 1" neodymium tweeters
  • BEM-optimized high frequency waveguide for wide horizontal & controlled vertical dispersion
  • 120 W RMS at 8 ohms
  • 8 ohms (transformer bypass) / 100 V / 70 V
  • 70 V / 100 V power taps: 60 W, 30 W, 15 W, 7.5 W
  • IP65 rated, aluminium speaker grille & weather treated cones
  • Sealed connection panel cover for outdoor protection
  • 4-Pole Terminal Block connector for parallel speaker connection
  • Extensive passive audio crossover for balanced frequency response and Self-resetting overload protection for tweeters
  • U-Bracket included
  • Available in Black (MAUI i1) or White (MAUI i1 W)
  • Warranty: 5 Years
1a: 100V IPxx 1e: 8ohms
CONTACT US

SPECIFICATIONS

Low/mid Woofer dimensions

9 x 3 " (76.2 mm)

Horn

BEM optimized CD Horn

HF driver dimensions

2 x 1 " (25.4 mm)

Dispersion (H x V)

120° x 30 °

Load rating (RMS)

120 W

Peak power

480 W

Frequency response

130 - 19000

Crossover frequency

2500 Hz

SPL (1W/1m)

94 dB

Max. SPL

116 dB

Impedance

8 Ohm(s)

Input selector switch

70 V - 100V - 8 Ohms (transformer bypass)

100V / 70V Transformer power taps

60 - 30 - 15 - 7.5 W

Protection class IP

65

Cabinet material

Aluminium

Height x Width x Depth

985 mm x 85 mm x 105 mm

Accessories (included)

U-Bracket for surface mount

Weight

8.6 kg
