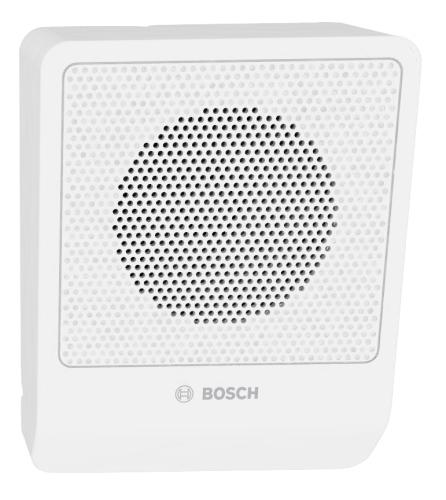

Bosch LB10-UC06-L

The LB10-UC06-L is a neat ABS wall mounted cabinet speaker offering good speech intelligibility and  background music reproduction.

Suitable for 100 volt line sound systems, the transformer offers tappings of 6w, 3w, 1.5w and 0.75w.

Three keyholes on the rear of the cabinet enable quick and easy wall mounting.

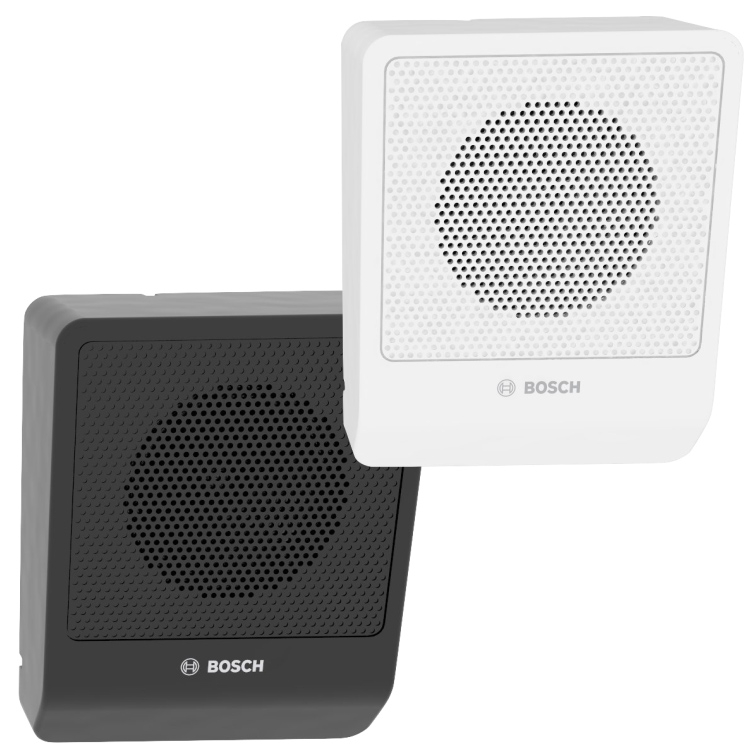

White finish: LB10-UC06-L. Also available in Black: LB10-UC06-D.

Sold and priced individually.

Also available with a volume control - see LB10-UC06V-D and LB10-UC06-L.

Warranty: 3 Years



1a: 100V
List Ex VAT: £22.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated power

6 / 3 / 1.5 / 0.75 W

Sound pressure level at 6 W / 1 W (1 kHz, 1 m)

99 / 91 dB (SPL)

Effective frequency range (-10 dB)

145 Hz to 18 kHz

Opening angle 1 kHz / 4 kHz (-6 dB)

165° / 88° (horizontal) / 165° / 88° (vertical)

Rated input voltage

100 V

Rated impedance

1667 ohm

Connector

4 pole screw terminal block

Dimensions (H x W x D):

207.2 mm x 160.5 mm x 73.2 mm

(8.16 in x 6.32 in x 2.88 in)

Weight

0.77 kg (1.70 lb)

DOWNLOADS

Bosch LB10-UC06-D & LB10-UC06-L Datasheet
