Trantec S4.04-W-EB GD5

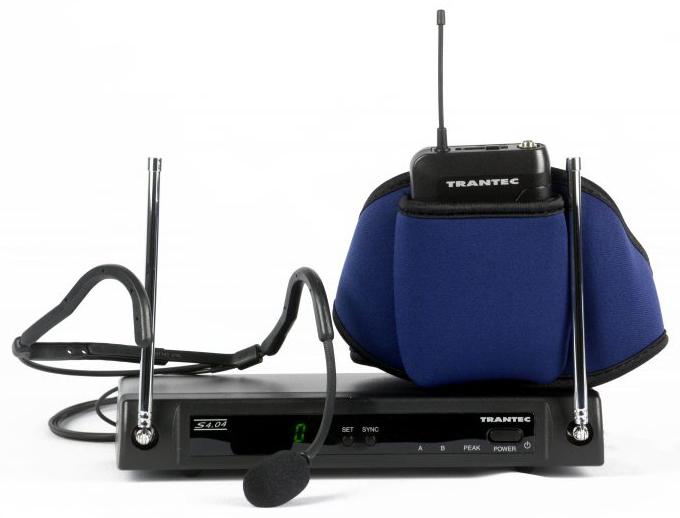

Trantec S4.04 W Headset UHF radio microphone system with diversity receiver.

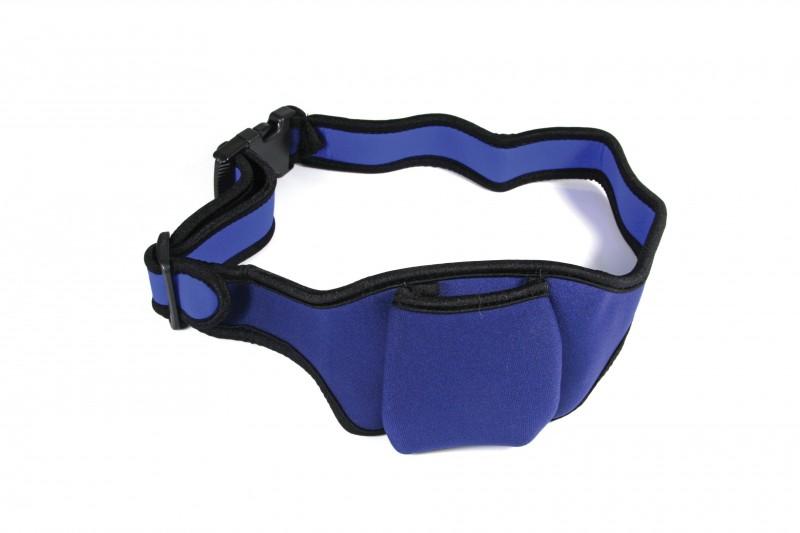

The Trantec S4.04-W-EB GD5 UHF headset radio mic system consists of the Trantec S4.04-RX-EB UHF wireless receiver, a Trantec S4.04-BTX-EB beltpack transmitter and robust headset microphone (MIC-SJ66) ideal for aerobics.

Four selectable frequencies are available on Channel 70 - licence free.

A compander circuit minimises the effect of ambient noise.

A single AA battery can power the beltpack transmitter for up to 10 hours.

CH70 UHF
List Ex VAT: £340.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Specifications
Receiver
Diversity Reception Antenna Diversity
Sensitivity 10uV at 45dBA, S/N
Squelch Tone SQ, Carrier SQ, Noise SQ
Audio Frequency Response 50Hz – 15kHz
Audio Output Level (Max.) Balanced (XLR socket): -20dBu, Unbalanced(1/4″ jack socket): 10dBu
Power Supply 12 VDC 500mA
Dimensions 215(W) x 39(H) x 102(D)mm
Weight 480g
Beltpack Transmitter
RF Carrier Power 10mW
Audio Frequency Response 50Hz – 15kHz
Audio Input Level -6dBV (maximum), mic gain 0dB
Battery Life Approximately 10 hours
Power Supply 1 AA size battery, 1.5V
Finish Resin, coating
Dimensions 62(W) x 100(H) x 25(D)mm
Weight 85g with battery

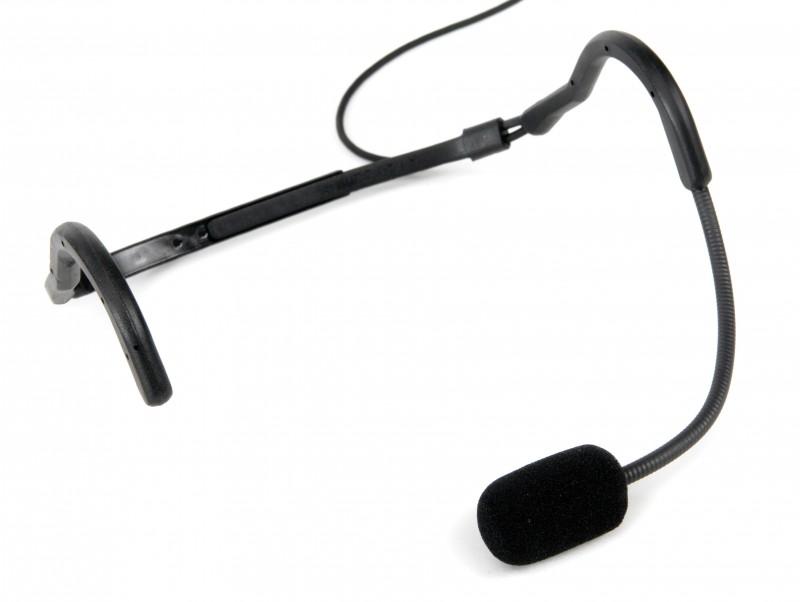

Headset Specifications
Type Super Cardioid Electret Condenser
Nominal Impedance 3000 Ohms
Max SPL >125dB
Operating Voltage 2-10Volts min/max
Current Consumption 50uA
Frequency Response 60Hz-16kHz +3dB
Cable Length 1500mm







DOWNLOADS

Trantec S4.04 series radio microphone user manual
