TOA SC-PE615

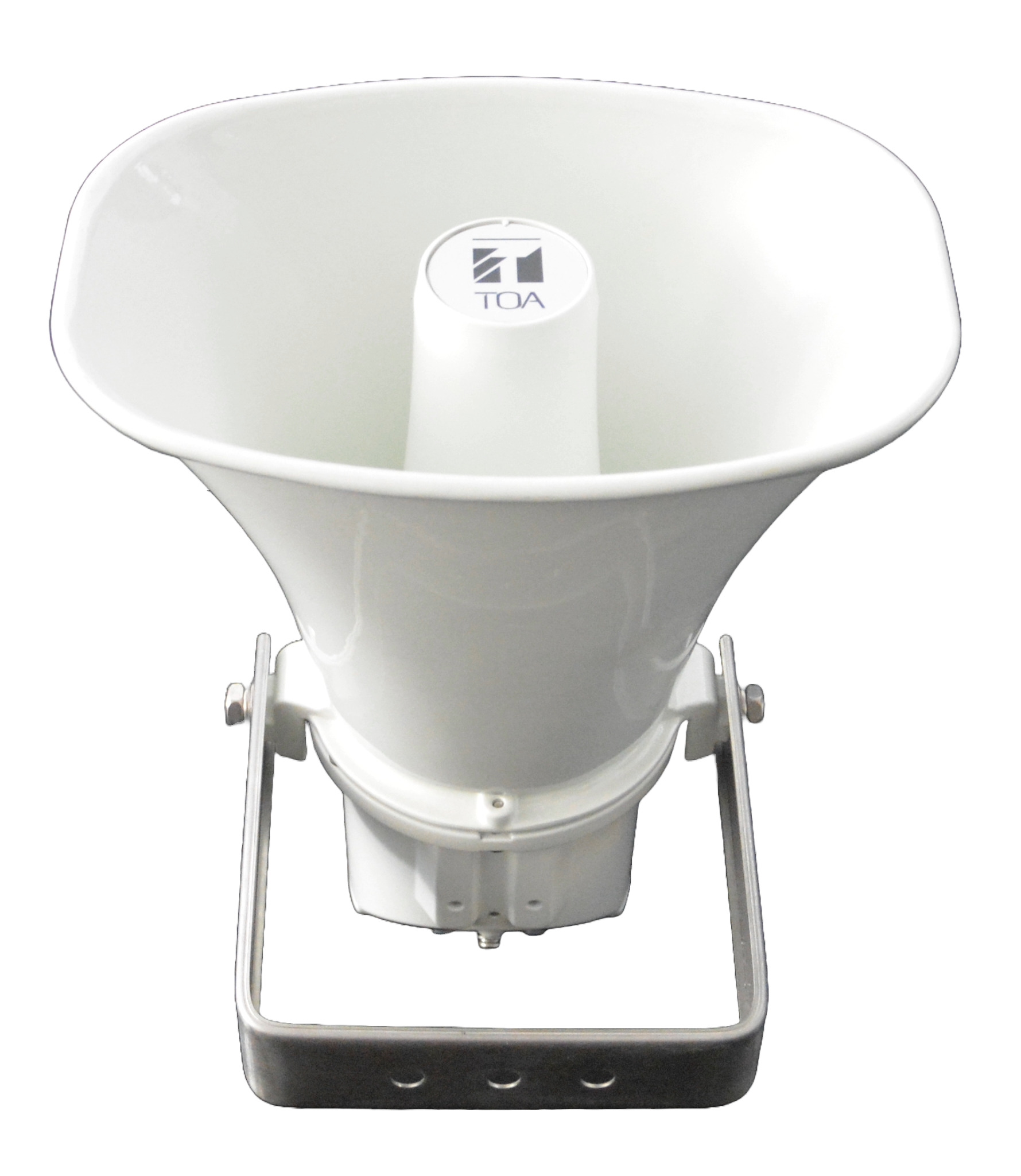

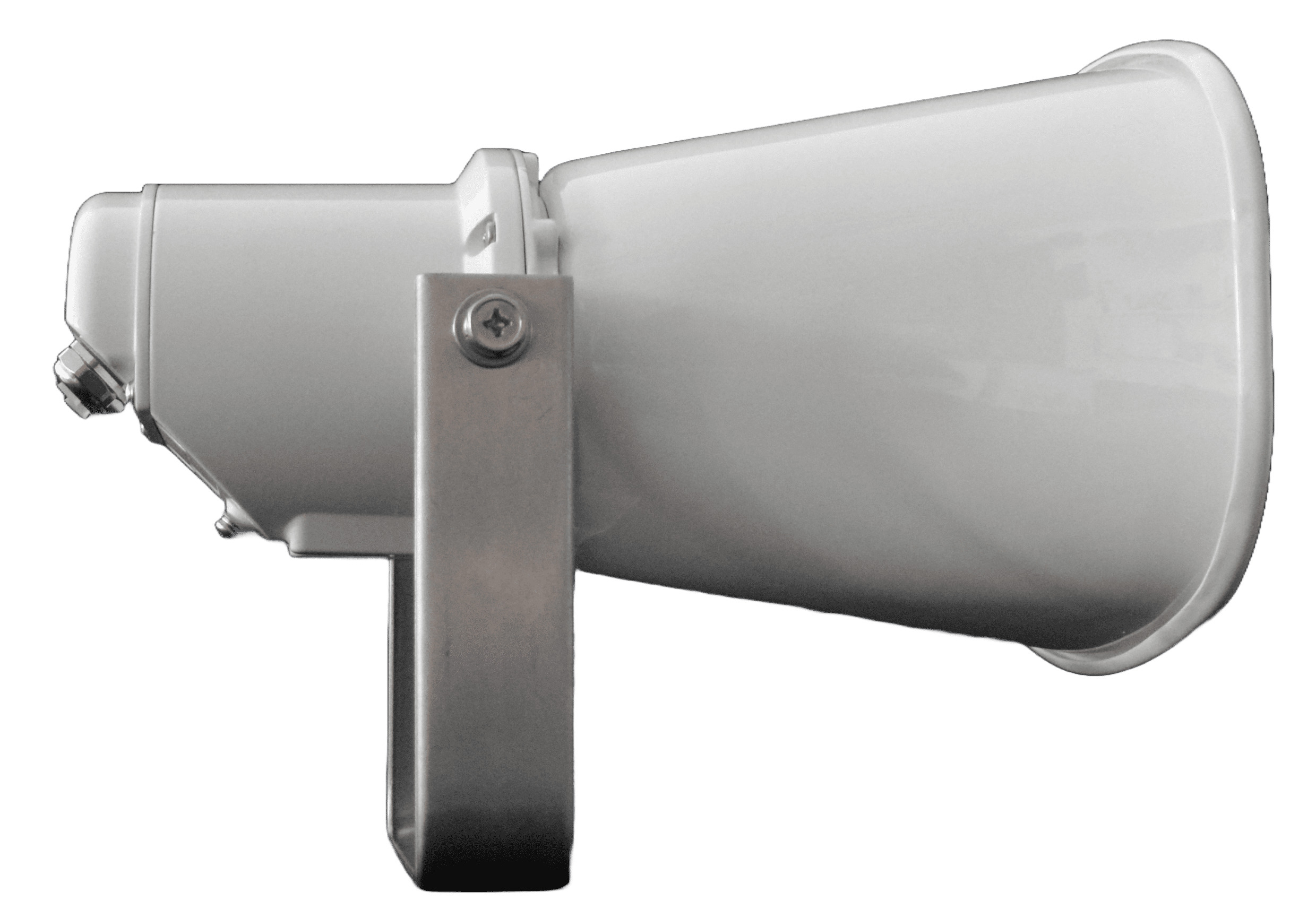

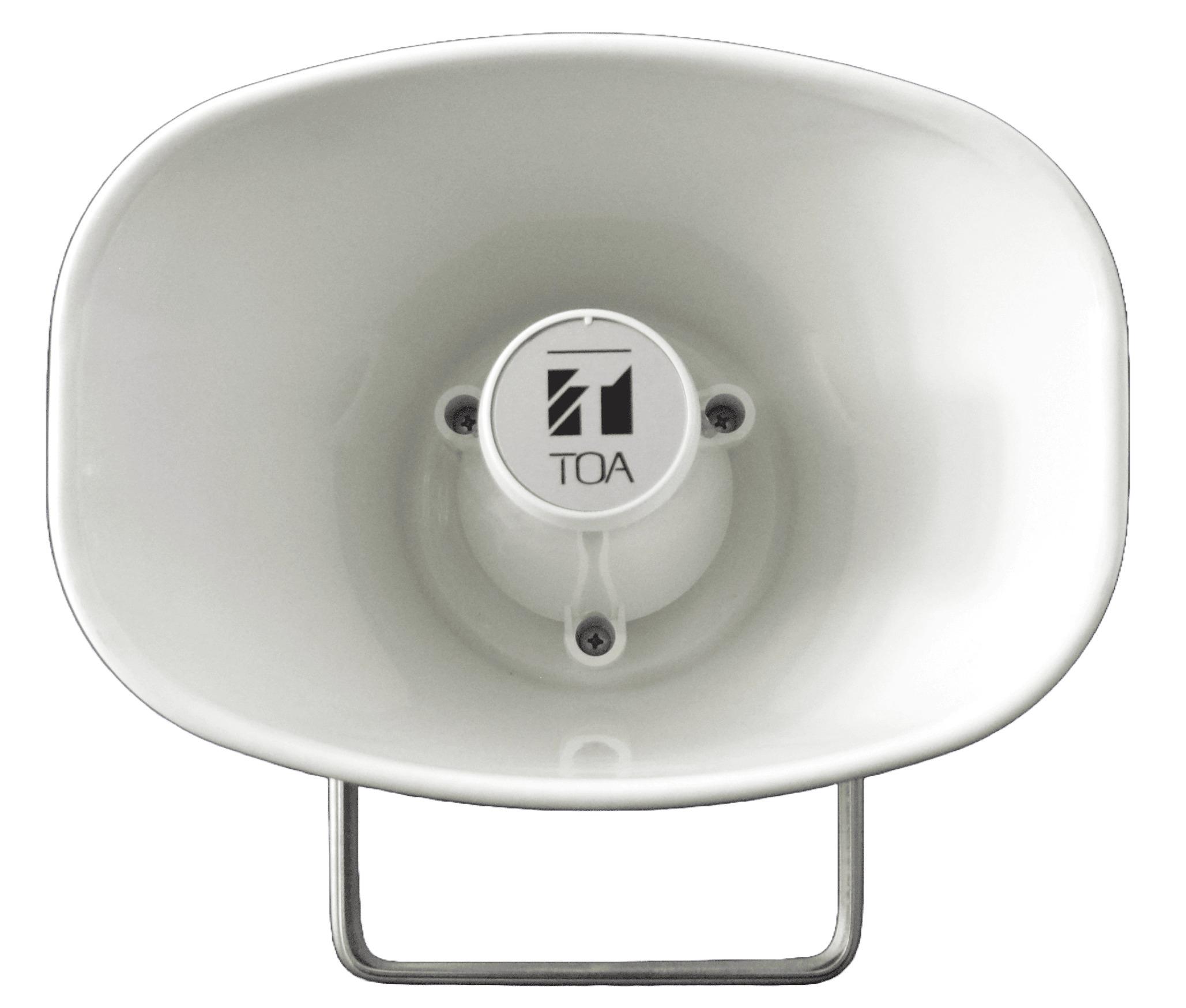

The TOA SC-PE615 is an active, 10 Watt, outdoor horn speaker, with a standard line level audio input, which can be powered via PoE or a DC PSU.

Compact & highly intelligible, the SC-PE615 has a built-in 10W power amplifier powered by either PoE, PoE+ or 12V / 24V DC and is ideal to provide public address announcements and remote paging via network video surveillance applications.

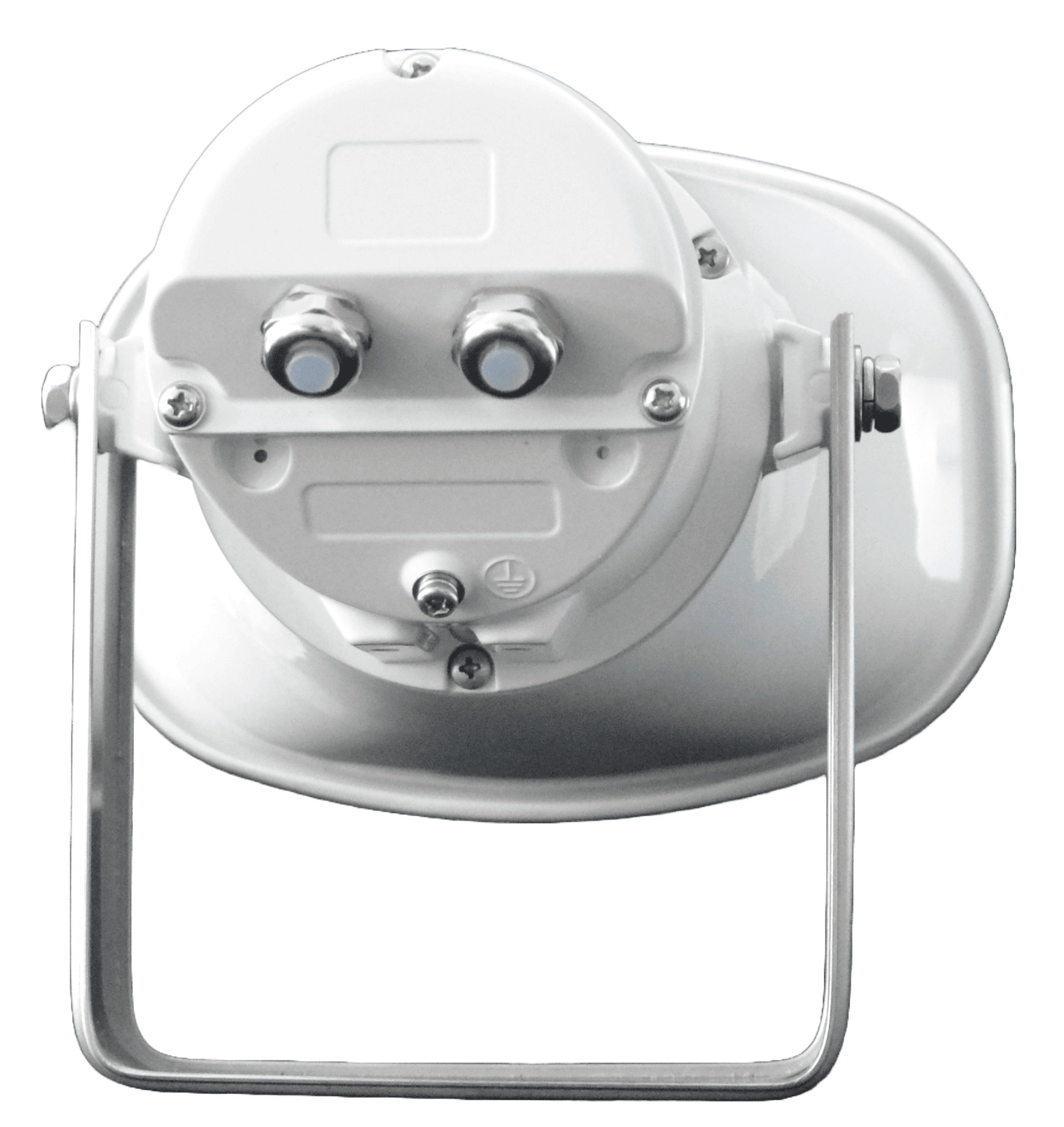

A volume adjustment control can be found on the rear.

Its rugged enclosure is IP66 rated for outdoor environments.

  • 10W
  • PoE, PoE+ or 12V / 24V DC
  • Stainless steel brackets and hardware
  • Powder coated aluminium oval horn
  • Unobtrusive off-white colour
  • Water resistant, rated IP66
  • Warranty: 1 Year
1e: 8ohms IP66 PoE
List Ex VAT: £195.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Source

DC12V/ DC24V (9V~29V),
PoE+ (IEEE802.3at),
PoE (IEEE802.3af)

Power Consumption

35 W or less (Rated output),
4 W or less (Standby)

Maximum SPL

115dB±3dB

Sensitivity

105dB±3dB (1W, 1m )

Standby Power

≤ 4W

Rated output to Speaker

7.5 W (at DC12V powered),
10W (at PoE+ powered),
5W (at PoE powered)

Rated output for Speaker output

7.5 W (at DC12V powered),
10W (at PoE+ powered),
5W (at PoE powered)

Frequency Response

280Hz ~ 12.5KHz (Speaker output)

Distortion

0.5 % or less

Audio Input

-6dB, 10kΩ electronically-balanced,
removable terminal block (3 pins)

Speaker output

Low impedance (8Ω)

PoE / PoE+ Interface

RJ45

Indicators

Power indicator LED (Rear side / Bottom side),
Audio input indicator LED

Dust/Water protection

IP66

Finish

Horn flare: Aluminum, 0ff-white, powder coating,
Reflector horn and rear cover: Aluminum, off-white, powder coating,
Cable Grant: Nickel plated copper,
Brackets, screws, and bolts: Stainless steel

Dimensions (W x H x D)

222 × 162 × 281 mm

Weight

1.35 kg (2.98 lb)

Accessories

Removable terminal plug (2 pins) …1pcs,
Removable terminal plug (4 pins) …1pcs,
Removable terminal plug (3 pins) …1pcs

DOWNLOADS

TOA SC-PE615 User Manual
TOA SC-PE615 Datasheet

Related Products

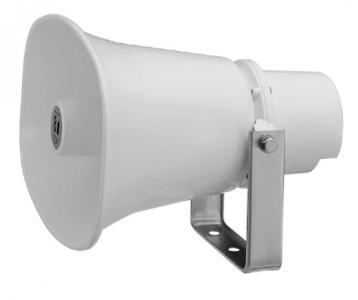

TOA SC-615
