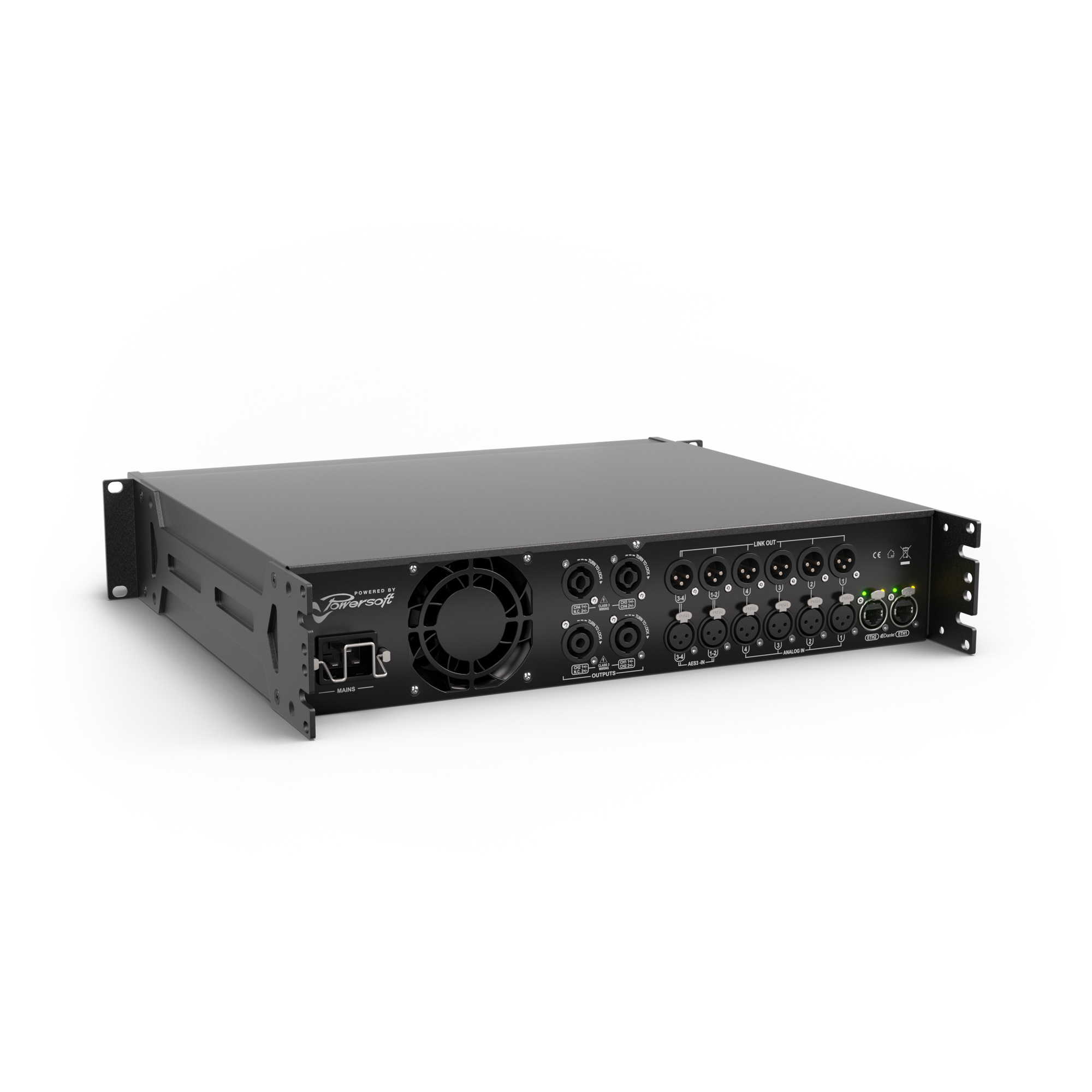

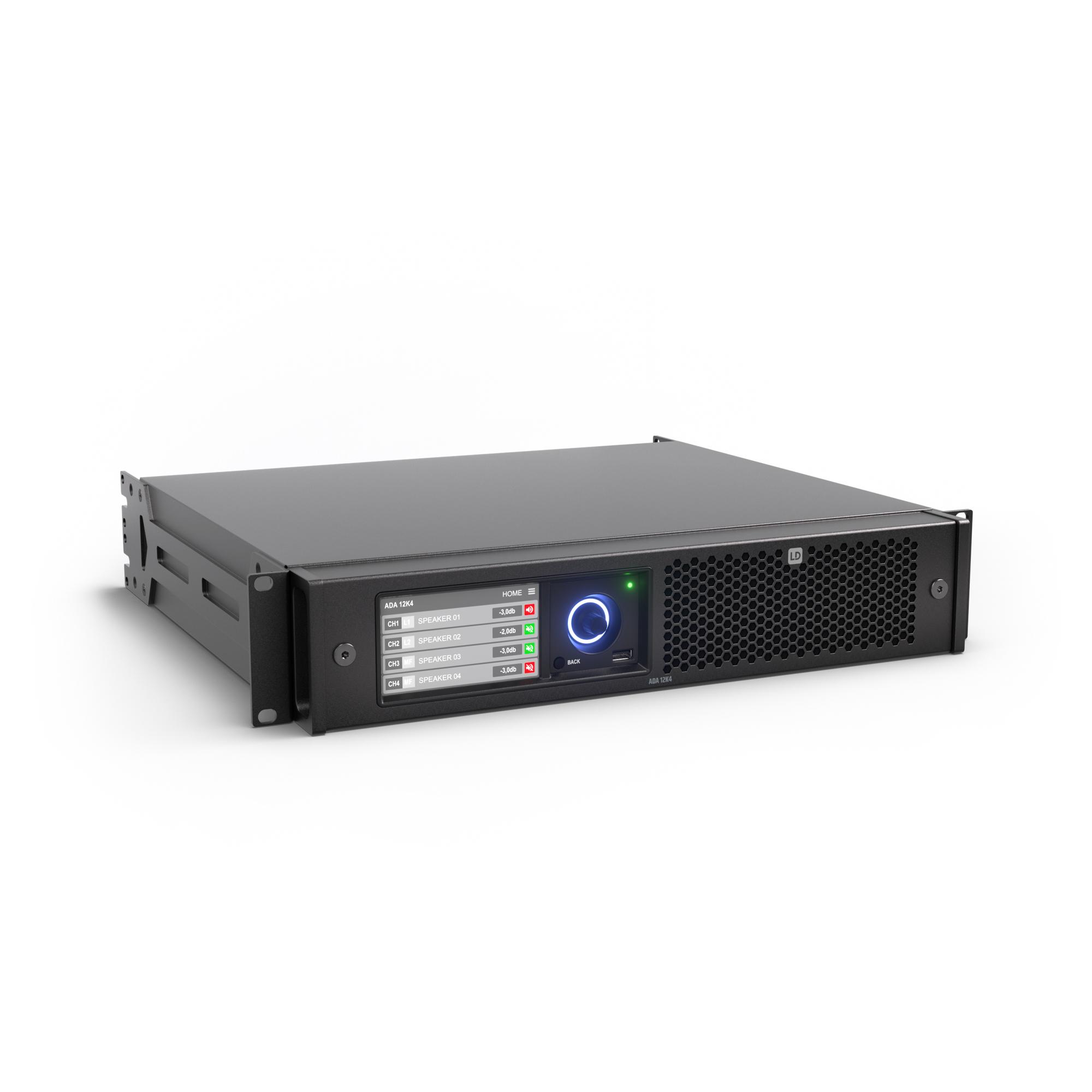

The LD Systems ADA 12 K4 4-channel touring amplifier with DSP & DANTE offers an output of 4 × 2700 W @ 4 Ω for maximum power, precise sound and maximum reliability for professional touring and installation applications.

It offers outstanding audio quality and flexible sound processing with a 24-bit/96 kHz DSP with 32-bit floating point and FIR, IIR and raised-cosine filters whilst two Dante™ ports with integrated switch and Armonía Pro Audio Suite™ integration enable seamless integration into networks.

Armonía Plus allows LD Systems speaker presets to be managed and updated on the DSP amplifier without the need for complex configurations. Alternatively, individual presets can be created and managed to optimise the system for specific requirements.

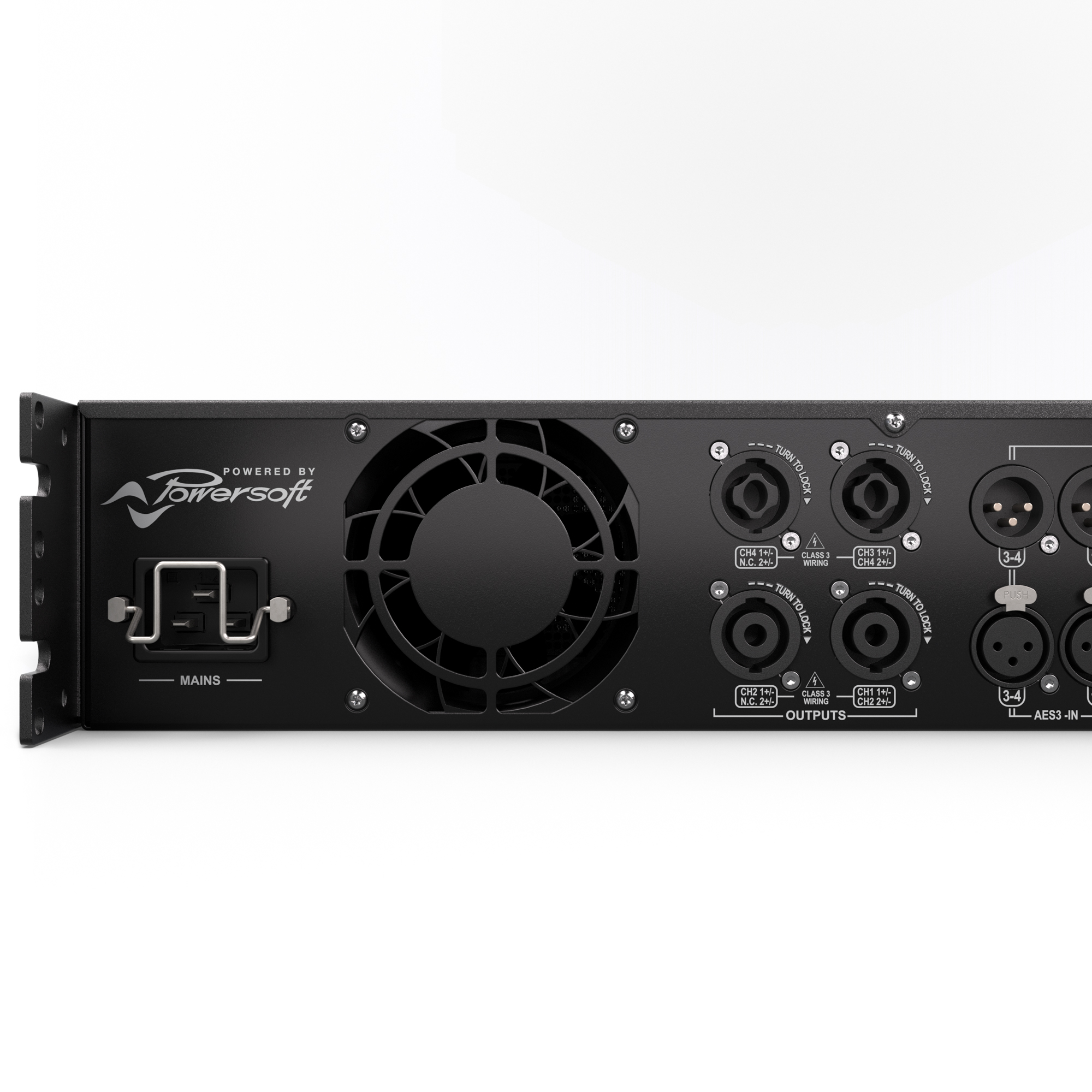

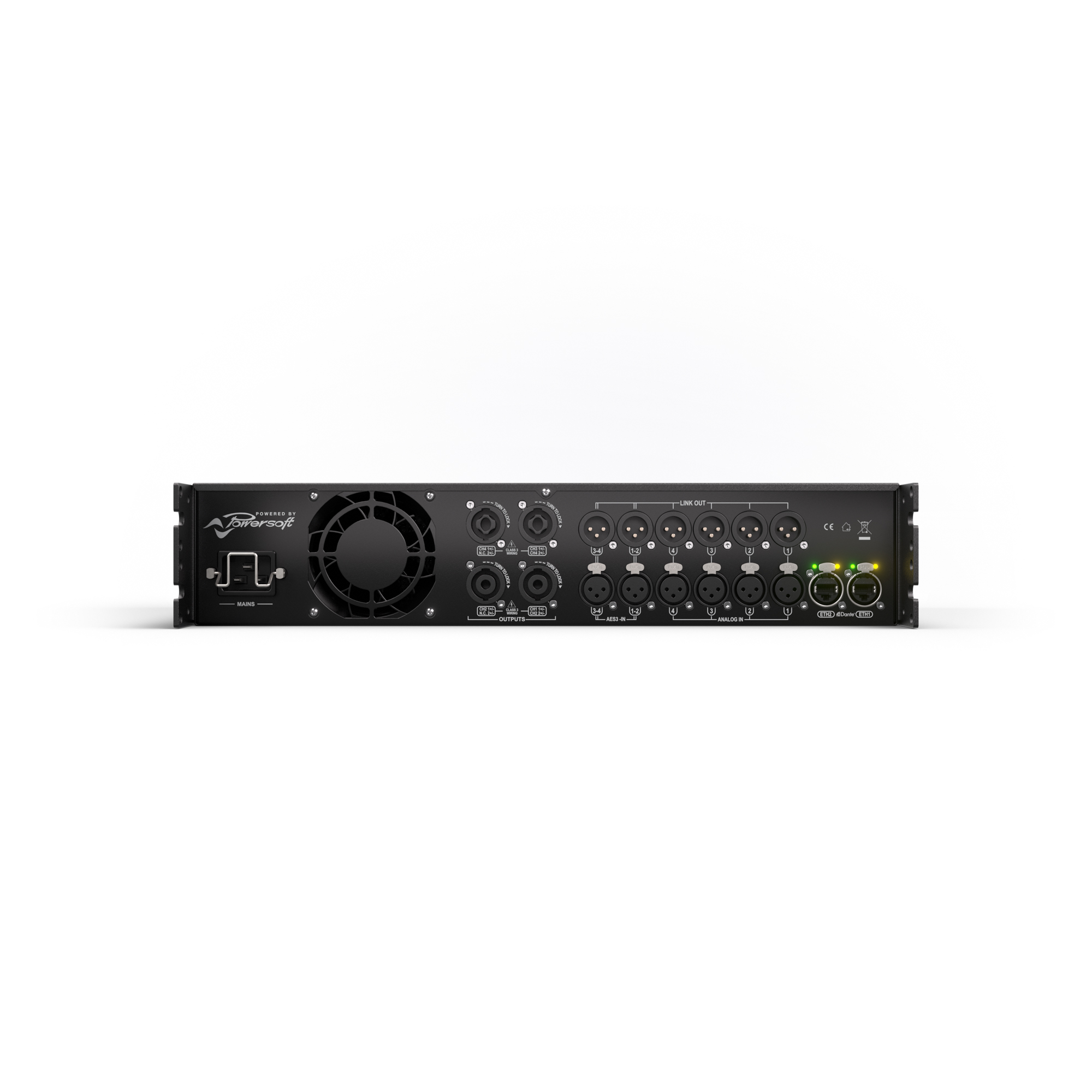

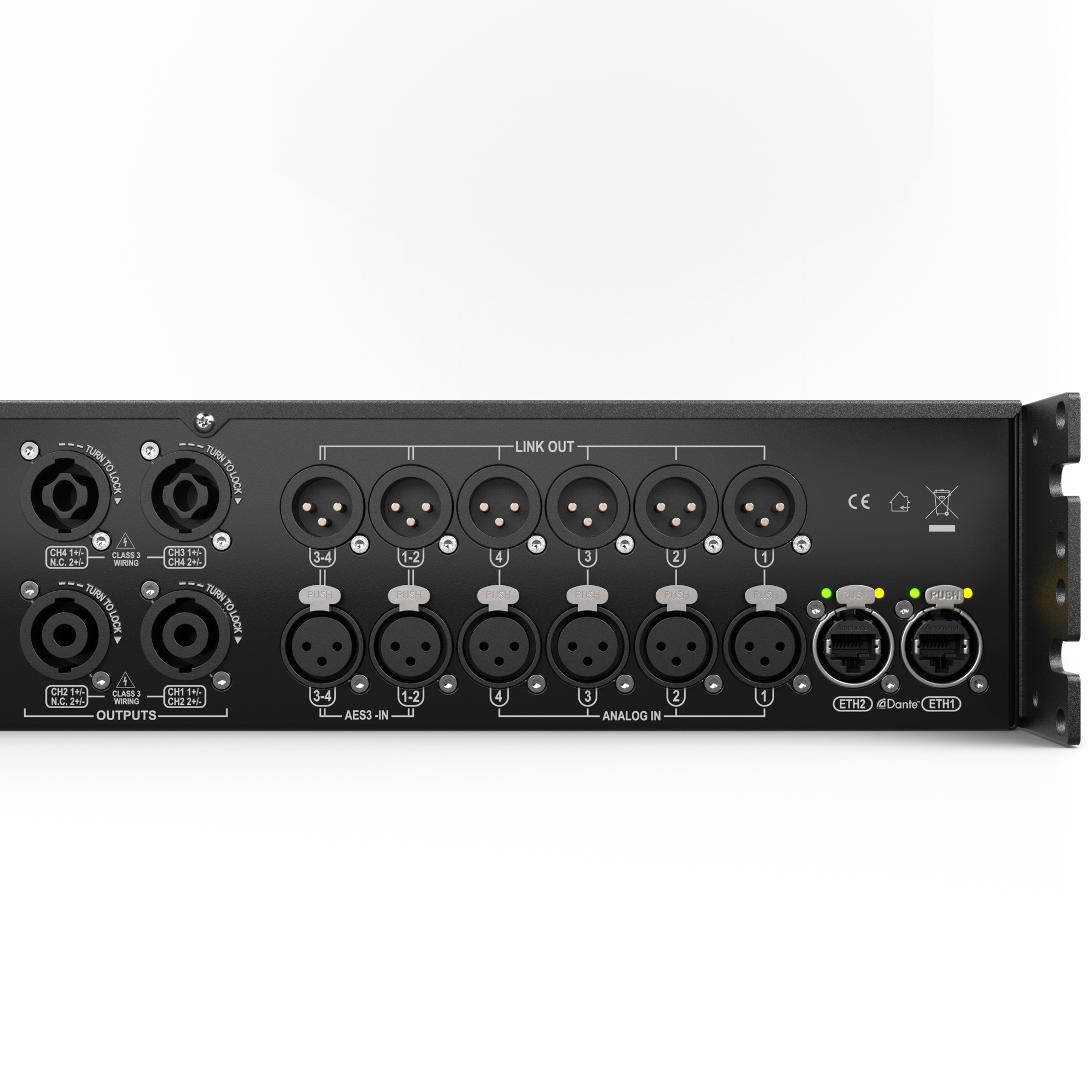

Versatile connection options with 4 analogue and 4 AES3 inputs as well as 4 analogue, 4 SpeakON and 4 AES3 outputs ensure maximum flexibility. The automatic input backup strategy guarantees uninterrupted operation.

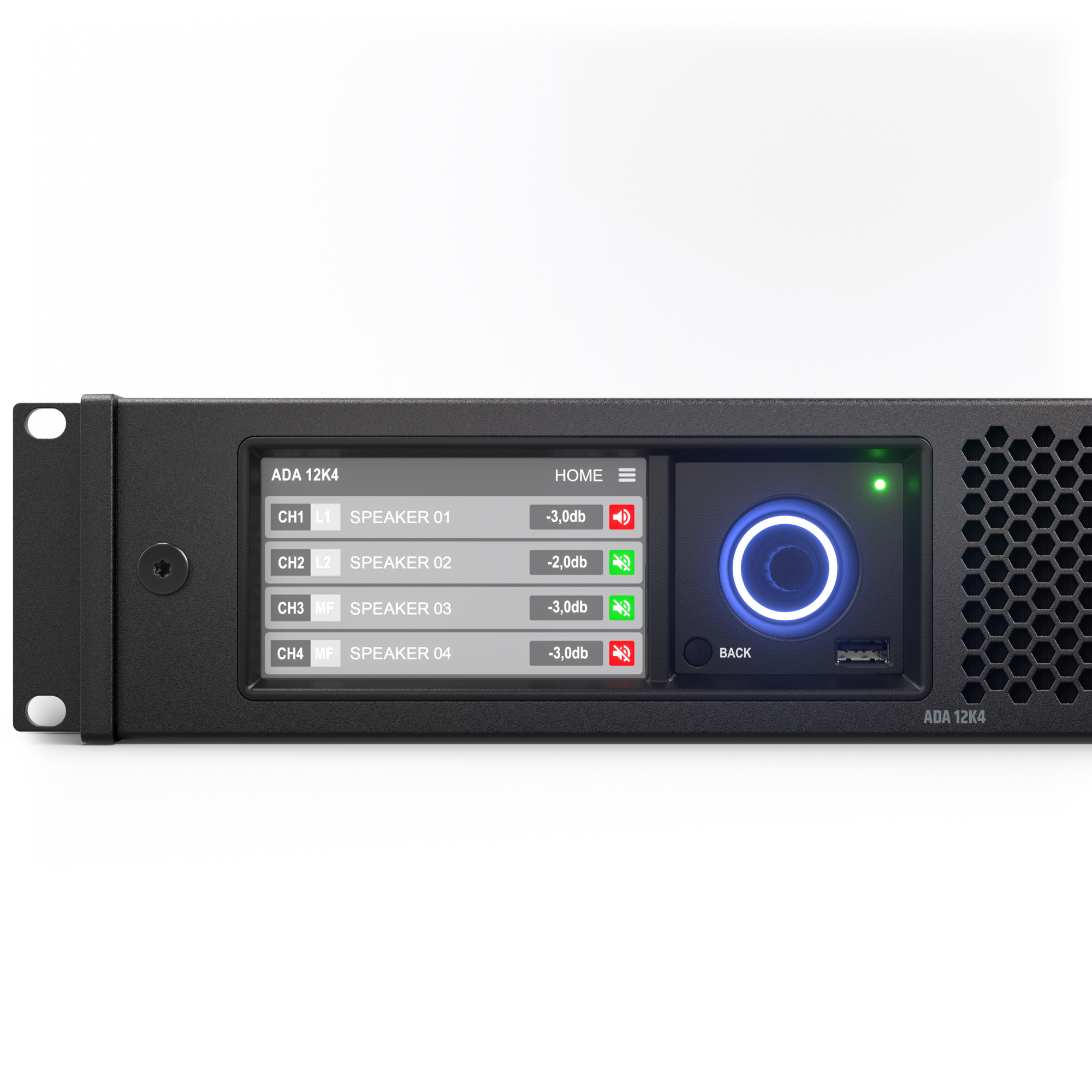

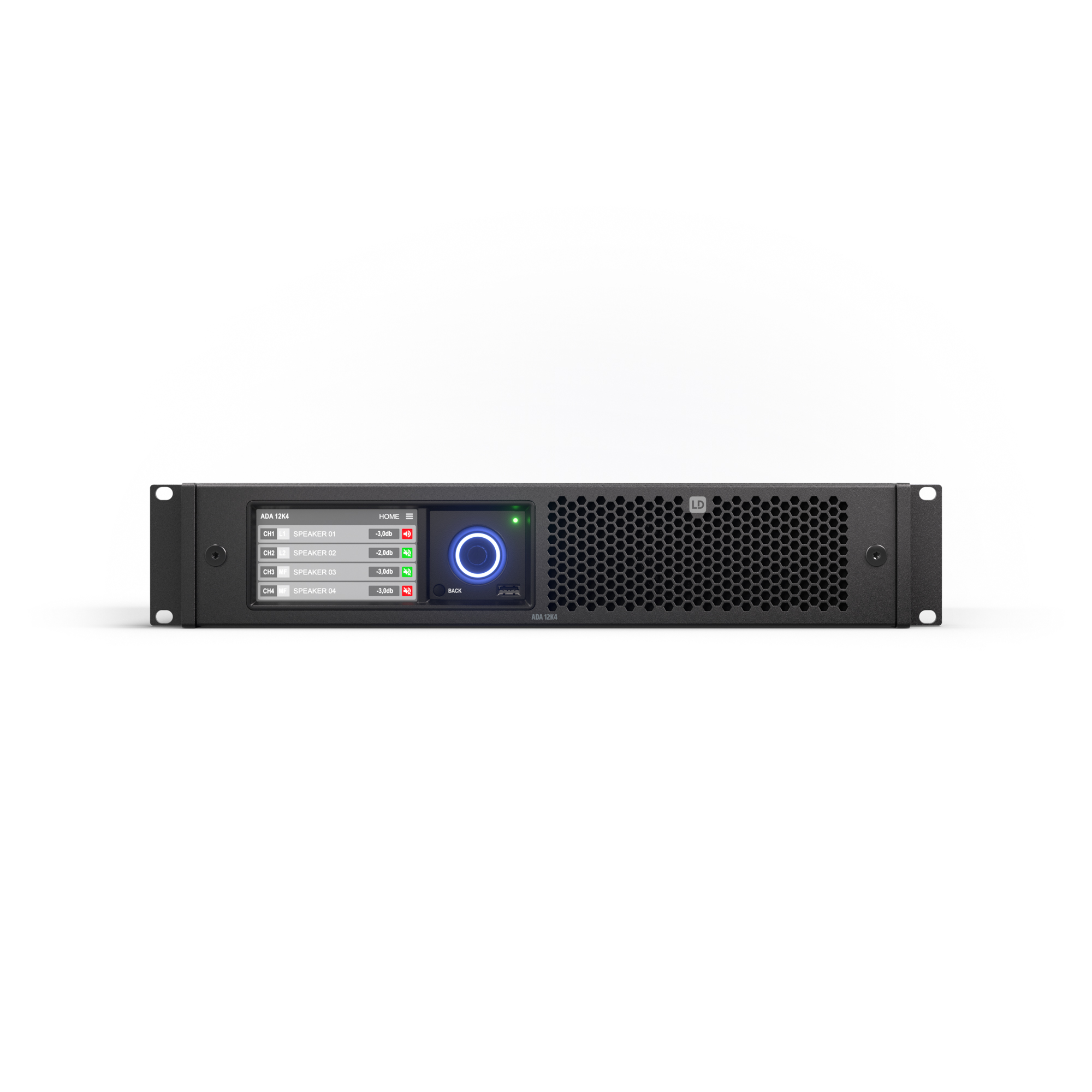

The 4.3-inch touch display with rotary-push encoder and virtual metre bridge for monitoring the available headroom ensures intuitive operation. Flexible routing and mixing options enable customised signal routing.

Comprehensive limiters (peak, RMS, current, TruePower™) and Active DampingControl™ offer reliable system protection. In addition, together with HealthPlus monitoring in Armonía Plus, the LiveImpedance™ function offers comprehensive and detailed system monitoring.

The protection system against direct current, overvoltage/undervoltage, short circuits and overheating ensure maximum operational safety, bolstered by signal protection mechanisms such as clipping, VHF and long-term RMS protection. The energy-efficient mains adapter with Power Factor Correction (PFC) and intelligent rail management make the ADA12K4 amplifier particularly efficient and reliable, ideal for professional use.

• 4 × 2700 W @ 4 Ω
• 24-bit/96 kHz DSP with 32-bit floating point, FIR, IIR and raised-cosine filters, EQ, crossover and delay
• 140 dB dynamic range with <0.1 % THD+N
• 2 x Dante™ ports with integrated switch and Armonía Pro Audio
• Suite™ integration
• Inputs: 4 analogue and 4 AES3 inputs
• Outputs: 4 analogue, 4 SpeakON and 4 AES3 outputs
• Flexible routing and mixing options for customised signal routing
• 4.3" touch display with rotary encoder for intuitive operation
• Virtual metre bridge on the touchscreen for headroom monitoring per channel
• Input backup strategy: Automatic switching of the input source in case of signal failure
• Peak, RMS, current and TruePower™ limiters as well as Active DampingControl™
• Protective circuits against direct current, overvoltage/undervoltage, short circuit and overheating
• Signal protection (clipping, VHF, long-term RMS) and muting when switching on/off
• Energy-efficient power supply with Power Factor Correction (PFC) and Smart Rails Management
• Warranty: 4 Years
