Audio Technica ATW-CHG3N
Click to expand

Audio Technica ATW-CHG3N

The Audio Technica ATW-CHG3N networked charging station is dsigned for use with the Audio Technica System 20 Pro Series and 3000 Series bodypack and handheld transmitters fitted with NiMH rechargeable batteries.

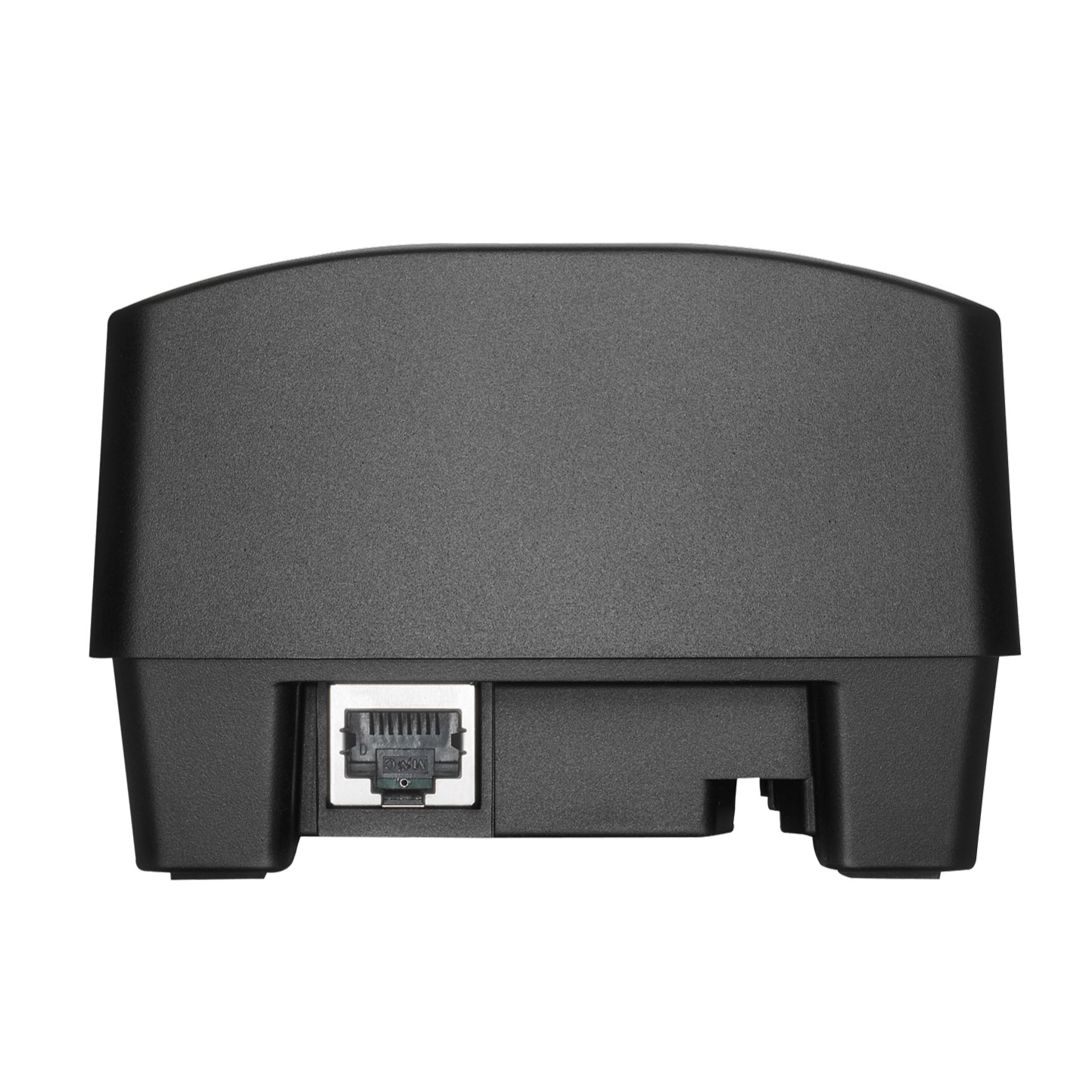

This networked version of the ATW-CHG3 charging dock allows users to monitor the charging status of all transmitters in the linked docks.

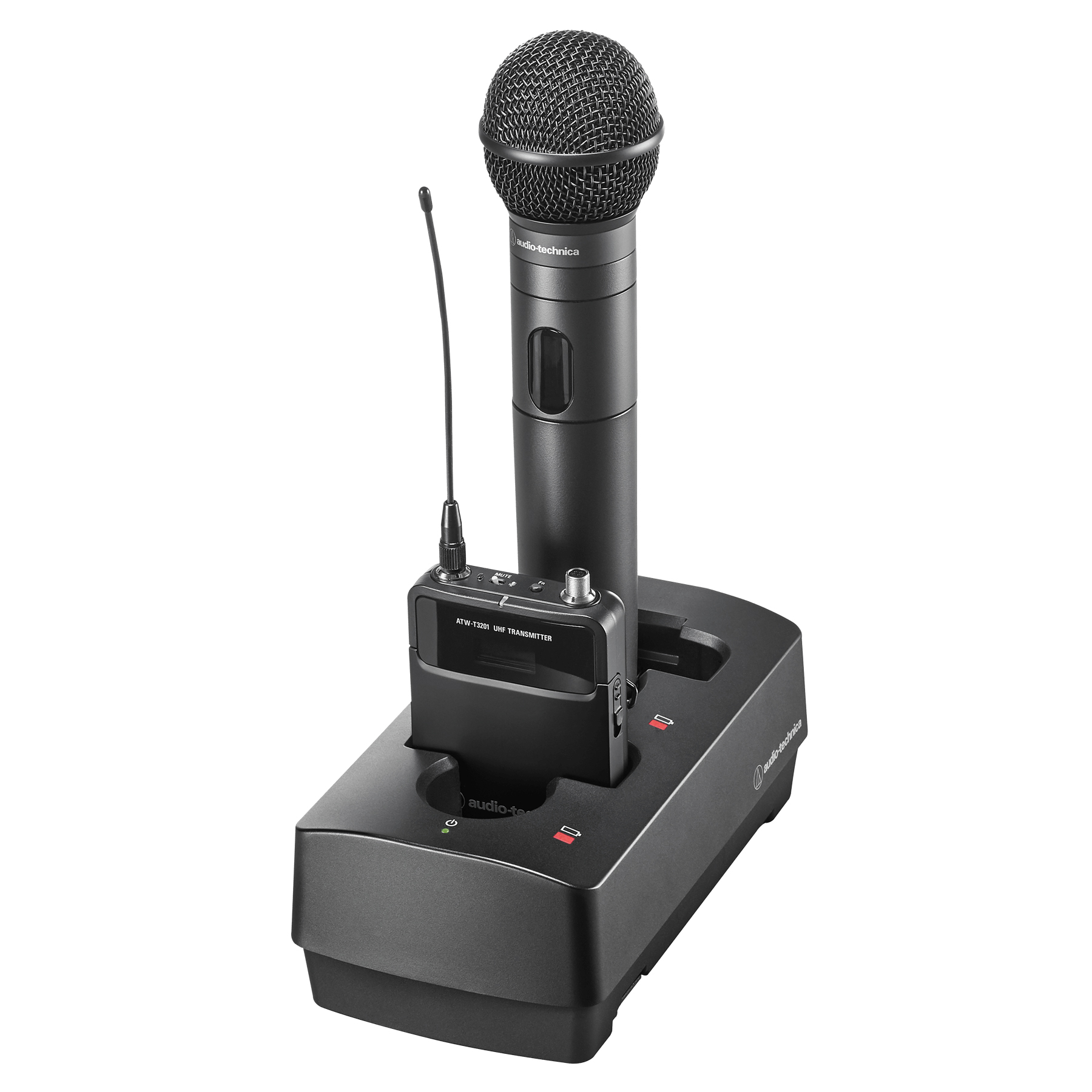

Simply drop one or two hand held or beltpack transmitters into the charging bays on the the top of the charger - no need to remove the NiMH rechargeable battery pack first.

The dock automatically shuts off if alkaline or damaged batteries are detected in the transmitters.

Up to five docks can be linked and powered by a single power supply.

A non-networked version of the charging dock is also available. See ATW-CHG3 in related products.

  • NiMH batteries are charged in the transmitters
  • Up to five docks can be connected to one power supply (AD-SA1230XA) to charge up to ten transmitters (one AT8687 per link is required)
  • Dedicated app for monitoring and controlling the ATW-CHG3N and its connected chargers from a computer
  • Power / Network status LED indicator
  • LED status indicators for charging status
  • Automatically turns off when alkaline or damaged batteries are detected
  • Warranty: 2 Years



List Ex VAT: £230.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Power Supply

DC12V 3.0A

Power Consumption

5.3W (when 2 transmitters are charging)
27.8W (CHG3N×1) (CHG3x4) (5 units are connected and 10 transmitters are charging)

Charging Time

Approx. 6.5 hours (1,900 mAh rechargeable battery)*

Weight

410 g

Accessories

Separately available - AC adapter (AD-SA1230XA), ATW-CHG3 Link kit (AT8687)

Related Products

Audio Technica AT8687

Link kit to connect one ATW-CHG3/ATW-CHG3N charging station to another, allowing all stations (both ATW-CHG3N and ATW-CHG3) to be powered by a single source.

see more
List Ex VAT: £29.17
Audio Technica AD-SA1230XA

Power supply unit for Audio Technica ATW-CHG3 / ATW-CHG3N dual bay charging docks.

see more
List Ex VAT: £58.00

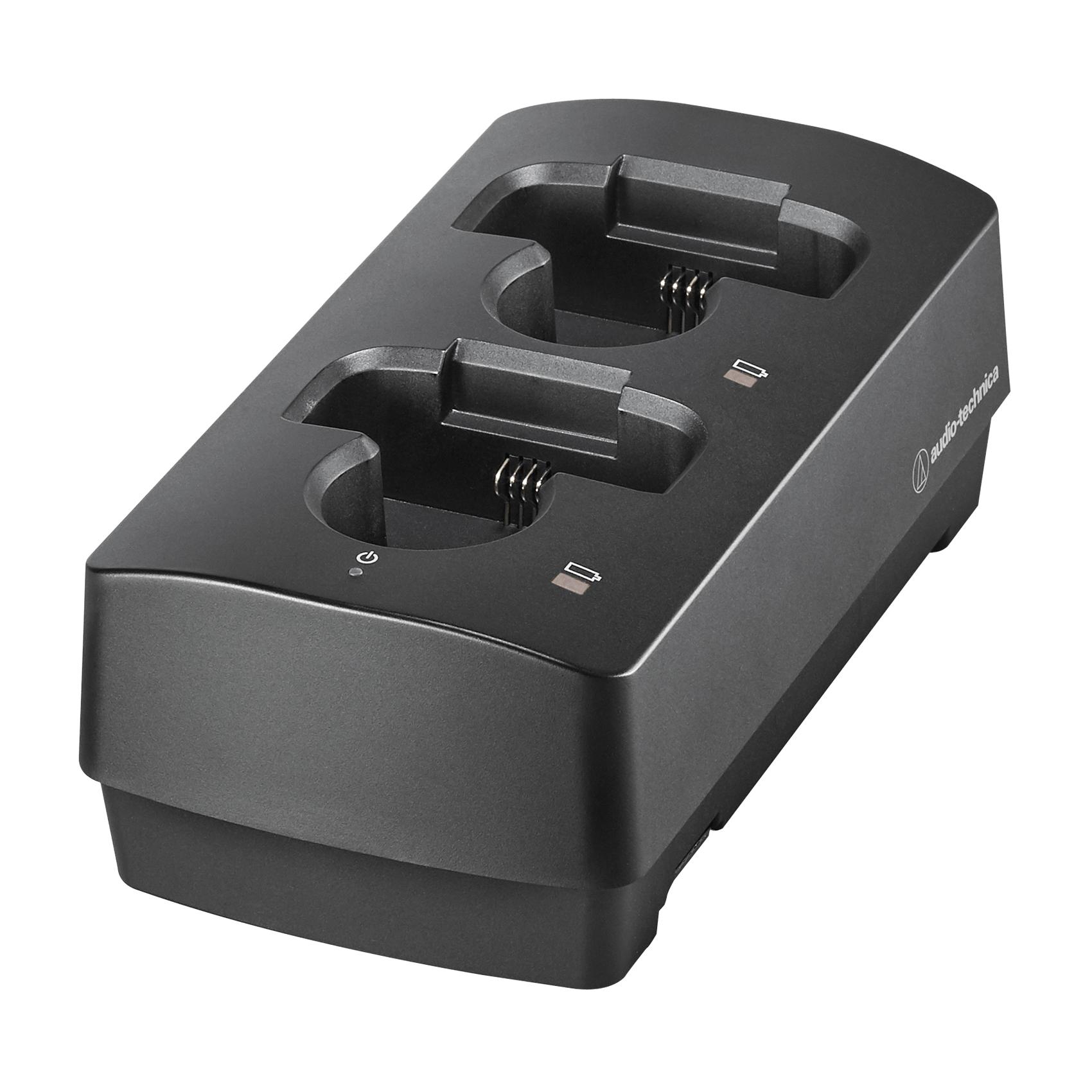

Audio Technica ATW-CHG3
