Omega Pro Audio ECO 10
Click to expand

Omega Pro Audio ECO 10

Omega Pro Audio Eco 10 Loudspeaker | Recycled Polymer Construction | Weatherproof | Stainless Steel Grill | Glanded Backplate | Durable & Scratch Resistant Black Warnex Coating.

The Omega Pro Audio ECO 10 compact, 10”, two way, full range cabinet loudspeaker is rated 300 watts at 8 Ohms. Low impedance only.*

This mid-high cabinet speaker is fitted with a 10” low frequency driver and 1” exit horn loaded compression driver and glanded backplate.

Mounting options include 4 x mounting points for Powerdrive Bracket & 6 x mounting points for installation brackets (available separately).

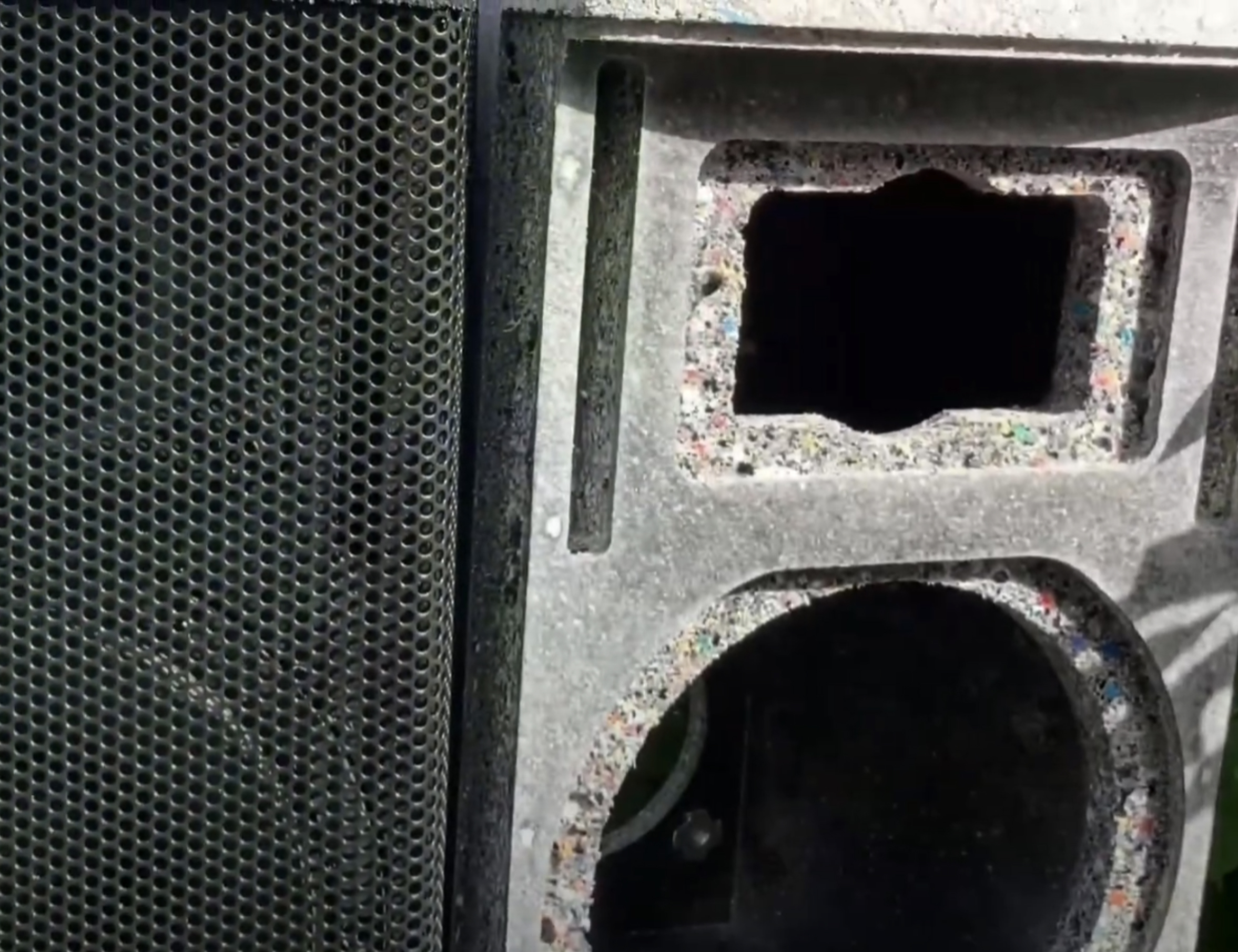

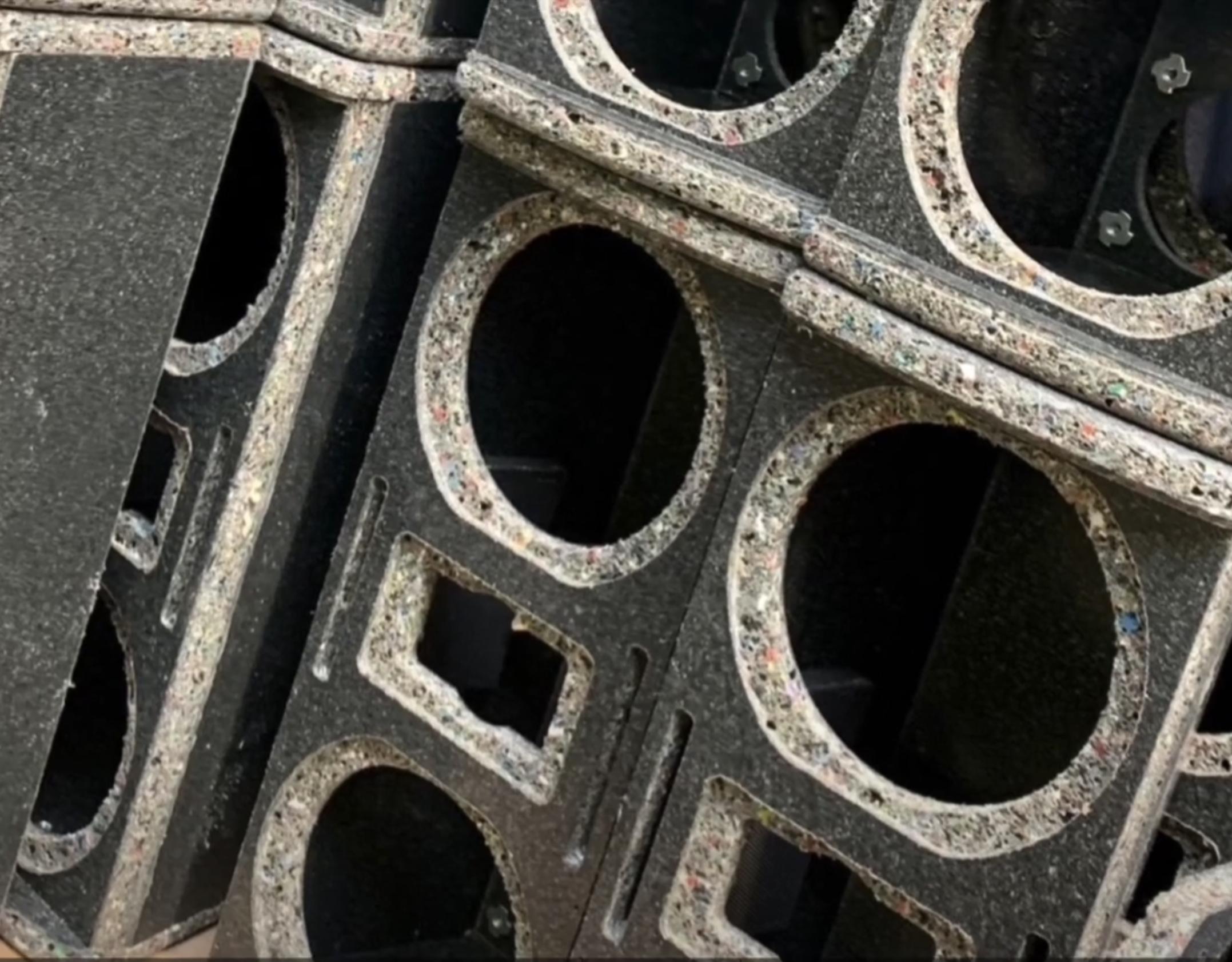

Constructed from an innovative recycled plastic waste polymer board finished with durable scratch resistant black textured paint finish. The ECO10 is waterproof, rot proof, acid and chemical resistant, chew resistant and non-toxic to animals. This innovative new enclosure material for weatherproof loudspeakers is also environmentally-friendly and economical.

The Omega Pro Audio ECO Series are not only ideal outdoor loudspeakers for theme parks, beer gardens and other public spaces, but are equally at home indoors.

  • Rot and weatherproof
  • RAL Colour options
  • No maintenance costs
  • Chew resistant and non-toxic to animals
  • Acid and chemical resistant, resisting most industrial chemicals
  • Rotatable Horn allows for flexible usage
  • Horizontal or vertical mounting options
  • UK made cast aluminium chassis drivers
  • Waterproof design
  • Warranty: 2 Years

*Conversion of this speaker to 100V is possible with the addition of an optional transformer. Please call us for further information and cost.

8ohms z:Green Lo-Z
List Ex VAT: £950.00
Log in for Trade Prices
CONTACT US



SPECIFICATIONS

Design

10” Full Range Cabinet, Reflex Tuning

Components

1 x 10” Low Frequency Driver,

1 x 1” Horn Loaded Compression Driver

Impedance

8 Ohm

Power Handling (AES)

300 Watts (continuous)

Max. Power Handling (AES)

600 Watts (program)

1200 Watts (peak 10 ms)

Usable Frequency Range (-10dB)

72 Hz – 22 kHz

Dispersion

90° x 60° Rotational

Sensitivity 2.83V / 1m

97 dB

Max. SPL

121.8 dB (continuous)

127.8 dB (peak)

Frequency Range (±3 dB)

86 Hz – 21 kHz

Rigging

4 x mounting for Powerdrive Bracket. 6 x mounting points for installation brackets (available separately).

Connectors

Glanded backplate,
internal Wago quick connects

Dimensions (H x W x D mm)

508 x 320 x 276.5

Weight (kg)

20.8

Optional

Horizontal cradle base, Install-10 cradle, PTL large rear wall bracket, pan and tilt, LWB-PT large wall bracket, pan and tilt with 35mm spigot, TP-1P threaded mounting plate.
