Cameo EVOS W7
Click to expand

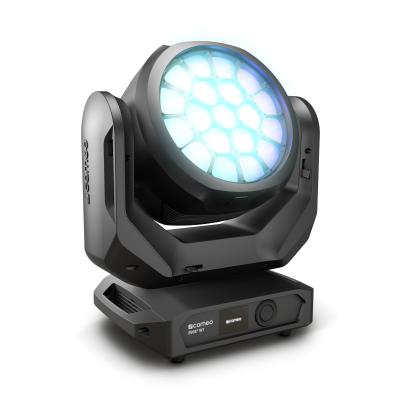

Cameo EVOS W7

19 x 40W RGBWW LEDs | Full colour + warm white | Single pixel control | Beam shaper | CRI > Ra 90 | Zoom | Pan & tilt | Adjustable refresh rate | DMX, RDM Art-Net3, sACN or KlingNet control

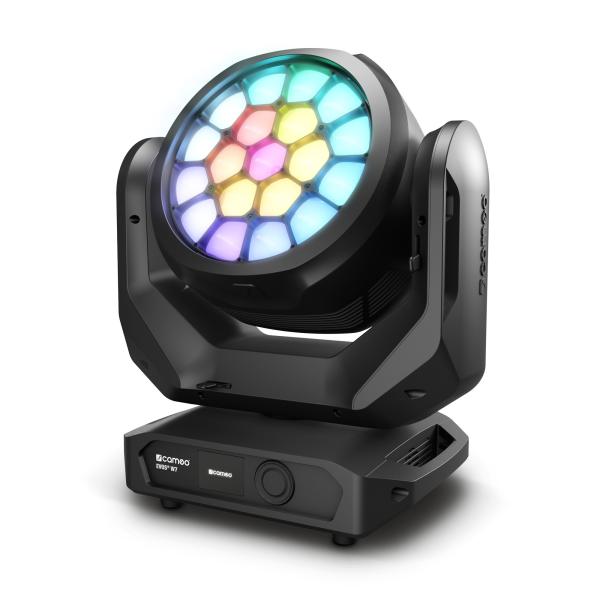

The Cameo EVOS W7 Wash-Beam Moving Head light fixture produces a particularly natural-looking LED light for effects and lighting. The warm white LED allows you to blend attractive warm pastel shades as well as warm white light for lighting people/objects/etc.

Single Pixel Control and Beam Shaper for asymmetrical beams is perfect for rental companies with demanding professional customers. A total of 19 x 40W RGBW LEDs produce rich RGB colours for breath-taking lighting effects with a particularly high colour reproduction index.

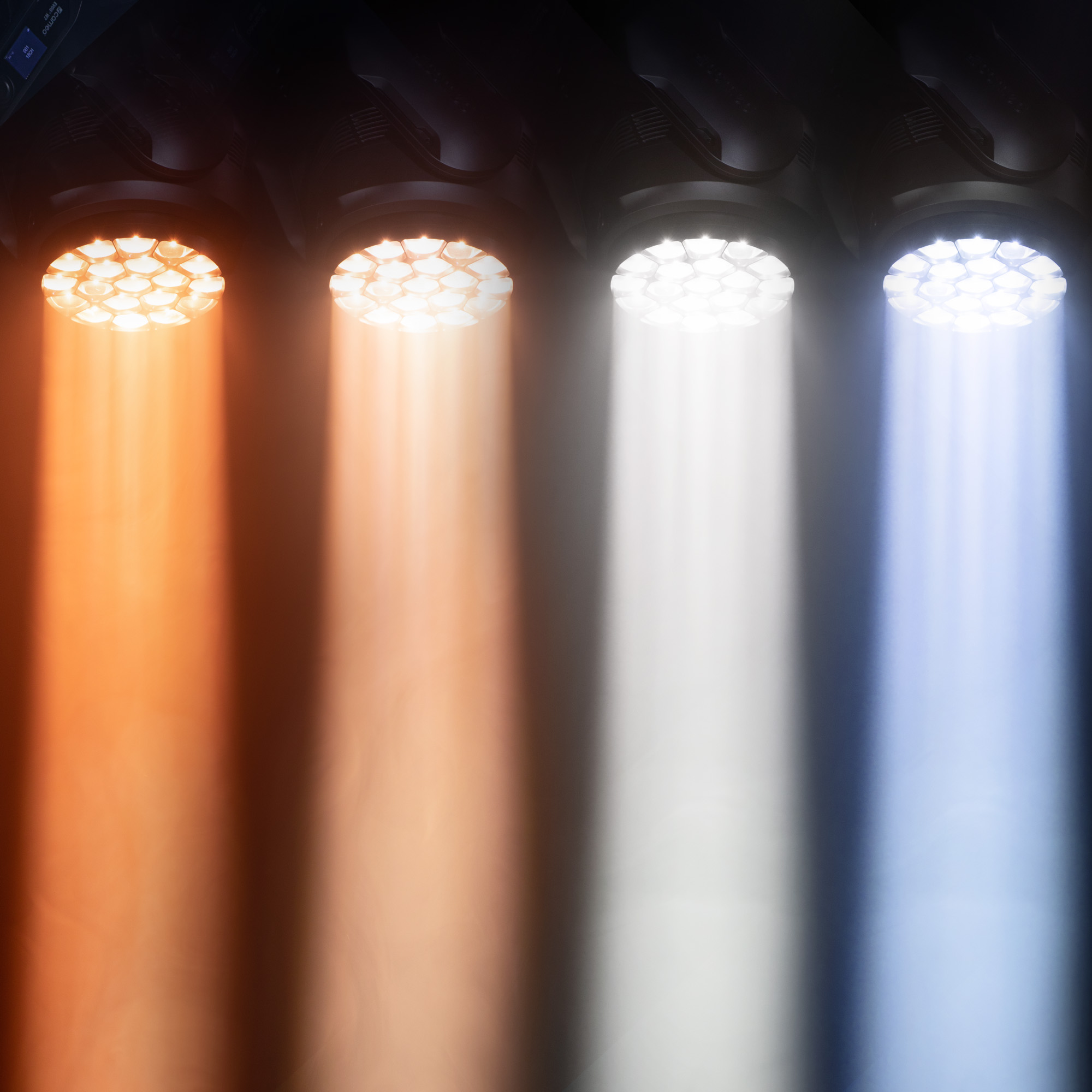

The unique combination of a full-colour LED with a WW chip generates extremely clearly defined white tones with a CRI above Ra 90.

Single Pixel Control provides individual control of all LEDs breath-taking pixel effects.

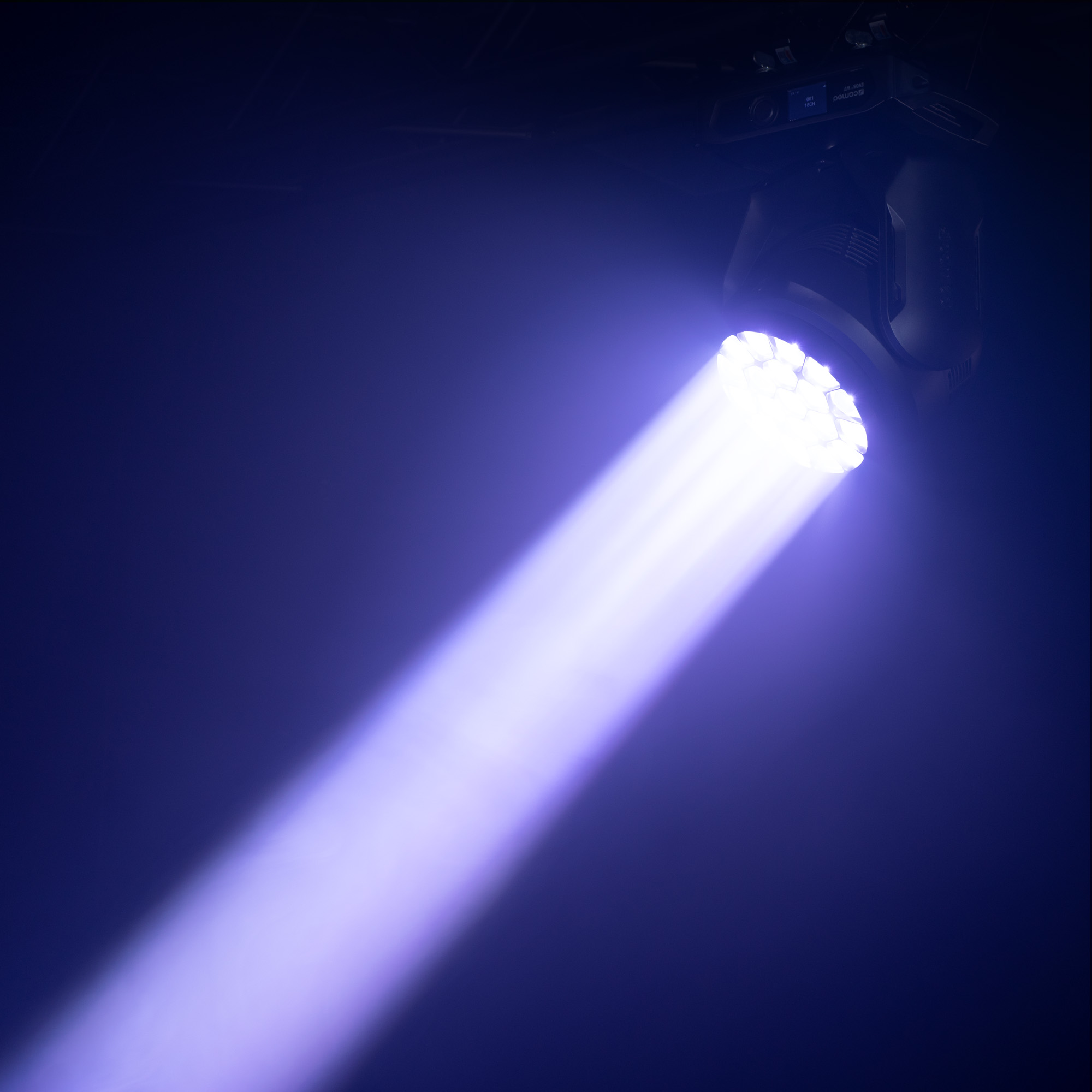

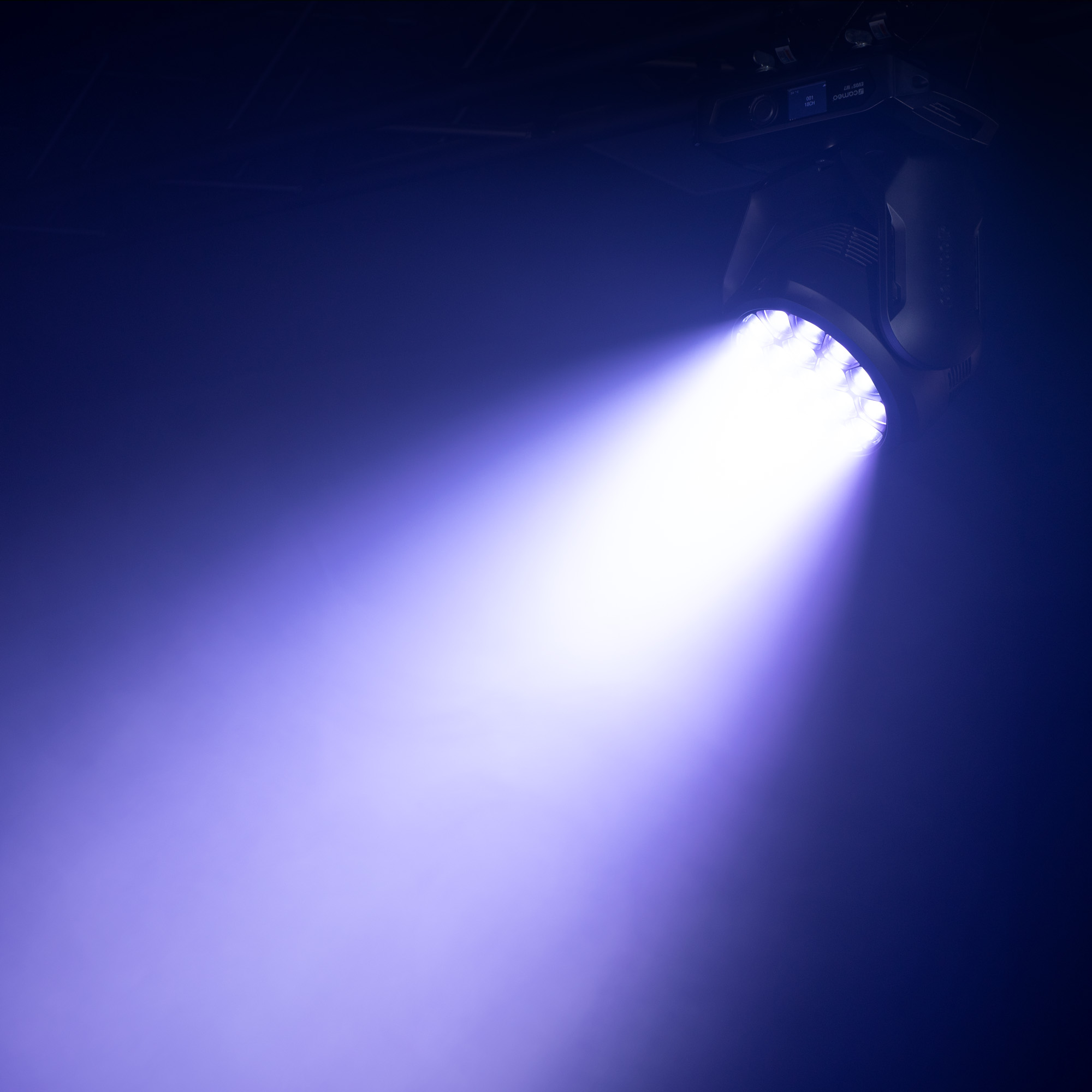

This versatile full colour + warm white wash beam offers powerful luminous flux of 12,500 lumen flooding any event with warm, bright light in clearly defined colours and delivers generous coverage up to 540° horizontally (pan) and 270° vertically (tilt). Its versatility is further enhanced by an impressive zoom range of 4.5° to 55° for powerful beam and large-area wash effects whilst Beam Shaping enables the directional light beams to be asymmetrically shaped.

For live broadcast camera applications, the refresh rate can be adjusted in six stages between 800 Hz and a maximum of 25 kHz for flicker-free images.

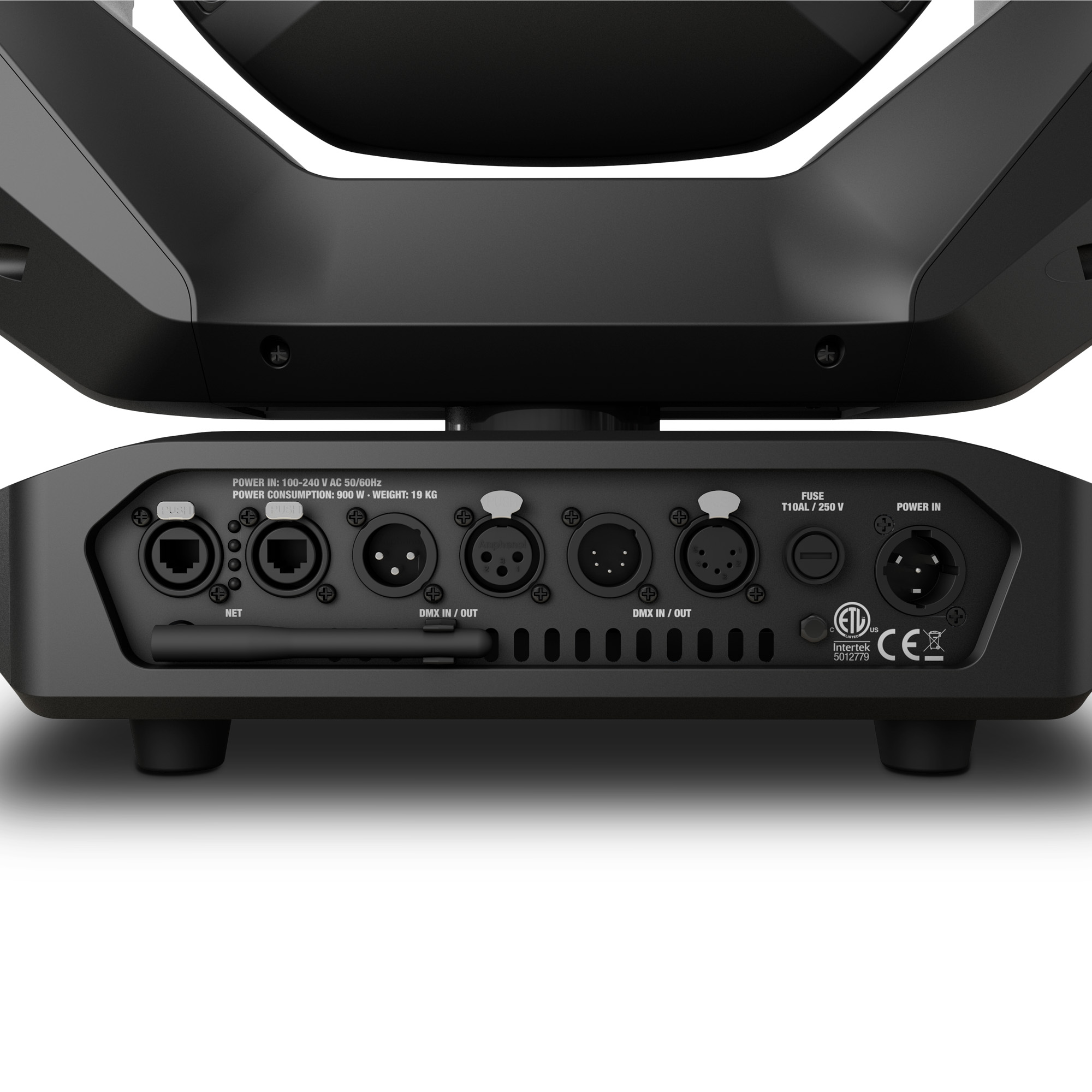

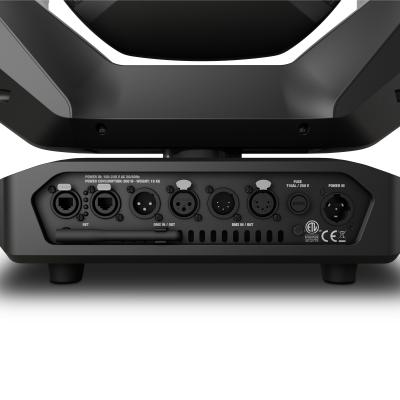

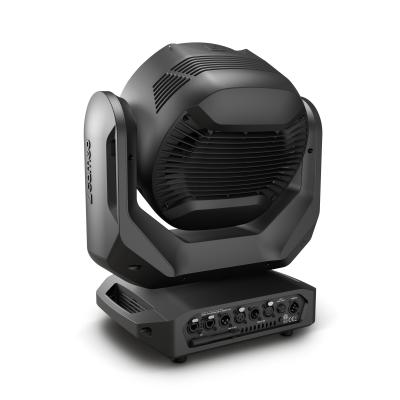

Software control via a network is highly flexible with DMX, RDM Art-Net3, sACN or KlingNet. Further effect devices in the network are looped through via 3 or 5-pin XLR sockets and the DMX mode is available in 16, 18, 23, 33, 43 and 97 channel versions to transmit the extremely extensive range of DMX functions: pan/tilt, pan/tilt fine, dimmer, dimmer fine, stroboscope 0-20 Hz, zoom, zoom fine, single pixel control, pattern, effect pattern, colour presets (LEE filter) and motion macros. Independent operation and mains-independent configuration in Auto Program and Static Mode are carried out via the intuitive encoder with battery-powered graphic display. Preset colour filters allow problem-free use in combination with conventional headlamps.

The black housing is made of environmentally friendly, fire-retardant ABS, nylon and PC plastic with temperature-controlled fans, a mains power connection with a Neutrik TrueOne plug and an integrated 1 m mains cable.

  • Wash-Beam Moving Head with 12,500 lm luminous flux
  • Light intensity of 96,000 lx @ 1 m
  • 19 full-colour 40 W RGBW LEDs
  • Precise colour reproduction with CRI > Ra 90
  • Individual control of all LEDs (Single Pixel Control)
  • Zoom range of 4.5° to 34° (beam) / 7° to 55° (field)
  • Adjustable refresh rate of between 800 Hz and 25 kHz
  • Control via DMX, RDM Art-Net3, sACN or KlingNet

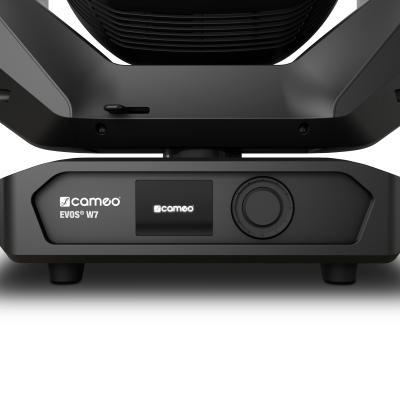

  • Intuitive rotary encoder for easy configuration
  • Includes Beam Shaper for asymmetrical beams
  • Warranty: 2 Years
z:Artnet z:DMX z:ETL z:FlickerFree z:PanTilt z:RDM z:sACN z:Standalone z:WDMX z:Zoom z:LED z:w/l mstr/slv z:strobe z:klingnet z:SnglPxl
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Type

Moving Head

Colour spectrum

RGBWW

Number / Type of LEDs

19 x 40 W RGBWW

Average LED lifetime

> 20000 hours

Refresh rate

800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz - adjustable Hz

Dispersion

Field Angle: 7 ° - 55 °, Beam Angle: 4.5 ° - 34 °

DMX input

XLR 5-pin male, Network, XLR 3-pin male

DMX output

XLR 3-pin female, XLR 5-pin female, Network

DMX mode

33-channel, 87-channel, 18-channel, 16-channel, 43-channel, 23-channel

DMX Functions

Patterns, Dimmer, Pan/Tilt, Zoom Fine, Effect patterns, Pan/Tilt fine, Dimmer Fine, Zoom, Single Pixel Control, Motion Macro, Device Settings, Strobe, Colour presets

PAN movement

540 °

TILT movement

270 °

Control

Art-Net3, sACN, RDM enabled, KlingNet, DMX512

Standalone modes

Static, Auto programs

Controls

Encoder wheel

Indicators

Battery supply for mains-independent system settings (automatically rechargeable battery), Backlit colour LCD display

Operating voltage

100 V AC - 240 V AC, 50 - 60 Hz

Power consumption

900 W

Fuse

T10AL 250 V

Power supply connector

Neutrik TrueOne Input

Housing material

Environment-friendly fire-retardant ABS, nylon and polycarbonate

Cabinet colour

Black

Luminous flux

12500 lm

Dimensions W x H x D

421mm x 257mm x 482.5mm

Weight

23 kg

Related Products

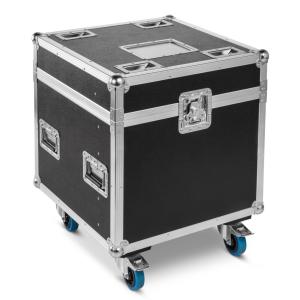

Cameo EVOS W7 DUAL CASE
