SigTEL EVC302RPO
Click to expand

SigTEL EVC302RPO

The SigTEL EVC302RPO red fire telephone outstation enables two way communication between fire marshals and building control room during a fire emergency.

The telephone can also communicate directly with other key locations on a site.

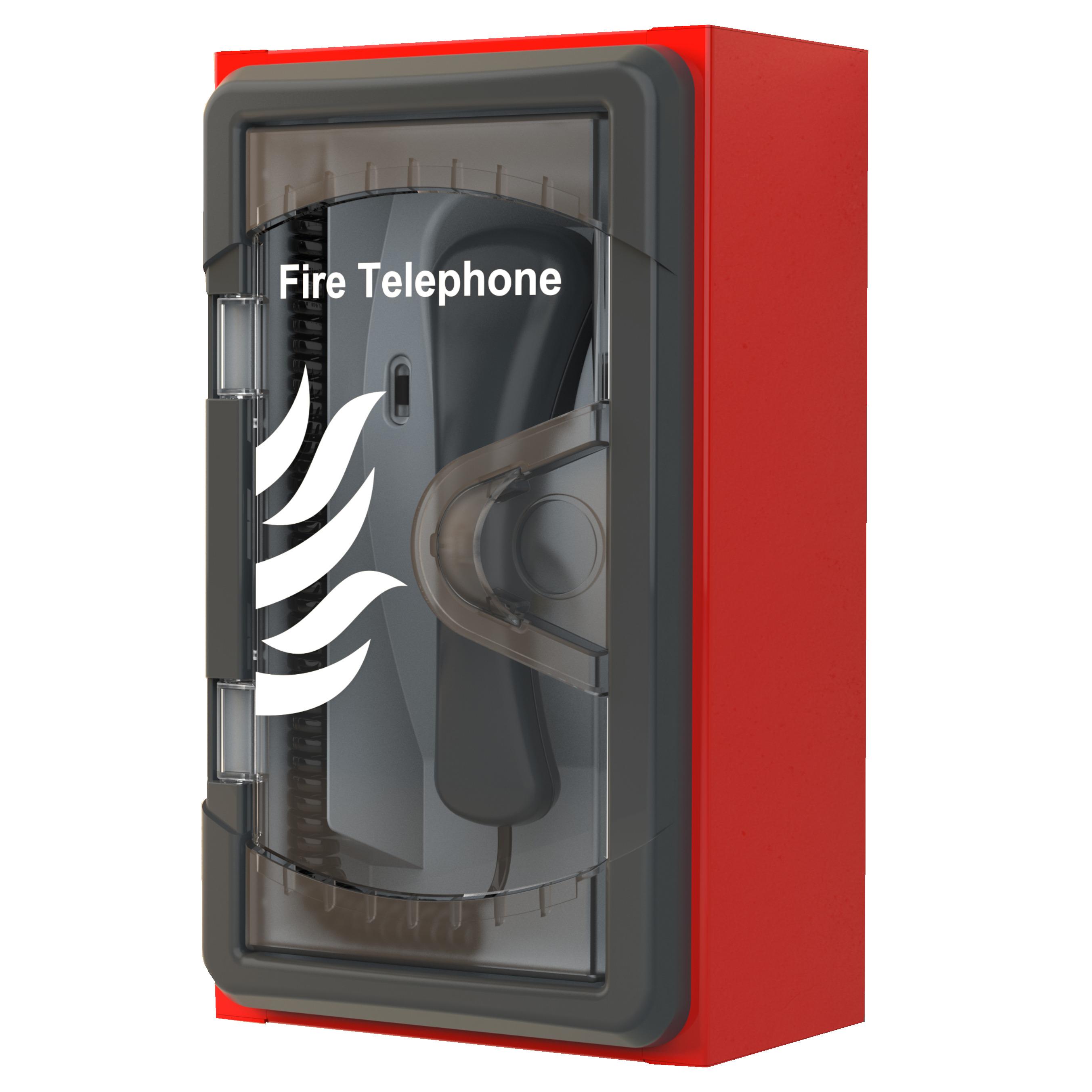

The new look design incorporates a telephone style handset within an instantly recognisable red steel box with simple ‘push to open’ door.

  • A new-look Type A fire telephone outstation c/w telephone-style handset.
  • Supplied in a durable red steel enclosure with a ‘push-to-open’ plastic lid.
  • Ideal for use in fire telephone and stadium marshalling applications.
  • Allows stewards and fire marshals to communicate with a SigTEL
  • Master Controller (and vice versa).
  • Facilitates reliable two-way communication in a fire emergency between a permanently manned control room and key points of a site.
  • True duplex speech.
  • Can be surface mounted using a T-BEZ302 bezel.
  • Meets and exceeds the requirements of BS 5839-9 when correctly installed.
List Ex VAT: £222.08
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Approvals/certifications

Facilitates compliance with BS5839-9 when correctly installed.

Supply/operating voltage

10.7 V DC (drops to 5 V DC when in use)

Quiescent current

1mA.

Activation current

25mA (current draw when handset is in use).

Indicators

When the operator in the control room calls the outstation, a pulsed ringing tone sounds at the outstation.

Controls

'Push to Open' catch. Telephone-style handset (lift to answer or make a call).

Product dimensions (mm)

175 W x 297 H x 102 D mm., Optional T-BEZ302 bezel frame measures 217 W x 339 H mm.

Construction & finish

Mild steel red back box (RAL 3000) and plastic door.

IP Rating

IP21.

Weight

2.2 kg.

Operating conditions/temperature

-5ºC to +40ºC. Max relative humidity: 95%.

Notes

Microphone frequency response 250 Hz to 5 kHz ±3 dB; Loudspeaker frequency response 250 Hz to 4 kHz ±3 dB.
