Listen Technologies Auri-TX2N
Click to expand

Listen Technologies Auri-TX2N

The Listen Technologies Auri TX2N is a 2-channel transmitter for the ‘AURI’ assistive listening system which uses Auracast Broadcast Audio, the new standard for Bluetooth® Low Energy Audio (BLE).

It can broadcast low-latency audio simultaneously to an unlimited number of compatible devices such as receivers, cochlear implants, hearing aids, earbuds, and smartphones. As next-generation hearing aids, hearables, and consumer devices featuring Bluetooth® Low Energy audio technology come to market and more venues offer Auracast™ broadcast audio streams, high-quality broadcast audio will be available for anyone in public spaces.

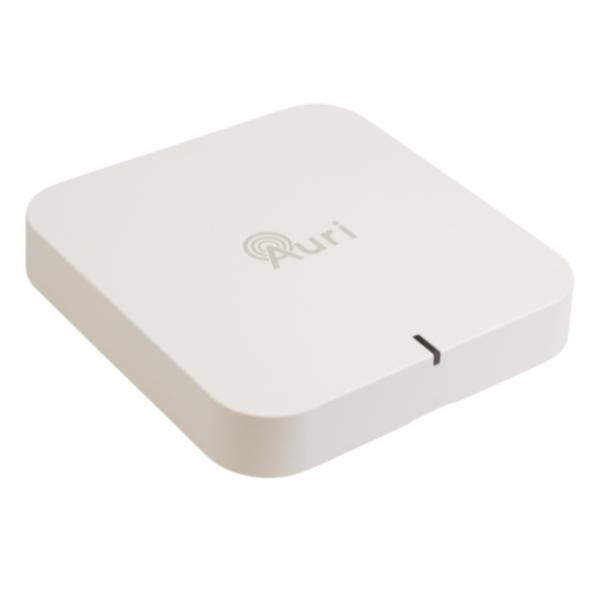

The TX2N transmitter is designed for professional installations and has a discreet, low-profile housing measuring approximately 7" square.

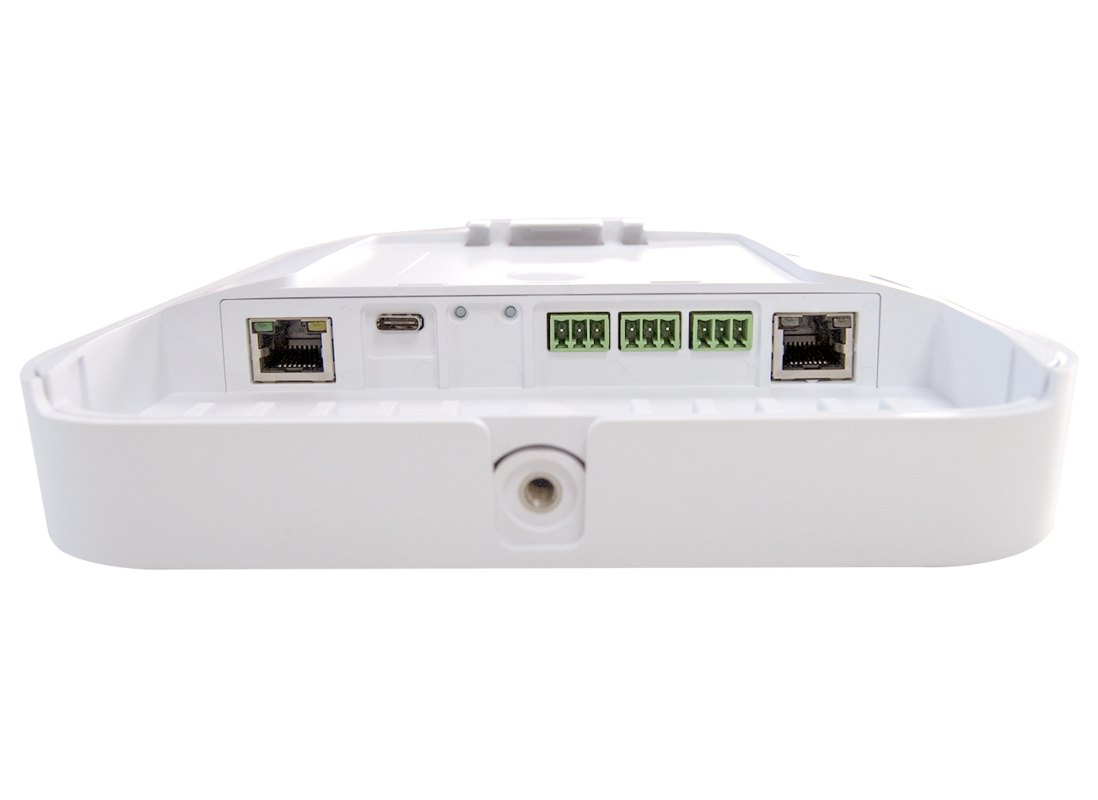

It features a discreet logo, multicolour status indicator, and side-mounted balanced analogue mic/line inputs, supporting mono, stereo, or dual mono configurations.

A single ethernet connection manages PoE, network/PC control, and Audio over IP. Auri Manager Software simplifies the configuration and management of Auri™ transmitters, docking stations, and receivers across your network. With automatic device discovery, it supports everything from single-device setup to large system programming.

It also includes a balanced line output and USB-C for optional power.

A versatile ceiling/wall mounting bracket is included for easy installation.

The AURI TX2N transmitter includes a line output for simple integration alongside an existing assistive listening system such as an induction loop or infrared hearing system. Providing more than one technology ensures the greatest accessibility.

An AURI assistive hearing system is ideal for many public spaces such as Classrooms, Lecture Theatres, Boardrooms, Houses of Worship, Performing Arts Centres and more.

  • 2 radios with flexible routing options.
  • Range when using the Auri RX1 receiver: 100m (328ft).
  • Expandable with repeater mode.
  • Network management.
  • 2 balanced mic/line inputs with phantom power.
  • Also available with integrated Dante®. (See AURI-TX2N-D.)
  • Powered by USB-C or PoE.
  • Warranty: 5 Years.
List Ex VAT: £1,586.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Audio Input

2x audio inputs individually selectable between mic, line or optional Dante modes

Mic/Line Inputs

2x 3-way 3.5mm pitch Euroblock

Microphone Mode

Max level before clipping: -25 dBu, Sensitivity: -65 dBu, Switchable phantom power: +24 V

Line Mode

Max level before clipping: +16 dBu, Sensitivity: -25 dBu

Line Output

1x 3-way 2.5mm pitch Euroblock

Bluetooth version

5.3

Operating mode

Auracast™ Compliant, Broadcast Only

Supported formats

Mono or Stereo

Network Connection

Shared RJ45 with control and PoE, Channels: 2x stereo inputs + 2x stereo outputs

Buttons

Recessed restart and factory reset buttons

Setup/Programming

Via Auri Manager Software

Status LED

RGB multi-function LED

Power

PoE: IEEE 802.3af, USB-C: 5V PD Compliant

Dimensions

183 x 173 x 48 mm (7.20 x 6.81 x 1.89 in.)

Weight

TX2N – 0.45 kg (0.99 lbs.), TX2N-D – 0.47 kg (1.04 lbs.)
