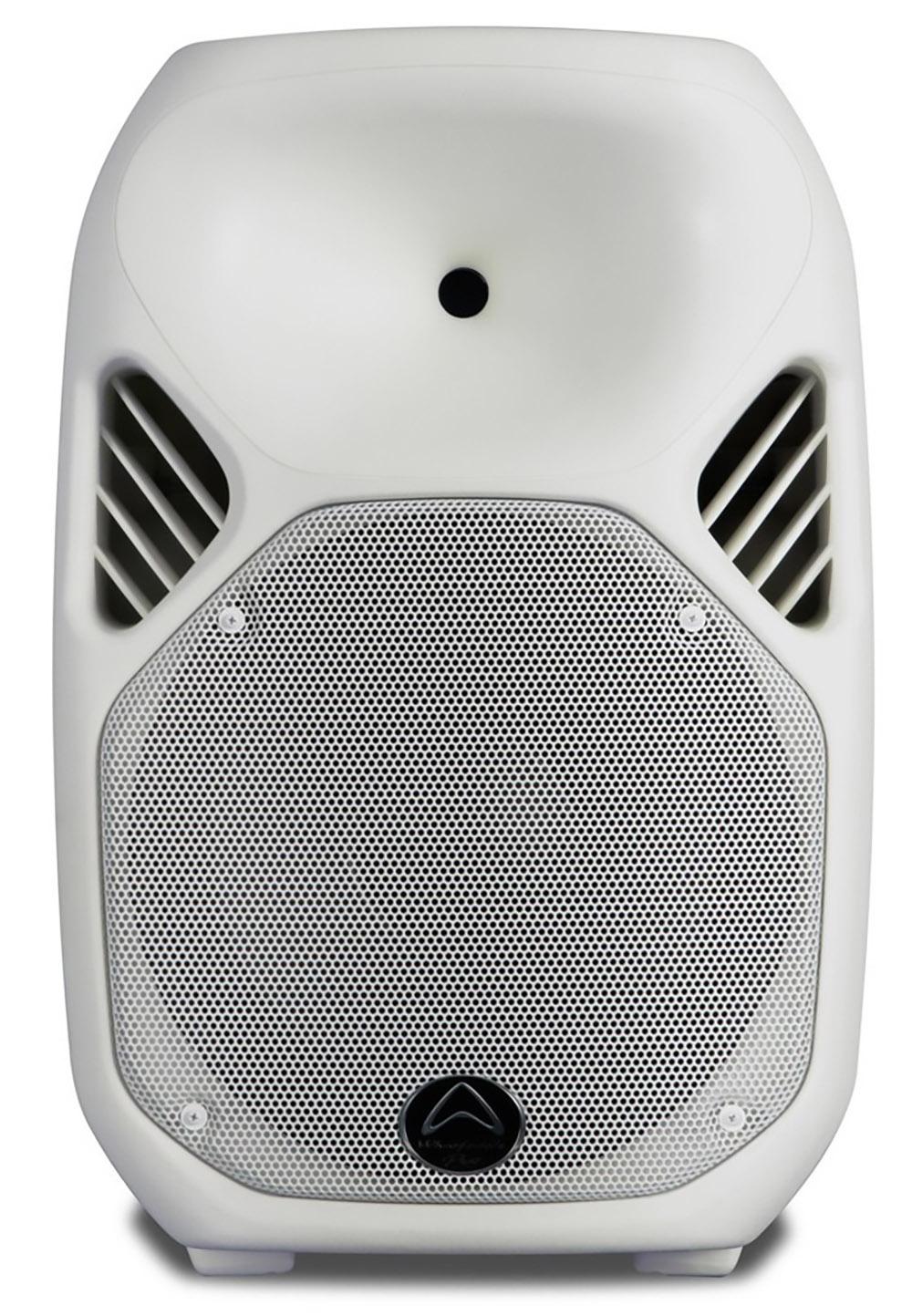

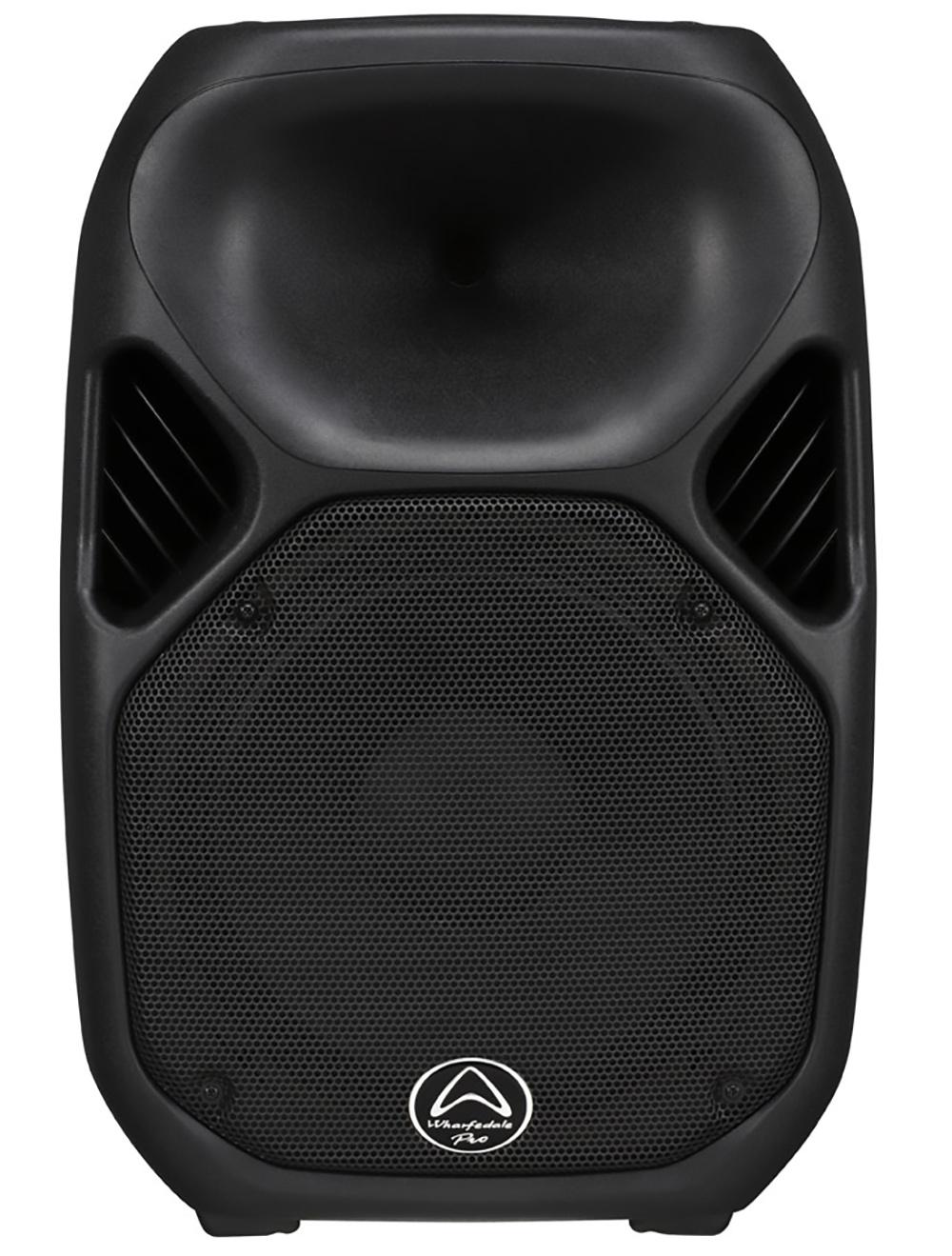

The Wharfedale TITAN AX12 active loudspeaker is a 2 way powered bi-amplified loudspeaker with 6 position DSP engine and new design LF & HF drivers.

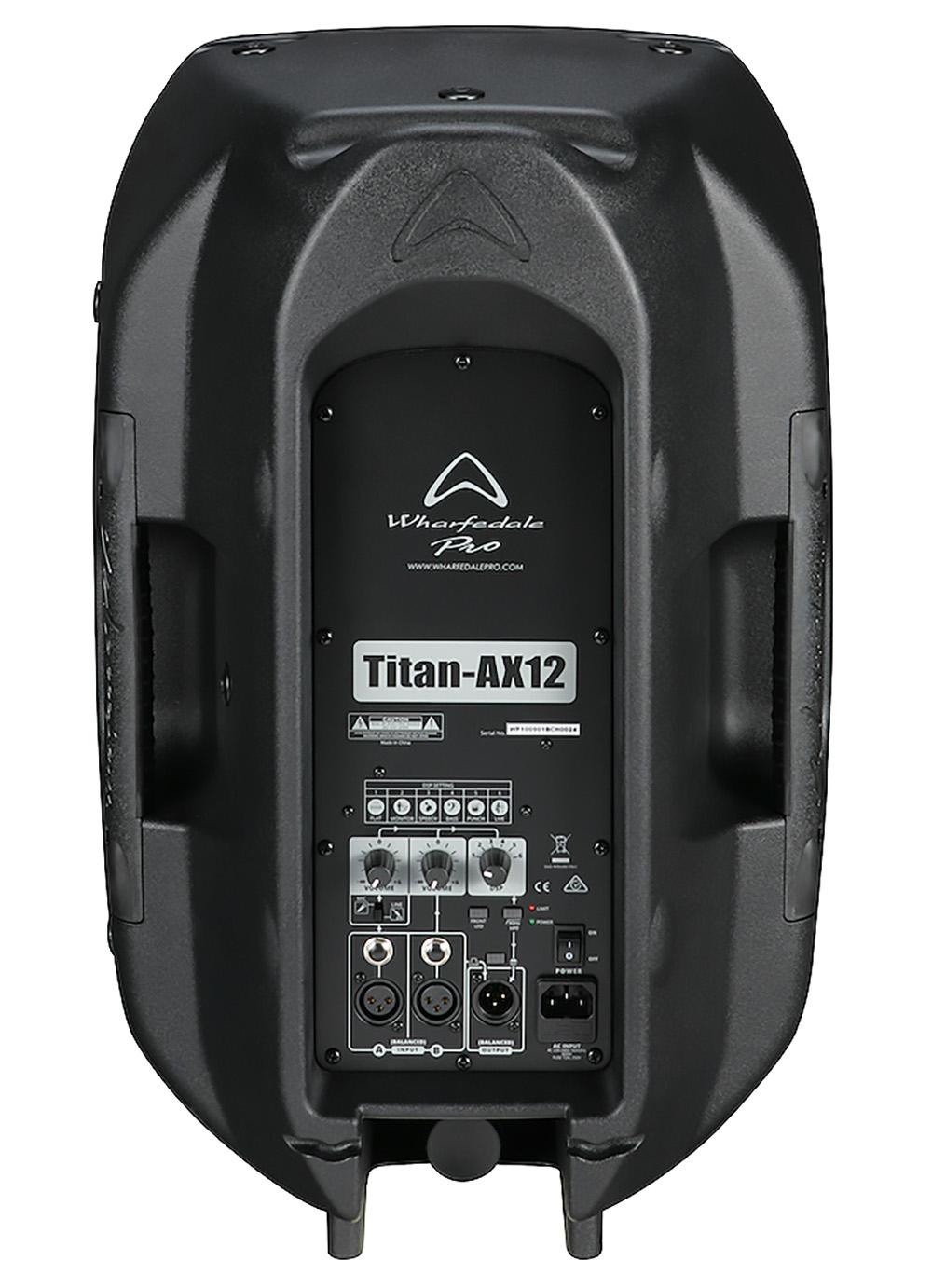

This Class D amplifers in this compact active loudspeaker offer a total power output of 300 watts RMS and has a built in 2 channel mixer and offers a balanced XLR output for connection to additional mixers, monitors or speakers. The onboard DSP engine provides functions such as limiting, compression, signal delay, dynamic boost, dynamic cut, crossover control and parametric EQ. Micro adjustments within each parameter ensure sonic clarity over the full frequency range.

The rugged laminar rib cabinet structure is fitted with a new 12" LF driver and 100° x 80° Hybrid Symmetry Horn.

A pole mount socket is provided for easy pole mounting and M6/M8 threaded rigging points are provided for a variety of safe flying configurations with four of these inserts available, bottom-mounted, in an OmniMount® bracket footprint. Cord wrap and cable anchor features are also moulded into the enclosure.

Features

• 300 watts programme / 600 watts peak
• New HF Drivers have been honed acoustically for high-frequency detail and power
• New  2.5" voice coil LF Drivers reject moisture for resistance in all environments
• New Proprietary 100° x 80° Hybrid Symmetry Horn design
• New category leading DSP functions
• 128dB Max SPL

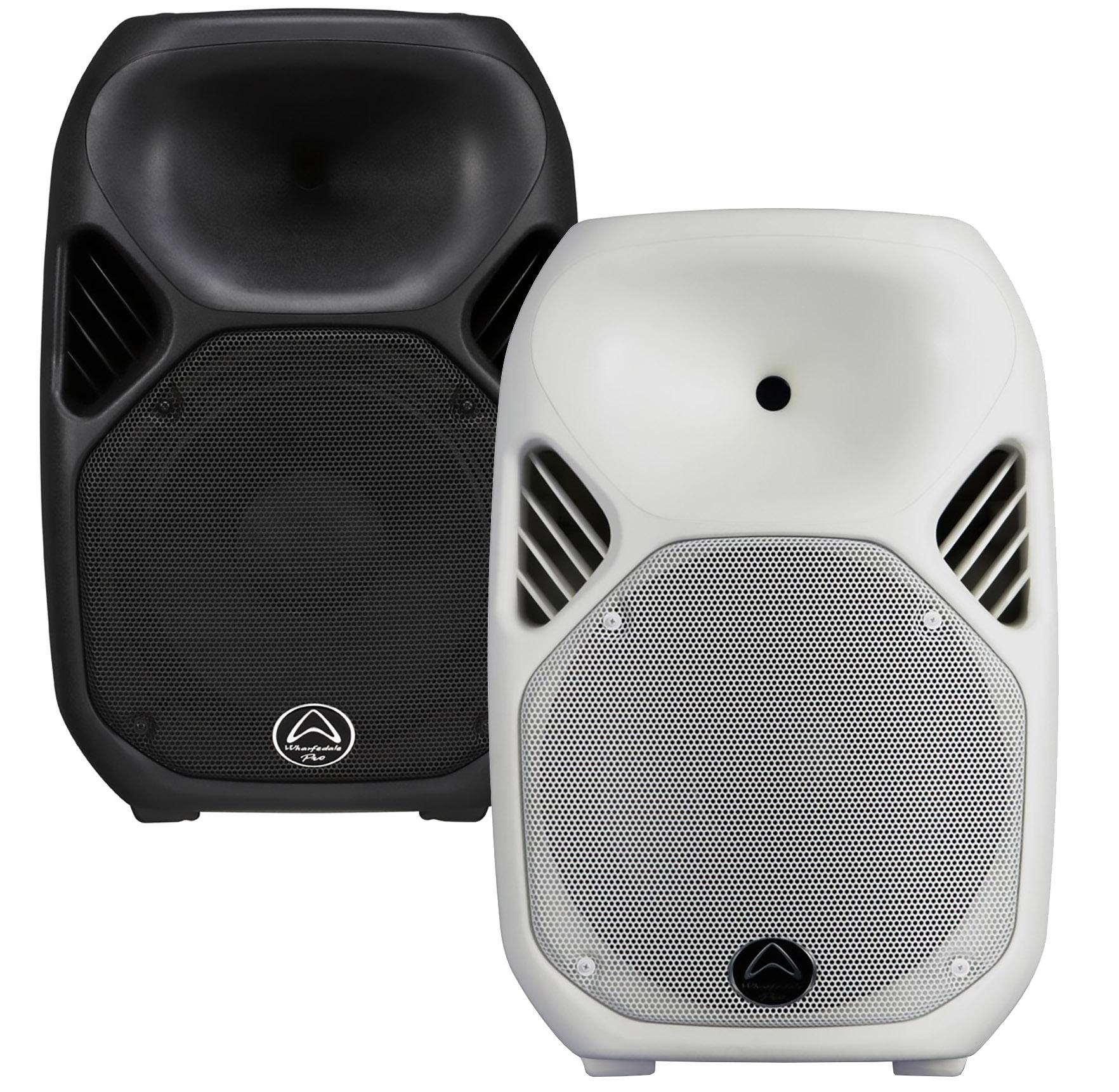

• Available in black or white
• New tweaked laminar rib structure
• Integral mixer functions
• Class D Bi-amplified
• Tough, yet lightweight Dynamic Polypropylene cabinet with rubber padded handles
• 10 x M8 rigging points and integral tripod stand adapter
• Rugged protective grille and top-stacking receptacles
• Trapezoid design for arrays as well as stage monitor applications
• Titan Tourbags available
• IP54 certified
