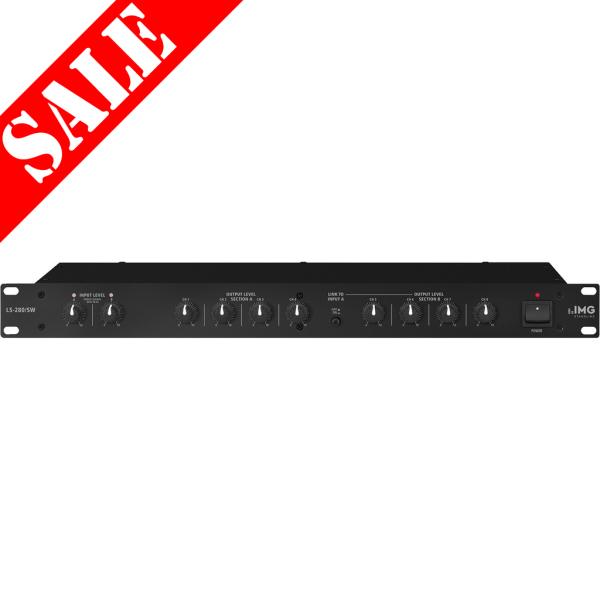

IMG Stageline LS-280/SW

The IMG Stageline LS-280/SW line splitter enables 2 line input signals to be routed to 4 outputs each or 1 line input signal to 8 outputs.

Clearance line - last one.

Each output has an individual level control.

The LS280/SW line splitter is designed to be mounted into a 1U space in a 19” equipment rack, but it can also be used on a table top.

  • 8-way line splitter
  • 2 separate inputs
  • Selectable operating modes:
    Either input A to 4 outputs & input B to 4 outputs
    Or input A to 8 outputs

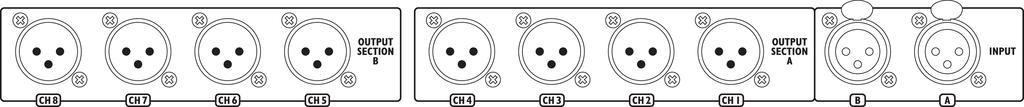

  • XLR connection and gain control for each input and output
  • Dual LED for indicating signal and peak for the inputs
List Ex VAT: £25.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency range

20-20,000 Hz

Input signal

100 mV

Input impedance

15 kΩ

Output signal

1 V

Output impedance

100 Ω

S/N ratio

70 dB, unweighted

THD

< 0.03%

Admiss. ambient temp.

0-40 °C

Power supply

˜ 230 V/50 Hz/10 VA

Dimensions

482 x 48 x 205 mm, 1 RU

Inputs

2 x XLR

Outputs

8 x XLR

EAN code

4007754182699

Net weight

2.34 kg

DOWNLOADS

IMG Stageline LS-280/SW Datasheet
IMG Stageline LS-280/SW User Manual
