Mipro MPB-30

Mipro MPB-30

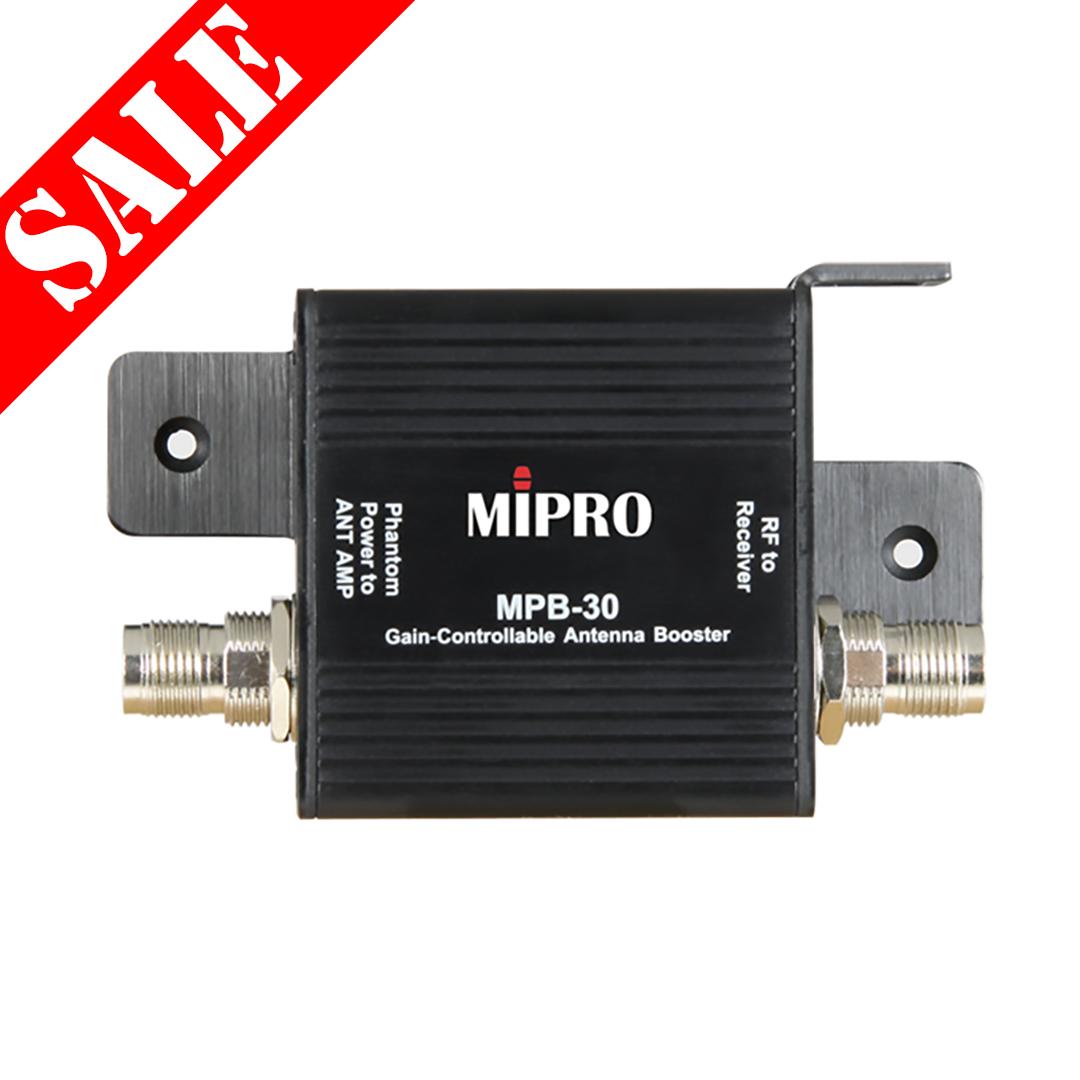

The Mipro MPB-30 UHF gain-controllable antenna booster is optimized in the 470 – 960 MHz frequency band to amplify the antenna signal.

Clearance line - limited stock.

It is designed for pairing with the AD-708 antenna divider to detect the cable loss and automatically adjust the gain of the booster output between 0 – 14 dB to compensate precisely for the cable loss to obtain the optimal signal quality.

The antenna booster can be powered by the bias of the receiver’s antenna connector or by an external power supply, allowing longer antenna cables to be connected with more boosters.

With an aluminium casing, it features superb heat dissipation and is waterproof.

UHF
List Ex VAT: £50.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Band

UHF 470 – 960 MHz

Gain

Variable 0 – 14 dB ± 1 dB

Input Connector

1 × TNC

Output Connector

1 × TNC

System Impedance

50 Ω

Input Power

DC 12 – 24 V / 350 mA

Regulated Power Output

DC 8 V / 250 mA

Dimensions

55 × 90 × 25 mm (W × H × D)

Weight

Approx. 110 g

DOWNLOADS

Mipro MPB-30 User Guide
Mipro MPB-30 Datasheet

Related Products

Mipro ACT-71
Mipro ACT-71

Single channel wideband true diversity radio microphone receiver. ACT 7 Series.

UHF, Channel 38 only - licence required.

see more
List Ex VAT: £309.00

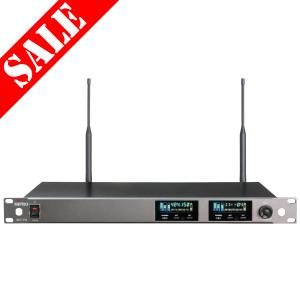

Mipro ACT-72
Mipro ACT-72

Dual channel wideband true diversity wireless microphone receiver. ACT 7 Series.
UHF, Channel 38 only - licence required.
Clearance line - limited stock.

see more
List Ex VAT: £350.00

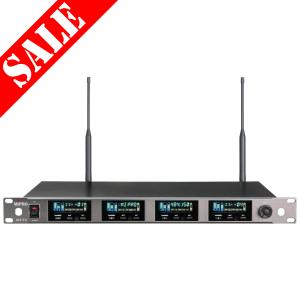

Mipro ACT-74
