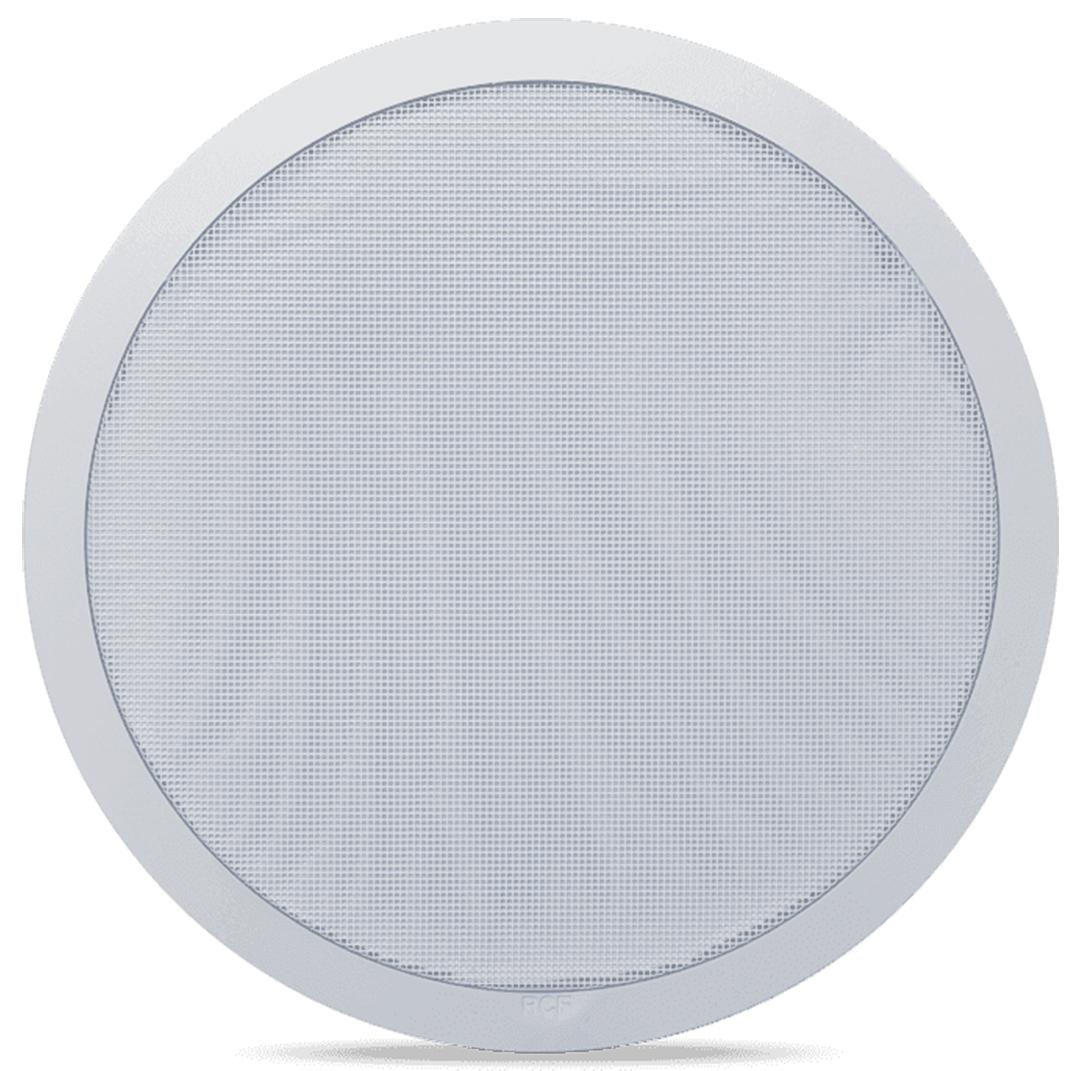

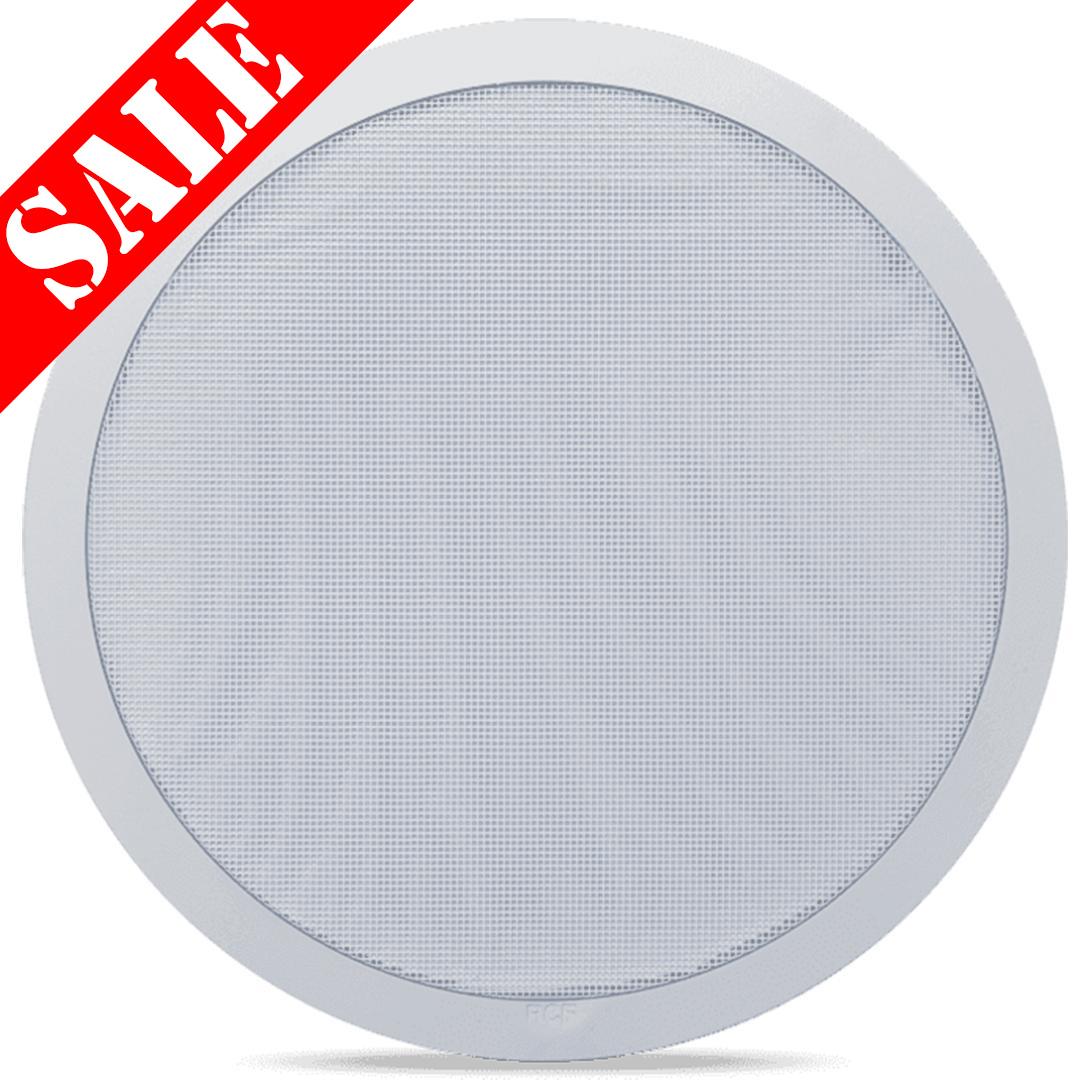

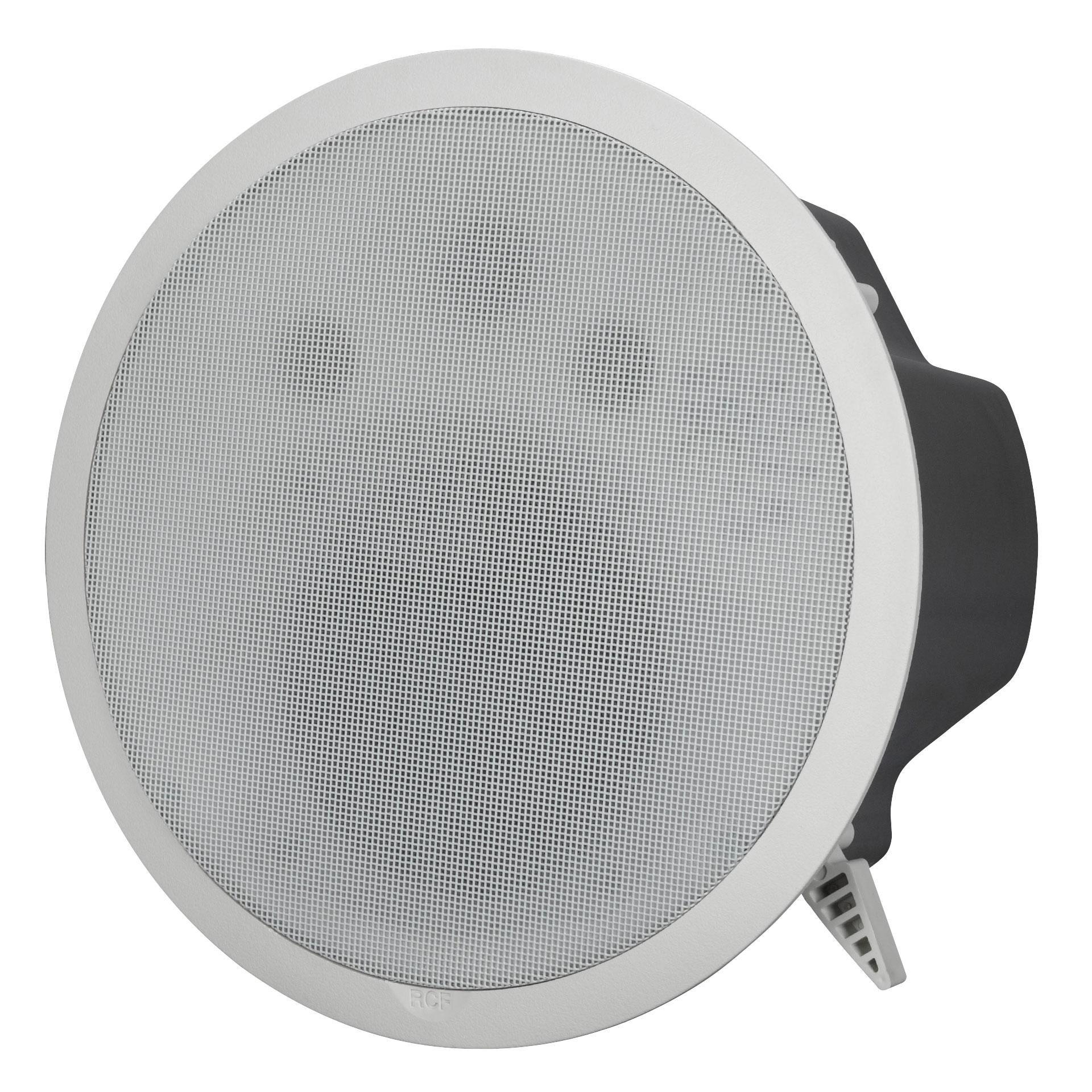

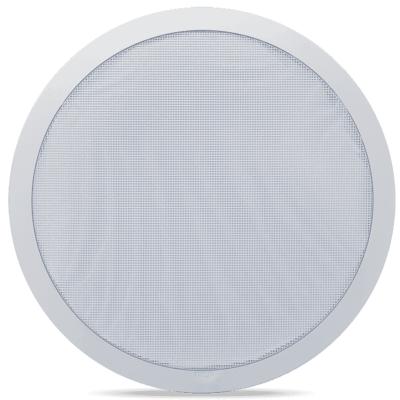

RCF MQ 50CW Grade B

The RCF MQ 50CW is a compact design, light weight 2-way ceiling loudspeaker ideal for use in PA systems and background / foreground music systems.

Clearance line - Two only. Ex demo. These were in our meeting room for a while & barely 'used'.
We also have a limited number of brand new white MQ 50CW available at a reduced price in our warehouse clearance sale.

The woofer is a high excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle.

The MQ50CW is fast and efficient to install using the built in rotating hooks and connections are made on a removeable four pole Euroblock connector. The power value can be selected with a rotary switch, accessible behind the grill.

  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W, 20 W, 10 W, 5 W
  • 91 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Self-extinguishing plastic frame and back can, steel grille
  • In/out euroblock connectors
1a: 100V
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

FREQUENCY RESPONSE (-10DB):

70 Hz ÷ 20000 Hz

FREQUENCY RESPONSE

90 Hz ÷ 18000 Hz

MAX SPL @ 1M:

112 dB

COVERAGE ANGLE:

120°

SYSTEM SENSITIVITY:

91 dB

NOMINAL IMPEDANCE (OHM):

16 ohms

POWER HANDLING:

30 W RMS

PEAK POWER HANDLING:

120 W PEAK

DOME TWEETER:

1”

WOOFER

5”

INPUT CONNECTORS

Euroblock

OUTPUT CONNECTORS

Euroblock

CONSTANT VOLTAGE TRANSFORMER

100 V

POWER SELECTION

30 W - 333 ohm / 20 W - 500 ohm /

10 W - 1000 ohm / 5 W - 2000 ohm

MATERIAL

Plastic cabinet, steel grille

COLOUR

White RAL9016, Black RAL 9005

DIMENSIONS

Diameter: 266 mm / 10.47 inches

Depth: 156 mm / 6.14 inches

WEIGHT

2.1 kg / 4.63 lbs

Related Products

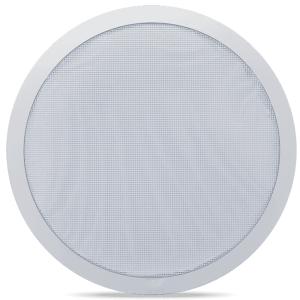

RCF MQ 50CW

Wide dispersion, high power ceiling speaker. Two way, 5". 30 watts, 100 volt line.

see more

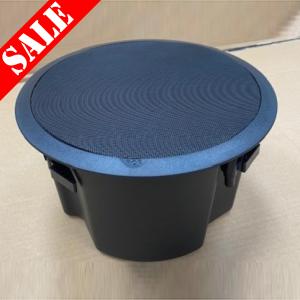

RCF MQ 50CB
