Proel CSB10
Proel CSB10
Click to expand

Proel CSB10

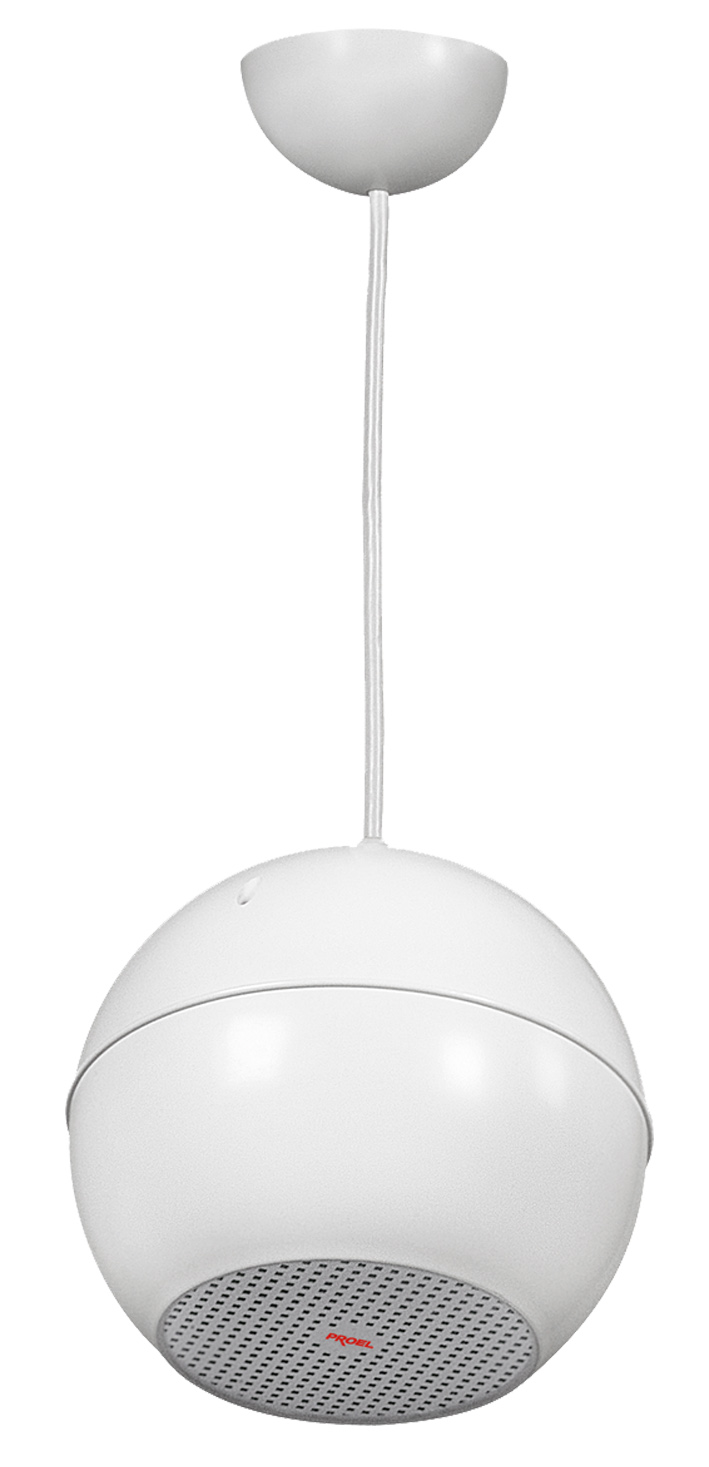

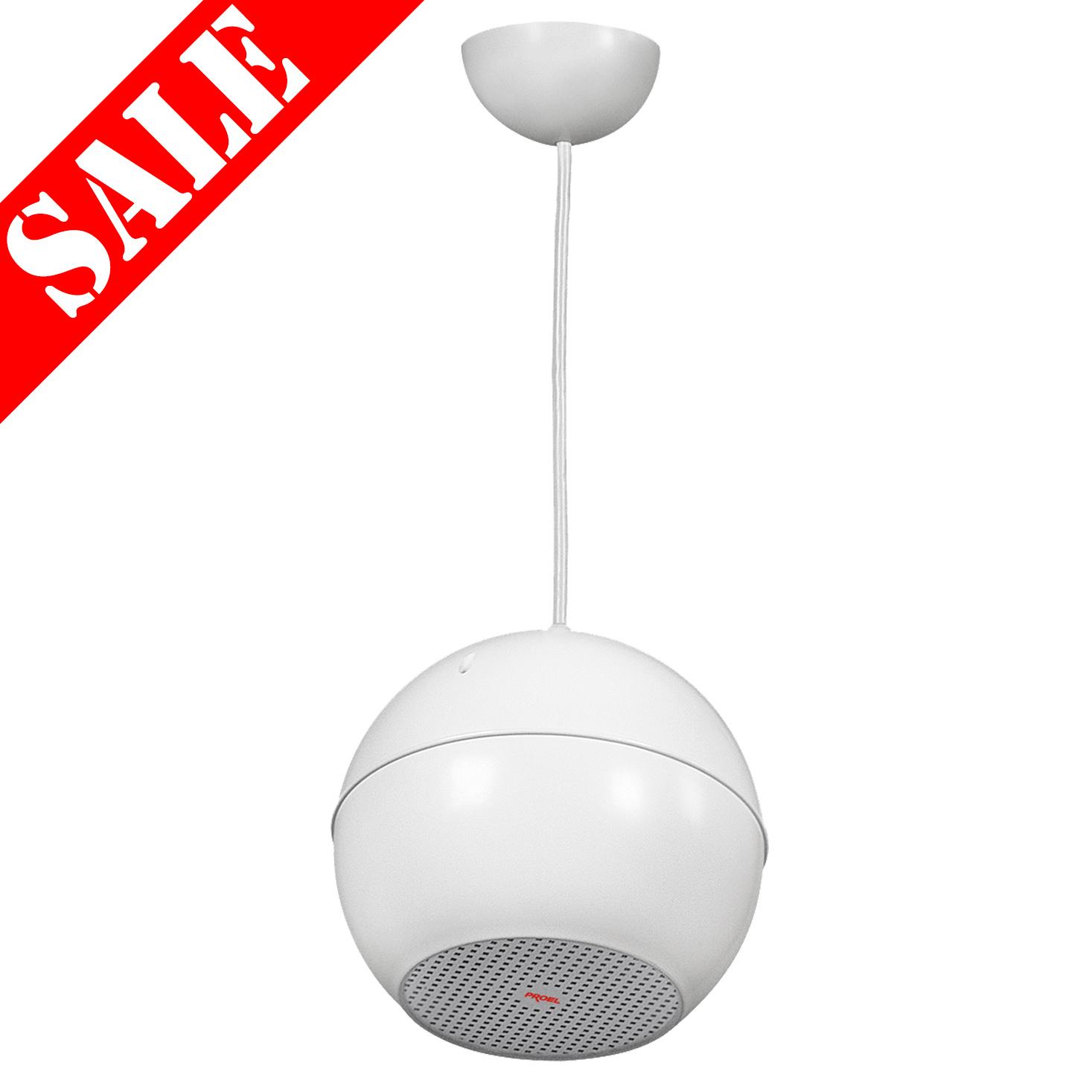

The Proel CSB10 pendant loudspeaker offers wide dispersion and is ideal for suspension from high ceilings for great coverage.

Clearance Line - limited stock. Please contact us for up to date stock availability.

Designed for 100 Volt line commercial audio systems, the CSB10 is rated at 10 Watts RMS with power tappings on the transformer at 2.5, 5 and 10W.

This compact design ball speaker measures 184mm in diameter and is fitted with a 5" driver.

Constructed from white ABS.

Hang from its 4.5 metre long cable.

100V
List Ex VAT: £10.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Speaker/s

5′ full range

RMS power

10/5/2.5W @ 100V

Constant voltage binding

100/70V

Frequency response

110Hz – 15KHz (-10 dB)

SPL (1W/m)

92 dB

SPL MAX (Pmax @ 1m)

102 dB

Cov. Angle 1KHz/4KHz (-6dB)

160º / 95º

Construction materials

ABS

Colour

White (RAL 9010)

Dimensions (WxHxD)

Ø 184 H 162.5 mm

Weight

1.7 Kg (9.922 lb)

Notes

Cable length 4.5m

Protection rating

IP44

DOWNLOADS

Proel CSB10 Datasheet

Related Products

CES Audio SPS-5121
CES Audio SPS-5121
Suspended pendant ball speaker. White. 5", 12 watts 100 volt line.
see more
List Ex VAT: £74.26
DAP SS-105
DAP SS-105

Suspended pendant ball speaker. White. 5", 10 watts 100 volt line. Clearance Line - limited stock.

see more
List Ex VAT: £15.00
Bosch LBC 3095/15
Bosch LBC 3095/15

Suspended pendant ball loudspeaker. White. 5.25", 10 watts, 100 volt line.
Water resistant, IPx3.

see more
List Ex VAT: £84.00
Adastra PS50W

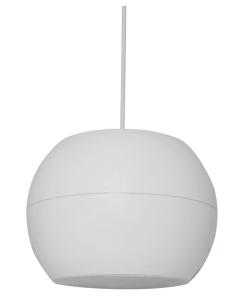

Adastra PS50W
