Mipro ACT-70TC
Click to expand

Mipro ACT-70TC

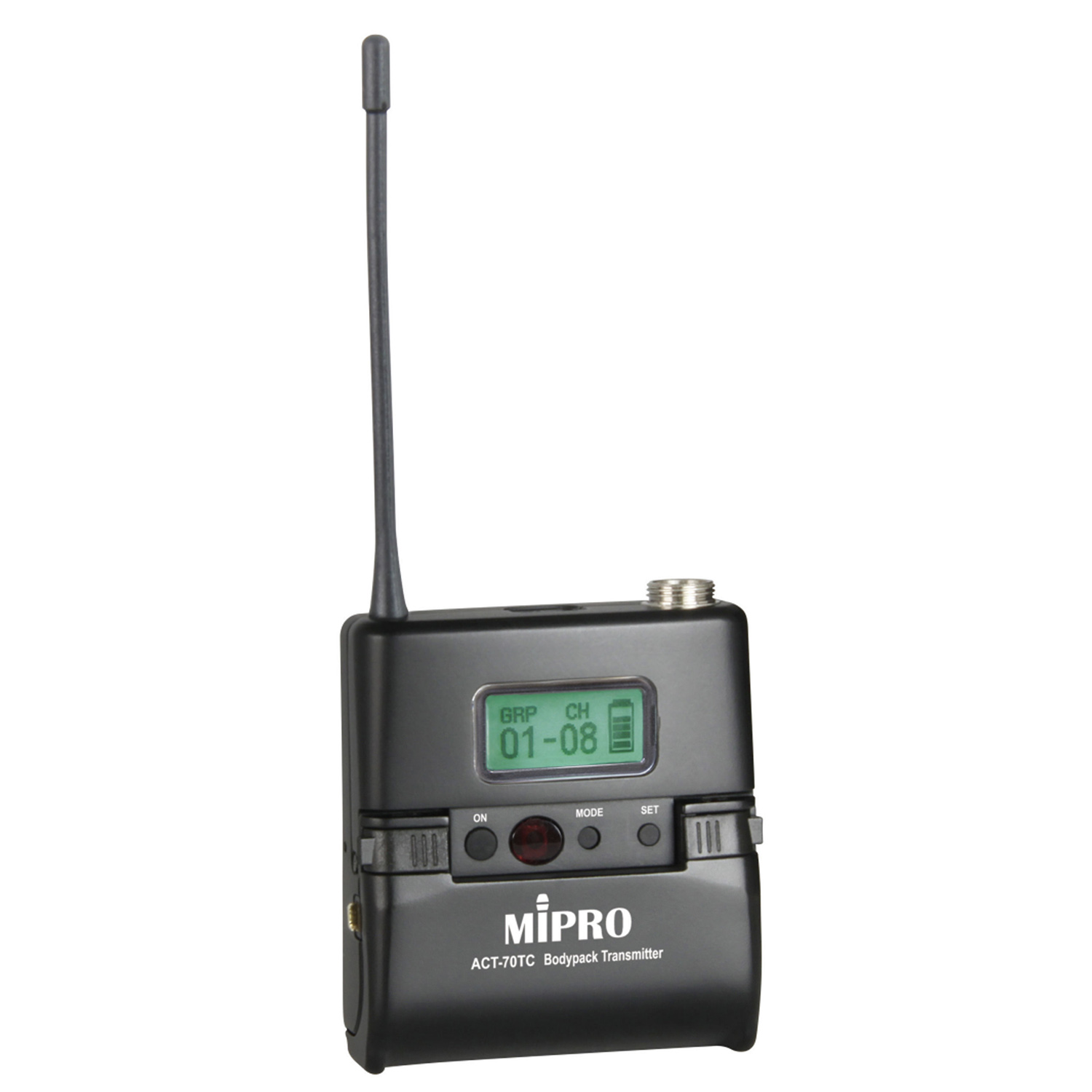

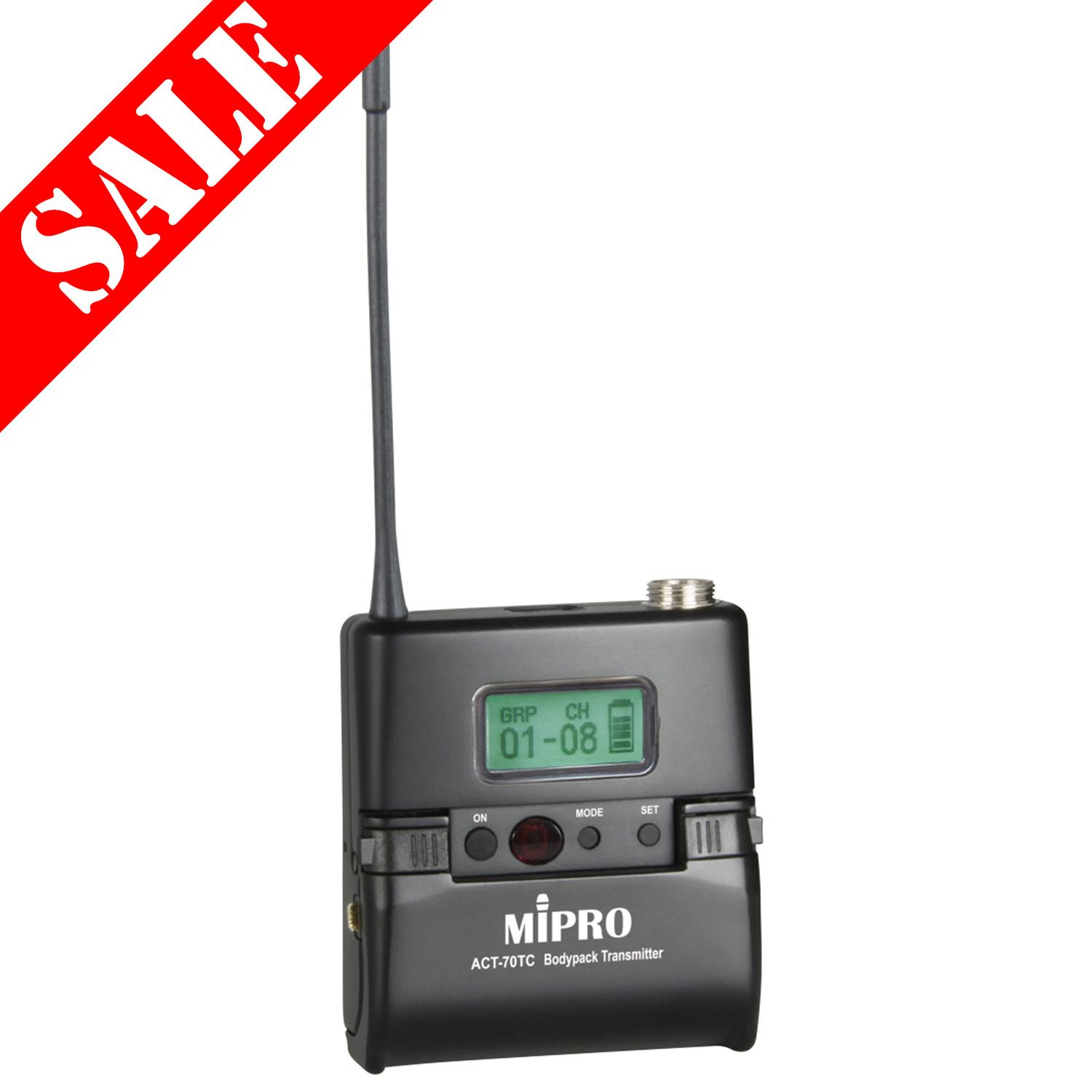

The Mipro ACT-70TC rechargeable beltpack transmitter from the Mipro ACT 7 series is for use with a clip on lapel / lavalier microphone, headset microphone or instrument cable. (Not included - see related products below.)

Clearance line - limited stock.

The on board LCD display indicates the remaining power and the group / channel and is also be used to display the frequency, input gain level, RF output power and mute mode during set up.

Channel 38 only - licence required.

A detachable and reversible belt clip enables the transmitter to be attached to a belt, clothing or guitar strap either way up.

Ultra slim bodypack transmitter with sturdy magnesium alloy housing. On the top features mute switch, mini-XLR connector and antenna.

  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Backlit LCD displays all operational parameter information.
  • ‘On-the-top’ features include mute button, mini-XLR connector and antenna.
  • Mute button with remote-control jack for easy activation of mute function.
  • World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
  • Selectable impedance for microphone or guitar / line inputs. Five selectable gain settings.
  • Mini-XLR input with secure screw lock connector.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • Battery charger available separately
CH38 UHF
List Ex VAT: £180.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency Range UHF 480 – 934 MHz (country dependent)
Bandwidth 72 MHz
Channel Set-Up ACT Sync
RF Output Power  10 mW / 50 mW (switchable)
Deviation < ±40 kHz
Spurious Emissions ≦ -55 dBc
Oscillation Mode PLL Synthesized
Frequency Stability ≦ ±0.005% (-10 – +60℃)
LCD Display Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode,
Lock status, Battery status and error codes
Gain Setting +12dB, +6dB, 0dB, -6dB, -12dB, -18dB (6 settings)
0 dB = input microphone sensitivity
Max. Input Level 0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery Type 1 x ICR18500 rechargeable lithium battery
Current Consumption High Power: approx. 125 mA ; Low Power: approx. 100 mA
Dimensions (W × H × D) 63 × 70 × 25 mm / 2.5 × 2.8 × 1.0 "
Net Weight Approx. 82 g / 2.9 oz

Related Products

Mipro MP-20

Dual battery charger for Mipro ICR185000 rechargeable batteries.
CLEARANCE ITEM - Last One.

see more
List Ex VAT: £10.00
Mipro MP-8

Single slot battery charger for one Mipro hand held mic or bodypack transmitter.

see more
List Ex VAT: £53.82
Mipro MP-80

Multi-function 3-in-1 charging station for Mipro ICR18500 rechargeable lithium batteries and rechargeable hand held mics and bodypack transmitters.

see more
List Ex VAT: £100.91
Mipro MU-53L

Clip on tie clip / lapel microphone for Mipro beltpack transmitters.

Black or Beige. Uni-directional pick-up.

see more
List Ex VAT: £60.00
Mipro MU-53HN & MU-53HNS

Uni-directional headset microphone for Mipro beltpack transmitter.

Black or beige. Sweat resistant - ideal for aerobics.

see more
List Ex VAT: £99.00
Mipro MU-55L

Tie clip / lapel lavalier microphone for use with Mipro beltpack transmitter.

Black or beige. Omni-directional pick-up.

see more
List Ex VAT: £65.00
Mipro MU-55HN & MU-55HNS

Omni-directional waterproof headset microphone for Mipro beltpack transmitter.

Black or beige.

see more
List Ex VAT: £119.00
Mipro ACT-71

Single channel wideband true diversity radio microphone receiver. ACT 7 Series.

UHF, Channel 38 only - licence required.

see more
List Ex VAT: £309.00

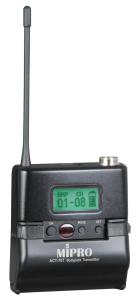

Mipro ACT-70T
