CES Audio CAL-5300U
CES Audio CAL-5300U
CES Audio CAL-5300U
Click to expand

CES Audio CAL-5300U

This product is no longer available. Please contact us for help in finding a suitable alternative.

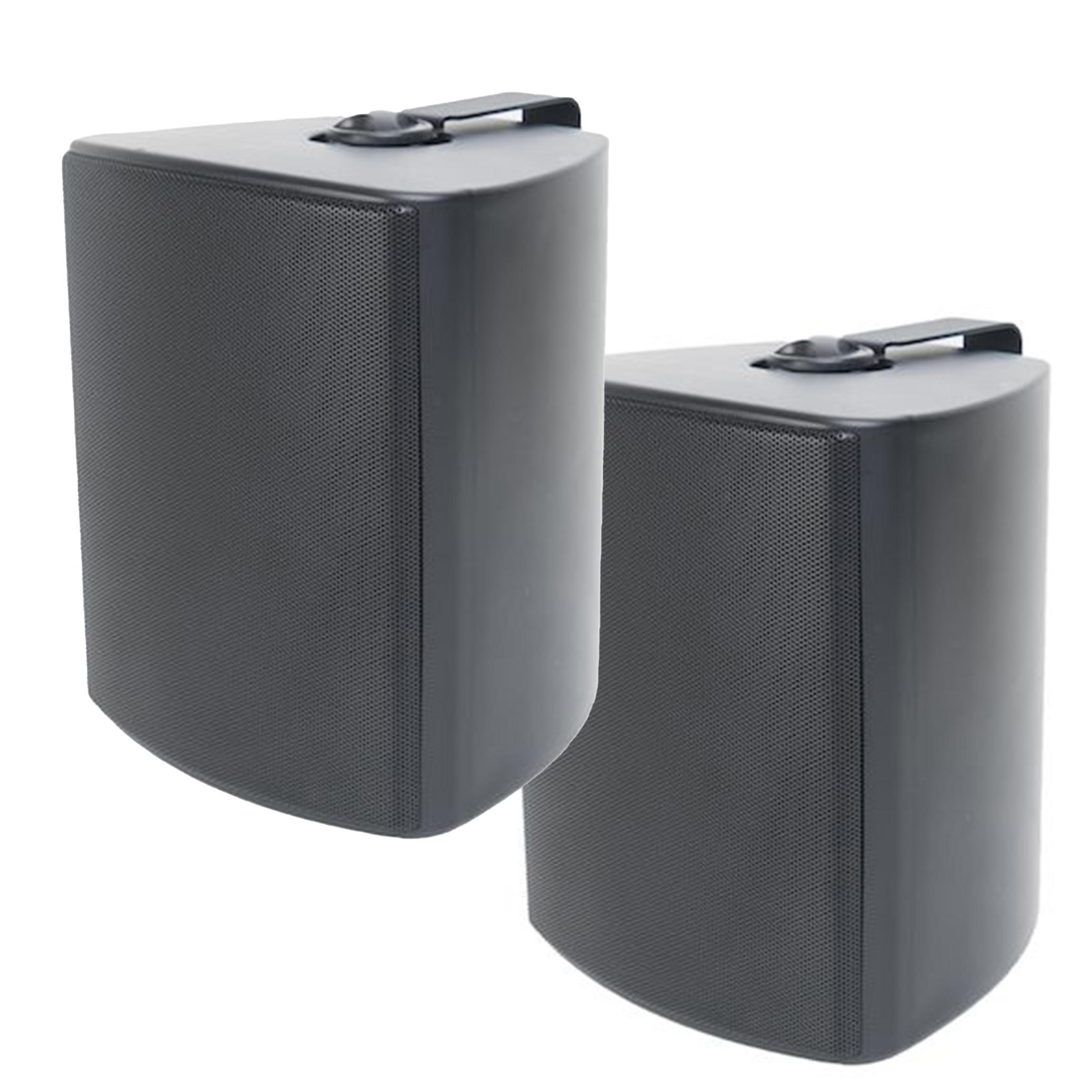

The CES Audio CAL-5300U loudspeakers are fitted with a high quality 2-way speaker system using a 5” polypropylene bass / mid cone & 10-ounce magnet with a mylar laminate dome tweeter.

The CAL5300U is rated at 30 watts RMS and is compatible with both 100V and 8Ω loudspeaker circuits.

The attractive trapezoidal cabinet design improves directivity and allows versatile mounting.

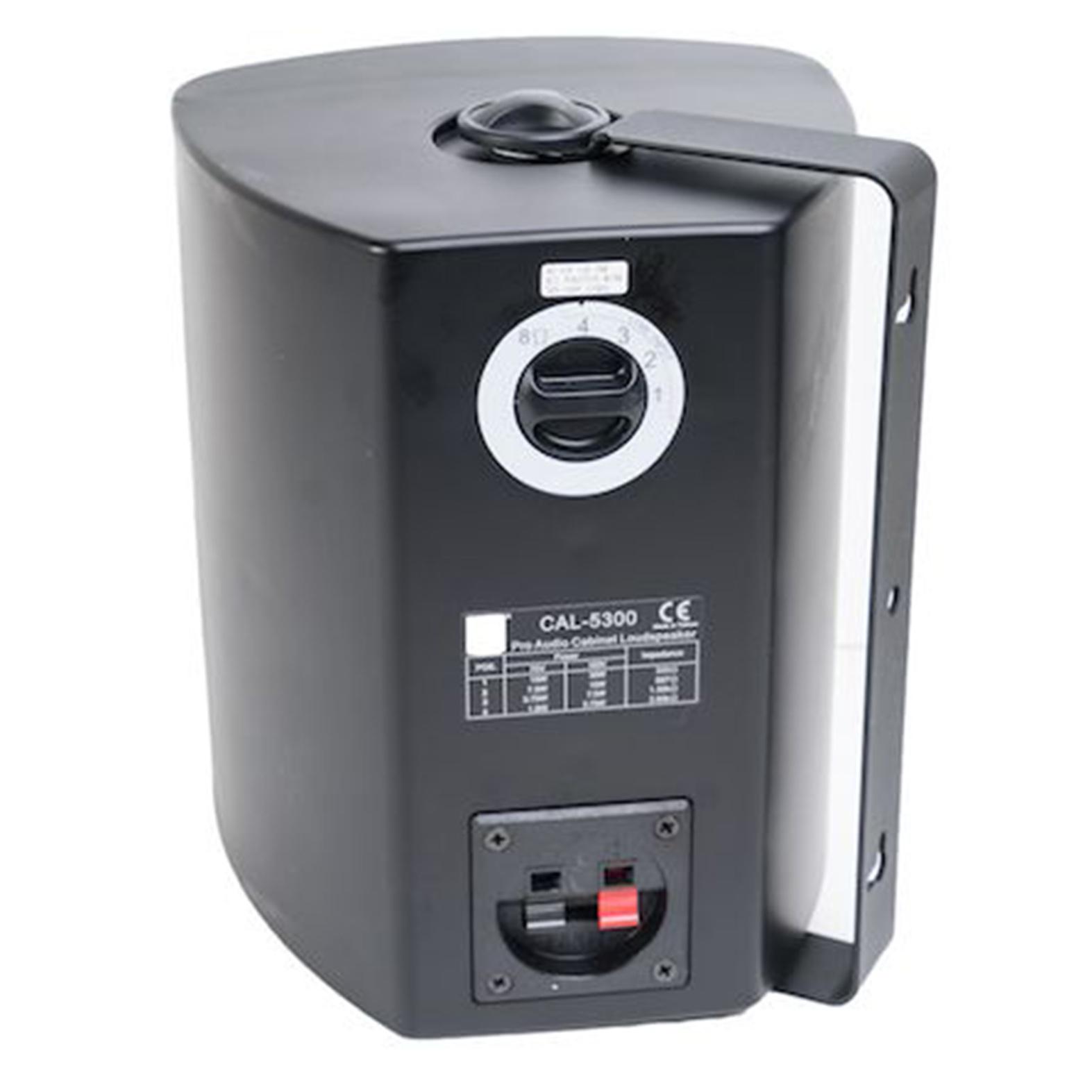

U mount bracket included as a standard accessory.

Supplied and priced as a pair.

1a: 100V 1e: 8ohms
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Model No.

CAL-5300

Rated Power (rms)

30W

Impedance

333Ω, 667Ω, 1.30kΩ & 2.60kΩ

Power Taps @ 100V

Power Taps @ 70V

30W, 15W, 7.5W, 3.75W & 8Ω

15W, 7.5W, 3.75W,1.9W & 8Ω

SPL (1W / 1M)

89 dB

Max. SPL (Rated W / 1M)

104 dB

Frequency Range (-10dB)

75 Hz ~ 25K Hz

Dispersion 1K Hz / 4K Hz

190˚ / 125˚

Ambient Temperature

-20˚C ~ +60˚C

Power Selection

Selecting Switch

Termination

Push Terminal

Material

Housing: High impact polystyrene, Grille: Steel.

Colour / Finish

Black (RAL 9005)

Dimensions

241 W X 189 H X 175 D mm.
9.49 W X 7.44 H X 6.89 D in.

Net Weight (ea)

2.66 kgs (5.86 lbs.)

Mounting

U Type Steel Bracket

DOWNLOADS

CES Audio CAL-5300U Datasheet

Related Products

RCF MR 33TB Archived
RCF MR 33TB Archived

Compact reflex cabinet loudspeaker. 20 watts at 100 volt line / 40 watts at 4 ohm. BLACK.

see more
List Ex VAT: Contact Us
AMC iPlay 5TB
AMC iPlay 5TB

Pair cabinet speakers. 5" driver, 35 watts, 8 ohm / 30 watts, 100 volt line.
CLEARANCE LINE - Last Pair.

see more
List Ex VAT: £50.00

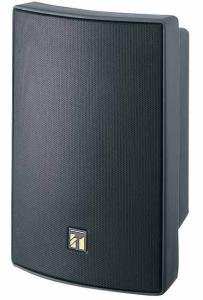

TOA BS-1030
