Electro-Voice ZX1i-100T

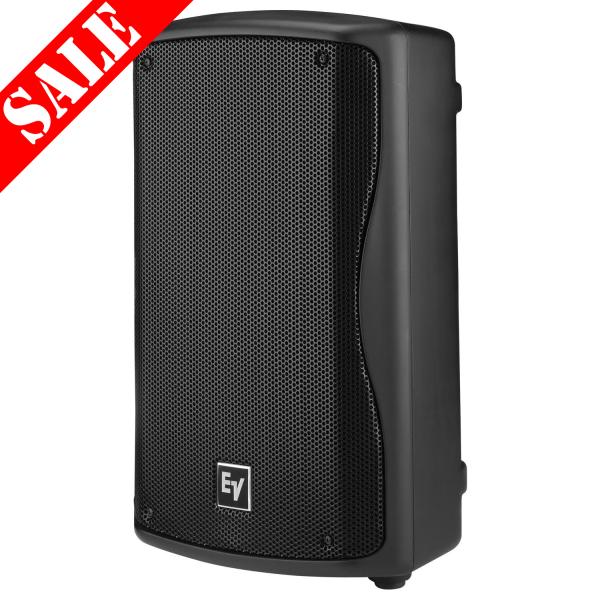

The Electro-Voice ZX1i-100T is an 8" two way loudspeaker with a lightweight and durable high-tech enclosure and high power output. Compatible with both Hi-Z and Lo-Z, rated 200 Watts @ 8 Ohms or 100 Watts @ 100V line. Suitable for use both indoors and outdoors (IP55). Black finish.

Clearance Line - Limited Stock. Less than half price.

The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance in addition to excellent low frequency response.

A sophisticated crossover network integrates it with the EV DH2005, a 1-inch exit true compression driver with extended frequency response and high output capability.

The ZX1i-100T can be mounted either horizontally or vertically for complete coverage flexibility. Two rotatable horn coverage patterns are available; 90° x 50° for longer throw and cluster applications, 100° x 100° for broad even dispersion. A multilayer grille with hydrophobic cloth and weatherized components allows both indoor and outdoor use.

Full-bandwidth overload protection is provided for reliable, long term operation without audible effect.

Weatherised components and the molded polymer enclosure make this speaker water resistant, rated IP55, and suitable for a variety of  environmental conditions.

ZX1i installation is incredibly simple with the included QuickSAMTM mounting system.

Available only in Black.

  • Indoor/outdoor design
  • Ideal for installed mains, fills, or distributed sound
  • Long-excursion weather-treated EV8L woofer
  • 1" HF compression driver
  • 90º x 50º rotatable horn
  • High sensitivity, 109 dB maximum SPL
  • Power handling: 200 W continuous, 800 W peak (At 8 Ohms)
  • 100V Transformer tappings at 100W, 50W, 25W, 12.5W
  • Compact high-impact polypropylene enclosure

    Sold and priced individually.


1a: 100V 1e: 8ohms IP55
List Ex VAT: £250.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Enclosure Material

High Impact Polystyrene

Colour

Black

Speaker Type

Fullrange, Mid-High, Two-Way

Recommended High-Pass Frequency

40 Hz

Frequency Response (-10 dB)

48 - 20000 Hz

Sensitivity 1 W/1 m

121 dB

Max. SPL/1m (calc)

109 dB

Coverage H x V

100 °

System Power Handling (Continuous/Program/Peak)

200/400/800 Watts at 8 Ohms

LF Transducer

8-inch EV8L

HF Transducer

1-inch DH2005

Crossover Frequency

1700 Hz

Minimum Impedance

6 Ω

Outdoor

Yes (IP55)

Transformer Taps (100V)

100W, 50W, 25W, 12.5W + 8Ohm

Dimensions H x W x D (mm)

451 (17.76") x 282 (11.1") x 263 (10.35")

Weight (kg)

10.4

Related Products

Electro-Voice ZX1i-90

Lightweight low impedance cabinet speaker. 200 watts, 8 ohm. Black.

see more
List Ex VAT: £603.70

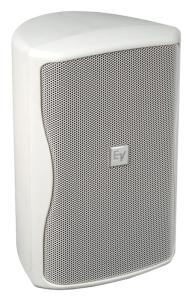

Electro-Voice ZX1i-90W
