RCF IPS1700
Click to expand

RCF IPS1700

The RCF IPS1700 is a two-way professional low impedance power amplifier combining high quality performance and reliability with the latest power amplifications technologies.

Clearance Line - Limited Stock. Below half original list price!

Compact & lightweight (12.7kg), the 2U high IPS 1700 is a 2 channel power amplifier that delivers up to 2 x 450 W RMS @ 4 Ohms (900 W RMS bridged @ 8 Ohms).

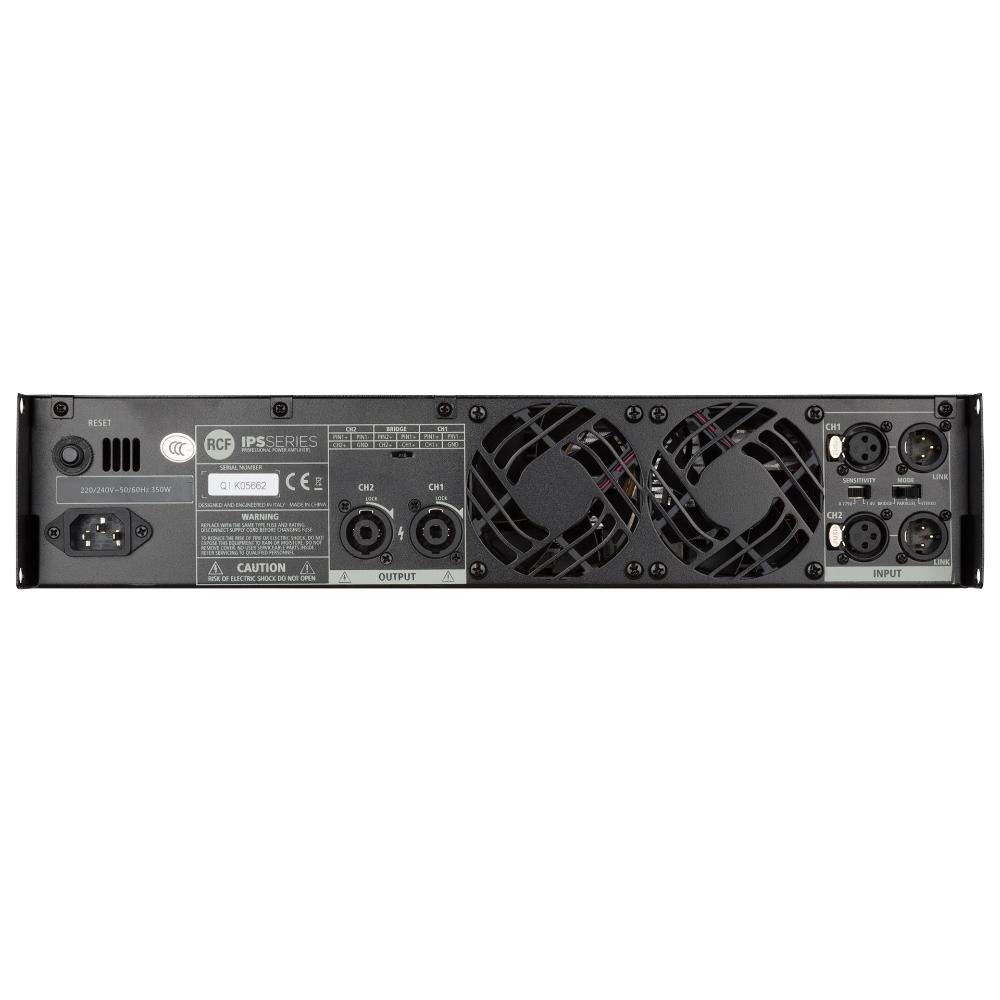

It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, powercon outputs.

Moreover, it is protected against shorts and open circuits.

The IPS 1700 can withstand the hardest heat conditions ensuring great reliability with its high efficiency heat sinks and high speed DC fans.

  • 2U, 19" rack mount
  • Fast response and low distortions
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety

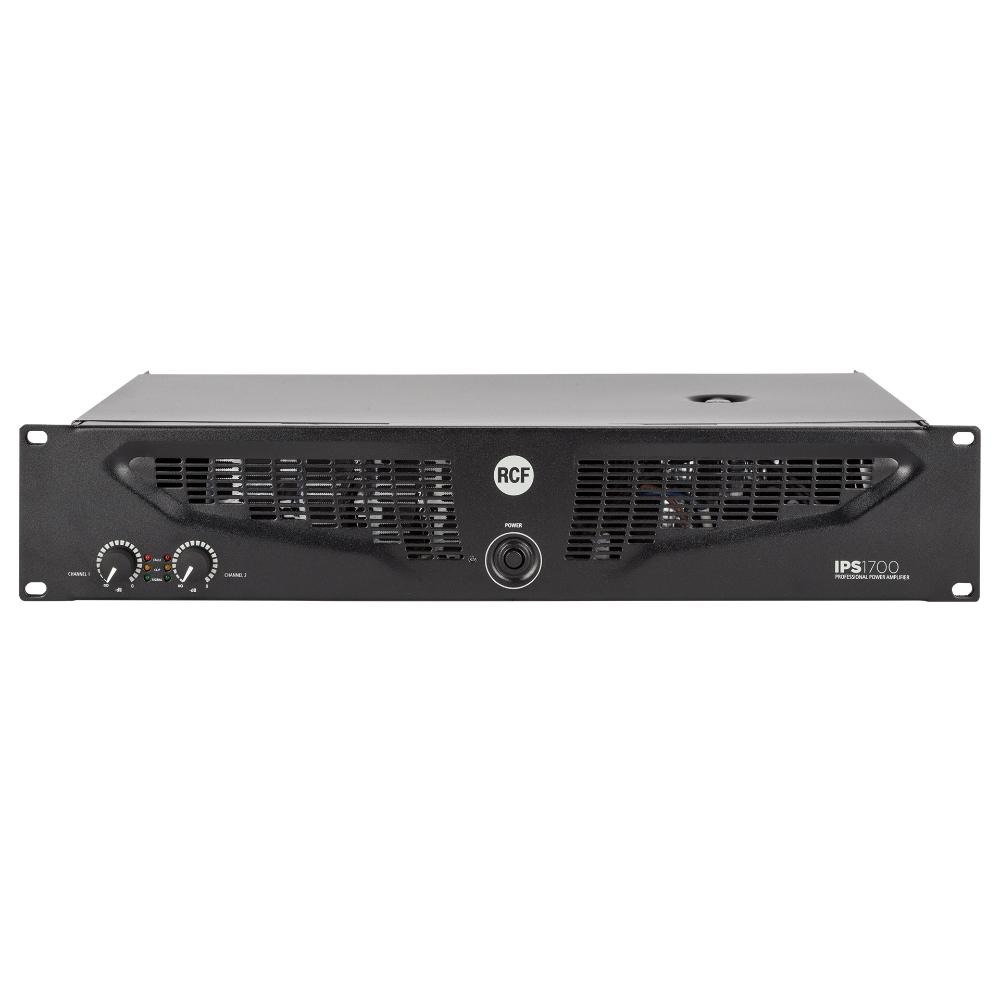

  • Front panel signal / clip / protect LED indicators
  • XLR input connectors
  • SPEAKON NL4 output connectors
4ohms 8ohms
List Ex VAT: £230.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Number of channels

 2

Power output per channel (@ 4 ohm)

 450 W RMS

Power output per channel (@ 8 ohm)

 330 W RMS

Power output (bridged @ 8 ohm)

 900 W RMS

Frequency Response (-3dB)

 20 Hz ÷ 20 kHz

Signal/noise rate (”A” weighted)

 >100 dB

Crosstalk

 <75 dB

Distortion (THD+N) @ 1 kHz nominal power

 <0.5 %

Total number of inputs

 2 x XLR (Balanced: 2, Mono: 2)

Signal output

 2 x XLR

Power output connectors

 Speakon

Controls Configuration

 DIP switch, Front panel

Protections

 Forced cooling, Short circuit, Thermal, DC, Fuses, VHF (Very High Frequencies)

Operating voltage

 220-240/115 V~ 50/60Hz

Power consumption

 350 W

Standard compliance

 EN54-16 certified, CE marked

Cabinet/Case Material

 Metal, Black

Rack mounting

 19", 2U

Dimensions H x W x D

 88 mm (3.46”) x 482 mm (18.98”) x 255 mm (10.04”)

Weight

 11.1 kg / 24.47 lbs
