LD Systems TR 212
Click to expand

LD Systems TR 212

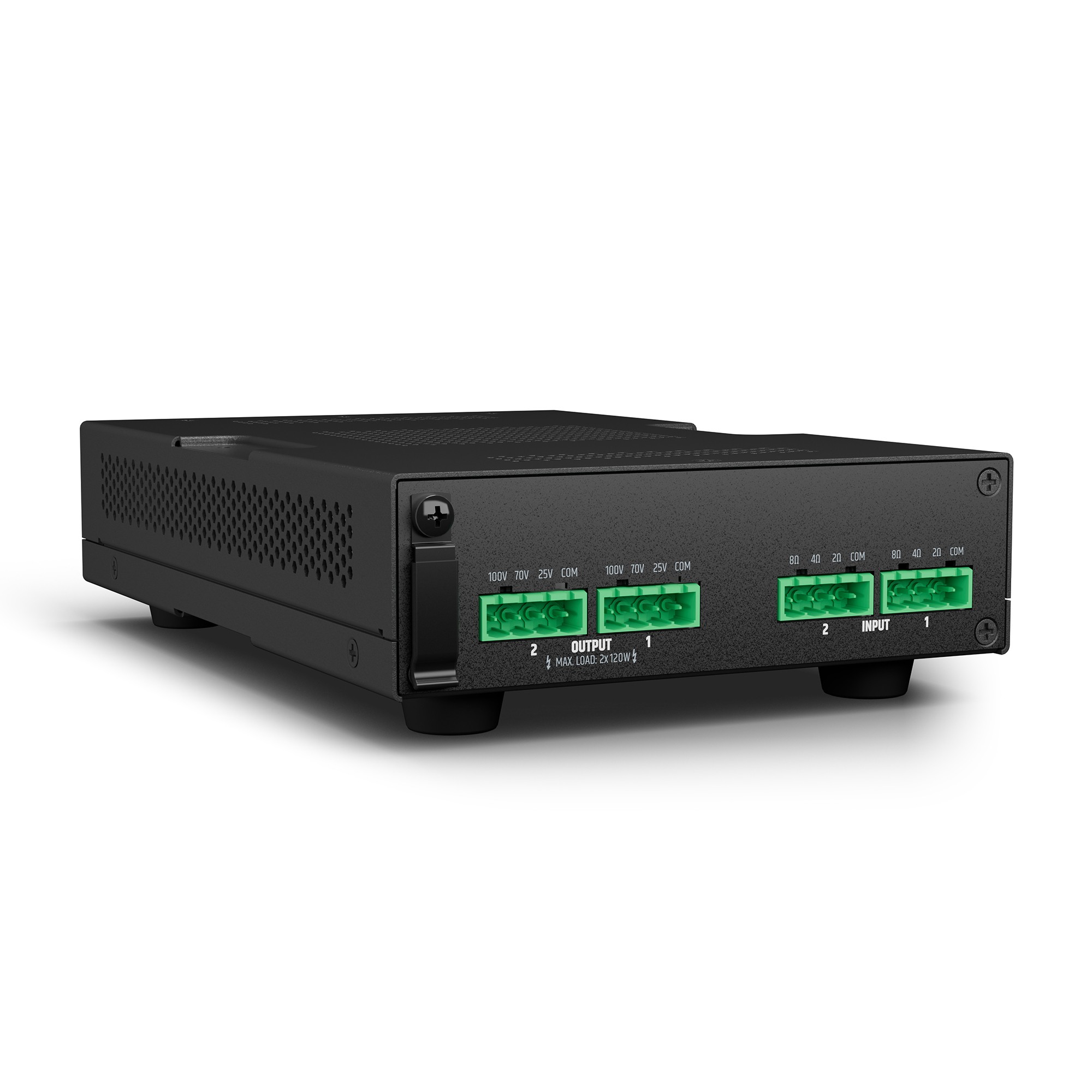

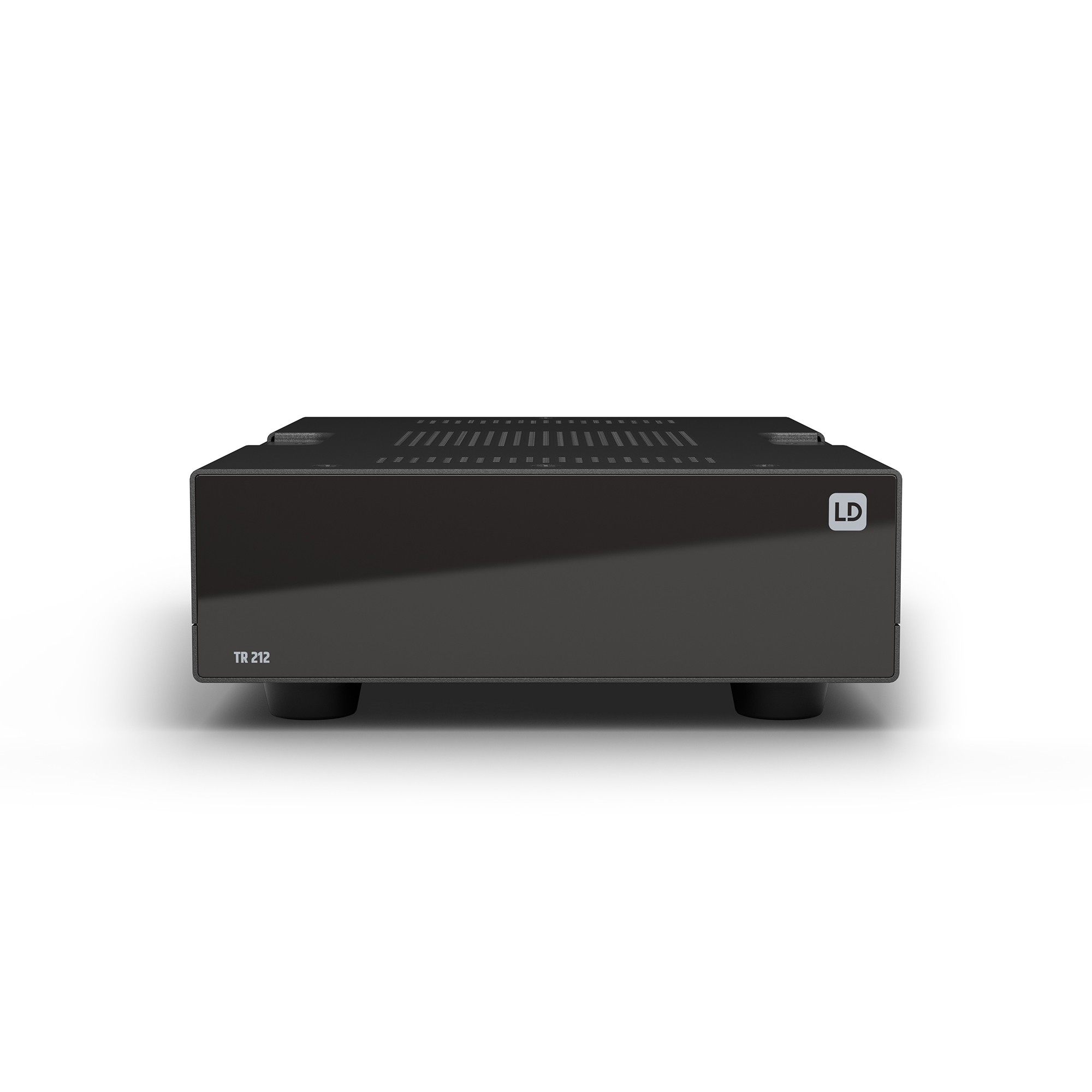

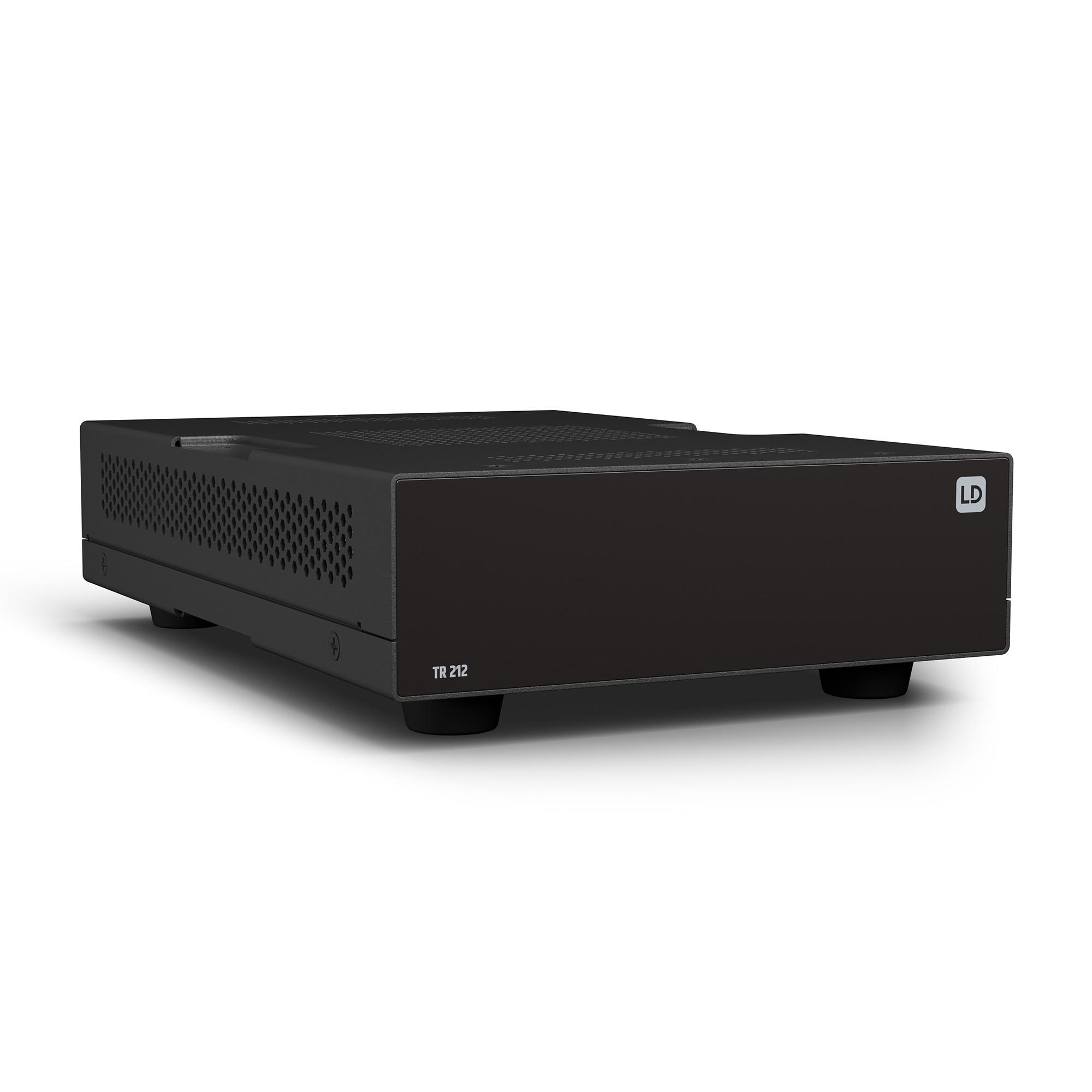

The LD Systems TR 212 two-channel 120W loudspeaker transformer takes a low impedance amplifier signal and converts it to a constant voltage loudspeaker line.

This allows a conventional low impedance amplifier to be used to drive multiple loudspeakers on each of its outputs, when used with loudspeakers that have a constant voltage connection ie 25, 70 or 100V line.

The ultra-compact LDTR212 can be mounted discreetly using the supplied mounting plates. Alternatively, being part of the TICA Series, it can be mounted in a 19” rack, alongside up to 3 other TICA units side by side, using the optional rack tray (TICARK), resulting in a bespoke system in minimal rack space.

  • 2 loudspeaker circuits
  • 120W power handling per channel
  • Inputs from 8, 4 or 2 Ohms amplifier signals
  • Outputs 100V, 70V or 25V line output to loudspeaker circuits
  • All-in-one design combining the transformer and protective chassis
  • Compact and easy to mount and connect
  • Warranty: 5 Years
100V 4ohms 8ohms 1U 2ohm
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Channels

2

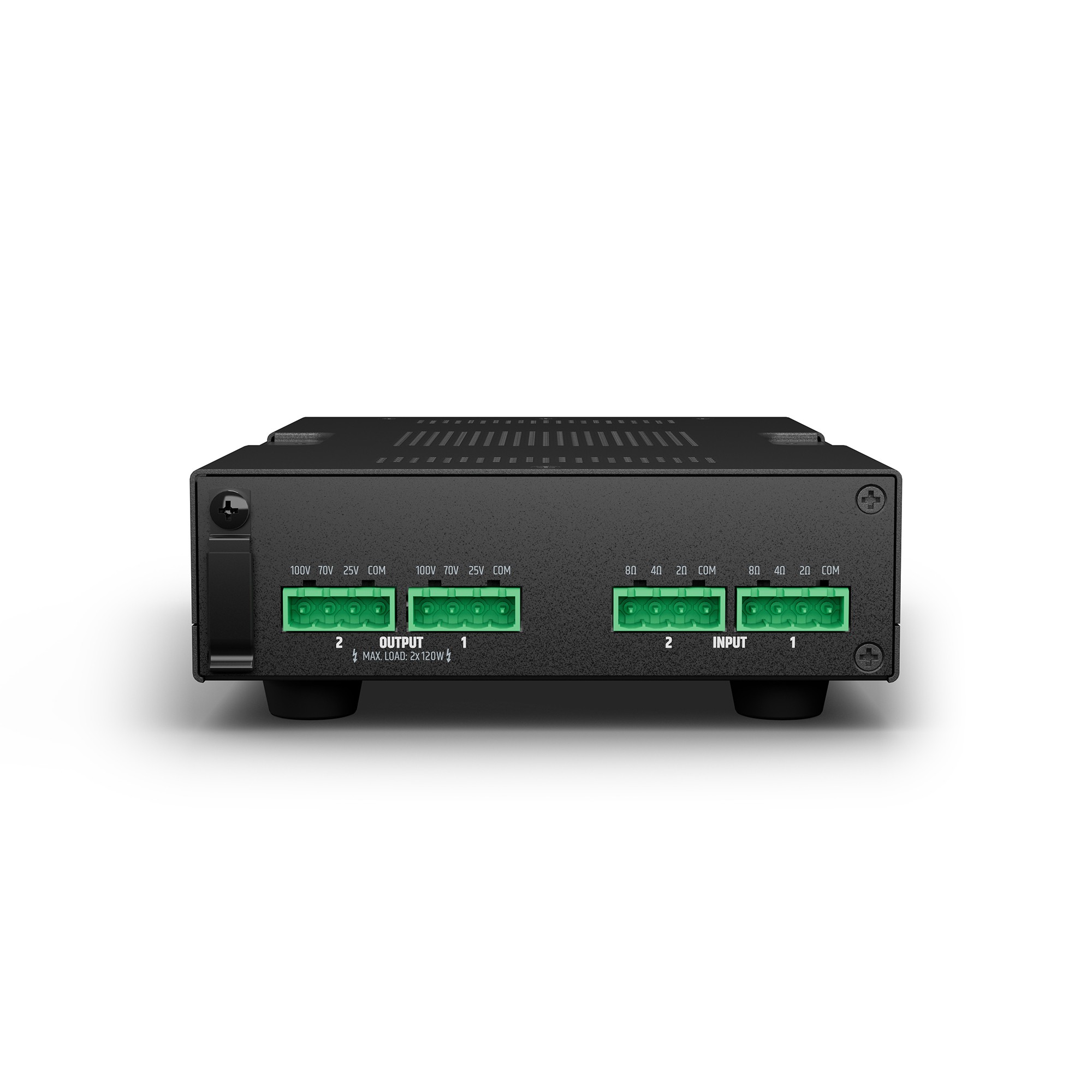

Input connections

4-pole Terminal Block. Pitch 5.08mm

Power Handling per channel

120 W

Input connectors

2 / 4 / 8 Ohm

Frequency response (-1 dB)

50 Hz - 20000 Hz

Output connections

4-pole Terminal Block. Pitch 5.08mm

Output connectors

25 / 70 / 100V

Construction

Steel chassis, Plastic Front panel

Transformer type

Toroidal

Dimensions (W x H x D) (height with rubber feet)

142 mm x 53 mm x 226

Weight

2.7 kg

Accessories (included)

Mounting plates for surface mount applications, Terminal blocks for electrical connections.

Optional accessories

Rack tray (LDTICARK)
