LD Systems PRE 2

The LD Systems PRE 2 compact two-channel line and mic mixer is part of the TICA® series and is the ideal solution for smaller installations, allowing you to mix stereo audio from any media source with a microphone for announcements.

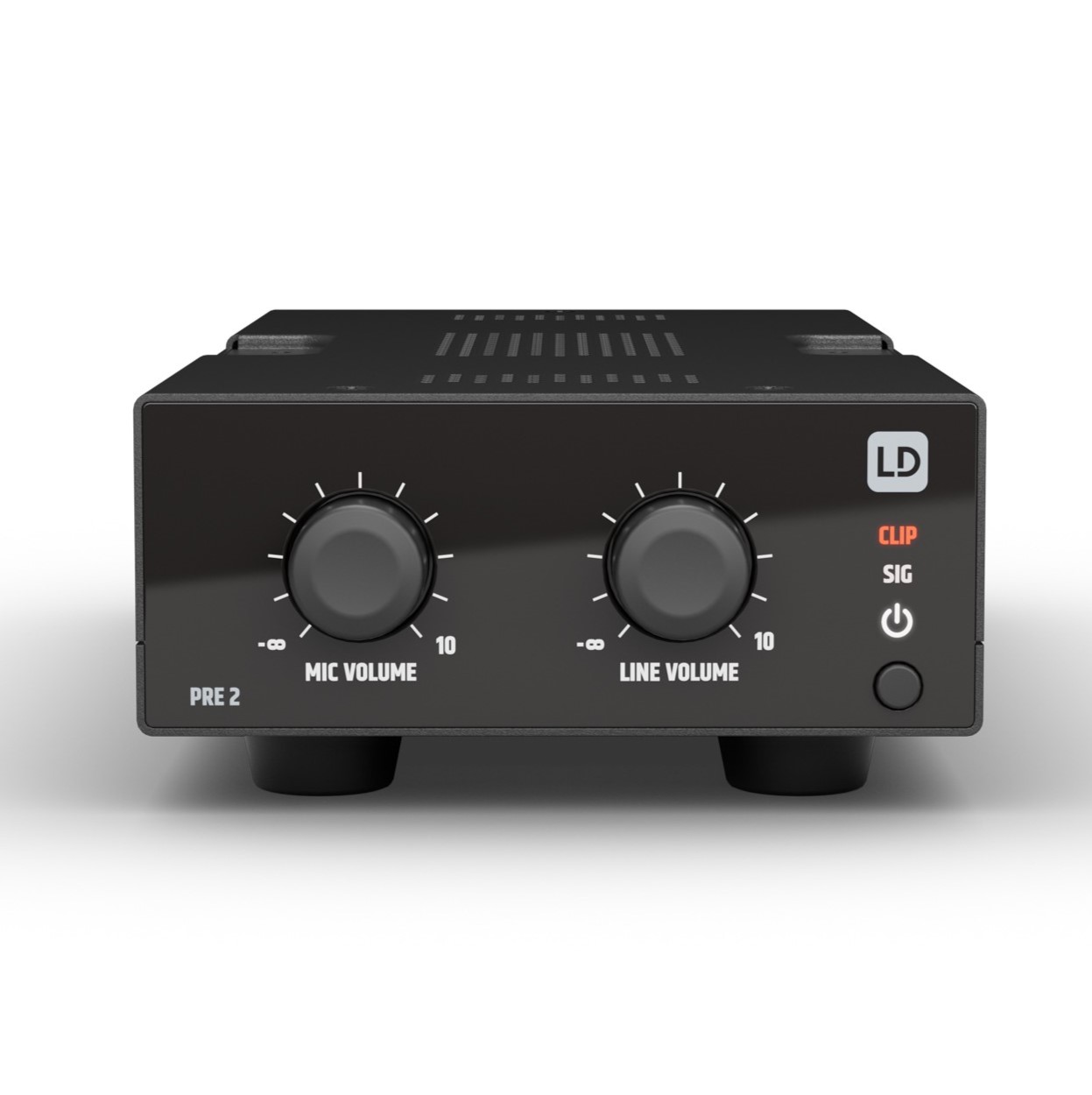

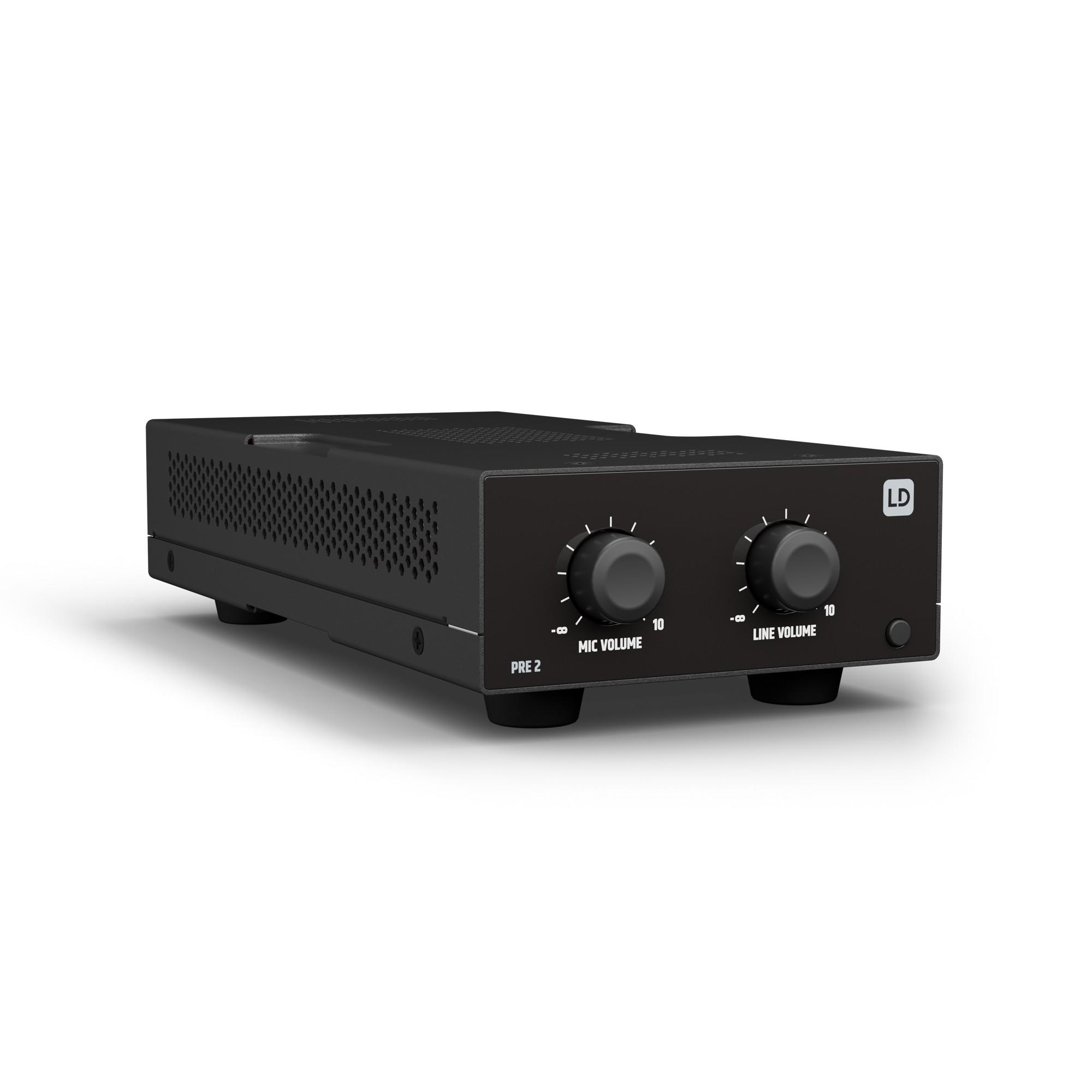

The PRE2 is incredibly easy to use with two simple volume control knobs, with signal presence and clip indicators.

The built-in audio ducking function automatically reduces the music level from the stereo line input when an announcement is being made. Connect a wired remote for simple master volume control. Dip switches let you configure it to work in stereo or mono mode.

Extremely compact in size (106 × 44 × 222 mm) and supplied with mounting plates, the PRE2 is perfect for discreet installation behind screens or under tables.

Alternatively, it fits into a ¼ 19-inch rack. Use the optional rack tray (TICARK) to slot up to four TICA® series products alongside each other and build a bespoke system in minimal rack space.

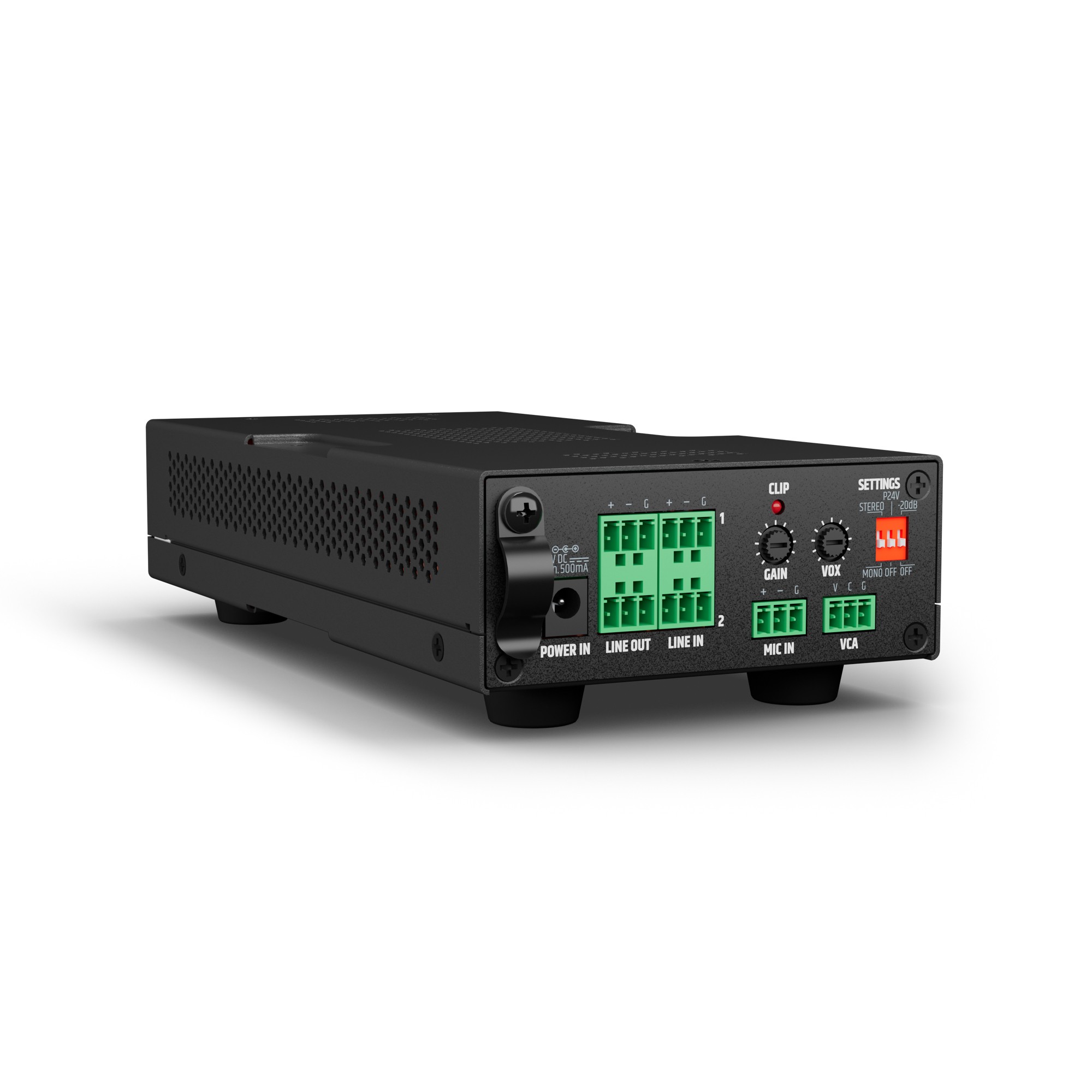

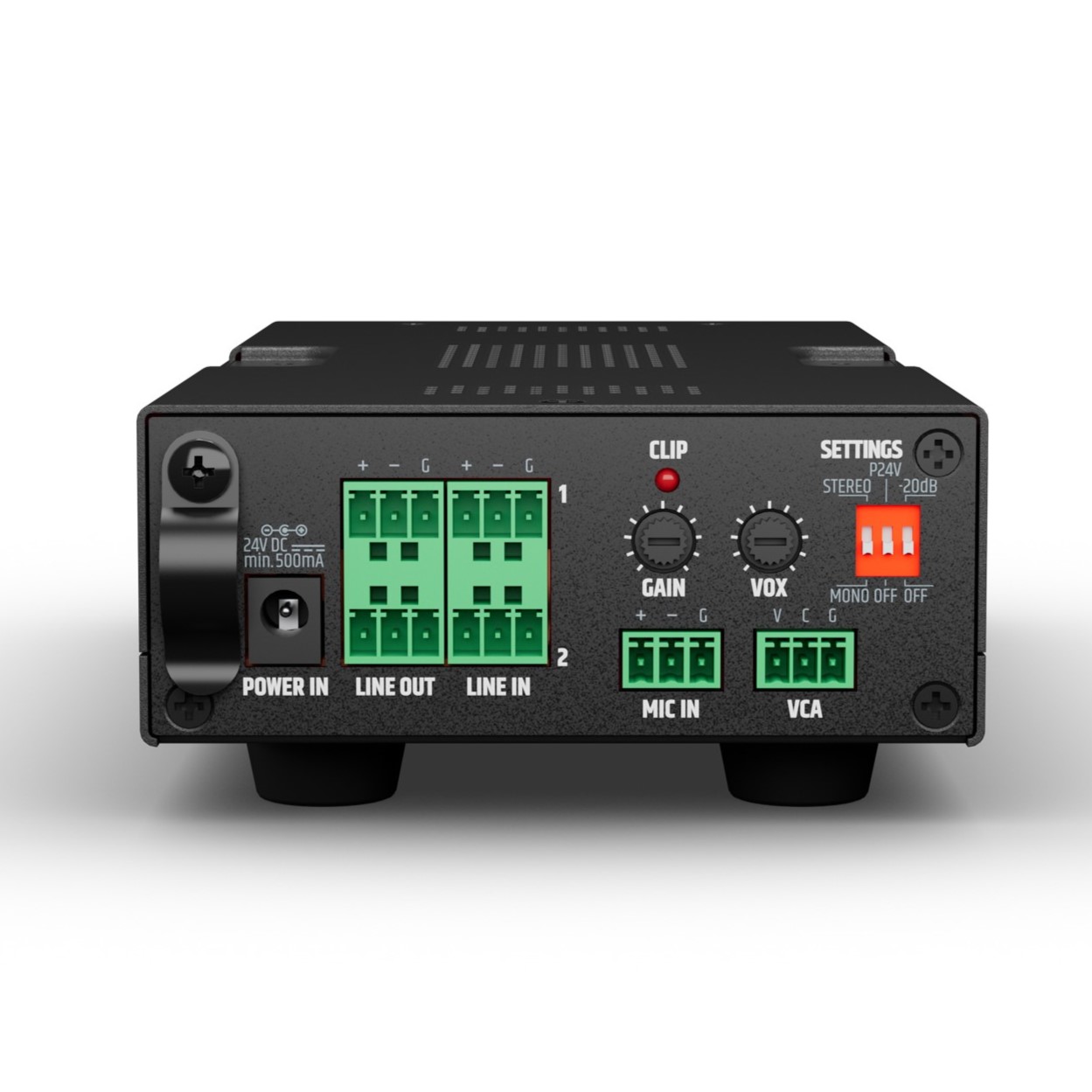

The PRE2 uses an external 24 V power supply. Terminal block connections for the analogue inputs and outputs make wiring easy.

  • 1 x balanced stereo line input
  • 1 x mic input with gain control and –20 dB pad switch
  • Stereo line output (switchable to mono)
  • Remote level control
  • Automatic music ducking for announcements
  • Warranty: 5 Years
1U
List Ex VAT: Contact Us
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Product type

Installation mixer preamplifier

Mic inputs

1

Line inputs

1 x stereo

Line outputs

1 x stereo

Cooling

Convection

Priority levels

2

Frequency response (-3 dB)

150 Hz - 20000 Hz

Gain

Mic: 18 to 48 dB

PAD

-20 dB switchable

Phantom power

+ 24V, 10mA switchable

VOX Threshold

Mic: 0%: Off, 25%: -40 dBu, 50%: -50 dBu, 100%: -63 dBu

Connector

3-pin terminal block (3.81 mm)

Line Input Connectors

2 x 3-pin Terminal Block, pitch 3.81 mm

Line Output Connectors

3-pin terminal block (3.81 mm)

Max. output level

16 dBu

3rd Party Control Connector (VCA)

3-pin Terminal block, pitch (3.5 mm)

Main Volume (VCA)

10 k (Linear Taper) External Potentiometer

Power supply

External SMPS, 100 V AC - 240 V AC, 50 - 60 Hz

Power supply plugs

Type A - USA/Canada, Type C - EU, Type G - UK, Type I - Australia

Power Supply Secondary

24 V DC / 500 mA

Rack width

1/4 19"

Weight

1.42 kg

Accessories (included)

External power supply with interchangeable plugs, Mounting plates for surface mount applications

Optional accessories

Rack mounting hardware (LDTICARK)
