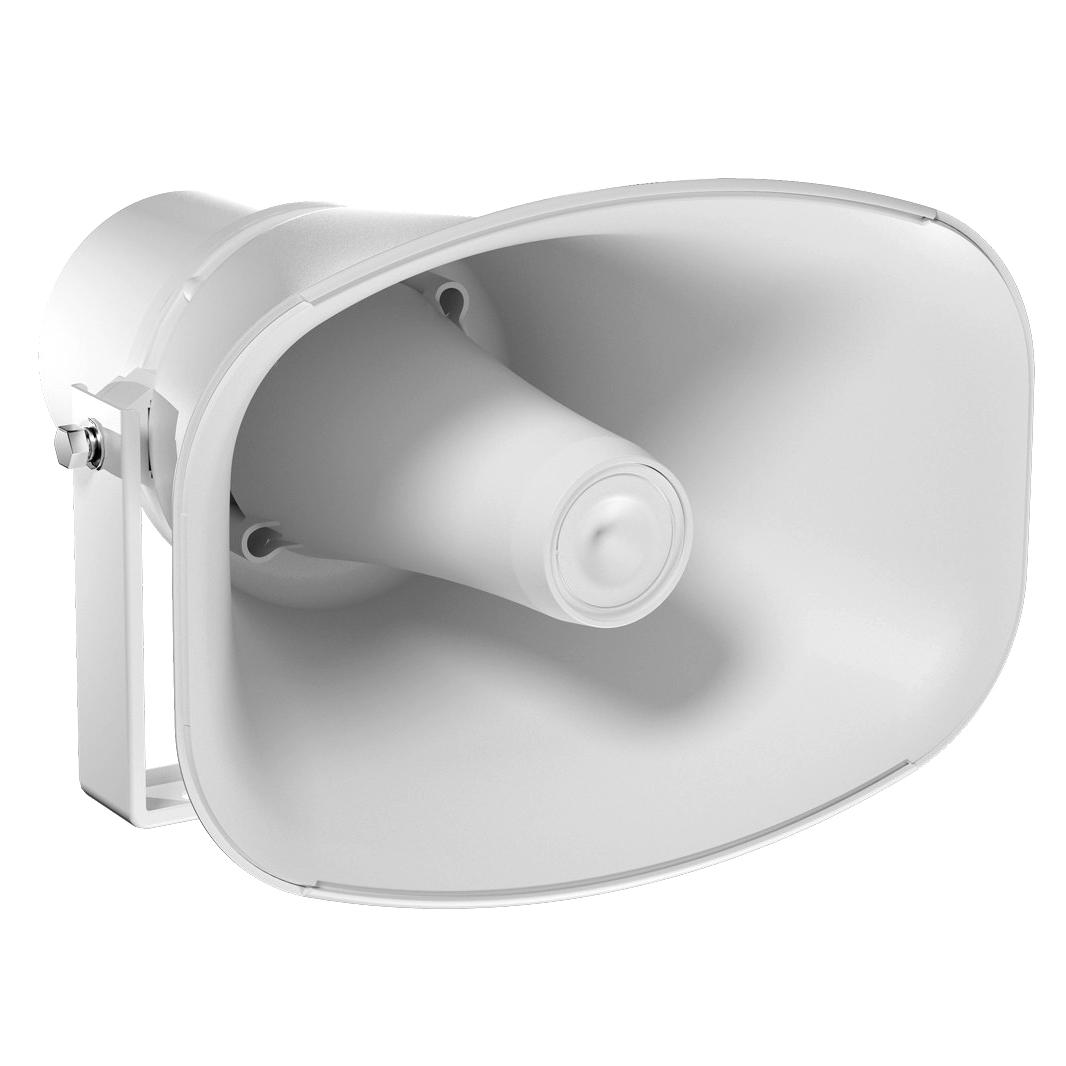

LD Systems CE H30 Outdoor Horn speaker, IP66 rated

LD Systems CE H30

The LD Systems CE H30 horn loudspeaker is constructed from tough, impact resistant, ABS and is waterproof to IP66 standard making it ideal for demanding outdoor applications.

Rated at 30 watts, the CEH30 horn delivers intelligible speech over long distances and is suitable for use on either 70/100V high impedance or 8 ohm, low impedance loudspeaker circuits.

Fitted with a 180-degree swivel U-bracket for easy mounting.

  • 30W rated power
  • 8 Ohm, 70V and 100V line
  • 3.75, 7.5, 15 and 30W power taps
  • IP66 weatherproof
  • Built in mounting bracket
  • Warranty: 5 Years
1a: 100V 1e: 8ohms IP66
List Ex VAT: Log in
Log in for Trade Prices

Please contact us for availability

CONTACT US

SPECIFICATIONS

100 V Inputs

30W/15W/7.5W/3.75 W

70 V inputs

30W/15W/7.5W/3.75W/1.9 W

Frequency response

420 Hz - 6 KHz

Sensitivity (1 W / 1 m)

113 ±3 dB

Max load

30 W

Protection class IP

66

Operating Temperature

-25 - 55 °C

Material

ABS plastic, white

Outer dimensions (L X H X D)

205 x 280 x 285 mm

Weight

2.21 kg

DOWNLOADS

LD Systems CE H30 User Manual

Related Products

Penton PH30/T
Penton PH30/T

ABS re-entrant horn speaker. 30 watts, 100 volt line.
Water resistant, IP66 rated.

see more
List Ex VAT: £103.20

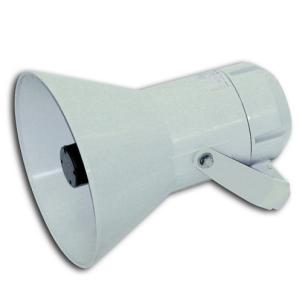

DNH HP-30
